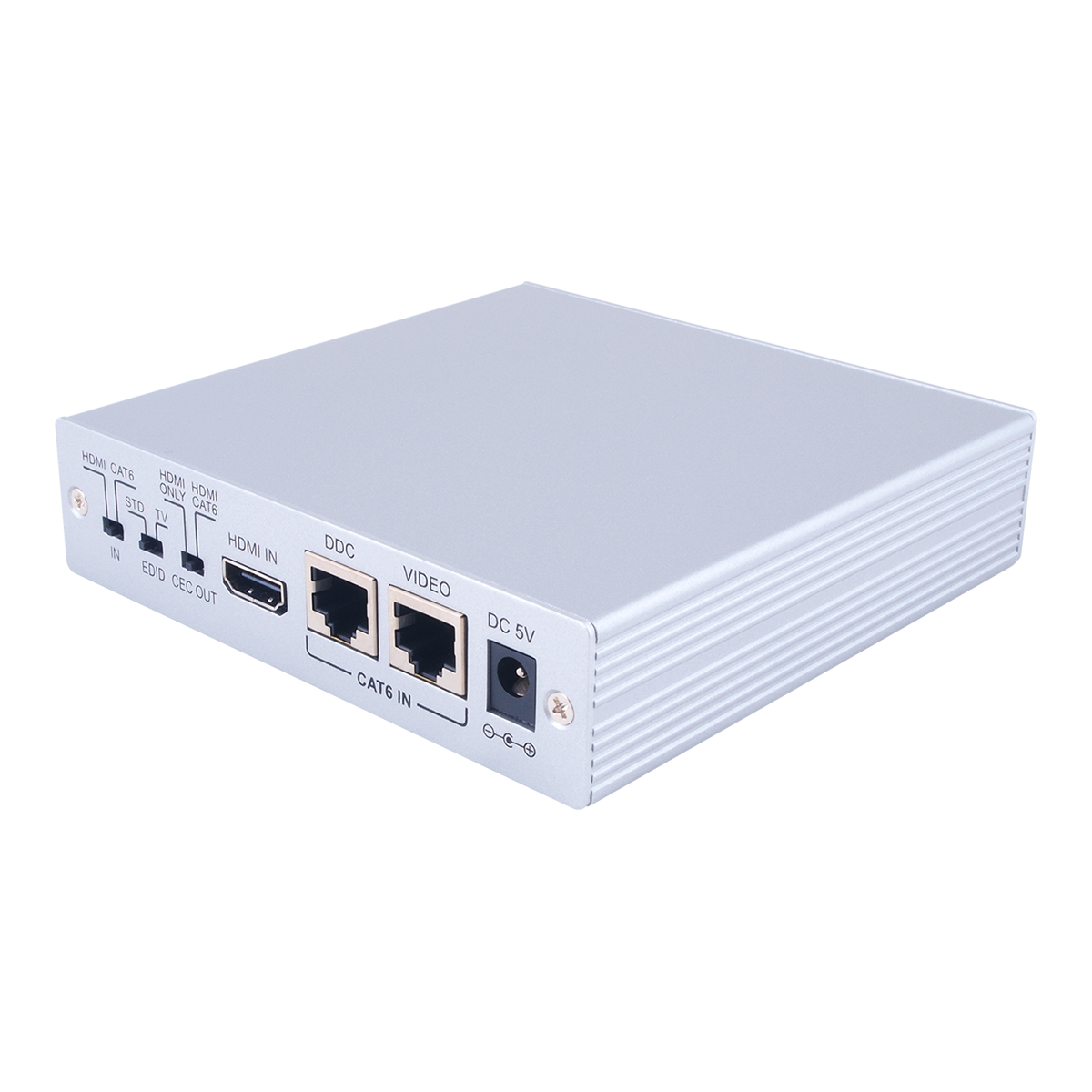

CLUX-22HC EOL
HDMI/CAT6 to HDMI/CAT6 Splitter Switcher
- HDMI 1.3, HDCP1.1 and DVI1.0 compliant.
- Deep color video up to 12bit, 1080p@(24/60)Hz.
- Simultaneously outputs one HDMI and one Video/DDC CAT6 source to one HDMI and one Video/DDC CAT6 output.
- HDCP keysets allows each output to work independently when connecting to an HDMI display.
- Capable of splitting HDMI/CAT6 sources to HDMI/CAT6 outputs without any signal loss.
- Supports LPCM7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD master audio transmission (32-192 kHz Fs sample rate).
- Supports a wide range of PC and HDTV resolutions from VGA to SXGA and 480i to 1080p.
- Full HDCP Compliant.
- According to tests The Input/Output source can be up to 15/15 meters
- away when the HDMI cable has a resolution of with 1080p/8bits. The CAT6 cable test showed that with a resolution of 1080p/8bits, the Input/Output source can be 45/45 meters away. The HDMI cable test showed that with a resolution of 1080p/12bits, the Input/Output source can be 15/10 meters away. And finally the CAT6 cable test showed that with a resolution of 1080p/12bits, the Input/Output source can be 20/20 meters away
