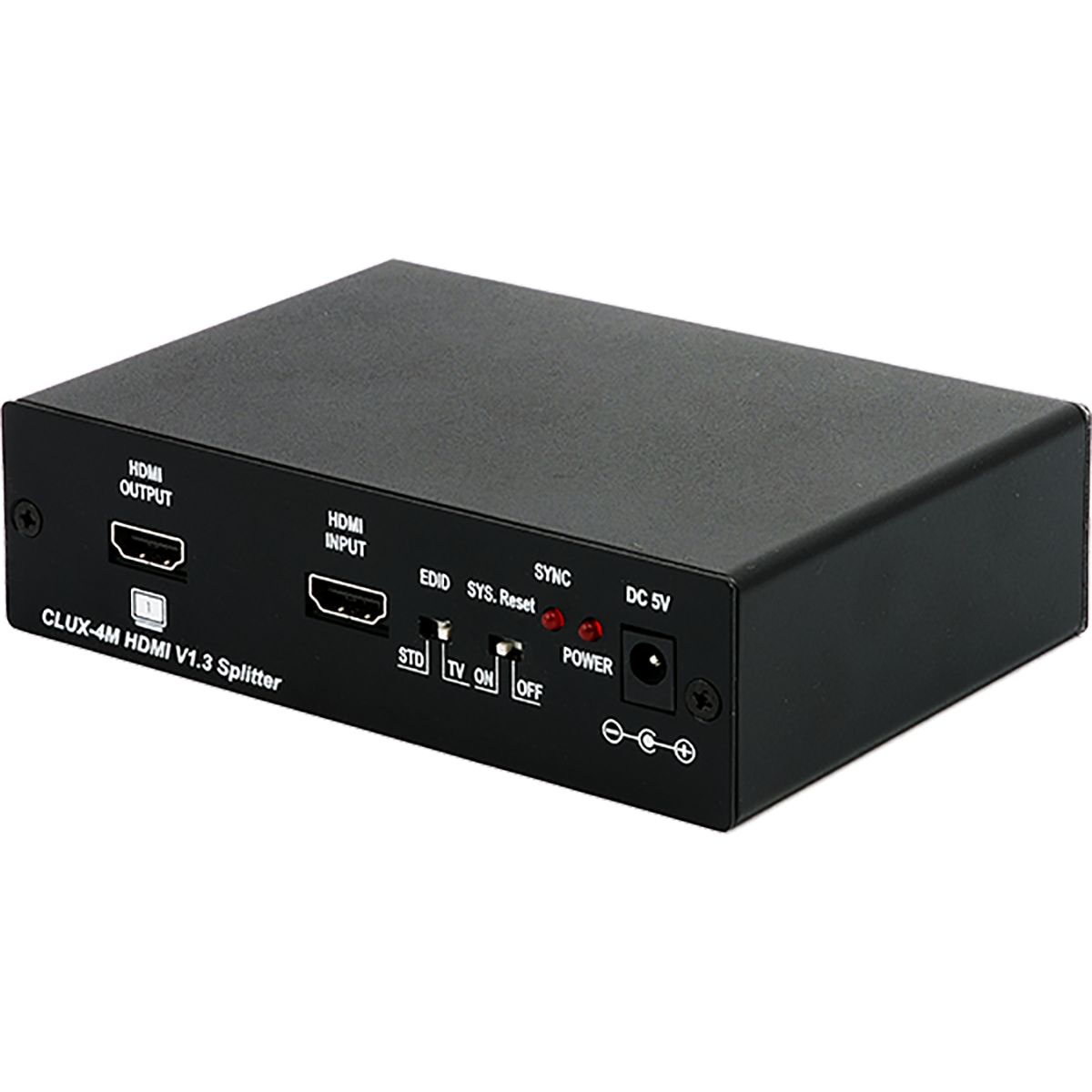

  • CLUX-4M_front_45_0707080301887

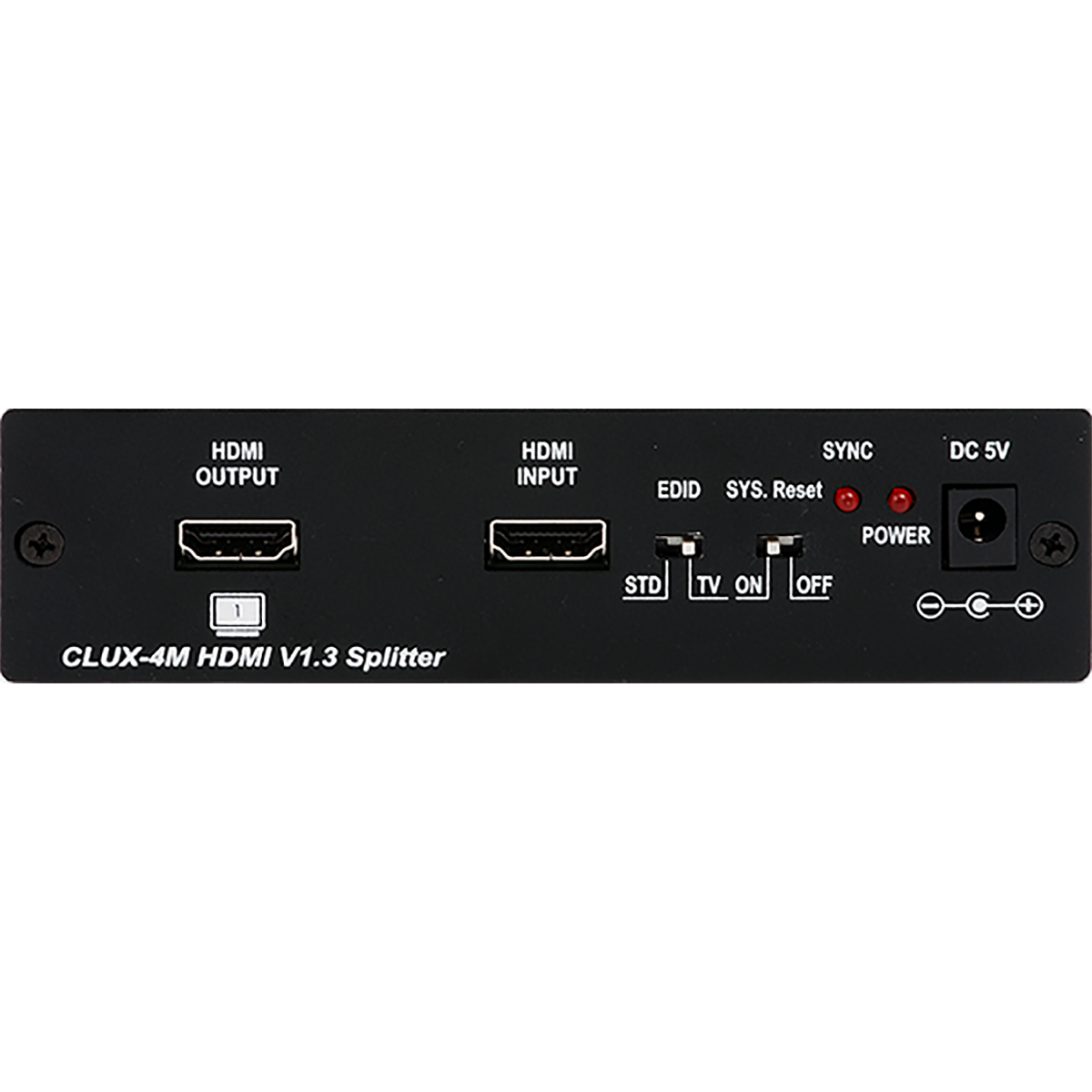

  • CLUX-4M_front_0707080306028

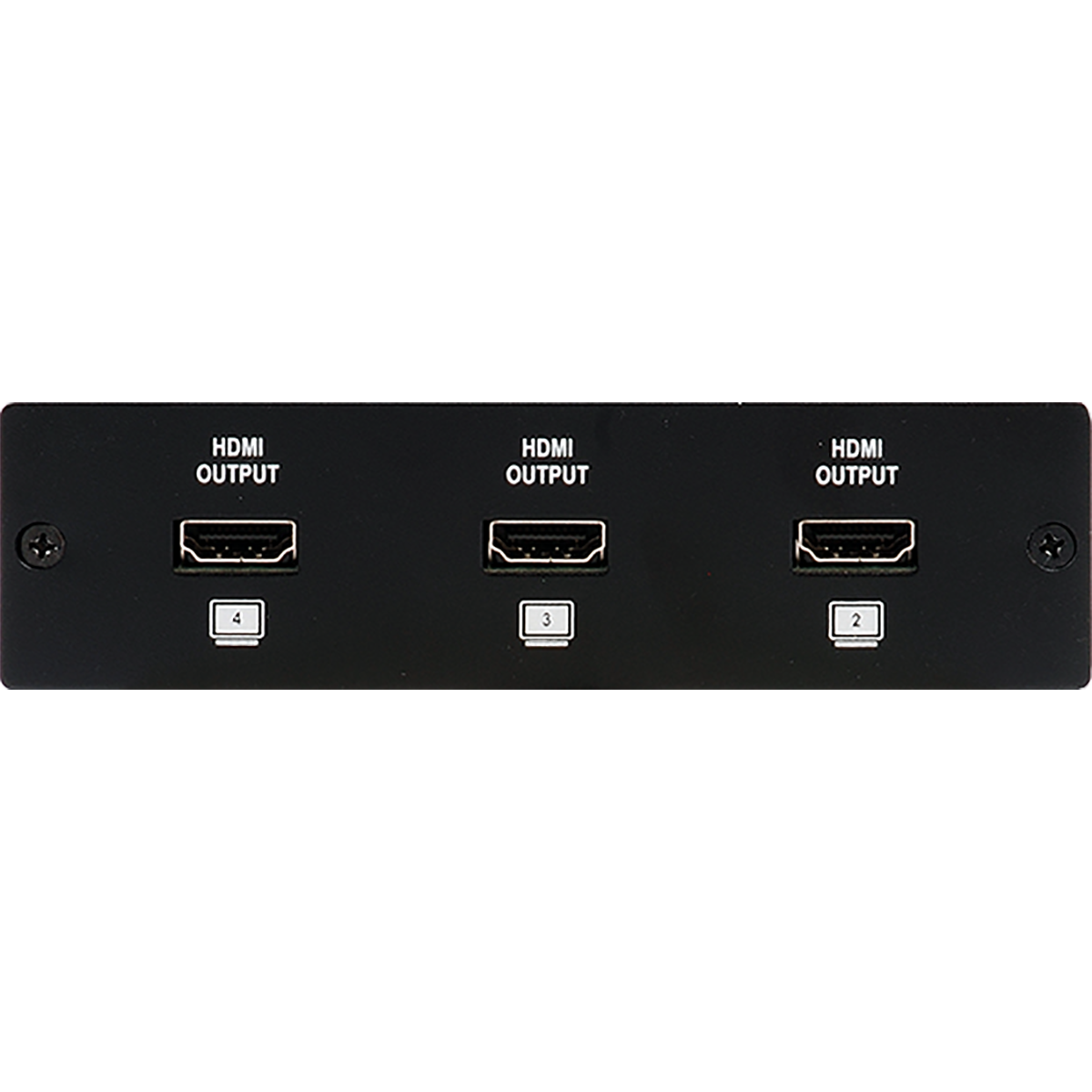

  • CLUX-4_4M_rear_0707080309622

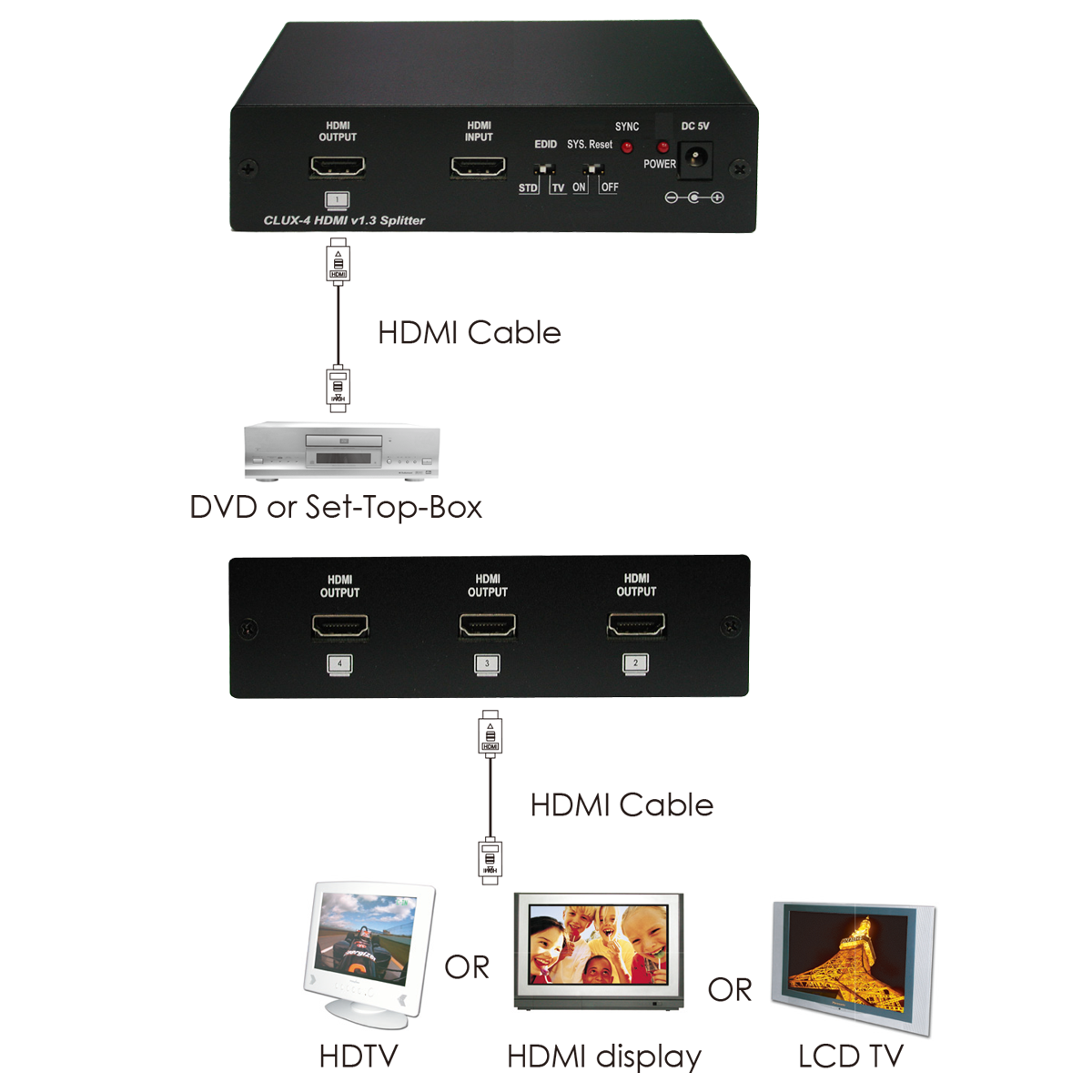

  • CLUX-4M-Manual_0207025455258

CLUX-4M EOL

1x4 HDMI Multi-channel Splitter

  • HDMI, HDCP1.1 and DVI1.0 compliant.
  • Deep color support up to 12-bit, 1080p@24/60 Hz.
  • One HDMI source to be connected to up to Four HDMI displays simultaneously.
  •  HDCP keysets allow each output to work independently when connecting to an HDMI display.
  • Splits one HDMI source up to eight outputs without signal loss.
  • Supports DVI source and DVI display by using HDMI to/from DVI adaptor cable.
  • Supports LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio transmission (32-192 kHz Fs sample rate).
  • Supports a wide range of PC and HDTV resolutions from VGA to UXGA and 480i to 1080p.
  • HDMI cable distance test with 1080p/8bits resolution the, Input/ Output source can run up to 15/15 meters. If 1080p/12bits the Input/ Output source can run up to 10/15 meters. HDMI cable length support 15 meters at 1080p/8-bit resplution and 10 meters at 1080p/12-bit.
  • Can selected EDID source from TV or this splitter.
  • Supports CEC bypass.
  • Supports xvYCC.
  • Supports System Reset function.
