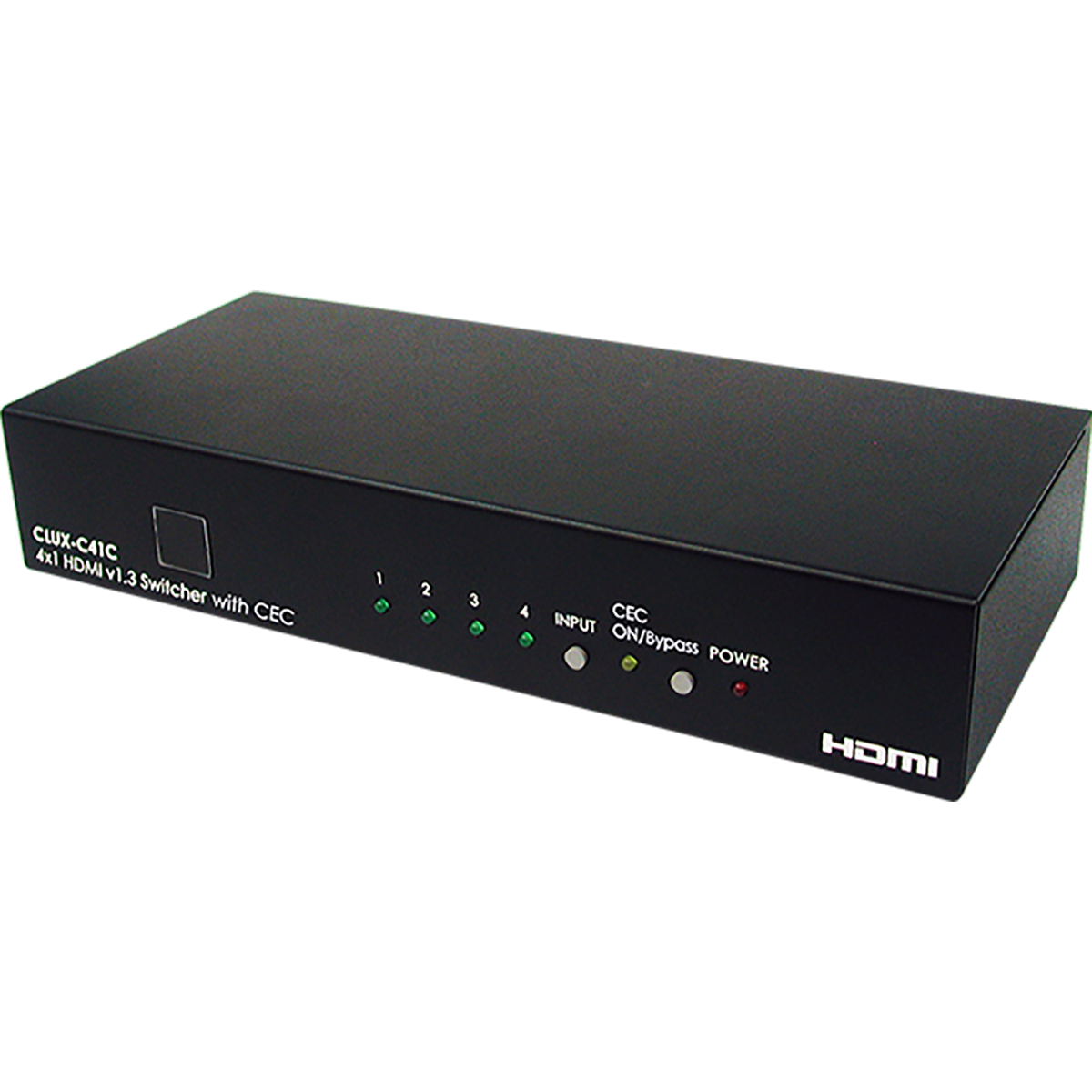

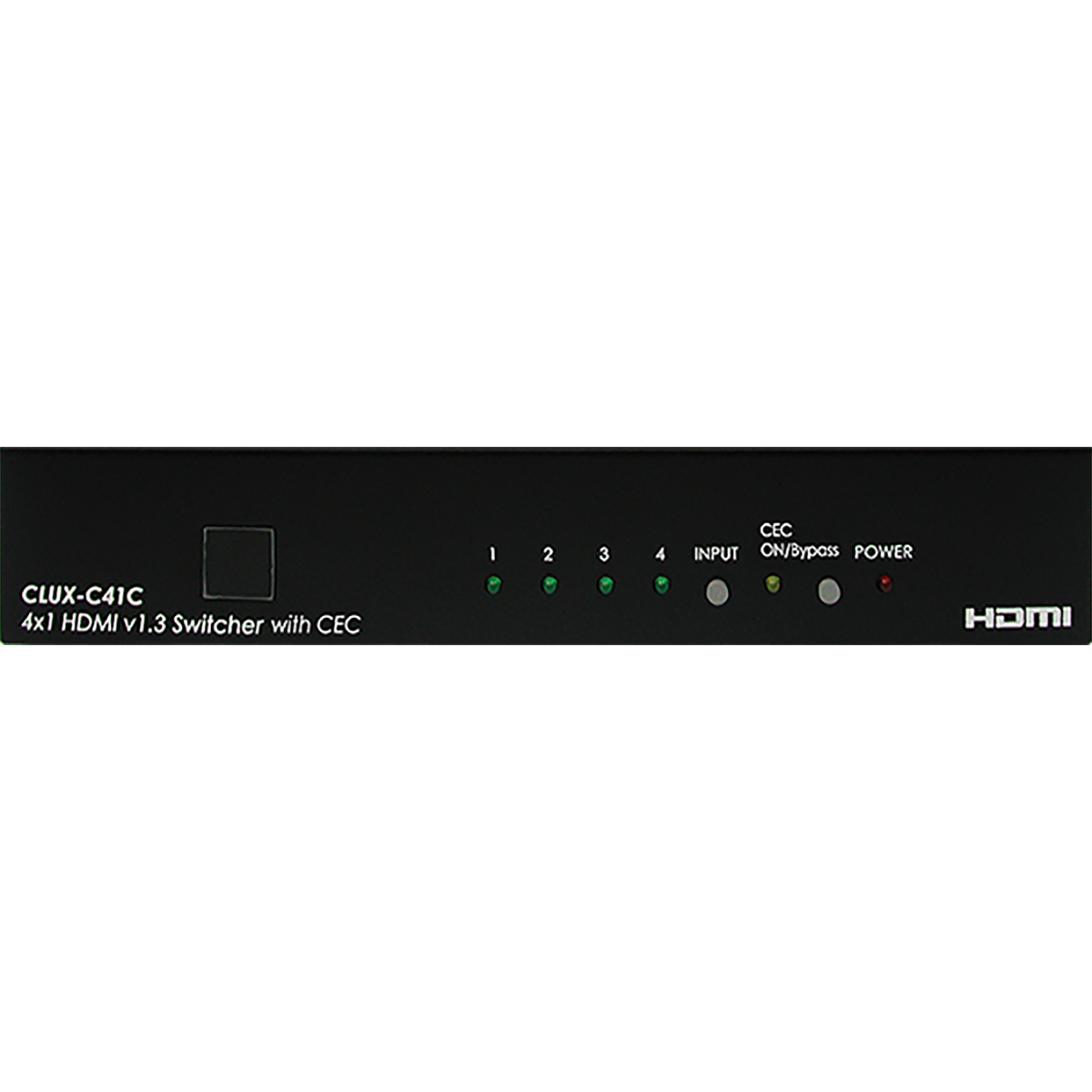

CLUX-C41C

CLUX-C41C EOL

4 by 1 HDMI V1.3 Switcher with CEC

HDMI 1.3 and HDCP 1.1 compliant
Supports deep color display RGB/YCbCr 4:4:4 24/30/36 bits
Supports color space YCbCr 4:2:2 16/20/24 bits
Supports high definition audio – Dolby Digital True HD® and DTS-HD®
Signal Enhancement feature allows signal quality improvement after long distance transmission
HDMI cable distance test with 1080p/8-bit resolution, the input/output can reach up to 15/15 meters. If running at 1080p/12-bit, the input/ output can reach at up to 15/6 meters
PC resolution supports: VGA, SVGA, XGA, SXGA, and UXGA (1600 x 1200) HD resolution supports: 480i ~1080p 50/60 and 1080p 24
With remote control function
Supports RS232 operation
Supports CEC control function
Supports xvYCC

This is a high performance HDMI switcher that allows for various HDMI sources to share one HDTV display. This device features CEC control functions and supports deep color, xvYCC and RS-232 control. Simply press one button select your desired HDMI source to display on the HDTV or use remote control to control your sources from a distance. Switching from one HDMI input source to another will no longer be an inconvenience.

Frequency Bandwidth	2.25Gbps(single link)

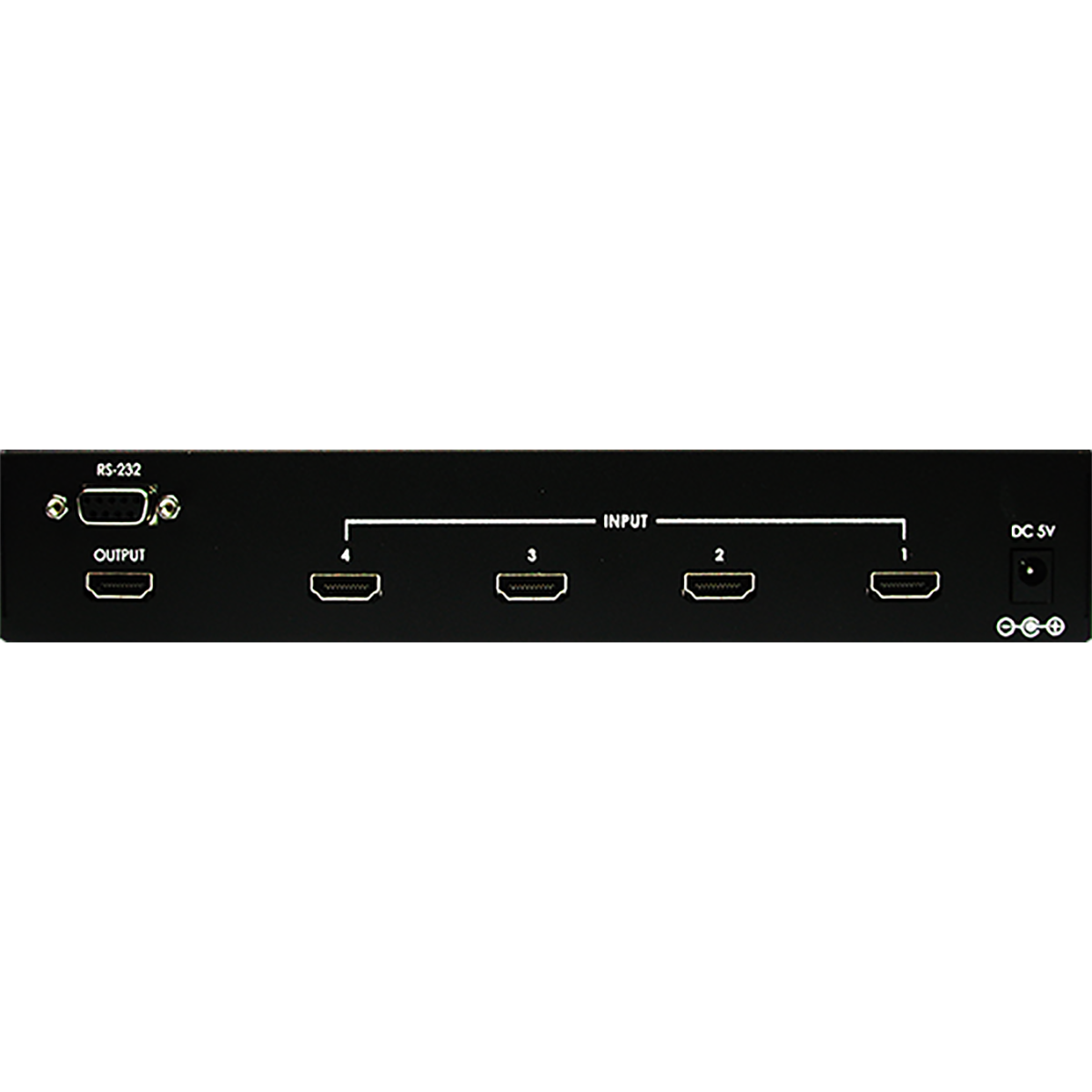

Input Ports	4 x HDMI female ports (Type A connector)
Output Ports	1 x RS232
	1 x HDMI female port (single link)
Color Space	YCbCr 4:2:2 16/20/24 bits
Deep Color	RGB / YCbCr 4:4:4 24/30/36 bits
ESD Protection	Human body model: ± 10kV (air-gap discharge)
	± 6kV (contact discharge)
Input TMDS signal	1.2 Volts (peak-to-peak)
Input DDC signal	5 Volts (peak-to-peak, TTL)
Power Supply	5V/1A
Weight(g)	760
Dimensions(mm)	240(W) x 104(D) x 44(H)
Chassis Material	Metal
Silkscreen Color	Black
Operating Temperature	0ºC~40ºC / 32ºF ~ 104ºF
Storage Temperature	-20ºC~60ºC / -4ºF ~ 140ºF
Relative Humidity	20%~90% RH (non-condensing)
Power Consumption	3.3 W

Product Support
Upload Date	File Name	Version	OS	Description	Download
2021/07/07	CLUX-C41C Manual	1	all	CLUX-C41C Manual
