CM-1390M

CM-1390M EOL

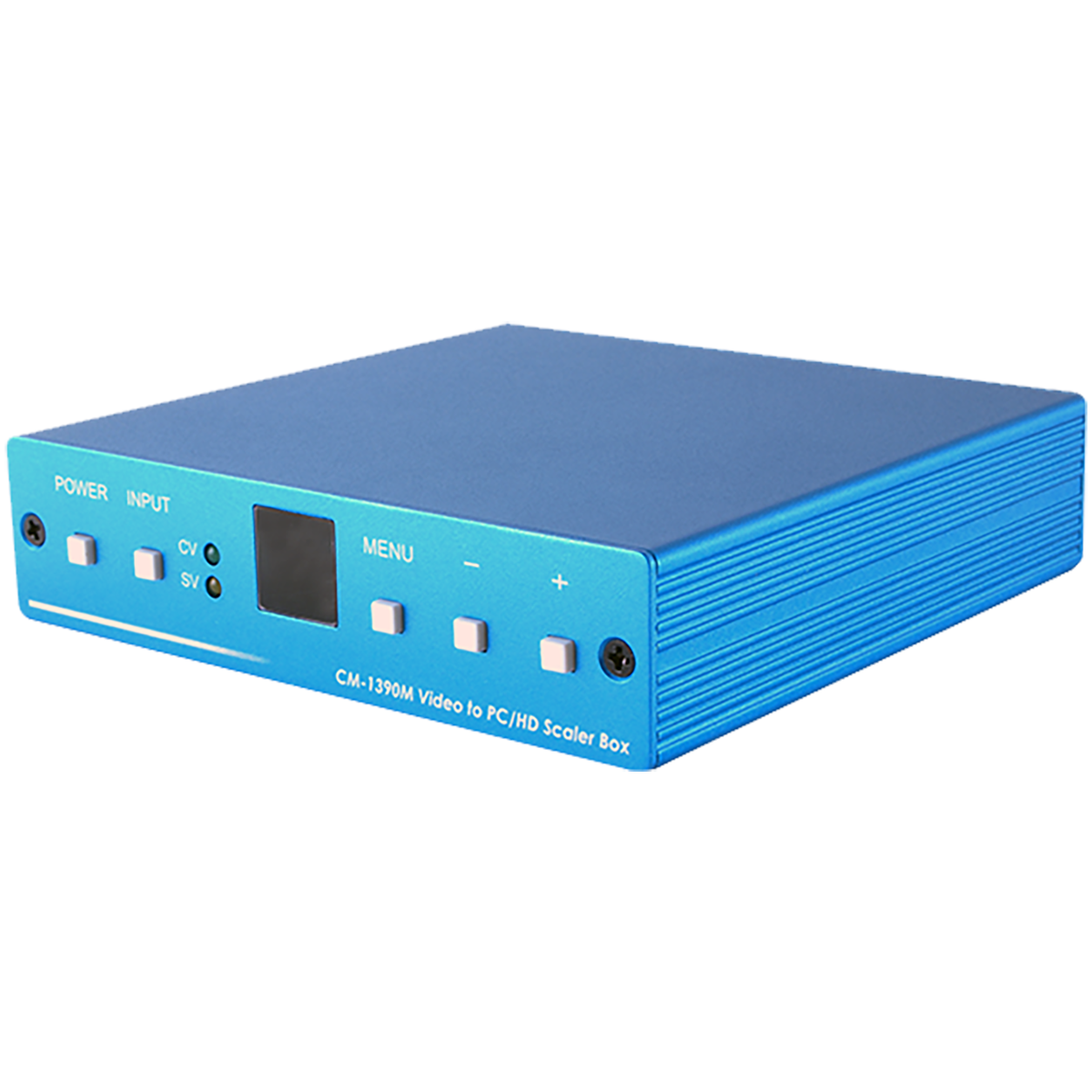

Video to PC/HD Scaler Box

Advanced 3D motion adaptive de-interlace and frame based noise reduction
Autiomatic 2:2/3:2 film mode detection
Video quality improvement: DCTI (Digital Chroma Transient Improvement), DLTI (Digital Luminance Transient Improvement) Black level extension
Average Picture Level (APL), Automatic Contrast Limiter (ACL) function supported

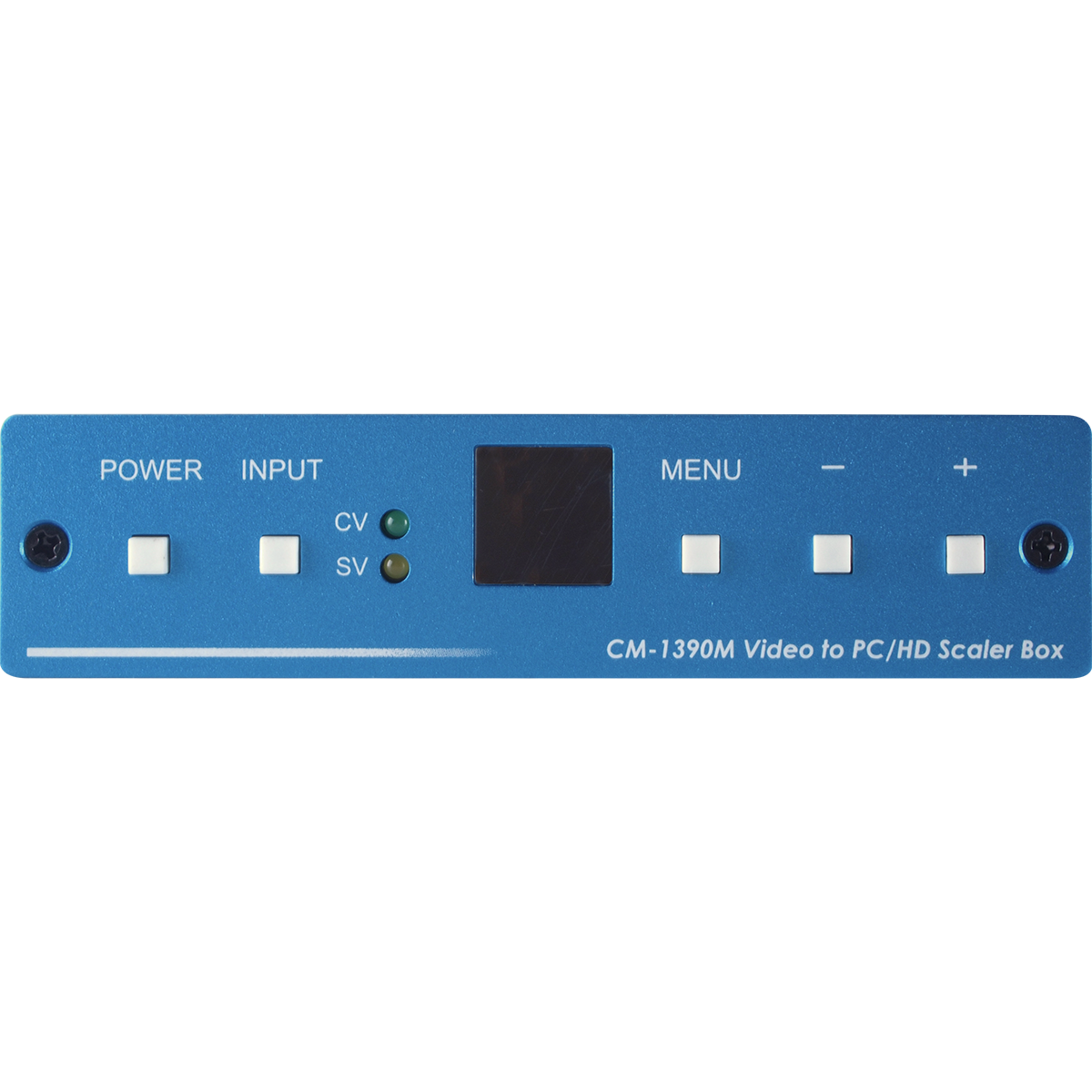

OSD menu for picture quality adjustment
Built-in 10-bit DAC for RGB or YPbPr output
Automatic NTSC/PAL video format detection and switching

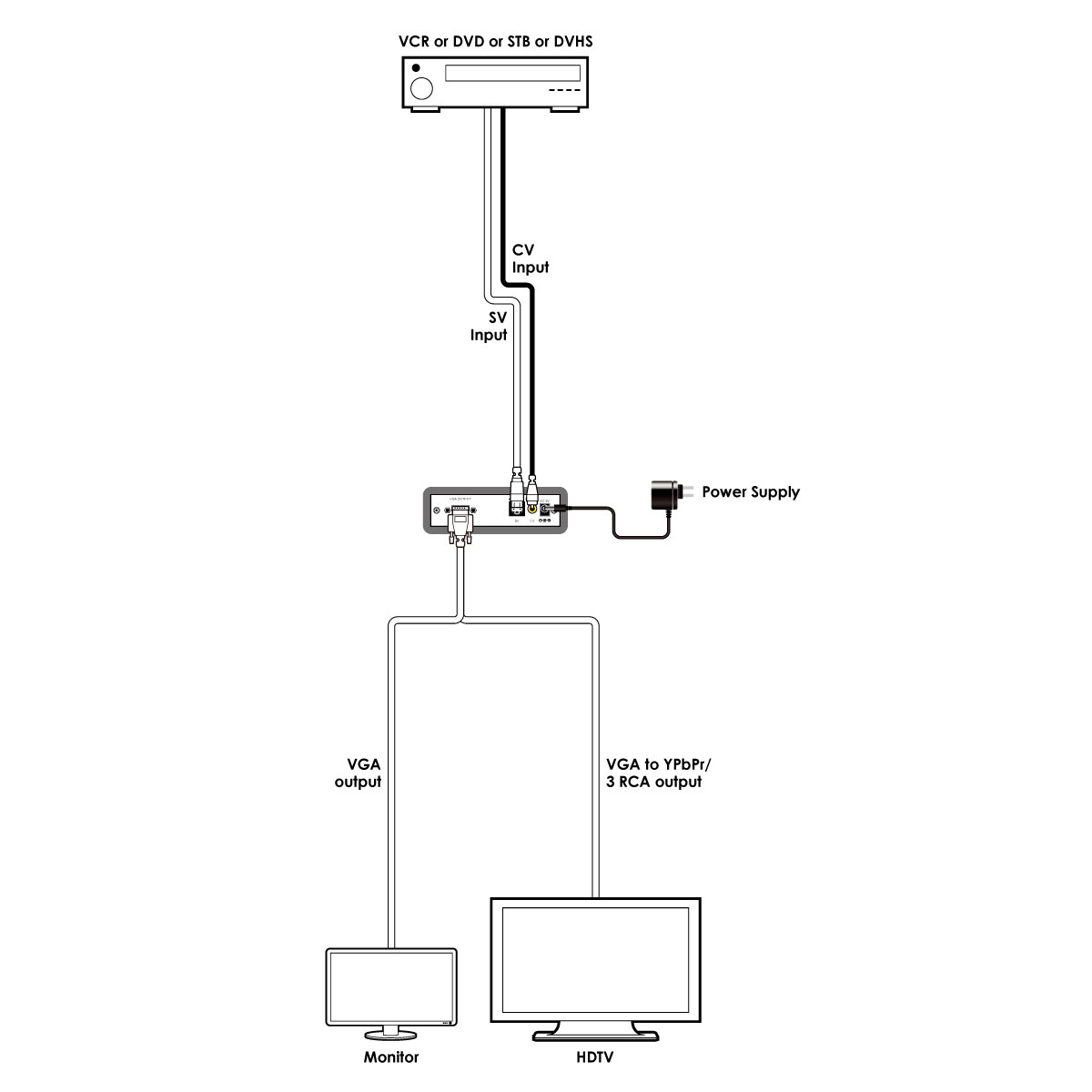

This professional video scaler is designed to convert Composite and S-Video signal into PC(RGB) or HD(YPoPr) format, scales it up to a maximum output of WUXGA 1920 x 1200 @60RB (when used with a PC monitor) or 1080p resolution (when used with an HDTV display). Capable of handling NTSC and PAL TV standards, this device has many features to enhance the quality of your video.

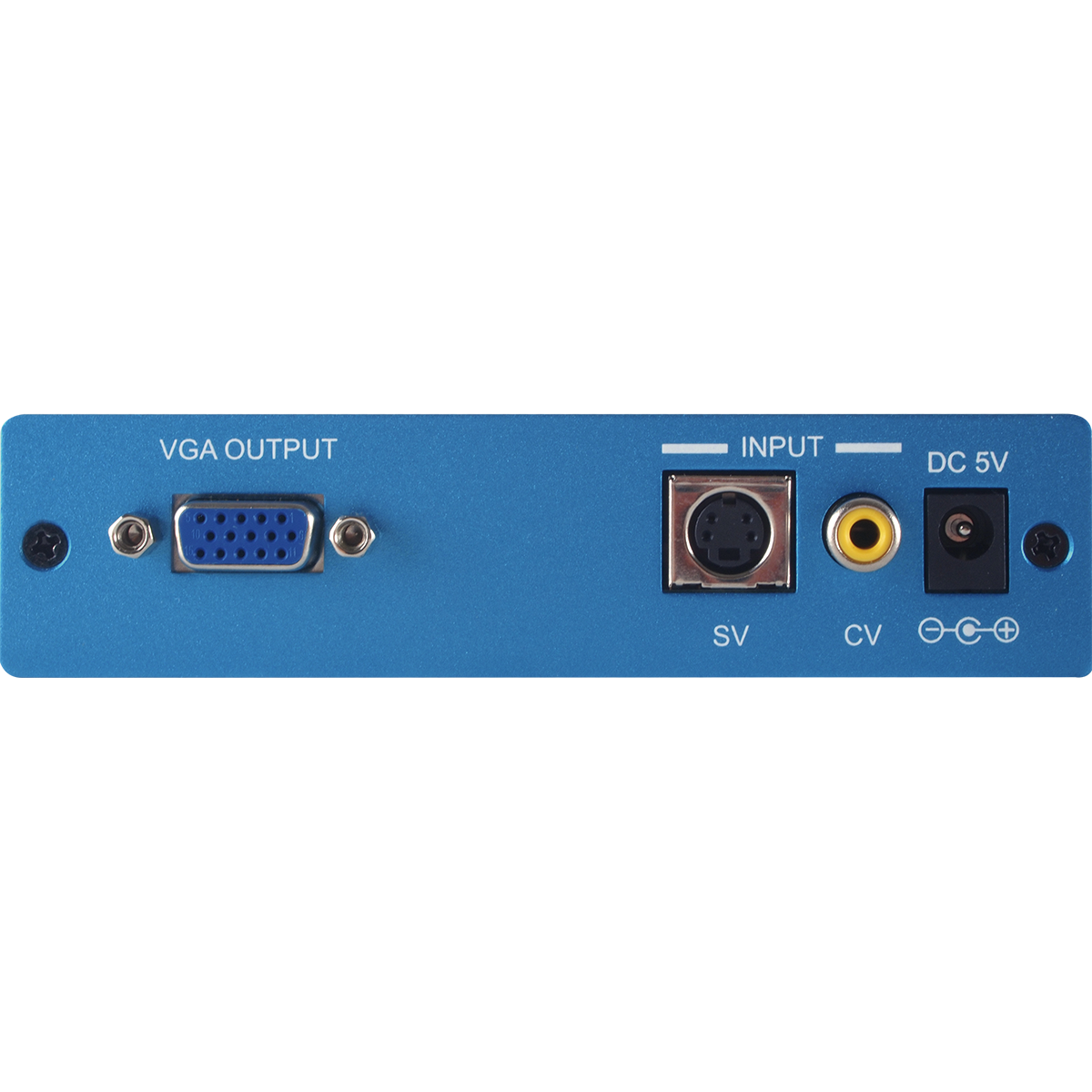

Interfaces
Input Port	1 Composite Video 1 S-Video
Output Port	1 VGA

Video
Input Signal Types	CV/SV : NTSC, NTSC4, PAL, PAL-M, PAL-N and SECAM
Output Signal Type	1080p@60 R

Resolutions
Maximum Input	CV/SV	480i@60/576i@50
Maximum Output	VGA	1920×1080p@60 1920×1200p@60RB

Power
Power Supply
Power Consumption	4.5/W (Max)

Enclosure
Chassis Material	Metal
Chassis Color	Blue
Dimensions (W×H×D)	125mm x 30mm x 123mm
Weight	400g

Field Firmware Update
Interface	PCB on board, uses RS232

Ordering Information
Model No.	Product Description
CM-1390M	Video to PC/HD Scaler Box
