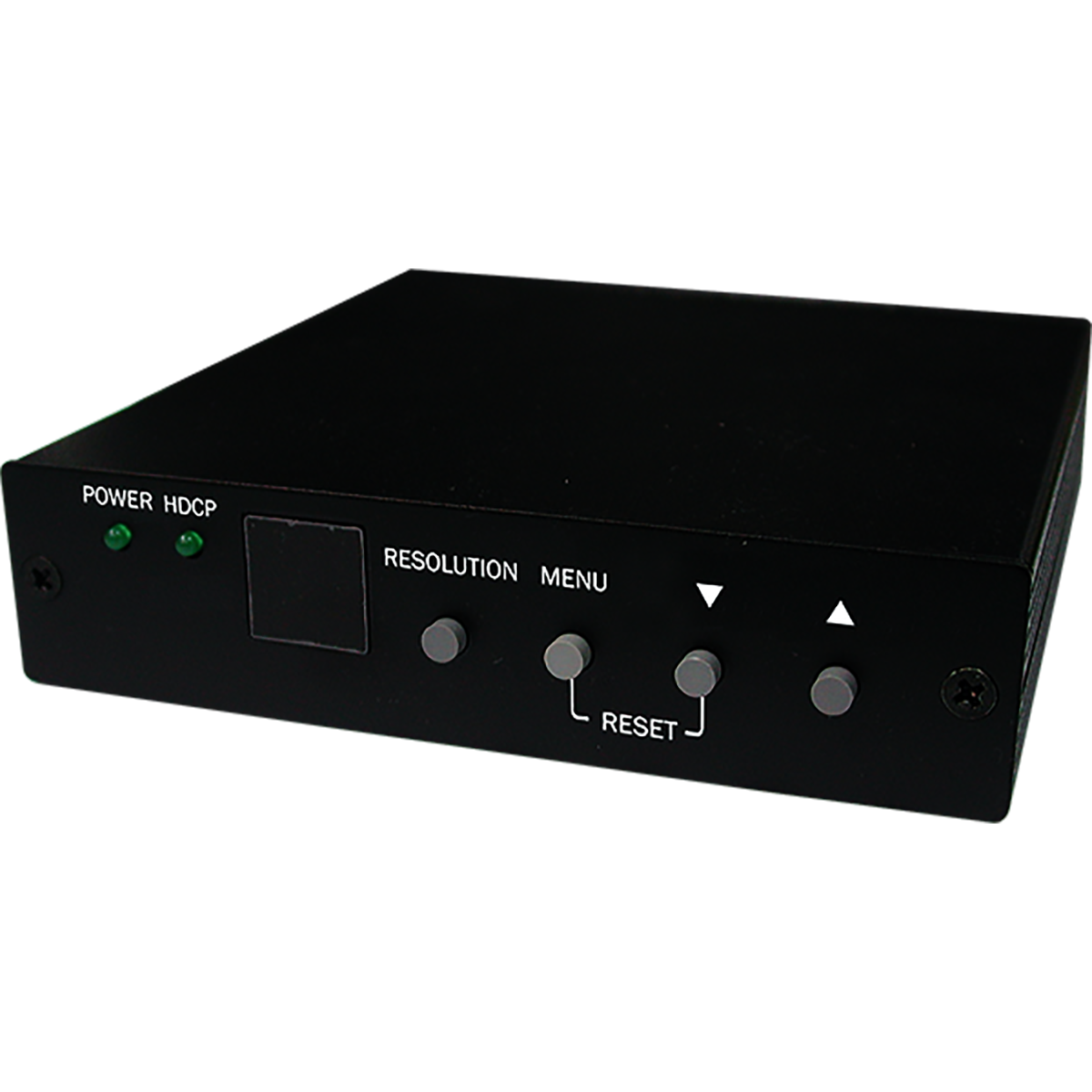

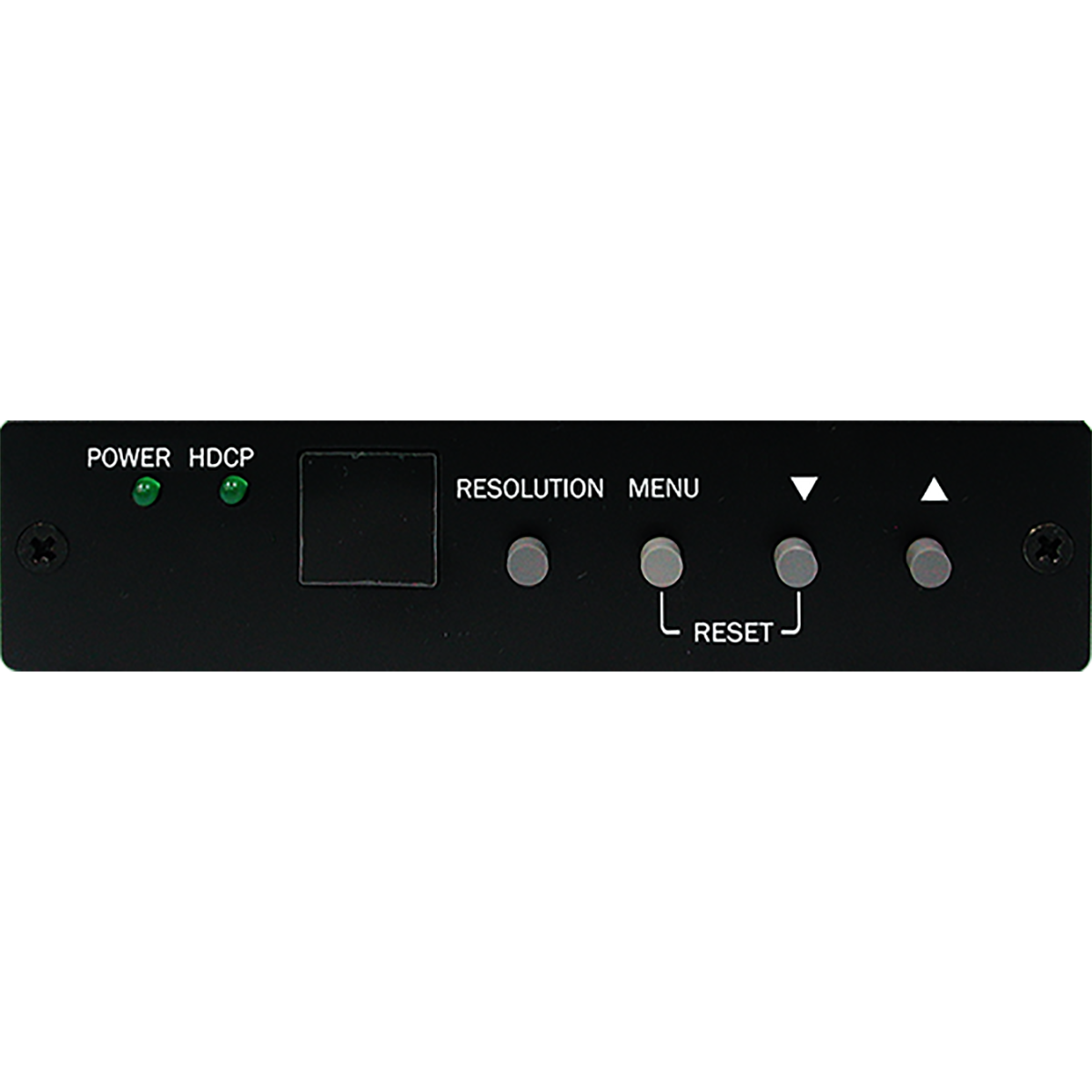

CPA-4 EOL
Video Pattern Generator Quick Guide
- HDMI v1.2, HDCP1.1 and DVI1.0 compliant
- HDMI Frequency Bandwidth: 1.65Gbps (single link)
- Output PC resolutions: VGA60 / SVGA60 / XGA60 / SXGA60 / UXGA60 / WUXGA60
- Output HD resolutions: 576p50 /480p60 / 720p50 / 720p60 / 1080p50 / 1080p60
- Output Signal: DVI / HDMI / Auto Detect
- Patterns: 8 Groups with 36 patterns

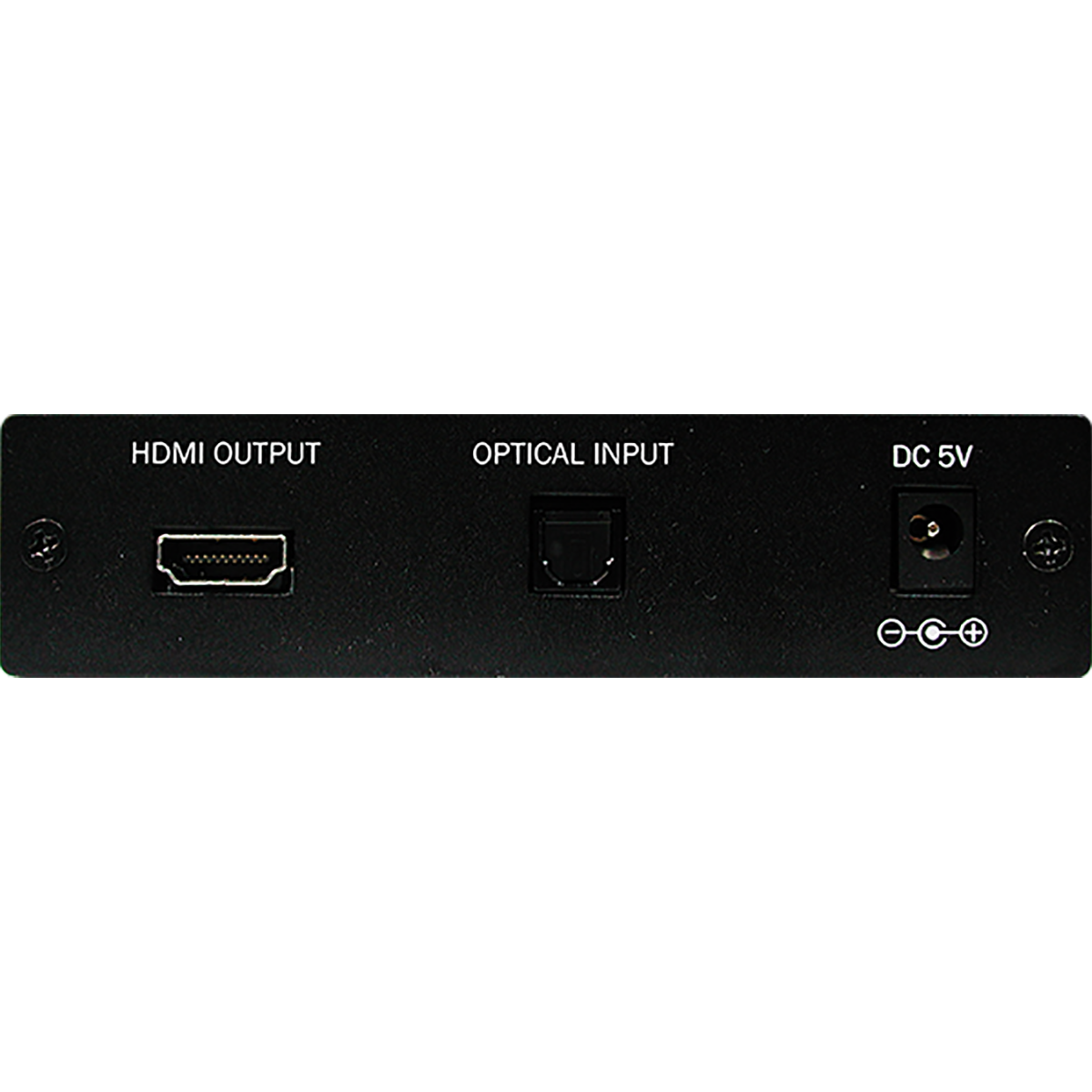

- Audio Source support Internal 1 kHz Sinewave 48 kHz sampling rate and External optical input
- HDMI Audio Outputs support From internal 1 kHz Sinwave and converted to 8 channels LPCM, 48 KHz sampling rate or from external optical input
- EDID Supports: VESA EDID v1.3 and EIA/CEA 861 Version 3
