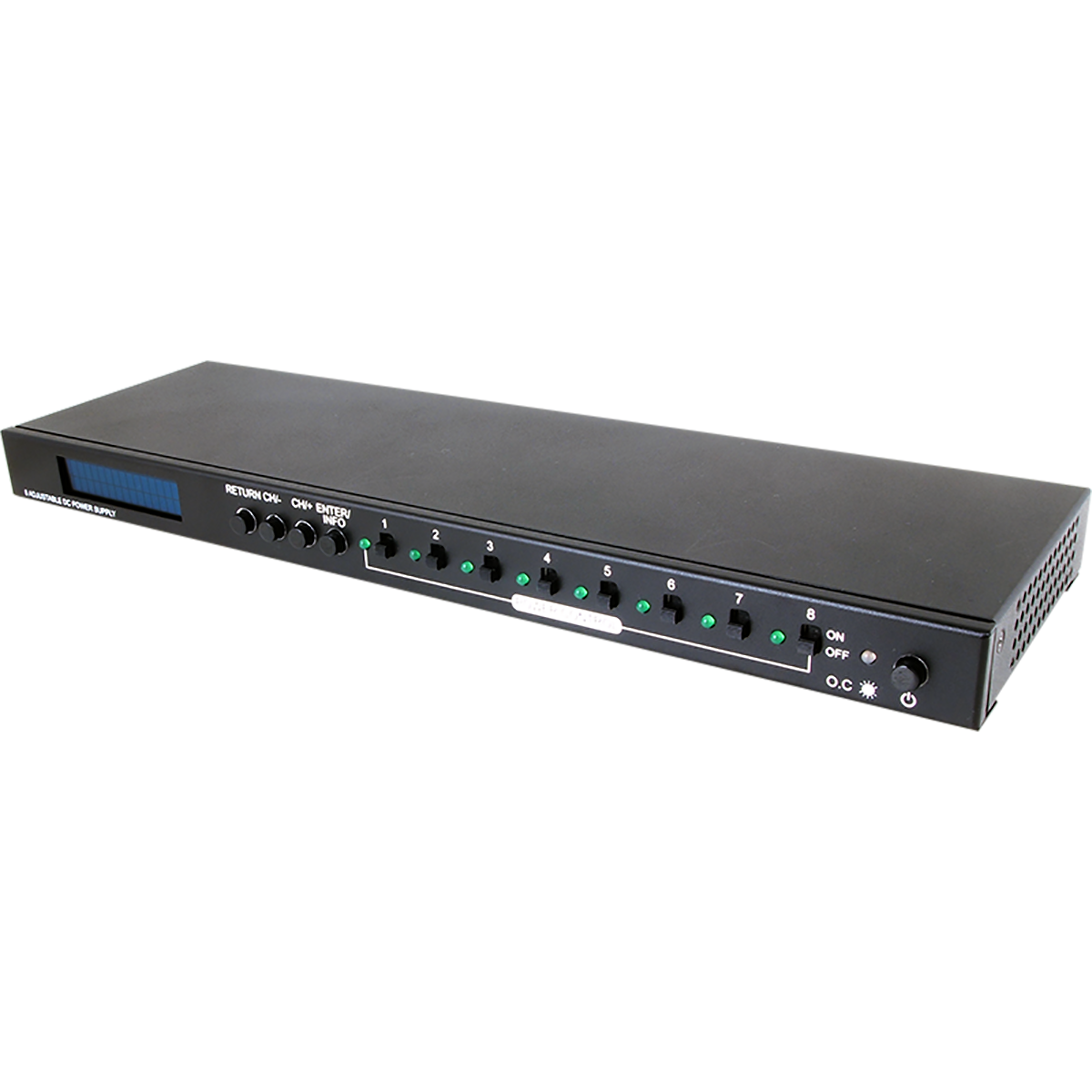

8 Adjustable DC Power Supply

CPOWER-80W EOL

8 Adjustable DC Power Supply

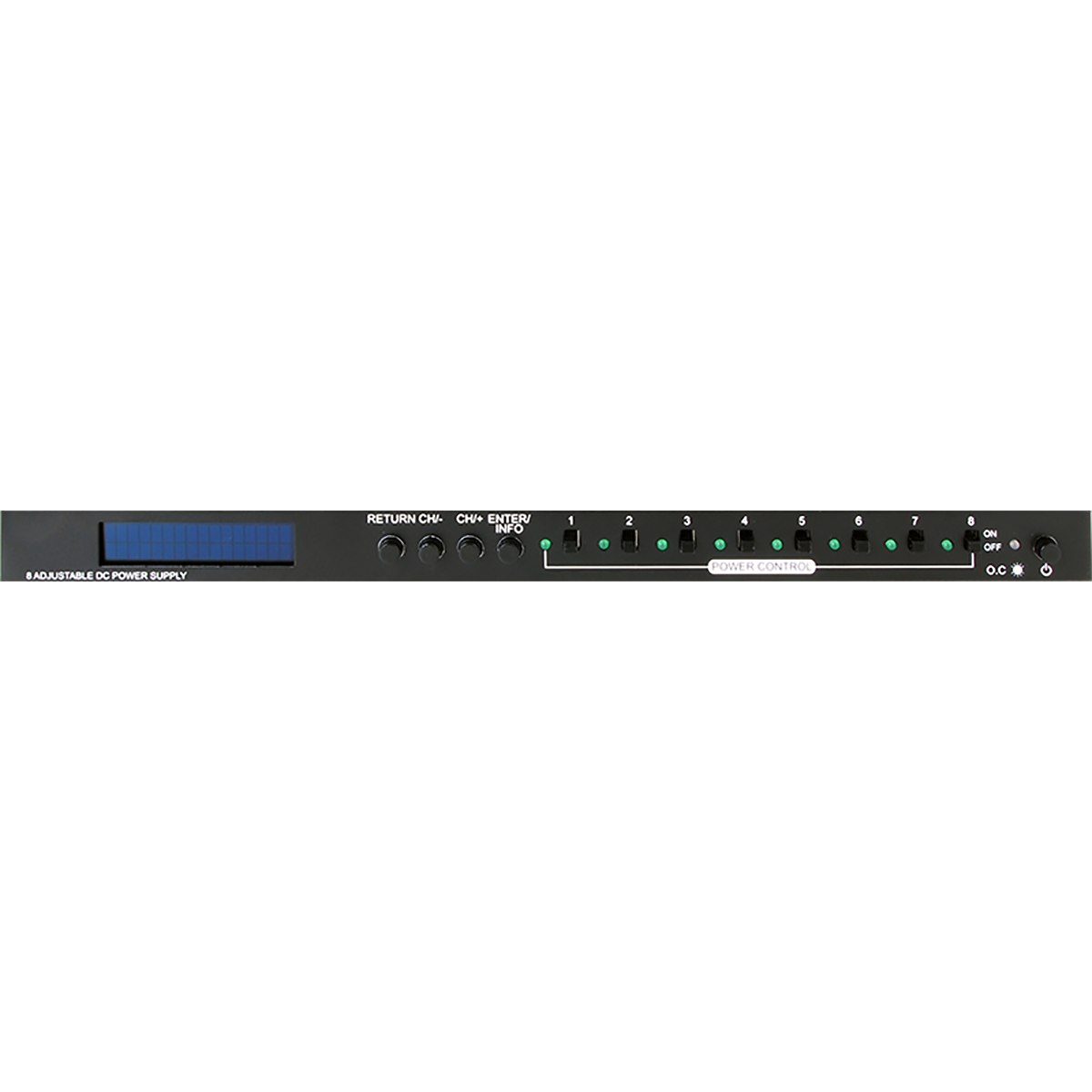

Power management system can provide voltage-controlled current on each port, with the result of real-time measurement shown on the OLED screen
PC software application can collect data of voltage current variation with time, through RS-232 protocol, and create history table and chart
Adjustable voltage and current to allow the maximum usage on each channel
Support 12V/6.67A power input
Support overall power consumption up to 80watts

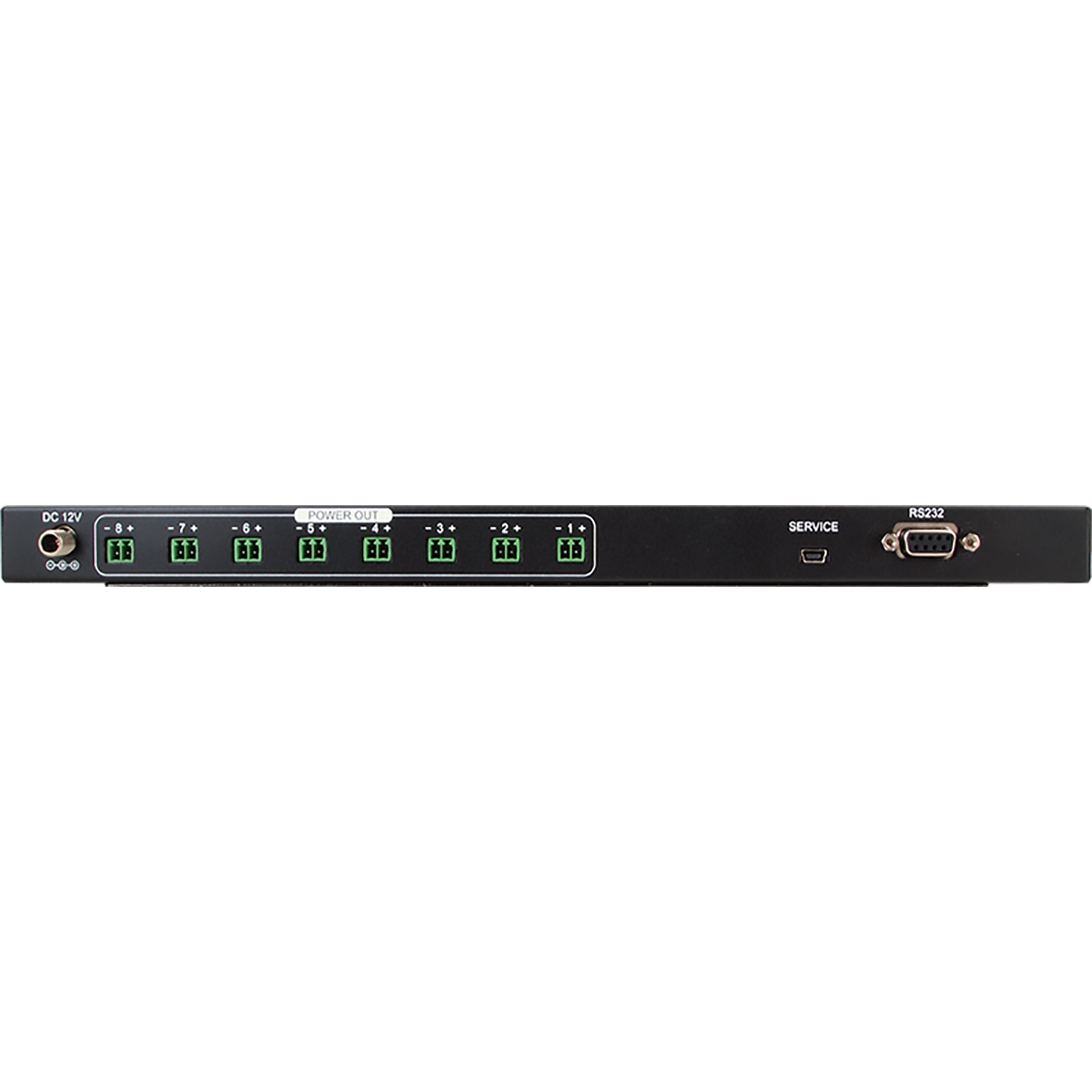

Support 8 output ports power with professional pluggable 2-pole 3.5mm Terminal Block

The 8 Adjustable DC Power Supply is an 8-way DC power splitter which can distribute electrical power up to 10.2Volt/3.2Amp each port with overall power consumption of 80 watts over Terminal Block(3.5mm, 2 poles). Ideal for professional applications, this device provides smart control over each individual port, with adjustable voltage and On-Off switching features both supported, through on-panel buttons or RS- 232 protocol. It also comes with an OLED display which can give the status of all ports or single port separately.

Output connections	8 x 3.5mm, 2-Pole Terminal Block
Input Power	12V/6.67A
Output Voltage	3.20~10.2V
Output Current	0.10~3.20A
ESD Protection	Human body model: ±8 kV (air-gap discharge) ±4 kV (contact discharge)
Dimensions (mm)	340(W) x 111(D) x 30(H)
Weight (g)	935
Chassis Material	Metal
Silkscreen Color	Black
Operating Temperature	0˚C~40˚C / 32˚F ~ 104˚F
Storage temperature	-20˚C~60˚C / -4˚F ~ 140˚F
Relative Humidity	20~90% RH (no condensation)
Power Consumption	80W (Max)
