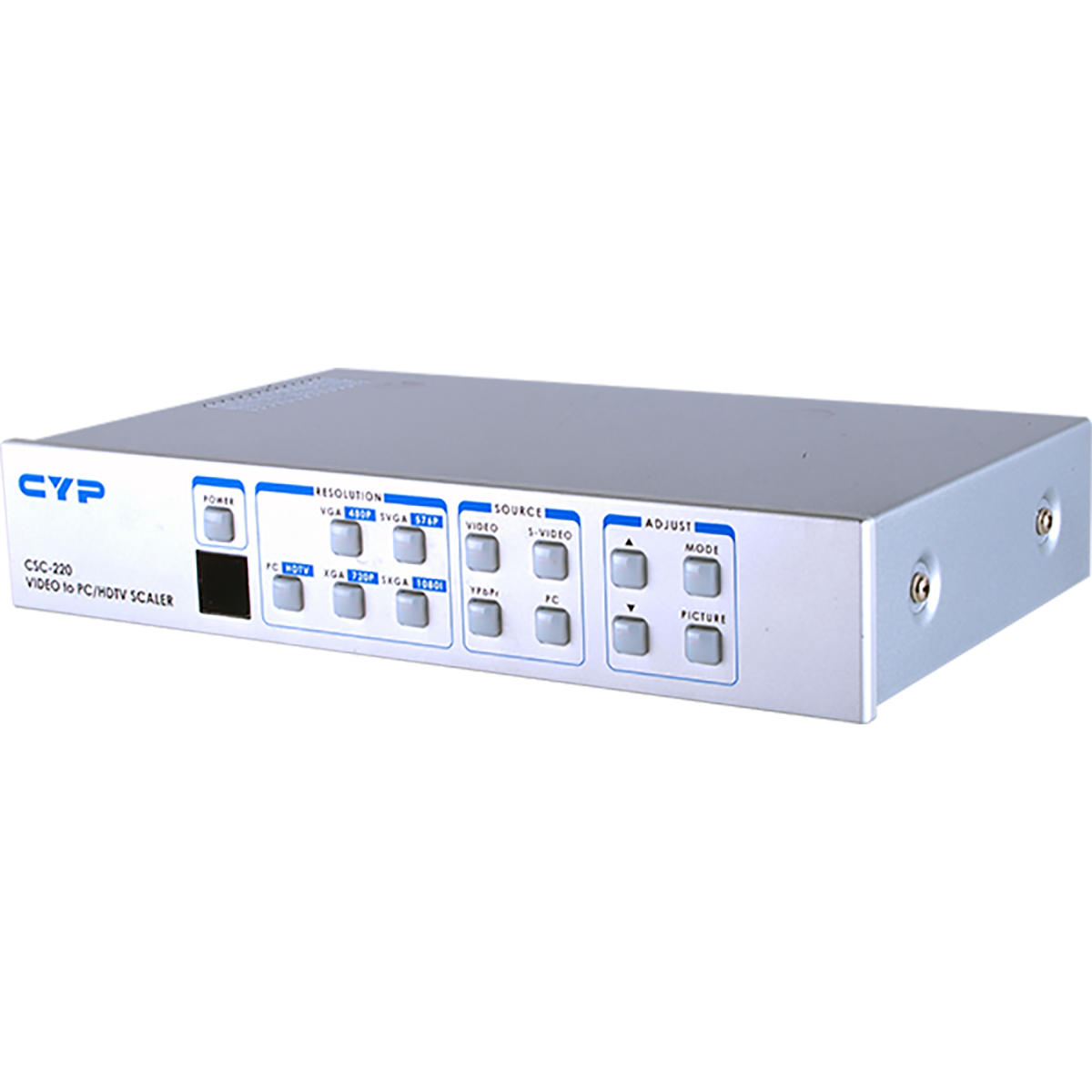

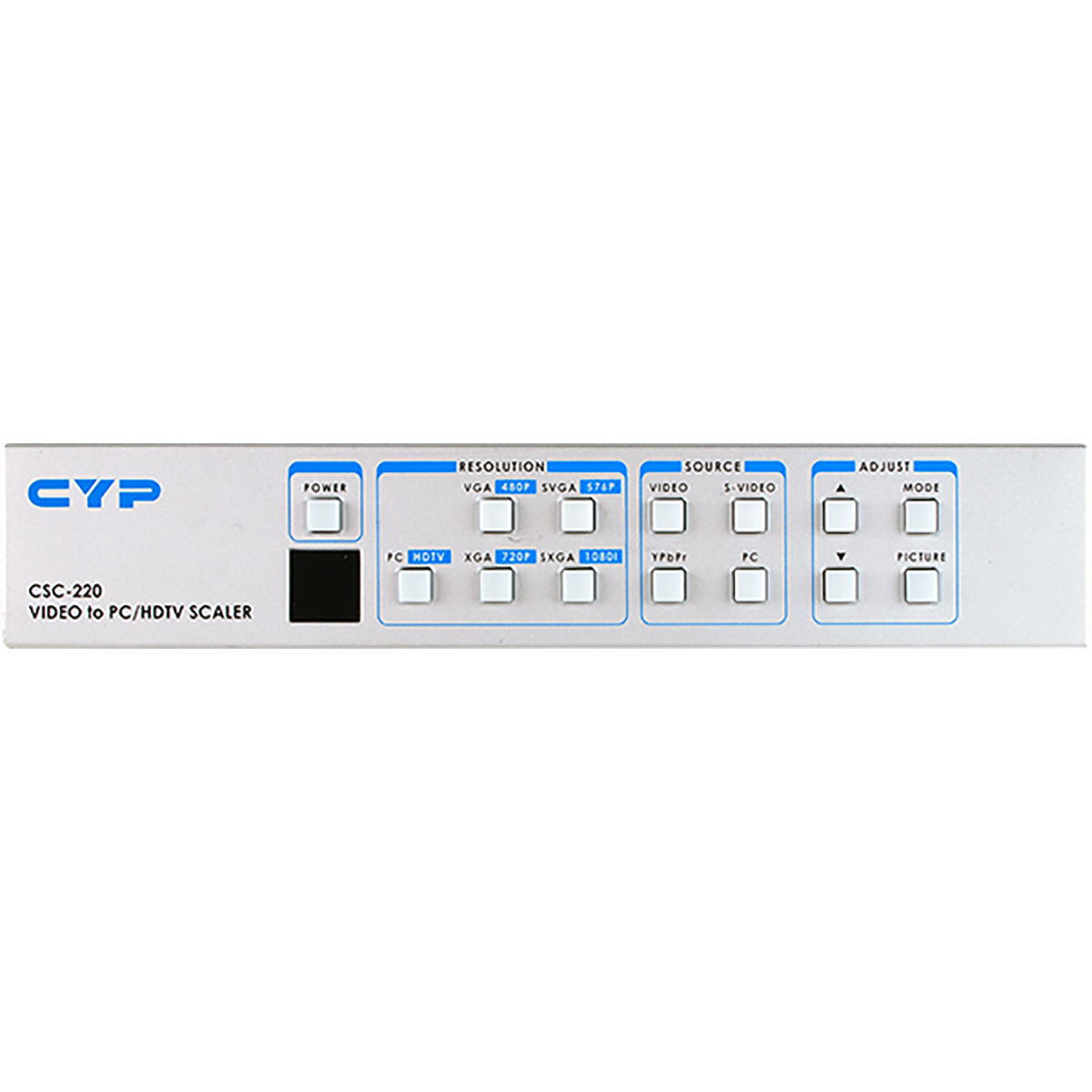

CSC-220 EOL
Video to PC/HDTV Scaler
- Professional universal scaler/deinterlacer for CV, SV, YCbCr/YPbPr and PC inputs
- All inputs can be scaled up to output resolutions:
- PC output : 640x480, 800x600 (SVGA), 1024x768 (XGA), 1280x102 4(SXGA)
- HDTV output: 480p, 576p, 720p, 1080i - Automatically accommodates input video systems of NTSC 3.58, PAL and SECAM
- High performance adaptive 3D Comb filter Y/C separator
- Per-pixel motion compensated deinterlacing algorithms to produce artifact-free progressive scan video signal
- Built in Adaptive film mode 3:2 pull-down provides clear and crisp deinterlacing of video originating from 24 fps film,such as DVD movies
- Frame rate conversion from 50 Hz up to 60 Hz (PAL), or 60 Hz up to 60 Hz (NTSC)
- Vertical temporal filter (VT) removes jaggy and other deinterlacing artifacts from normal video
- OSD menu with adjustable control on Color, Detail, Brightness, Contrast and Hue(NTSC)
- Built-in DCTI/DLTI circuit for color/luminance transient improvement
- Last memory for all adjustments
- RS-232 interface allows remote control from PC
