DCT-3HP

DCT-3HP EOL

Digital to Headphone Audio Converter

Supports up to 192 K/24-bit digital audio input (Coaxial/Optical) Supports 2 channel PCM from Coaxial/Optical input
Built-in 200 mW Cap-Less Headphone amp
Compact size and easy to install

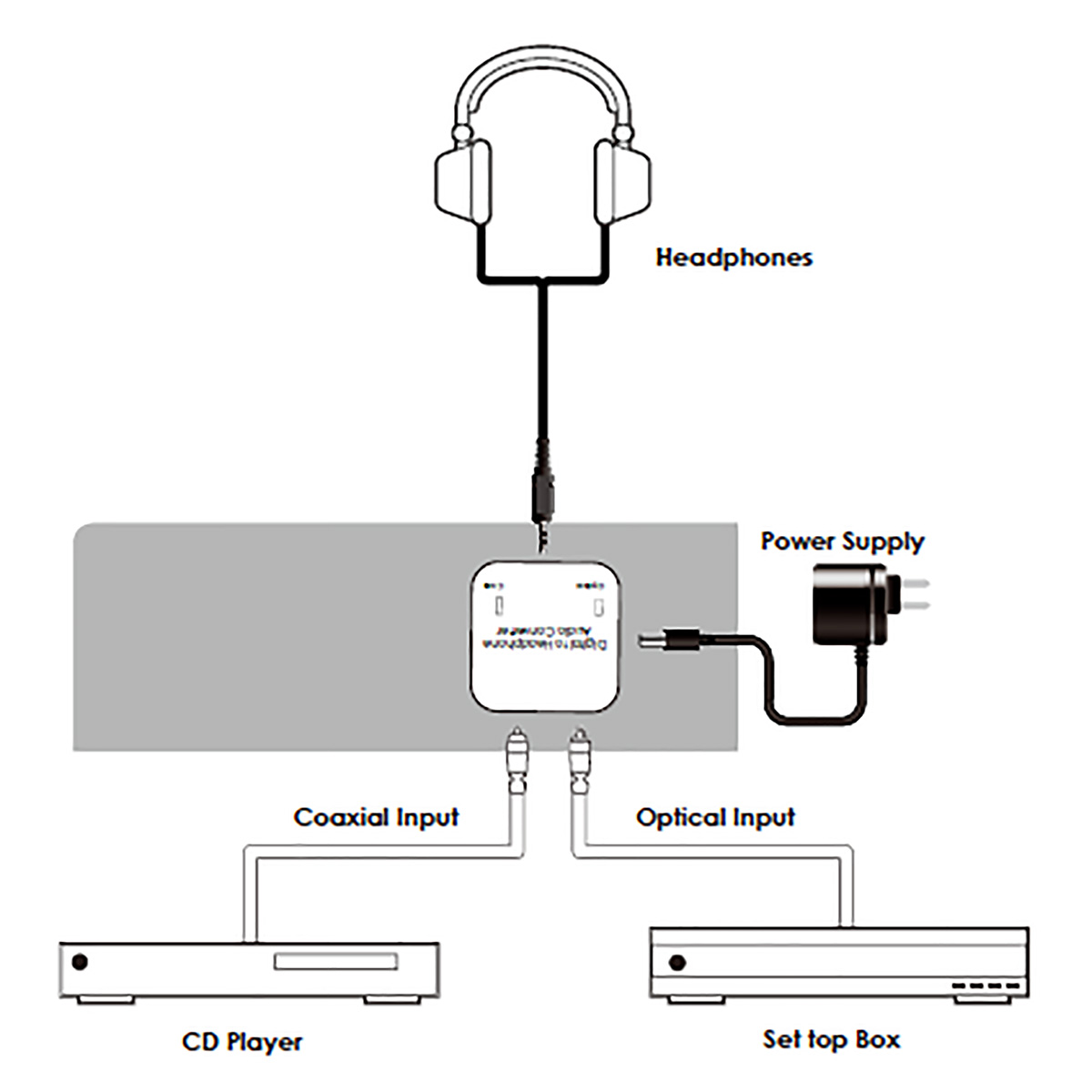

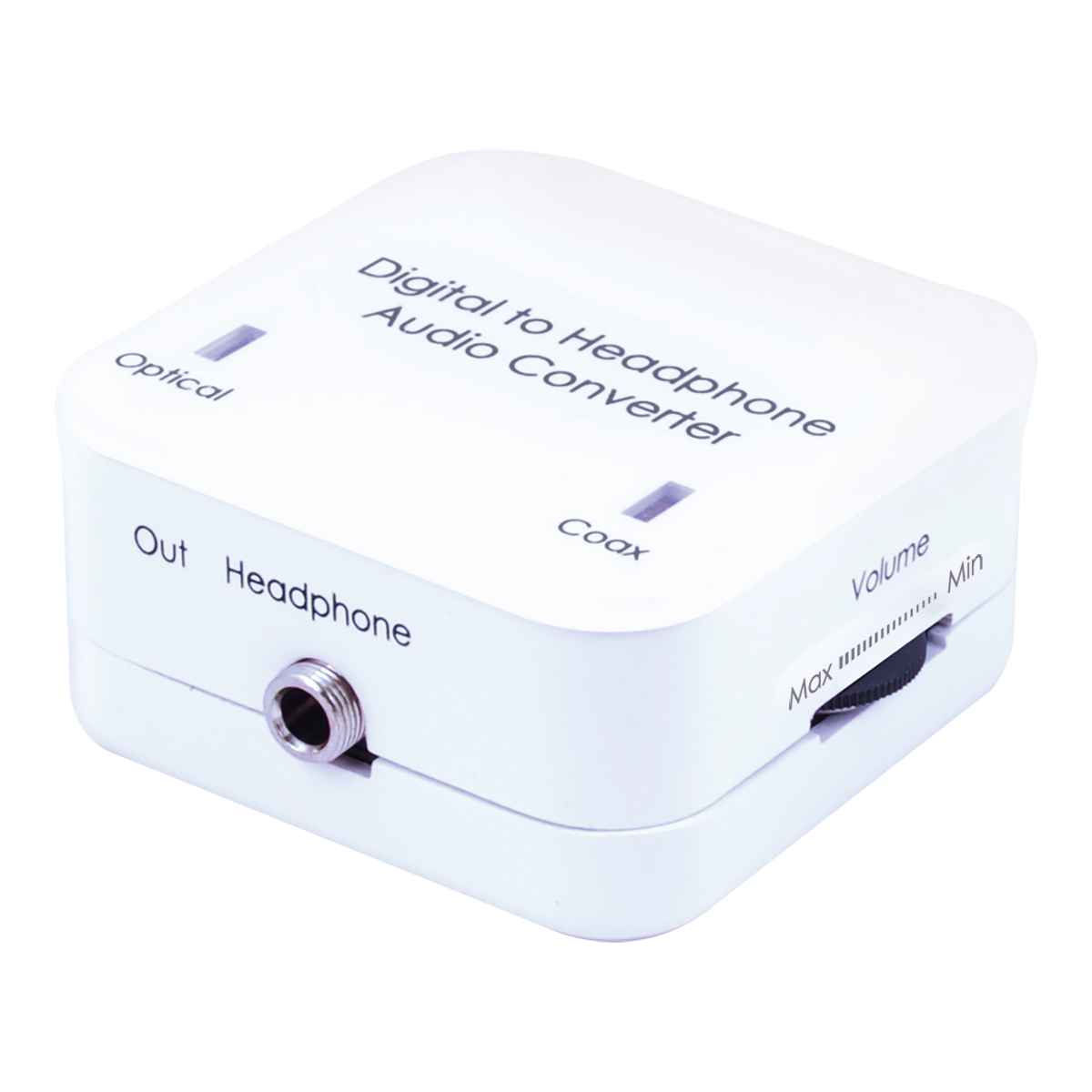

The Digital to Headphone Audio converter is an easy to use device that converts and amplifies (200 mW Cap-Less) Coaxial or Optical digital audio into analogue headphone audio. This device can switch between Coaxial or Optical sources and also has a convenient volume control.

Interfaces

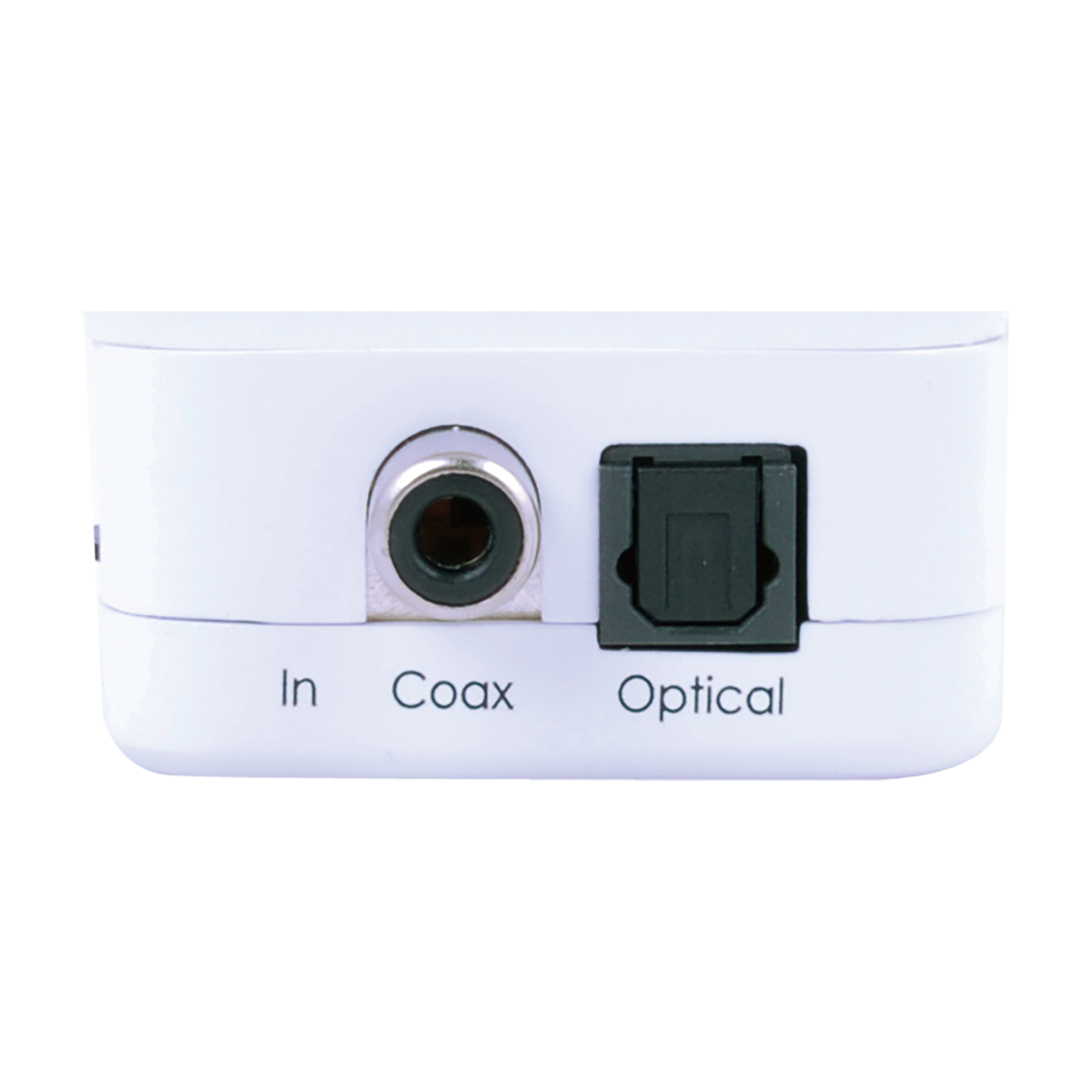

Input Port	1 TOSLINK (S/PDIF Audio) 1 Coaxial(female)

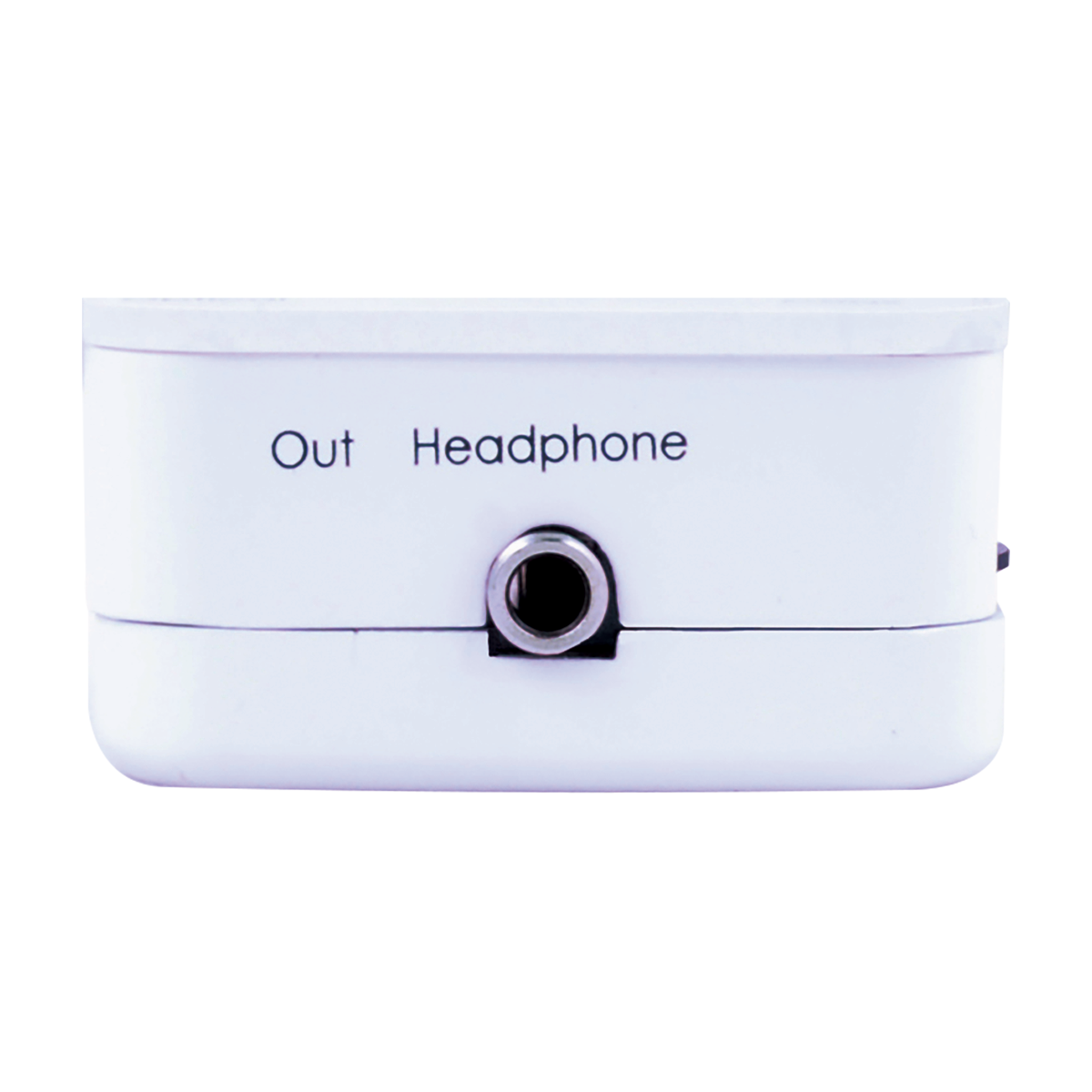

Output Port	1 Headphone(3.5mm)

Power
Power Supply	3.3V/2A power adaptor
Power Consumption	0.7 W

Enclosure
Chassis Material	Plastic
Chassis Color	White
Dimensions (W×H×D)	42 mm × 22 mm × 40.5 mm
Weight	25g

Ordering Information
Model No.	Product Description
DCT-3HP	Digital to Headphone Audio Converter

Product Support
Upload Date	File Name	Version	OS	Description	Download
2021/02/18	DCT-3HP_Manual	1	all	DCT-3HP_Manual
