CH-A1 EOL
HDMI Signal Generator with 3D Patterns and Audio Return Channel
- Supports Timing include SD, HD up to 1080p, PC up to WUXGA and 3D
- Provides 25 timings, 6 patterns and 1 pattern for 3D timing
- 'Deep color' video support (up to 12-bit, 1080p@60 Hz)
- Supports input signal bypass, digital video formats in 'Deep Color' Mode up to 36-bit (12-bit/color) and new lossless compressed digital audio (Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio)
- Supports internal pattern audio LPCM 2CH 48/96/192 kHz, LPCM 5.1CH 48/96 kHz, LPCM 7.1CH 48/96 kHz

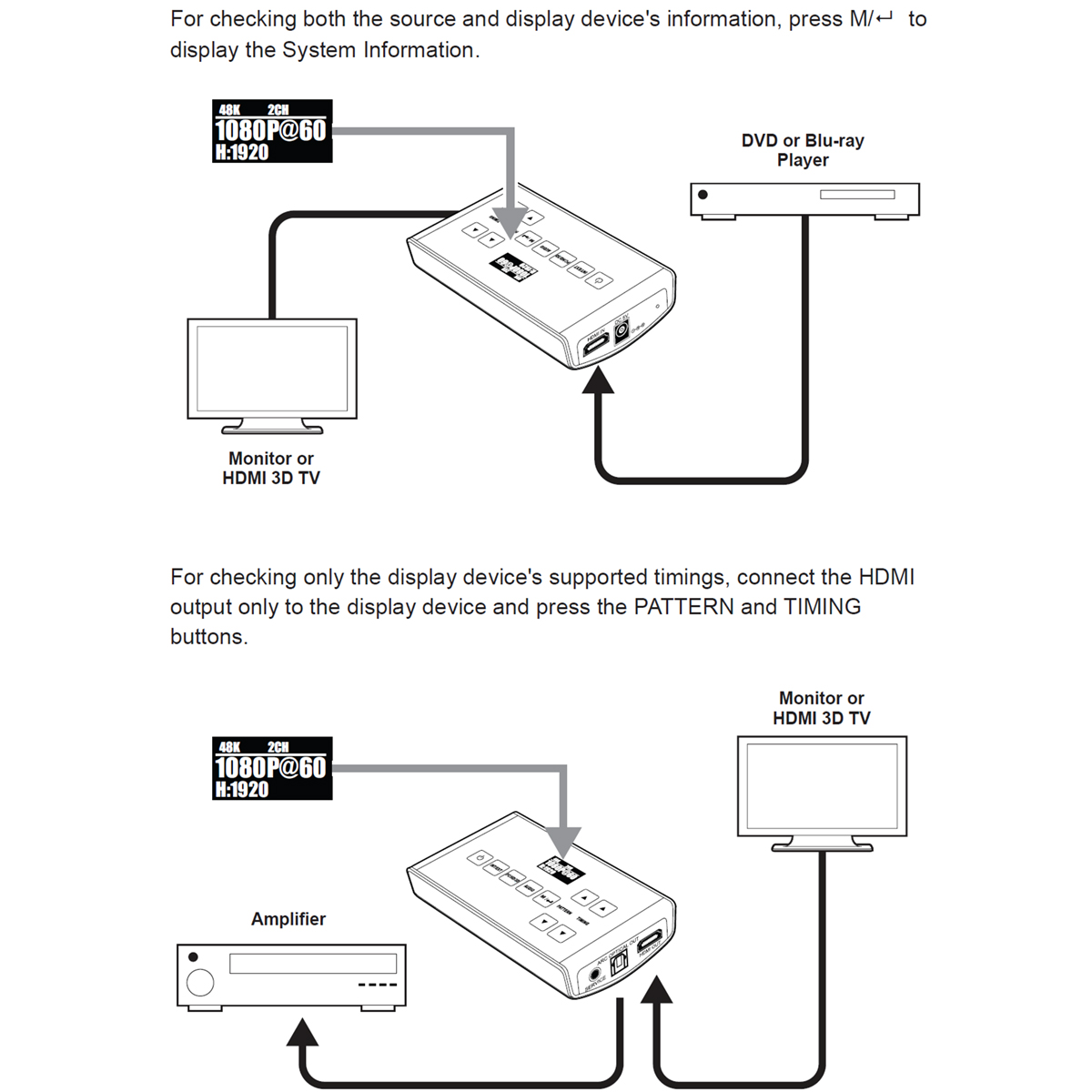

- Analyze the input source info-frame and output sink EDID information

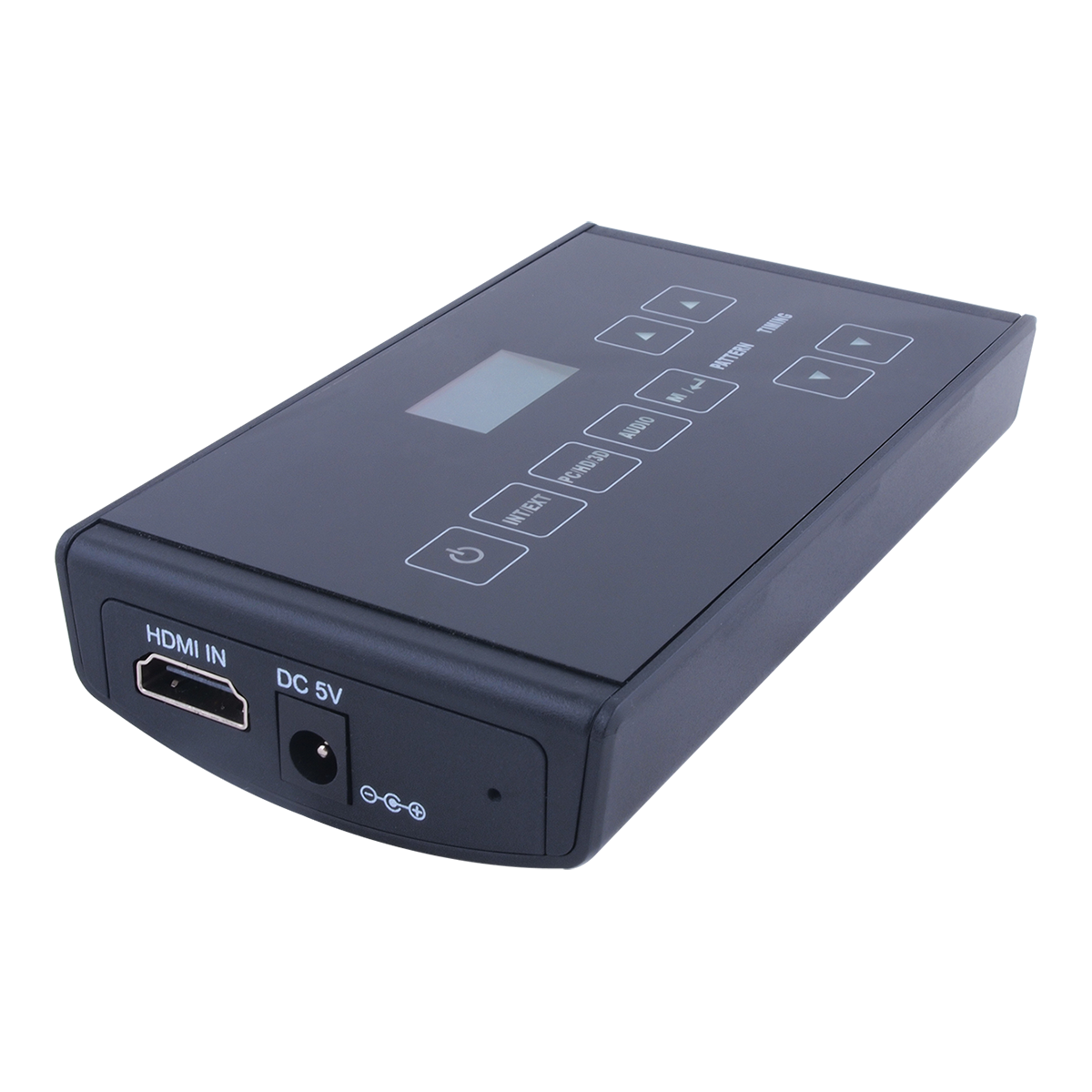

- Touch button control function
- OLED display shows Input/Output timing information

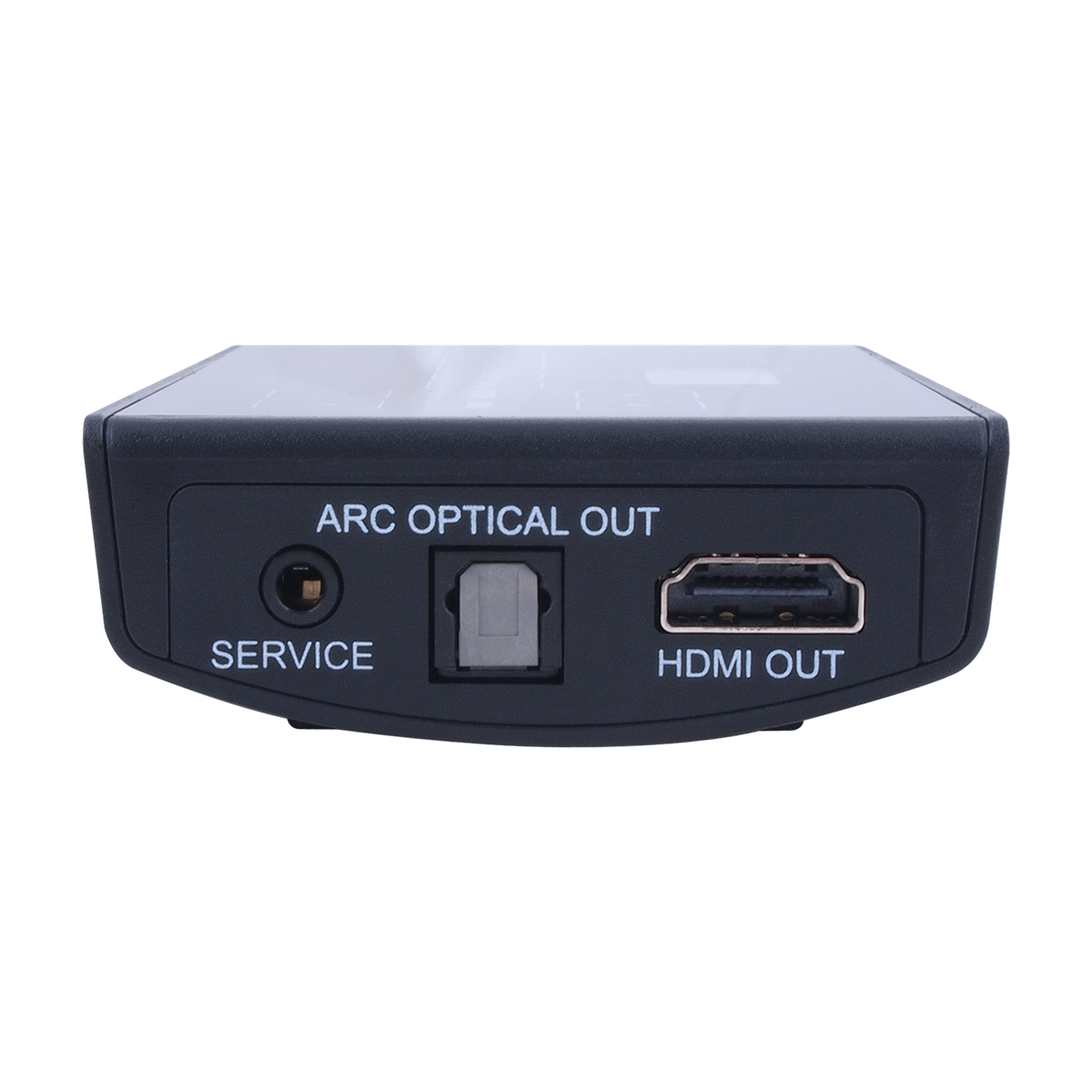

- Supports ARC (Audio Return Channel) following HDMI specifications
- Supports 'Deep Color' (8/10/12-bit) output
- Supports HDCP repeater function and complaint with HDCP
- Supports CEC bypass
