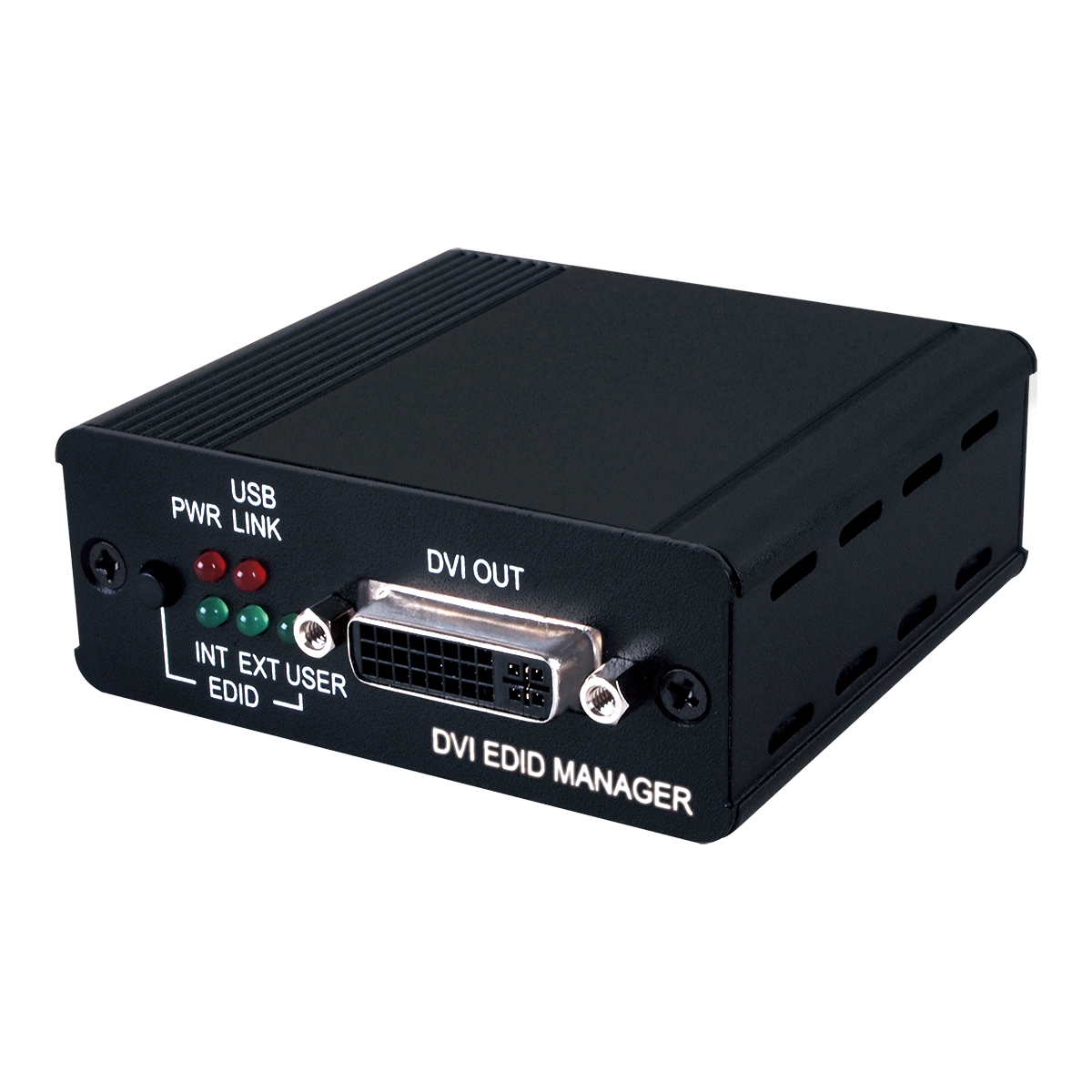

CLUX-DDP

DVI to DVI Enhancer with EDID Management

• DVI supported, HDCP and HDMI compliant

• Supports EDID selection from internal, external and user’s EDID to be insert

• Supports EDID Manager application control via USB

• LEDs display with fast viewing on current selection status

• USB firmware update

The DVI Enhancer with EDID Management is a handy device for your DVI signal extension and differentiation. This device Could access EDID management program, which allows user to upload EDID for selection which create alternative EDID selection for specific usage. Last but not least, EDID select button and LEDs design allow fast switching and quick viewing on the status.

Video Bandwidth	300MHz/9Gbps

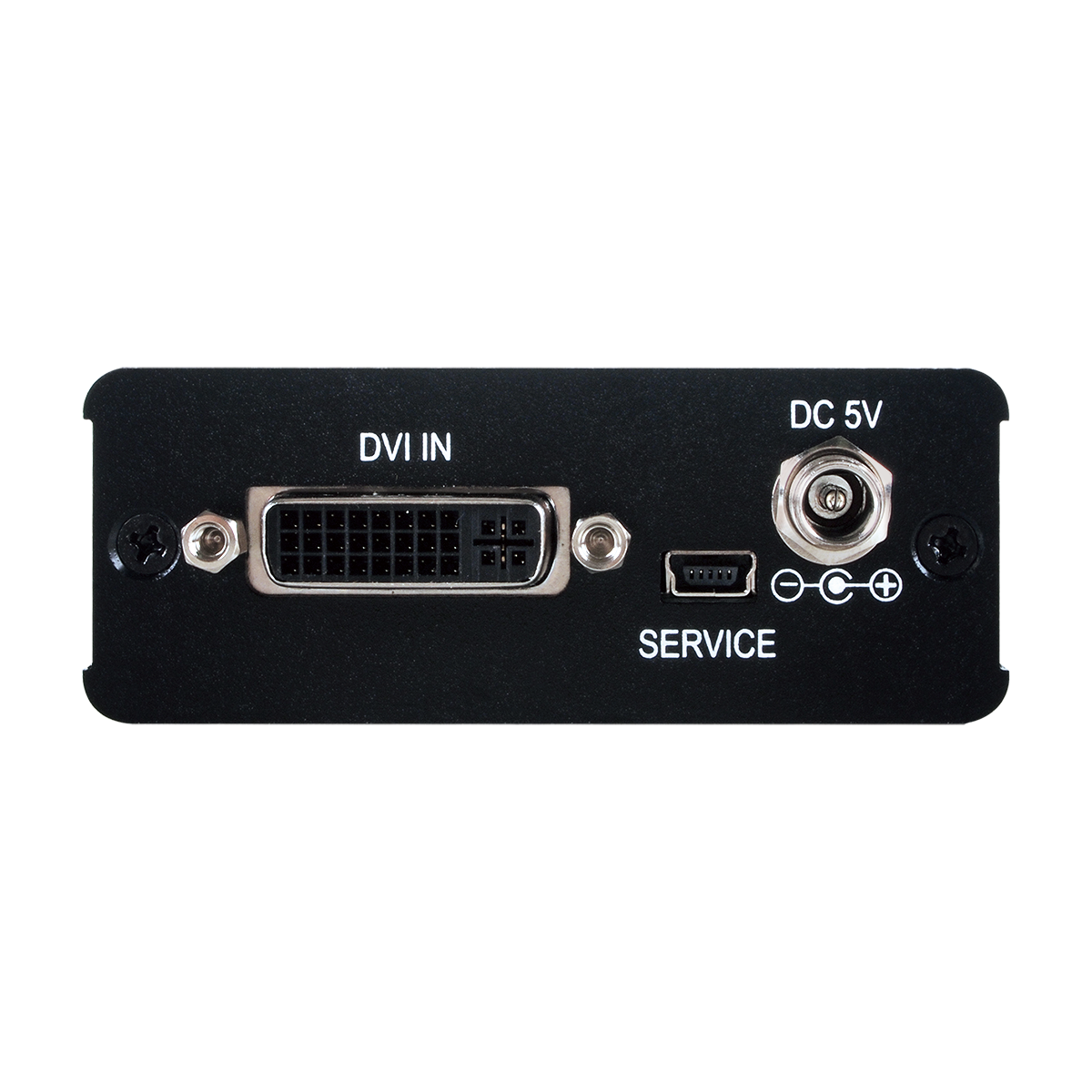

Input Ports	1 x DVI 1 x mini-USB(Service)
Output Ports	1 x DVI
Supported Resolutions	VGA~WUXGA(RB) 480i~1080p@24/50/60 4K2K@24/25/30/50/60(YUV420)
DVI Cable I/O Distance	5m@4K2K/60_YUV420 10m@1080p/12-bit 15m@1080p/8-bit
Power Supply	5VDC/2.6A (US/EU standards, CE/FCC/ UL certified)
ESD Protection	Human Body model: ± 8kV (air-gap discharge) ± 4kV (contact discharge)
Chassis Material	Metal
Silkscreen Color	Black
Dimensions	78.5mm (W) x 72mm (D) x 30mm (H) (Jacks excluded) 78.5mm (W) x 84mm (D) x 30mm (H) (Jacks included)
Weight	146G
Operating Temperature	0˚C~40˚C/32˚F~104˚F
Storage temperature	-20˚C~60˚C/-4˚F~140˚F
Relative Humidity	20~90% RH (no condensation)
Power Consumption	1.32 W

Product Support
Upload Date	File Name	Version	OS	Description	Download
2021/07/07	CLUX-DDP Manual	1	all	CLUX-DDP Manual
