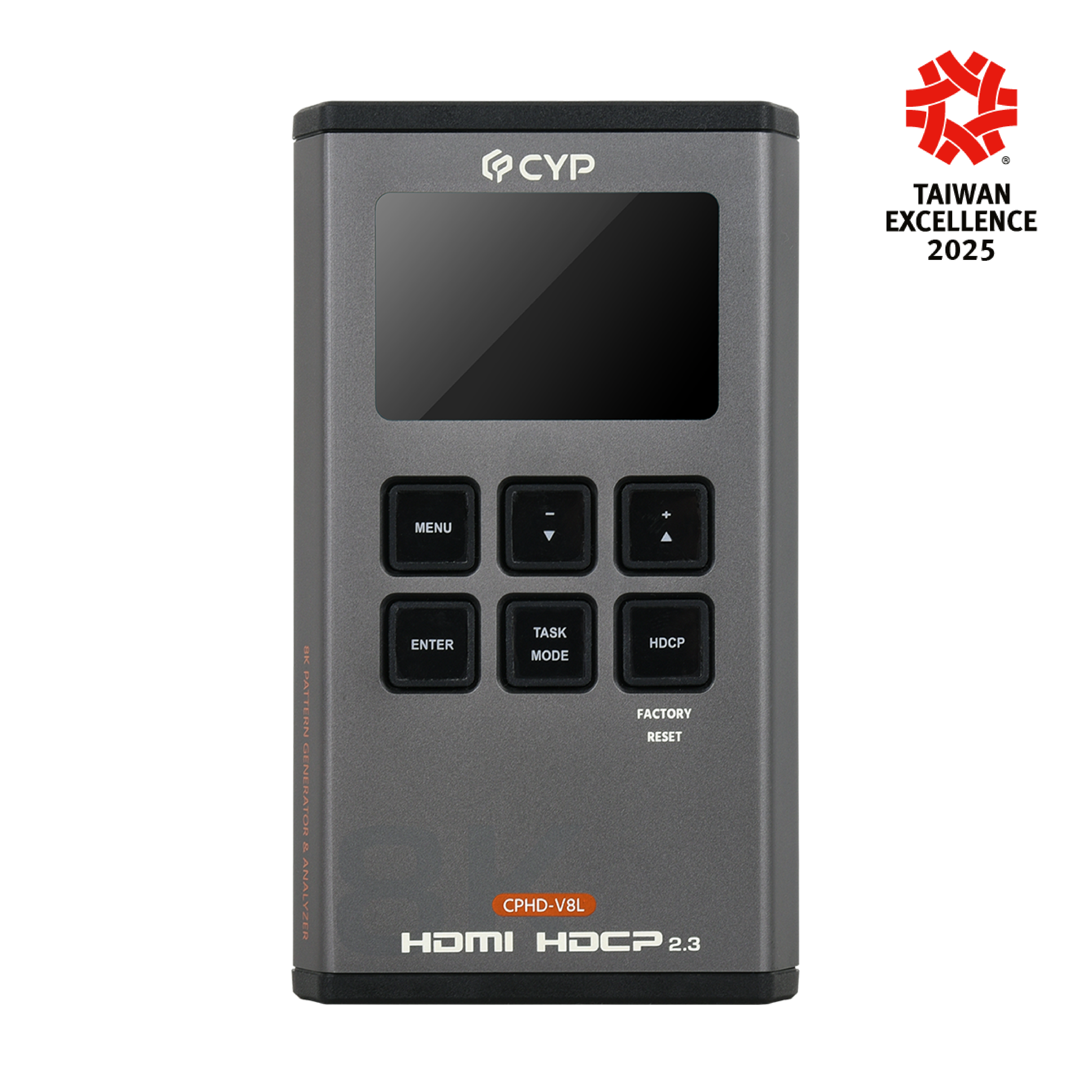

CPHD-V8L

8K HDMI Signal Generator & Analyzer (Portable Version)

Generator (Test Pattern Mode) supports 40 selectable output resolutions up to 8K and 20 selectable test patterns
Analyzer mode supports 8K source video, audio, timing and packet analysis
Comprehensive EDID management, analysis and emulation support with 12 built-in default EDIDs and 10 user-definable EDIDs
Portable palm-sized design with easy to use front-panel controls
OLED display with rapid updates of current status information
HDCP and SCDC monitoring functions
HDR bypass, analysis and generation function complies with the CEA standard HDR static metadata extensions CEA-861-G and CEA- 861.3
Supports generation of up to 8 channels of LPCM audio with adjustable sinewave frequencies for each channel
Powered by a single Lithium-ion battery (not included) or an external USB-C power supply/power bank

This portable 8K HDMI Signal Generator & Analyzer provides a convenient way to generate, test and verify all aspects of an HDMI signal path up to 8K@60Hz (4:2:0), including source and sink. In pattern mode, it can generate 40 selectable output resolutions, 20 test patterns and up to 8 channels of LPCM audio signals. The Analyzer mode supports video timing, audio timing, EDID and HDCP analysis. This unit complies with the HDMI 2.1 and HDCP 1.4/2.2/2.3 standards.

It is powered by a single rechargeable Lithium-ion battery (not included). Besides the Lithium-ion battery, the unit may also be powered (and the battery recharged) via the USB-C port. An external power bank can also be used to extend the portable service time.

The unit has an integrated OLED display which provides a way to quickly and clearly view the current signal state or the results of signal analysis. This portable handheld design is ideal for both the professional end user and installation engineer alike.

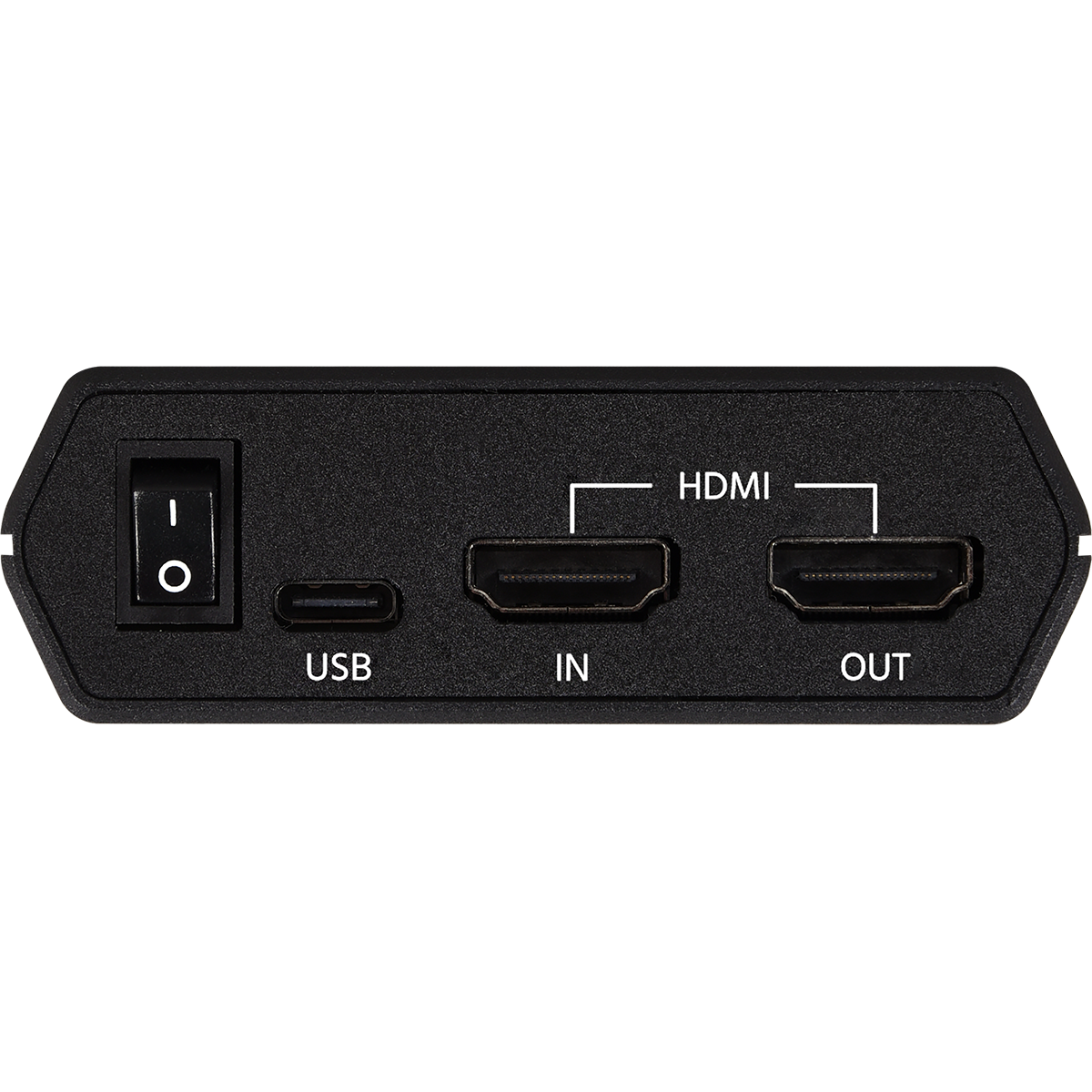

Interfaces
Input Port	1×HDMI (Type-A)
Output Port	1×HDMI (Type-A)
Control I/O	1 x USB (Type-C)

Video
HDMI Compliance	2.1 (DVI 1.0)
HDCP Compliance	2.3
Input Signal Type	8K@60Hz YUV 4:2:0
Output Signal Type	8K@60Hz YUV 4:2:0
Input Color Depth	8-12bit
Output Color Depth	8-12bit(Pattern mode 8 bit maximum)
Resolutions
Maximum Input	HDMI	7680x4320p@60
Maximum Output	HDMI	7680X4320p@60

Audio
HDMI	LPCM 8 channel Bitstream High-Definition Bitstream

Audio

HDMI

LPCM 8 channel Bitstream

High-Definition Bitstream

Power
Power Supply	5V/2.1A USB power or Lithium-ion battery (not included)
Power Consumption	4.7W

Enclosure
Chassis Material	Metal (Aluminum)
Chassis Color	Dark Grey
Dimensions (W×H×D)	80mm×124mm×26.5mm [Case Only] 80mm×126mm×26.5mm [All Inclusive]
Weight	260g

Field Firmware Update
PC Update

ORDERING INFORMATION

Model No.	Product Description
CPHD-V8L	8K HDMI Signal Generator & Analyzer (Portable Version)

Product Support
Upload Date	File Name	Version	OS	Description	Download
2024/08/19	CPHD-V8L-Manual-Ver1.01	Ver1.01	all	CPHD-V8L-Manual-Ver1.01

PRODUCTS FEATURED

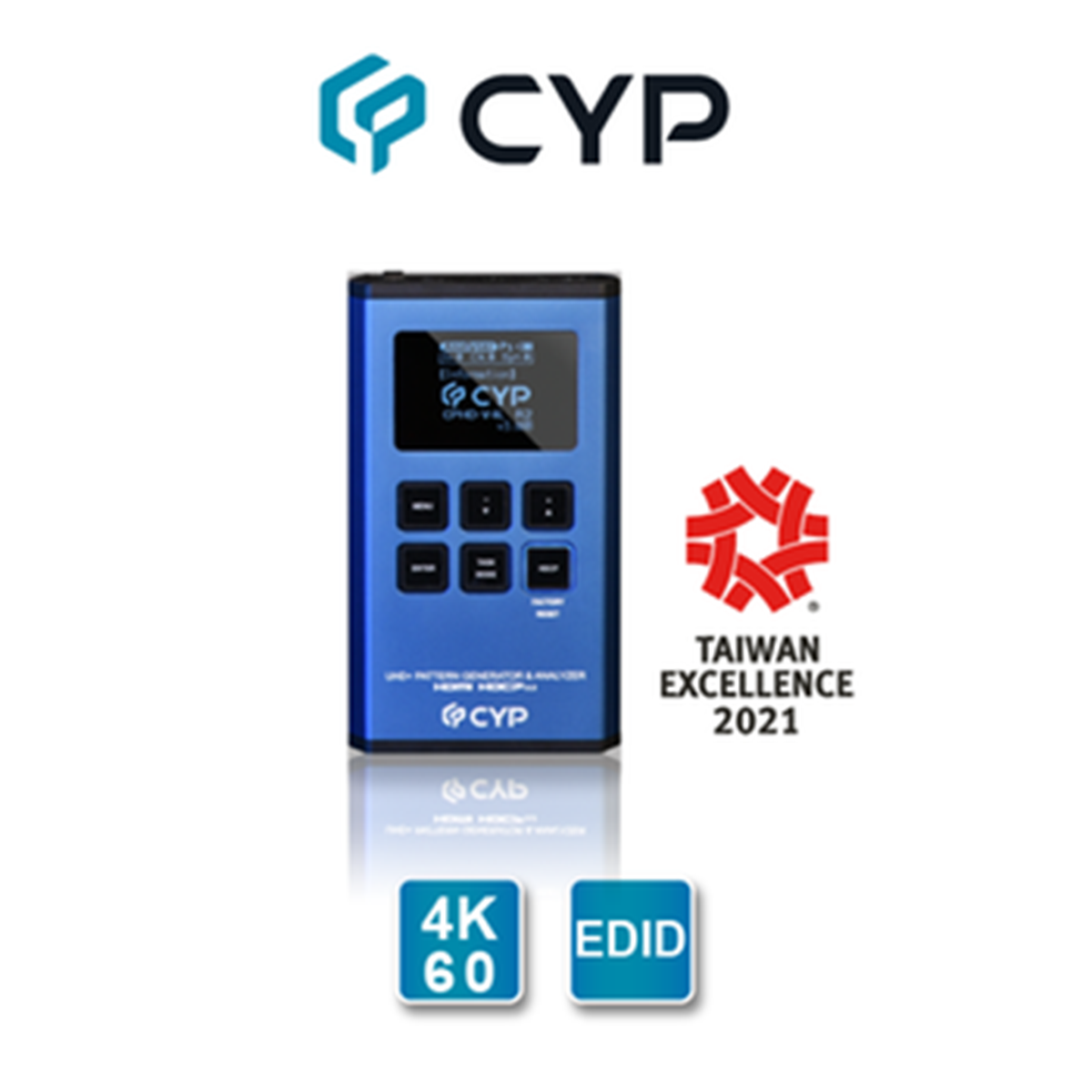

CPHD-V4L-KIT

4K HDR HDMI Signal Generator & Analyzer (Portable)

This portable HDMI Signal Generator & Analyzer provides a convenient way to test and verify all aspects of an HDMI signal path, including source and sink. This unit complies with the HDMI 2.0a and HDCP 1.4/2.2 standards. The unit’s Analyzer mode complies with the CEA standard HDR static metadata extensions CEA-861-F and CEA-861.3 for EDID analysis.

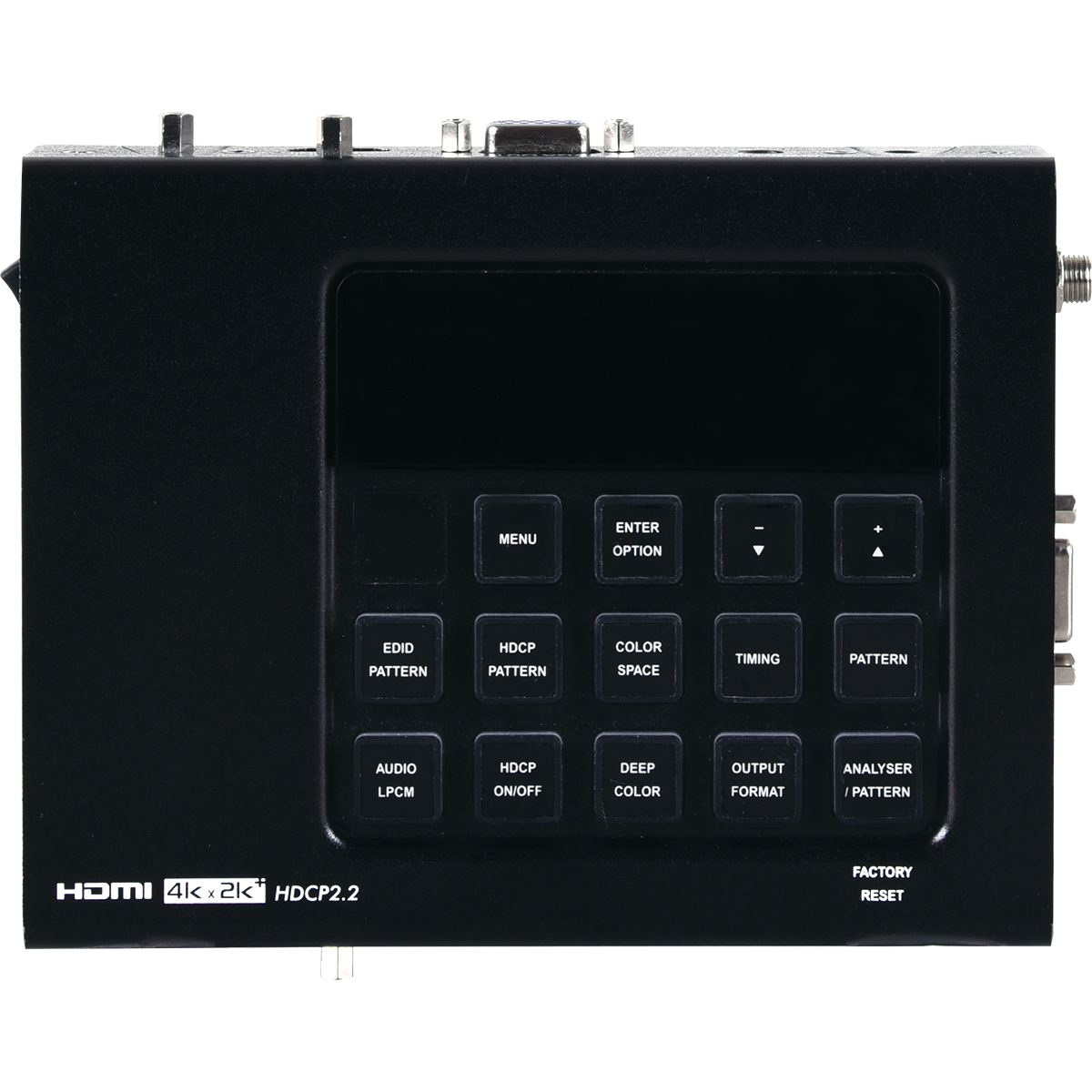

CPHD-V4
