CPLUS-11HB

4K2K HDMI 6G Pattern Generator with Audio Bridge

HDMI (with 6G audio/video support) and HDCP 2.2 compliant
Generates HDMI resolutions up to 6Gbps 4K2K@60Hz
Generates HDCP v1.4, HDCP v2.2 and non-HDCP signals

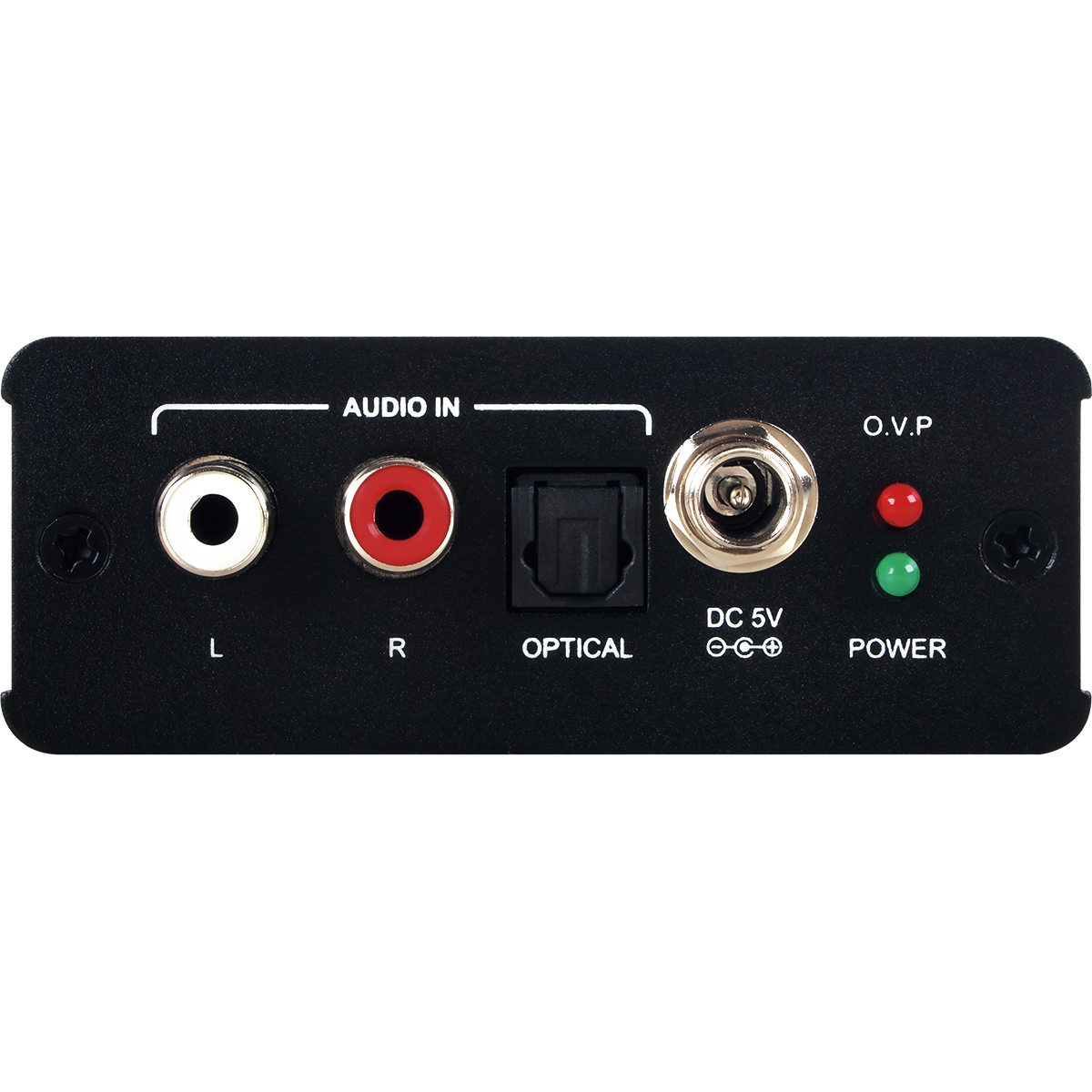

Supports external analog stereo and optical digital audio input

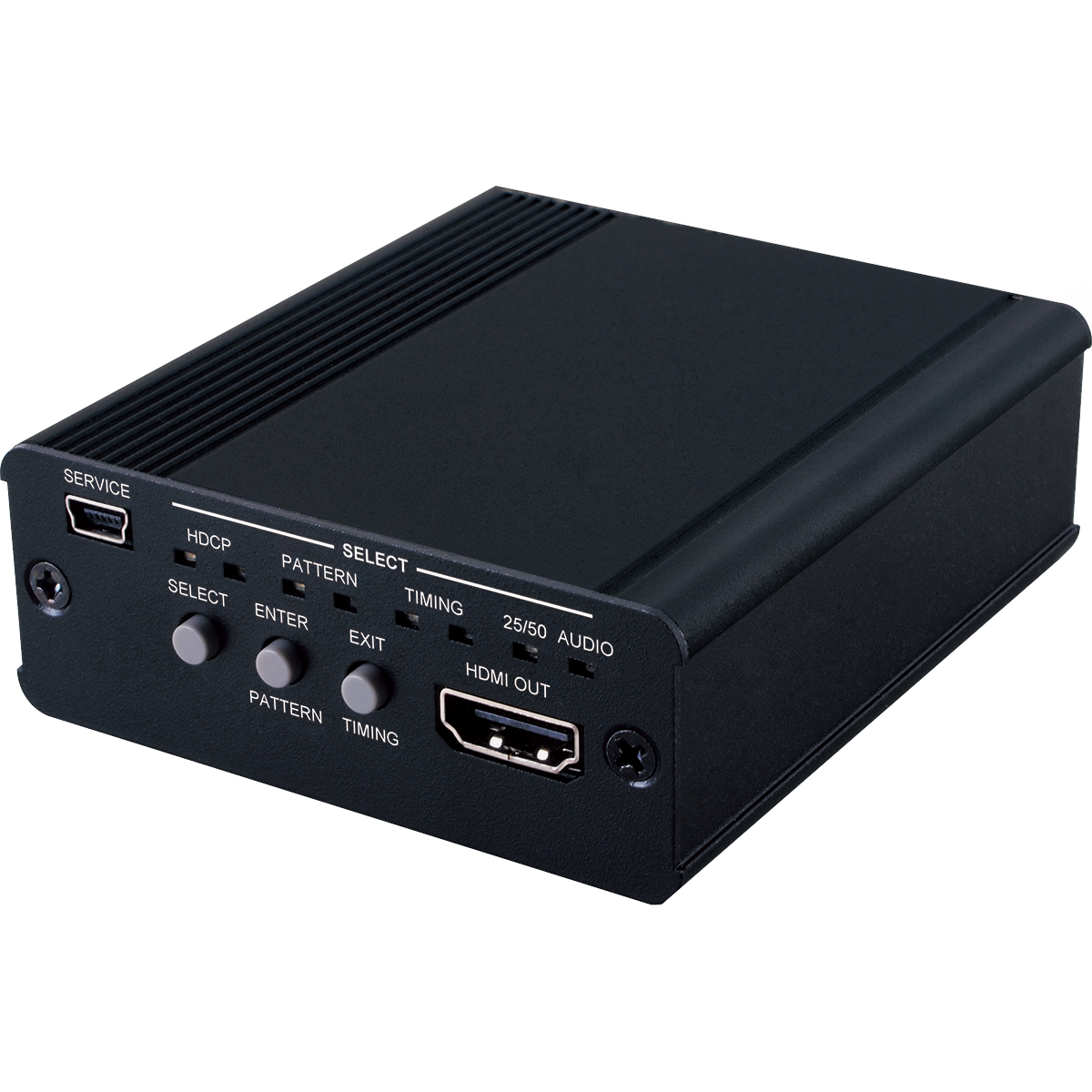

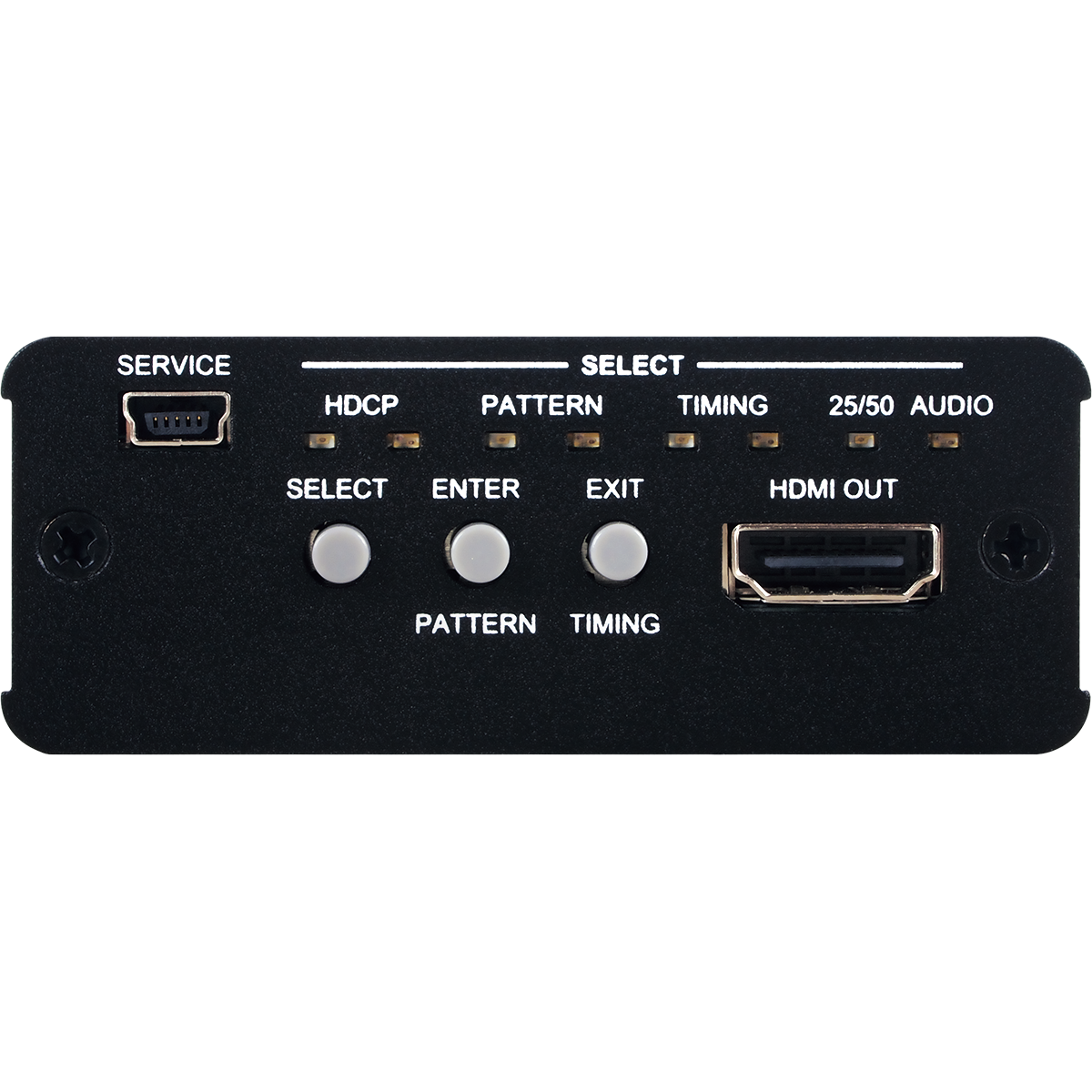

The 4K2K HDMI 6G Pattern Generator with Audio Bridge is an advanced and convenient tool for generating HDMI 6G signals for testing HDMI devices. With 6 built-in settings covering Ultra HD and Full HD resolutions, 4 test patterns, HDCP (1.4, 2.2 and non-HDCP) and 2 audio types each providing a large array of test patterns, and incorporates both digital and analog audio inputs for embedding into an HDMI output. The colorful LED design allows fast and easy selection of patterns and quick viewing of the current status.

Video Bandwidth	600MHz/18Gbps
Input Ports	1 x L/R (RCA) 1 x Optical 1 x USB(Service)
Output Port	1 x HDMI
Supported Resolutions	720p@50/60 1080p@50/60 4K2K@25/30/50/60
HDMI Cable Length	5M/4K2K@25/30/50/60 5M/1080p@50/60
Digital Audio Output Sampling Rate	48kHz
Support Analog Audio	2Vrms
Power Supply	5V/2.6A DC (US/EU standards, CE/FCC/UL certified)
Chassis Material	Aluminum
Chassis Color	Black
Weight	202g
Dimensions	78.5mm(W) x 87.1mm(D) x 30mm(H)/Jacks Excluded 78.5mm(W) x 95.25mm(D) x 30mm(H)/Jacks Included
Power Consumption	2.5W
