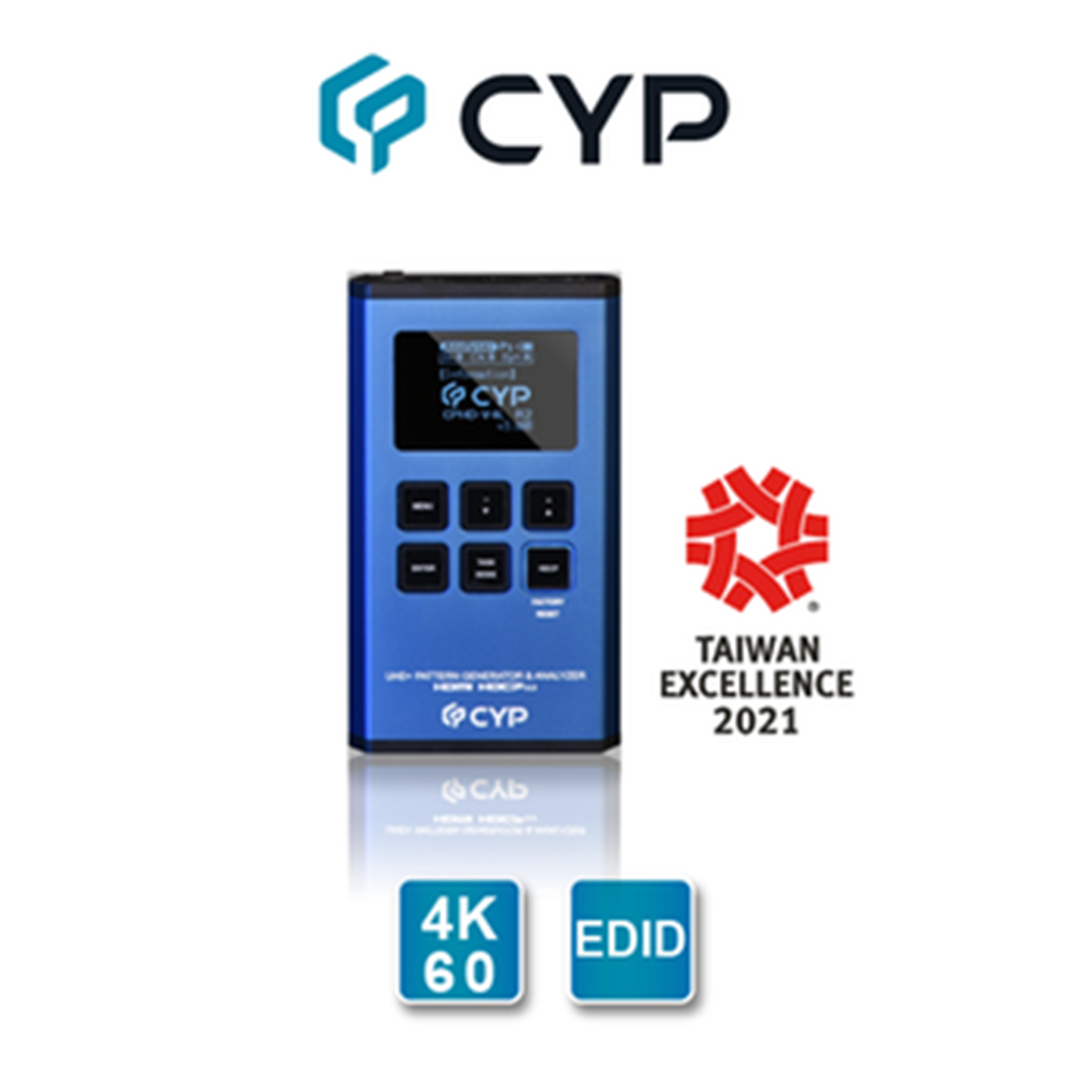

CPHD-V4L-KIT
4K HDR HDMI Signal Generator & Analyzer (Portable)
- HDMI input and output with 18Gbps (600MHz) 4K UHD support
- DVI 1.0 compliant with the use of an HDMI-DVI adaptor
- HDCP 1.4 and 2.2 compliant
- Supports HD resolutions up to 4096×2160@60Hz (4:4:4, 8-bit)
- Source bypass support in Analyzer mode
- 4K sources can be scaled down to 1080p in Analyzer mode to support a wider range of displays when analyzing a high-bandwidth source
- HDR bypass and analysis support
- Source video, audio and timing analysis
- Analysis and emulation of EDID data
- HDCP and SCDC monitoring functions
- HDMI packet analysis
- Analyzer mode complies with the CEA standard HDR static metadata extensions CEA-861-F and CEA-861.3
- 23 selectable output resolutions available in Test Pattern mode
- 11 selectable static test patterns in Test Pattern mode
- HDMI 2.0 cable test function including tests for 5V, CEC and hot-plug detection support
- Supports LPCM 2.0, 5.1, and 7.1 audio output with adjustable sinewave frequencies for each channel
- Comprehensive EDID management support with 10 built-in default EDIDs and 10 user EDIDs copied from sink devices
- Powered by a single Lithium-ion battery (not included). Use of an external USB power bank can provide extended operation time
- OLED display with rapid updates of current status information
- Supports optional Windows control software
- Supports USB firmware update
- Portable palm-sized design with easy to use front-panel controls

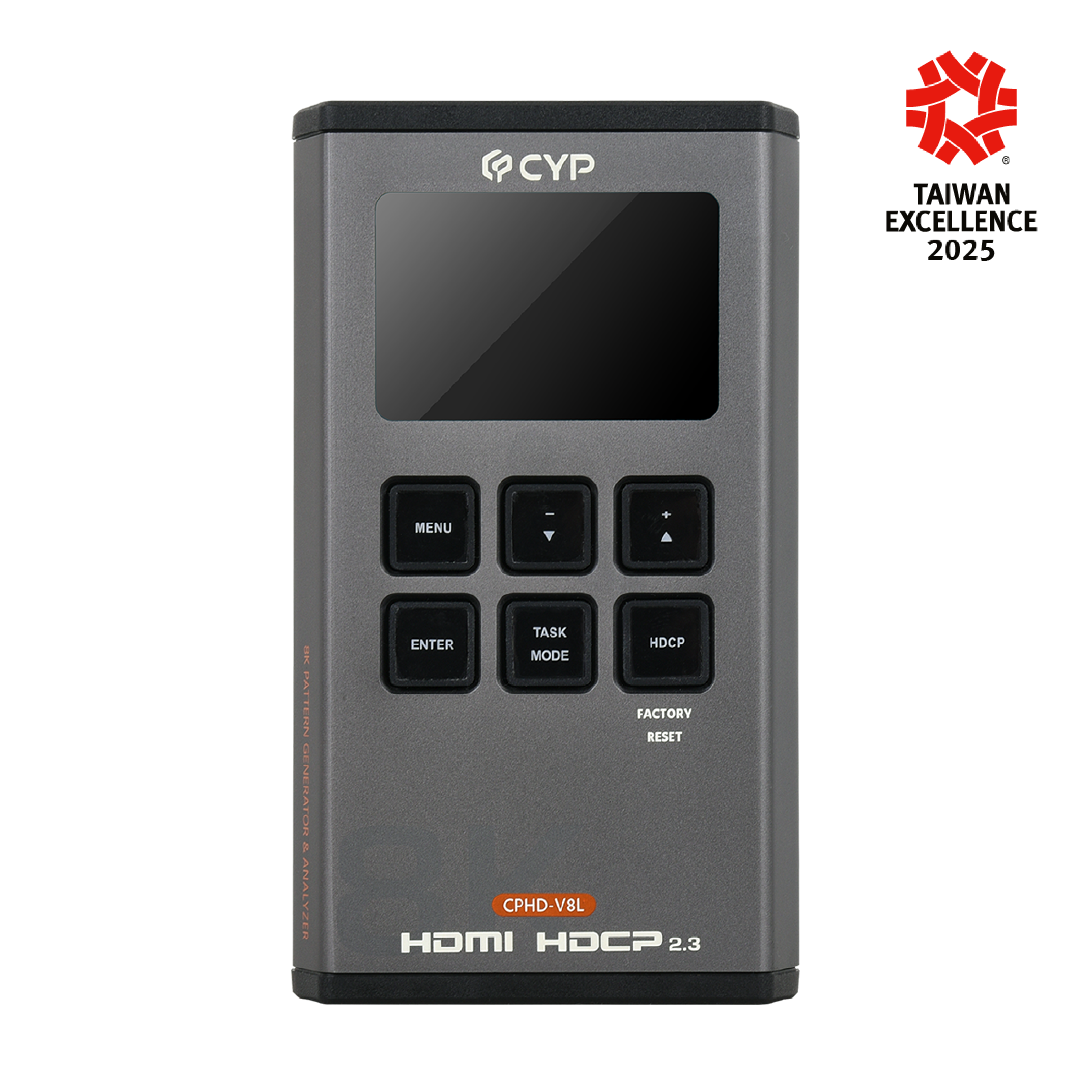

CPHD-V8L
8K HDMI Signal Generator & Analyzer (Portable Version)
This portable 8K HDMI Signal Generator & Analyzer provides a convenient way to generate, test and verify all aspects of an HDMI signal path up to 8K@60Hz (4:2:0), including source and sink. In pattern mode, it can generate 40 selectable output resolutions, 20 test patterns and up to 8 channels of LPCM audio signals. The Analyzer mode supports video timing, audio timing, EDID and HDCP analysis. This unit complies with the HDMI 2.1 and HDCP 1.4/2.2/2.3 standards. It is powered by a single rechargeable Lithium-ion battery (not included). Besides the Lithium-ion battery, the unit may also be powered (and the battery recharged) via the USB-C port. An external power bank can also be used to extend the portable service time. The unit has an integrated OLED display which provides a way to quickly and clearly view the current signal state or the results of signal analysis. This portable handheld design is ideal for both the professional end user and installation engineer alike.
