CH-730RX

USB 3.2 over Category Cable Receiver

Support 4 USB 3.2 Gen1 device ports
Support Point-to-Point transmission
Transmission up to 100 meters (328 feet)
Devices can be controlled by the USB host on a transmitter
Firmware update with hotkey from the receiver or remote update from the transmitter
Backward compatible with USB 2.0

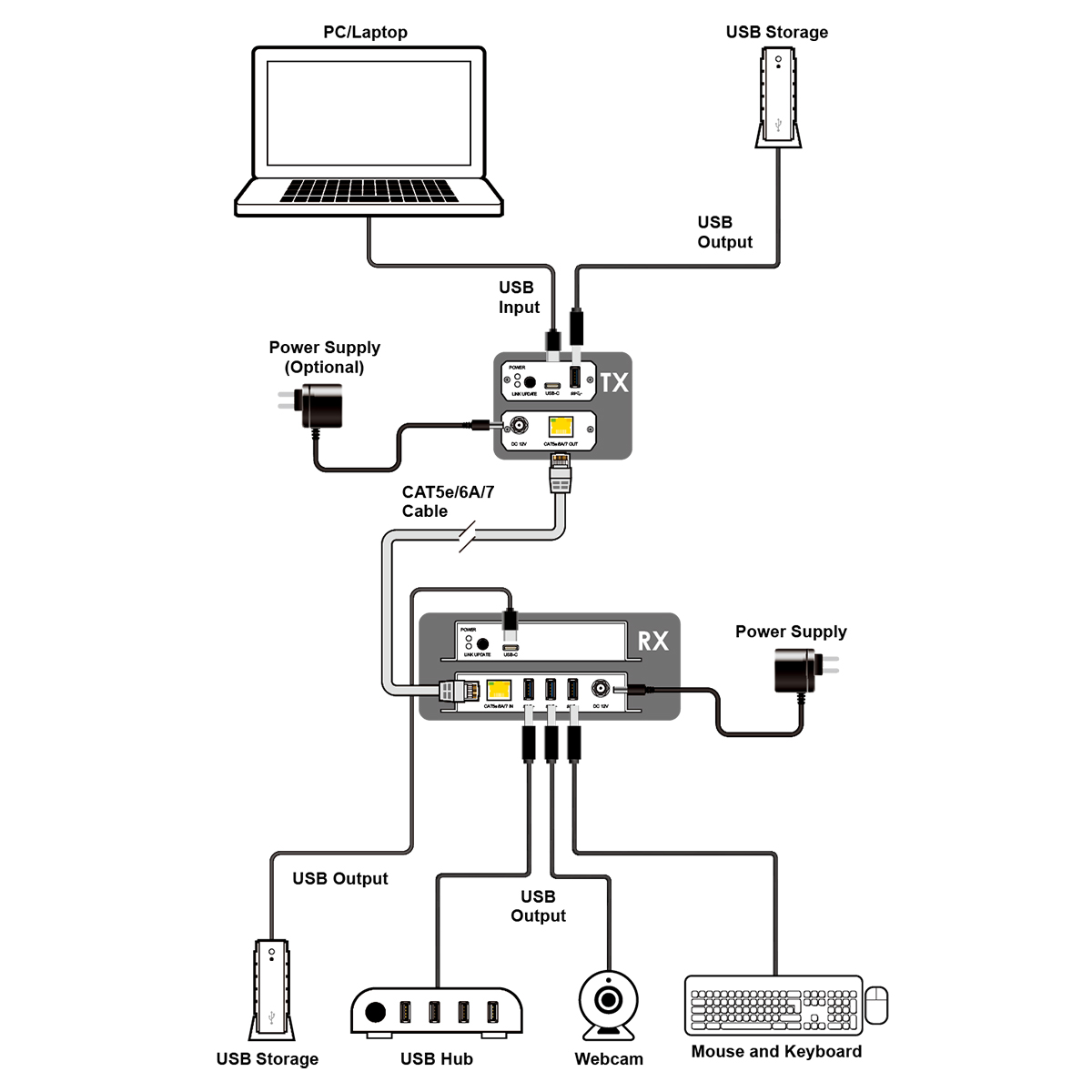

This USB 3.2 Gen1 extender set is designed to extend signal from one USB host to multiple USB devices for up to 100 meters (328 feet) when paired with the transmitter from the homologous series.

This receiver enables users to extend up to 4 USB 3.2 devices remotely, such as flash drives, keyboards and USB cameras. With an adapter, USB-C port supports 5V/3A power and USB-A ports provides 5V/0.9A power to USB devices. The unit also supports a hotkey for convenient firmware update from the transmitter side.


Interfaces
Input Port	1×Cat5e/6A/7 (RJ45)
Output Port	1×USB-C
	3×USB-A

USB
USB Performance	3.2 Gen1, SuperSpeed 5Gbps

Power
Power Supply	12V/3A
Power Consumption	39.173W (full load)

Enclosure
Chassis Material	Metal (Steel)
Chassis Color	Black
Dimensions (W×H×D)	128mm×25mm×75mm [Case Only] 128mm×25mm×83.5mm [All Inclusive]
Weight	275g

Field Firmware Update
PC update and Remote update

ORDERING INFORMATION

Model No.	Product Description
CH-730TX	USB3.2 over Category Cable Transmitter
CH-730RX	USB3.2 over Category Cable Receiver

Product Support
Upload Date	File Name	Version	OS	Description	Download
2024/08/21	CH-730RX-Manual-Ver1.01.pdf	Ver1.01	all	CH-730RX-Manual-Ver1.01.pdf
