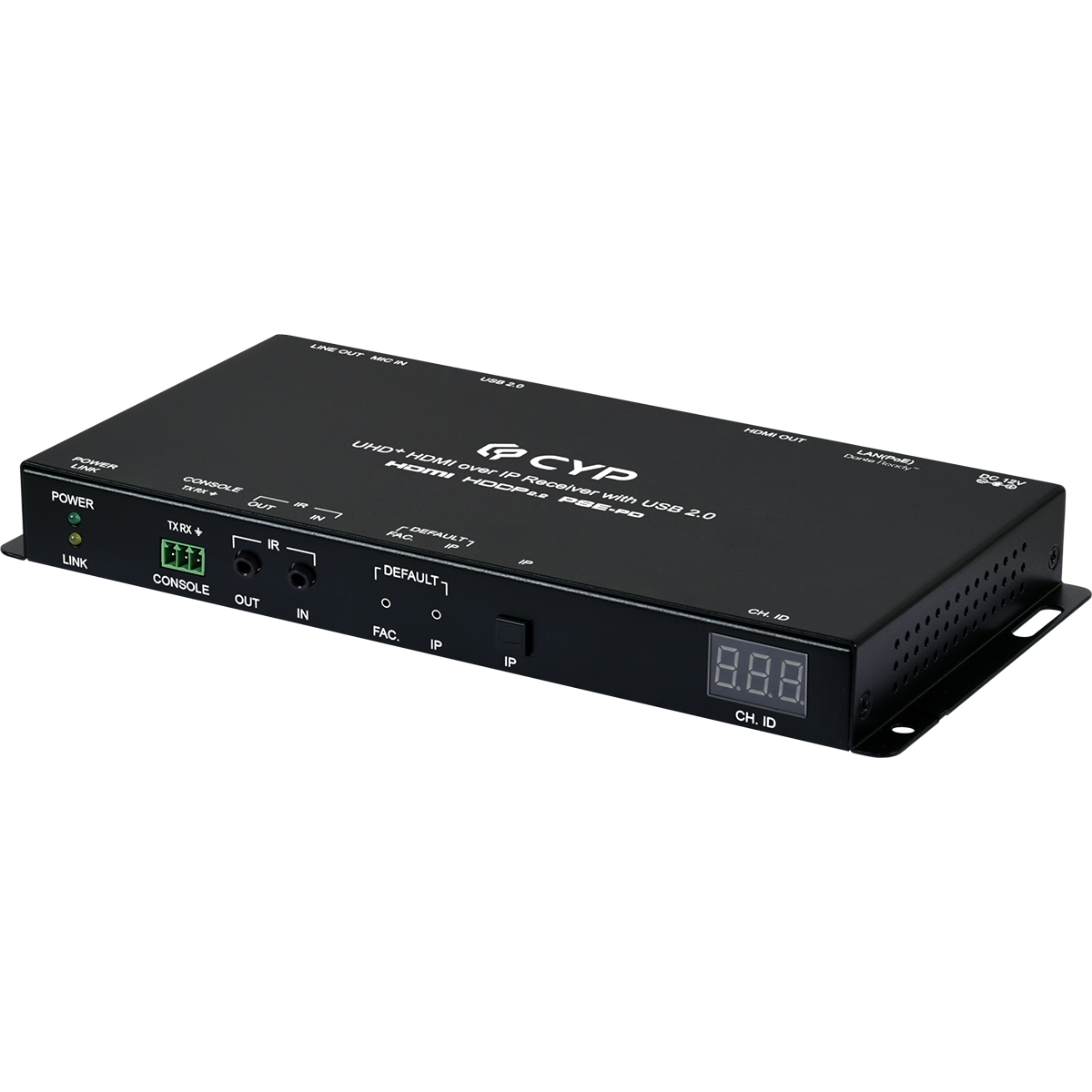

  • CYP AVIP-A4601D-B1C Front-2_1209104120871

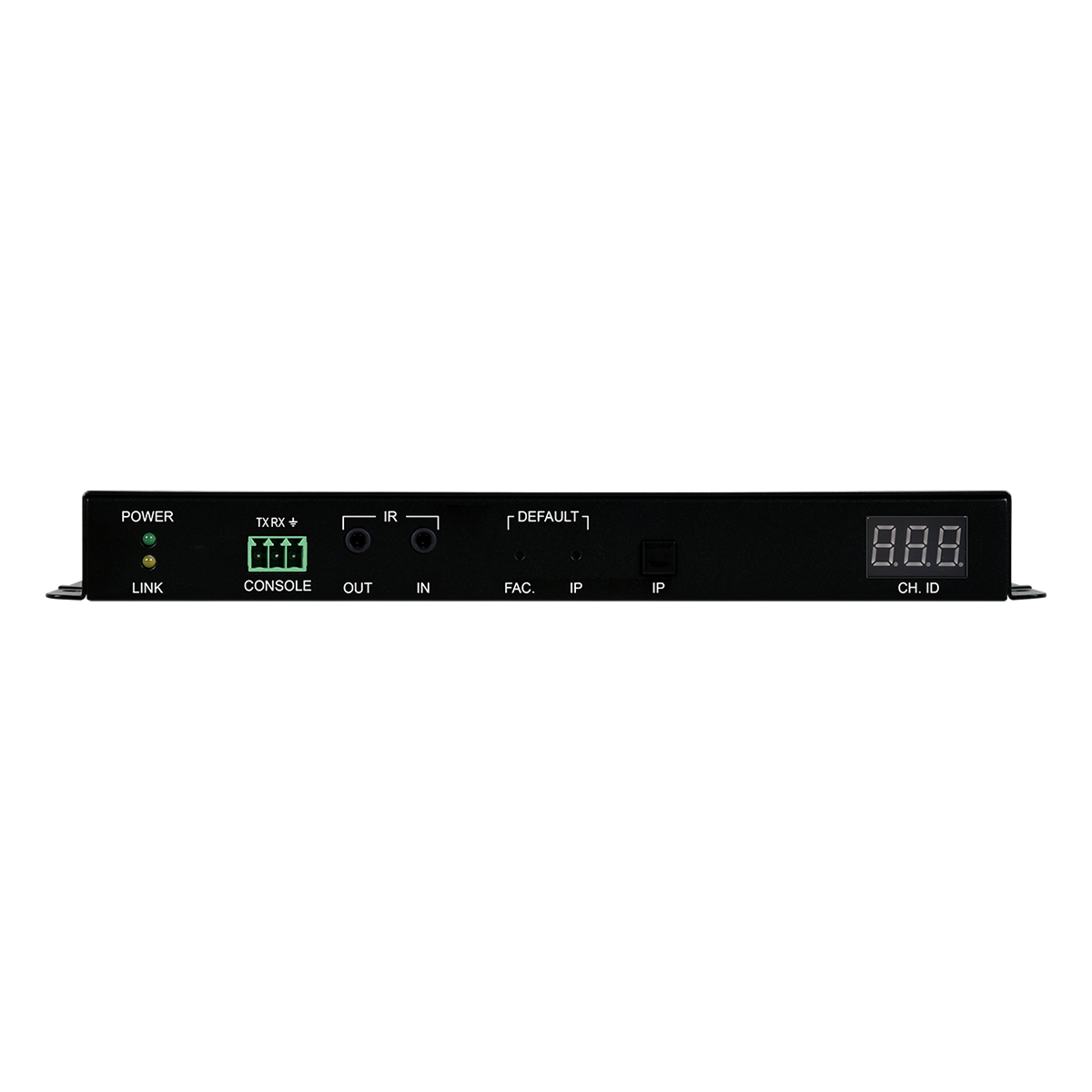

  • AVIP-A4601D(E)-B1C Front-4_1209104119490

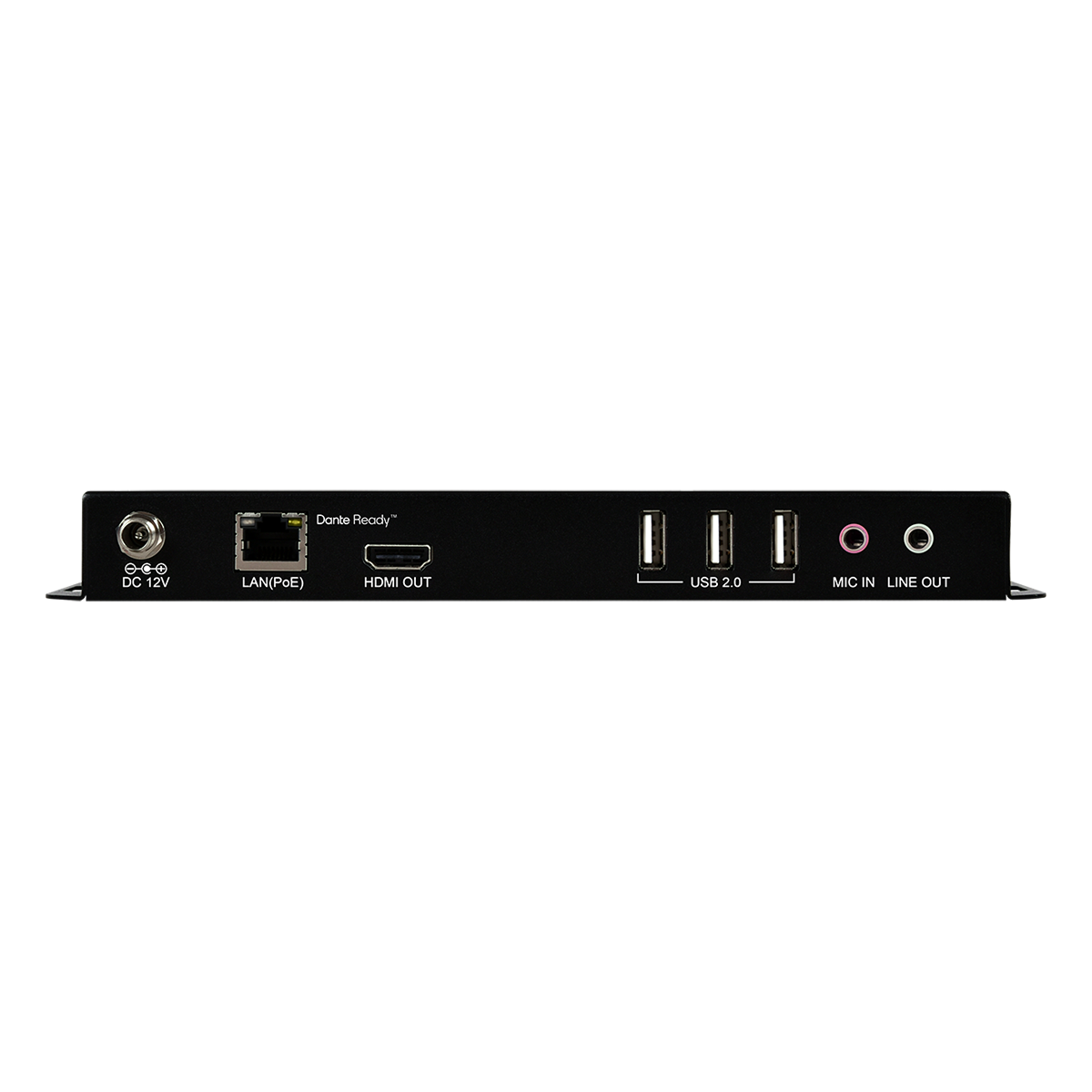

  • AVIP-A4601D-B1C Rear-4_1209104118145

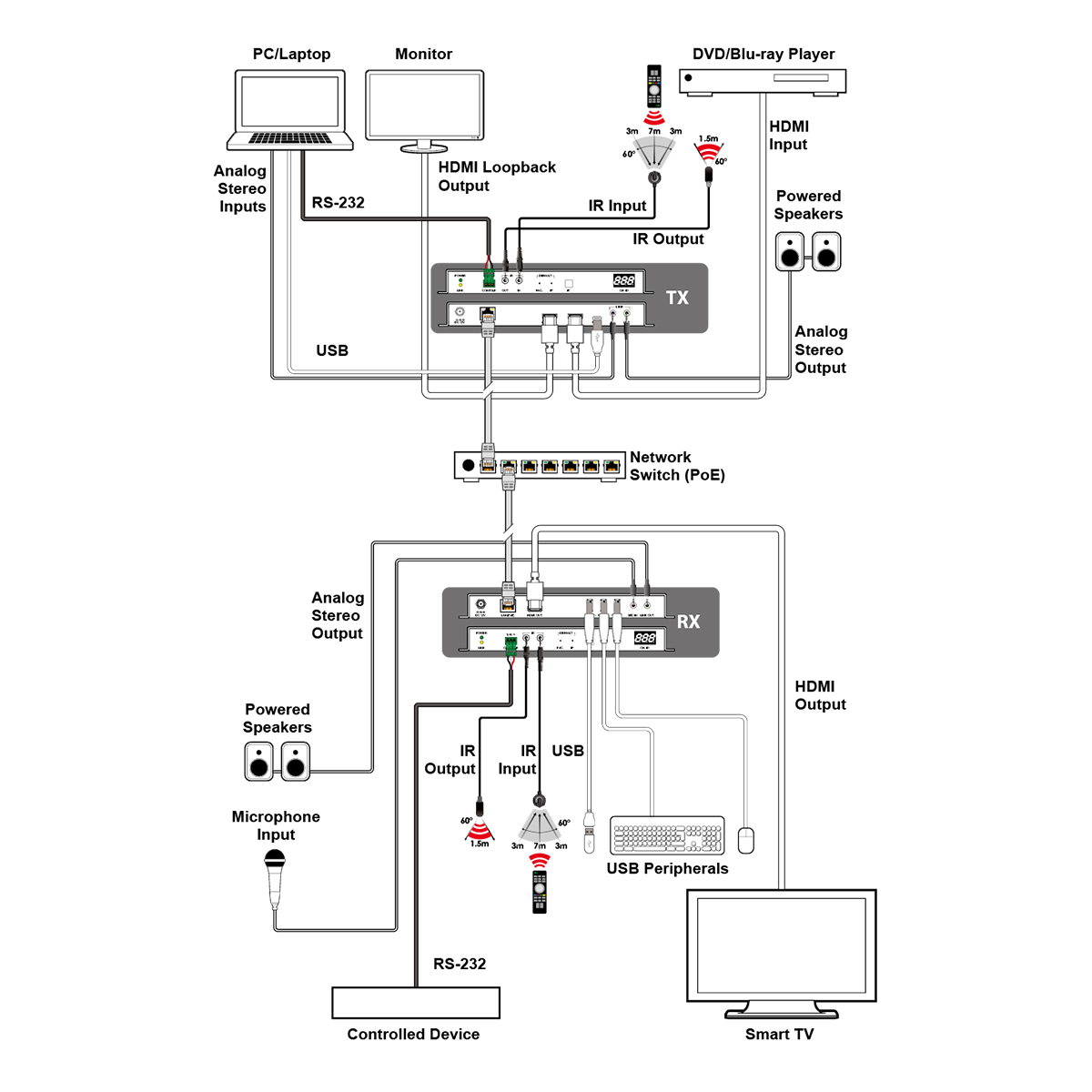

  • AVIP-A4601D(E)-B1C_Connection_Diagram_1209110953978

AVIP-A4601D-B1C

4K60 HDMI over IP Receiver with USB 2.0

  • 4K@60 1Gbps AV over IP transmitter in Unicast or Multicast mode.
  • IP interface: RJ45
  • Supports KVM over IP (USB flash drive, keyboard and mouse) and USB roaming.
  • Supports PoE-PD (IEEE 802.3af).
  • Support IP to IR/ RS-232, converting the IP signal into IR and RS-232 commands for device control.
  • Controlled via WebGUI, IP Master Controller, and Telnet
  • Supports the use of an external control center (IP Master Controller) to provide expanded functionality (Contact your authorized dealer for more information)
  • Supports independent breakaway A/V and control matrix routing
  • Supports extension of many audio formats including 8 channel LPCM and standard Bitstream

Note: The Line Out only supports LPCM 2.0 sources.

  • The analog Line In is automatically embedded in the streaming output and can be independently routed to any receiver
  • The Mic In sends audio directly to the analog Line Out on the currently routed transmitter

Note: Only available when the transmitter also has its Line In connected.
