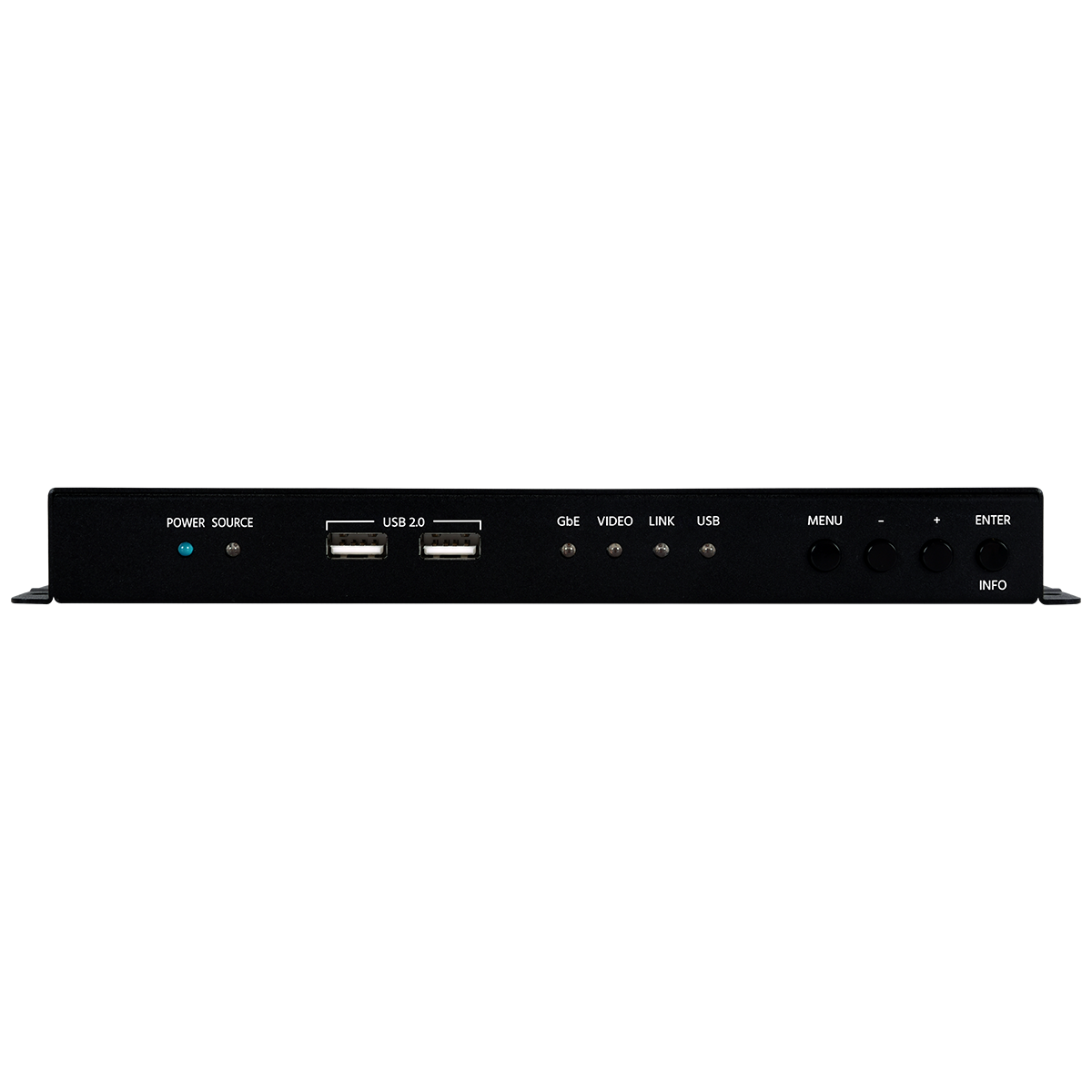

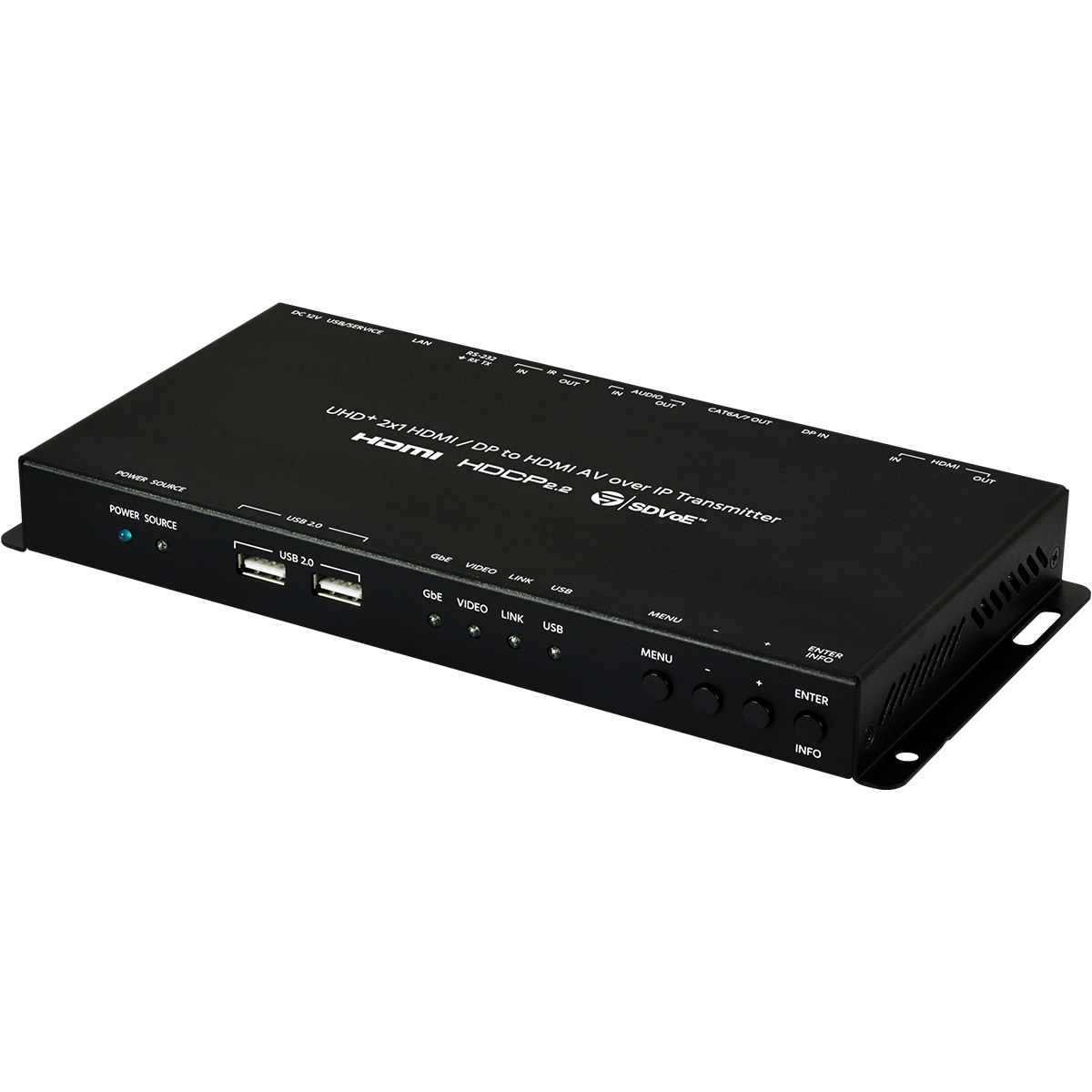

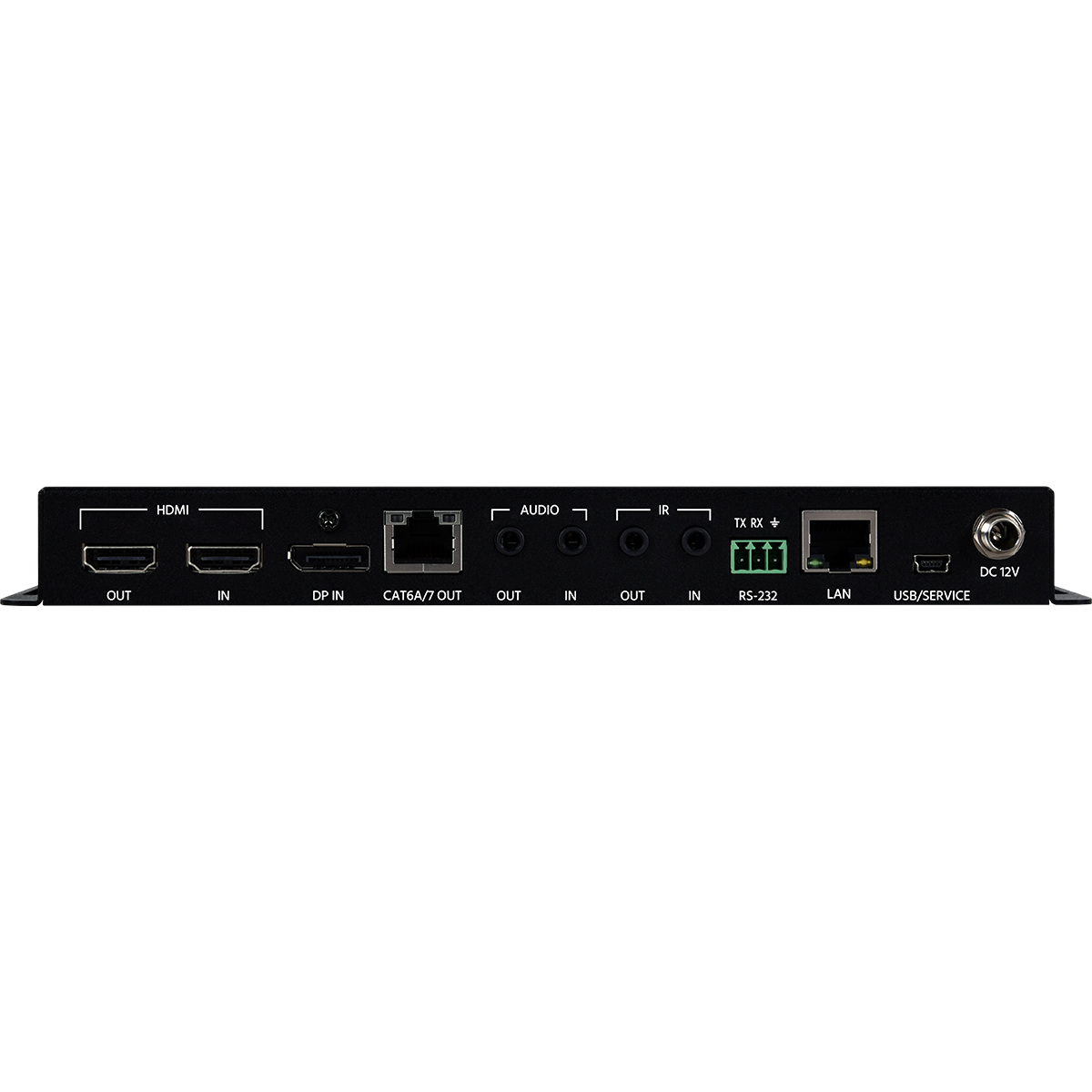

AVIP-P5104T-B1C
UHD+ 2x1 HDMI/DP to HDMI AV over IP Transmitter
- HDMI 2.0 and DVI 1.0 compatible, HDCP 2.2 and HDCP 1.x compliant
- 2 USB 2.0 (Type A) ports and 1 USB 2.0 (Mini B) port
- Supports pass-through of 10/12-bit HDR sources (Point-to-Point and Bypass modes only)
- Analog stereo audio extension, insertion and extraction (insertion and extraction requires optional IP Master Controller/control software)
AVIP-P5104R-B1C
UHD+ HDMI AV over IP Receiver
This Receiver is designed for high-quality, IP routable, AV extension with minimum latency. By using a sophisticated ultra-light compression scheme (lossless for most content) it’s a great solution for extending 4K audio/video streams and data. The use of high quality 10 Gigabit Ethernet ports and Cat.6A or better cable allows for point-to-point transmission of the video signal up to 100m. Multiple control and data signals may also be transmitted along with the audio and video, including IR, RS-232, USB 2.0, and Ethernet. When combined with the optional IP Master Controller or control software, the functionality of the Receiver expands exponentially. Multiple Transmitters and Receivers may be combined with one or more 10-Gigabit Ethernet switches and the units can be used together to form a distributed video matrix, a multiviewer system, or a video wall system adding to their flexibility in large event installations.
