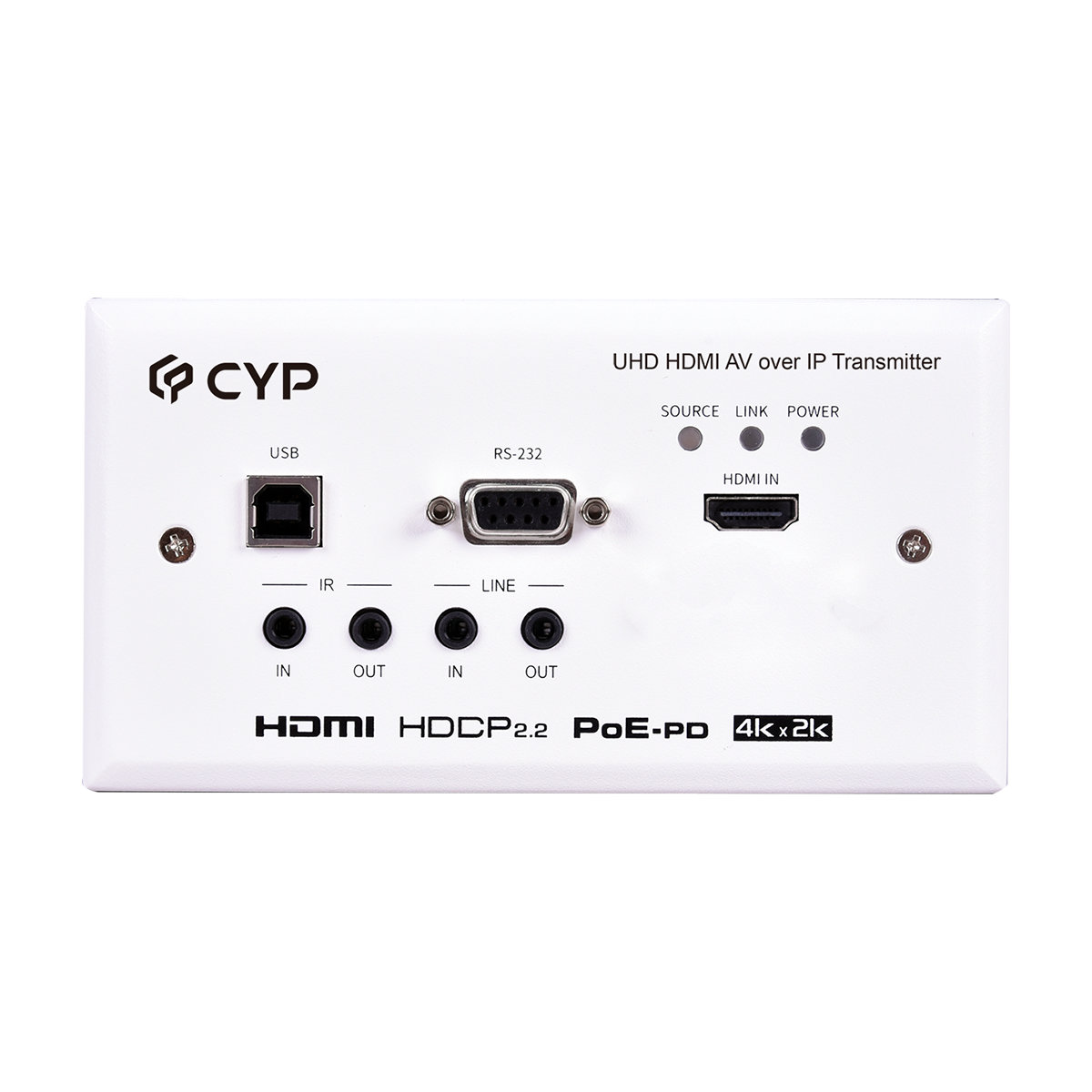

  • CYP CH-U331HTXWPEU Front_0821060651972

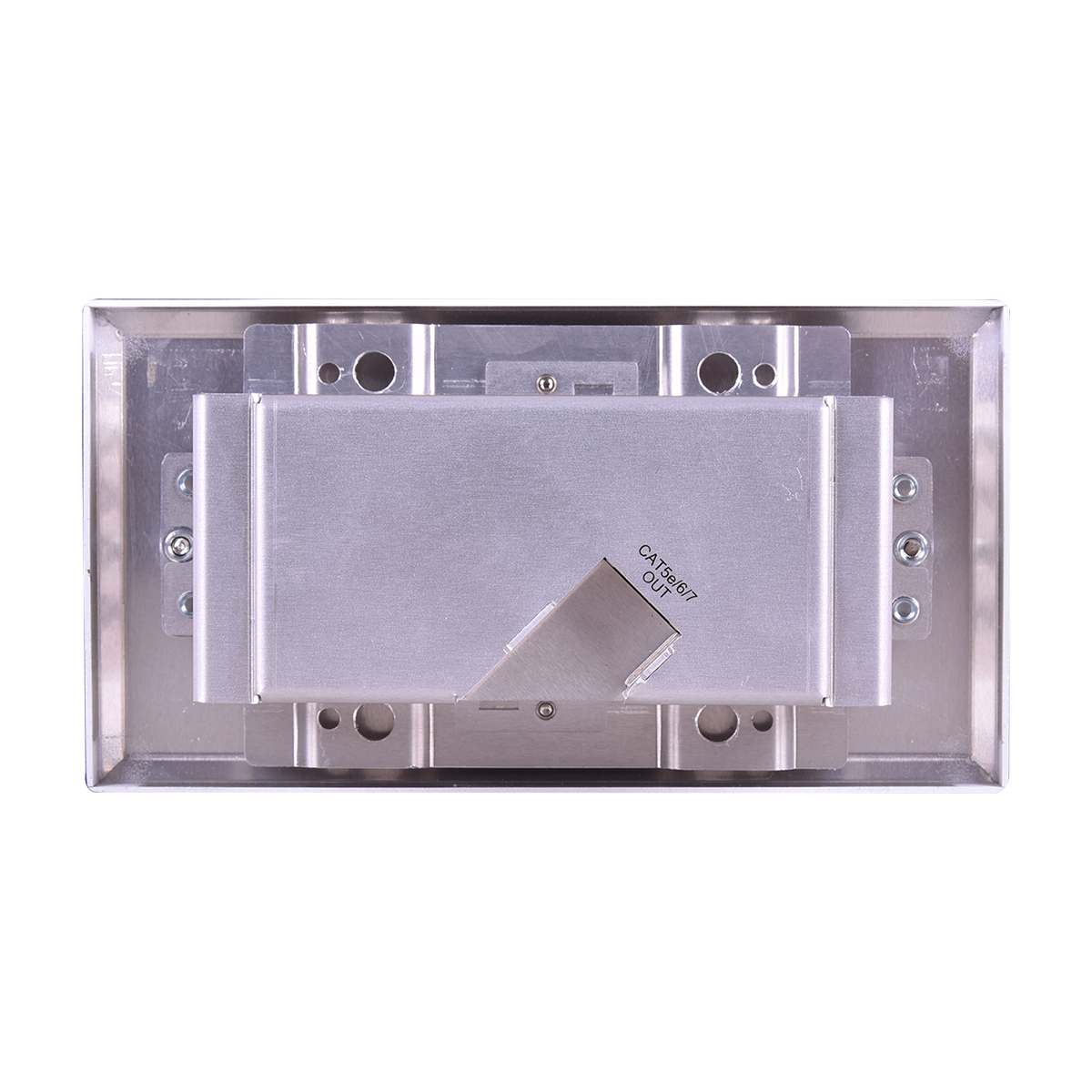

  • CH-U331HTXWPEU Rear_0821060648889

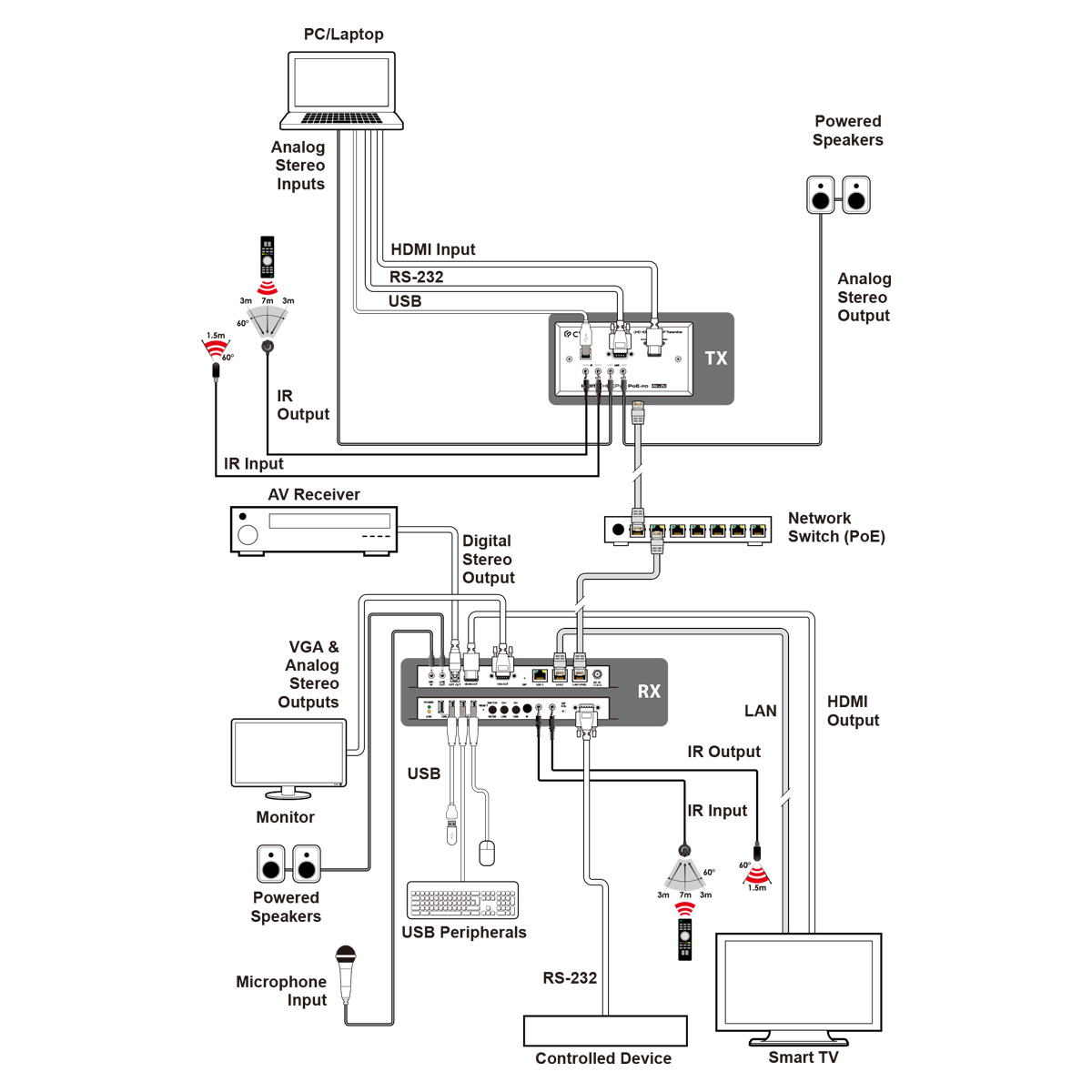

  • CH-U331HTXWPEU_0215014953791

CH-U331HTXWPEU

HDMI over IP Transmitter with USB/KVM Wall Plate Extender

  • Video, audio and control transmission over TCP/IP in Unicast (point-to-point) or Multicast (single-to-many, many-to-many) modes
  • When connected, the analog Line In audio is automatically embedded into the transmitted signal for output on connected Receivers via HDMI and their analog Line Out ports
  • The Mic In on a connected Receiver will send audio directly to the analog Line Out on this Transmitter
  • May be powered directly by PoE when connected to a Gigabit Ethernet switch that provides PoE (802.3af)
  • Supports USB keyboard, mouse and storage extension
