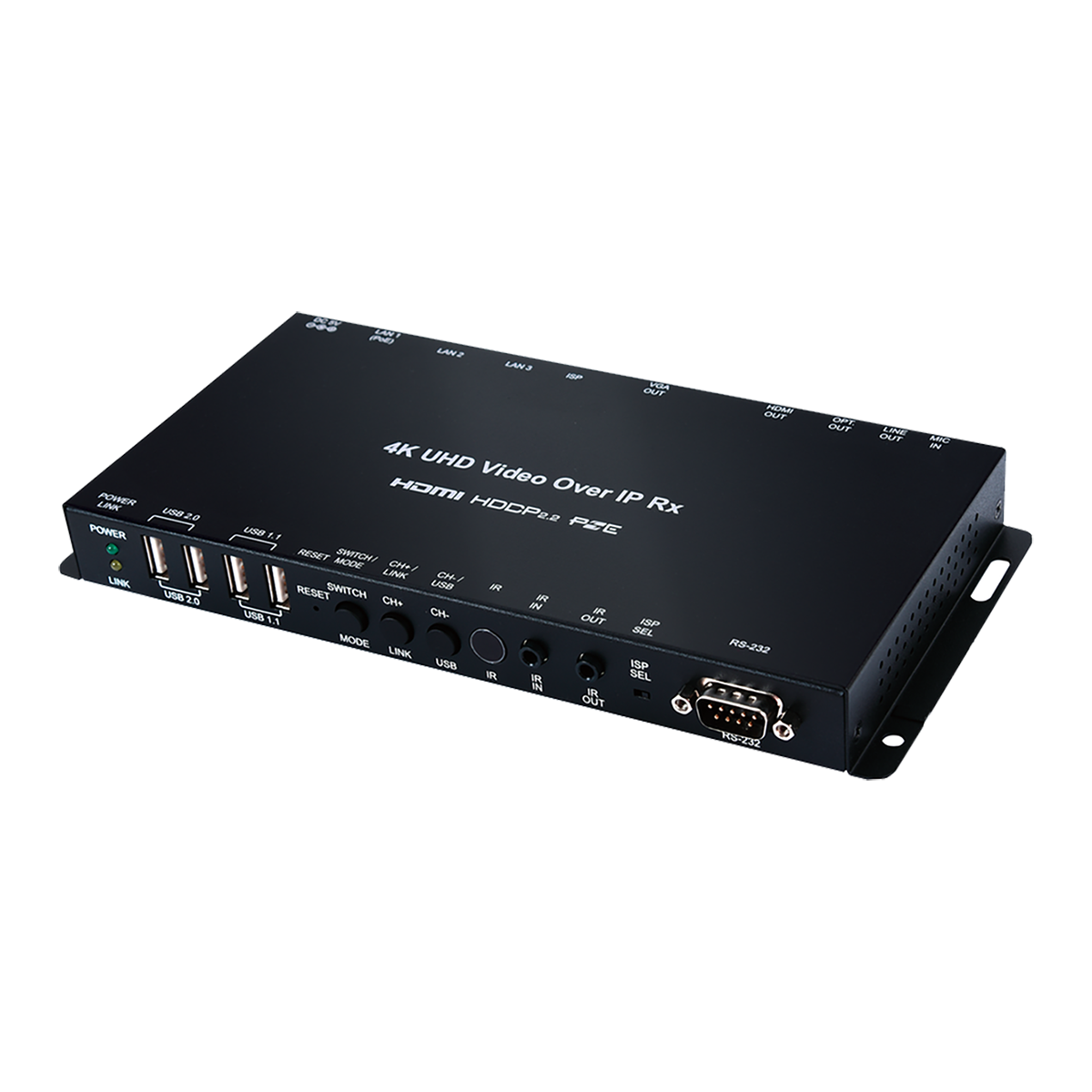

  • CH-U331RX_45_0821064551492

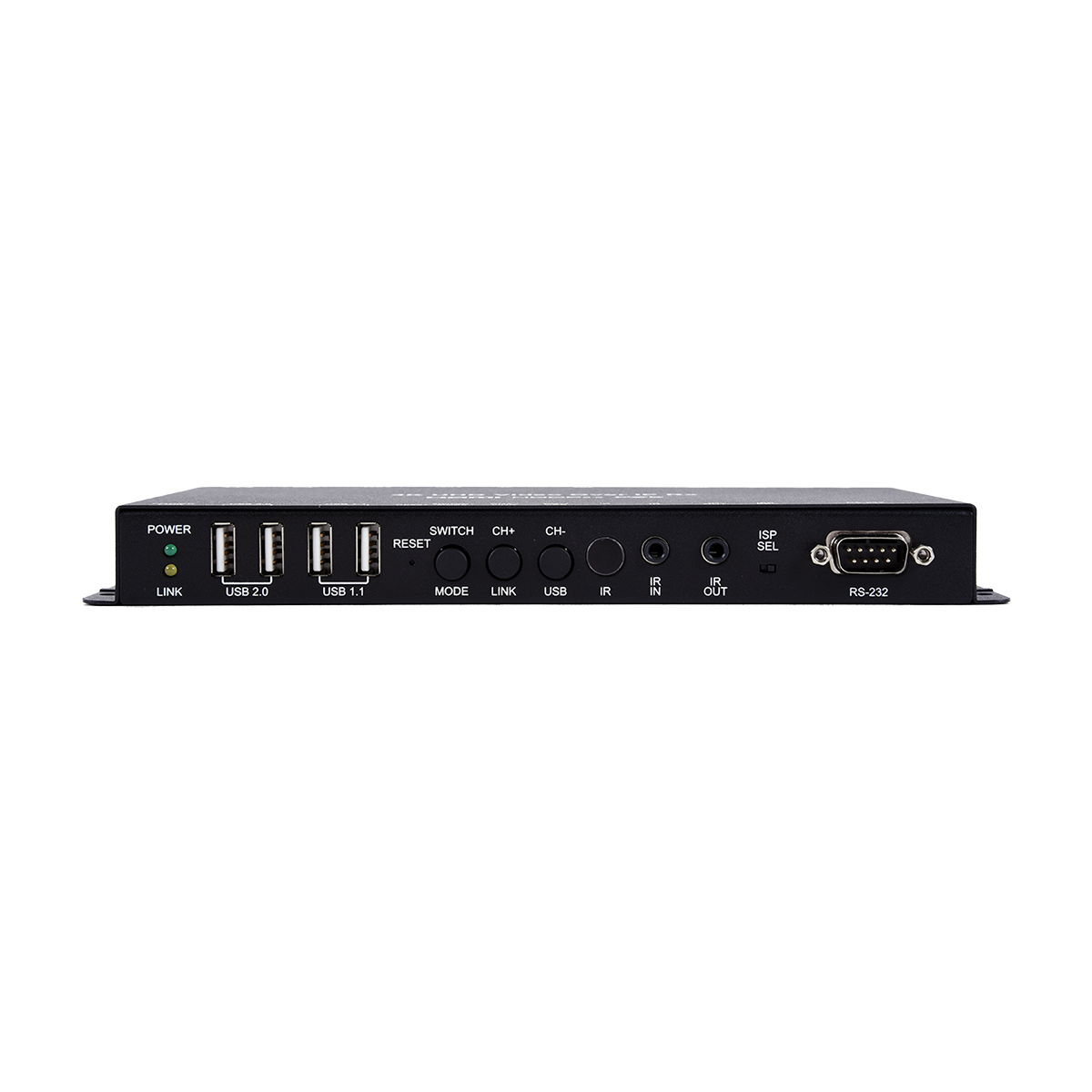

  • CH-U331RX Front-4_0821064548769

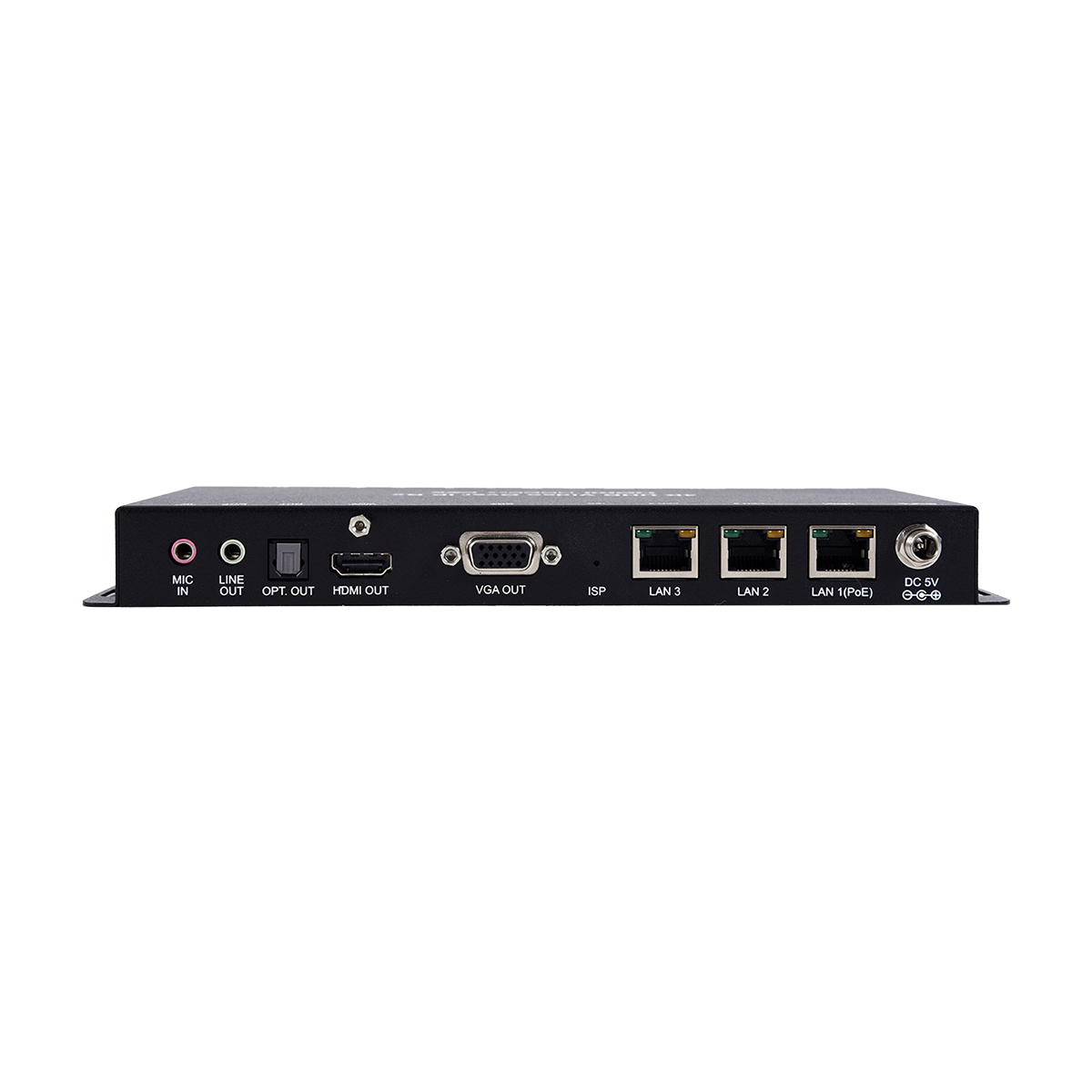

  • CH-U331RX Rear-4_0821064545969

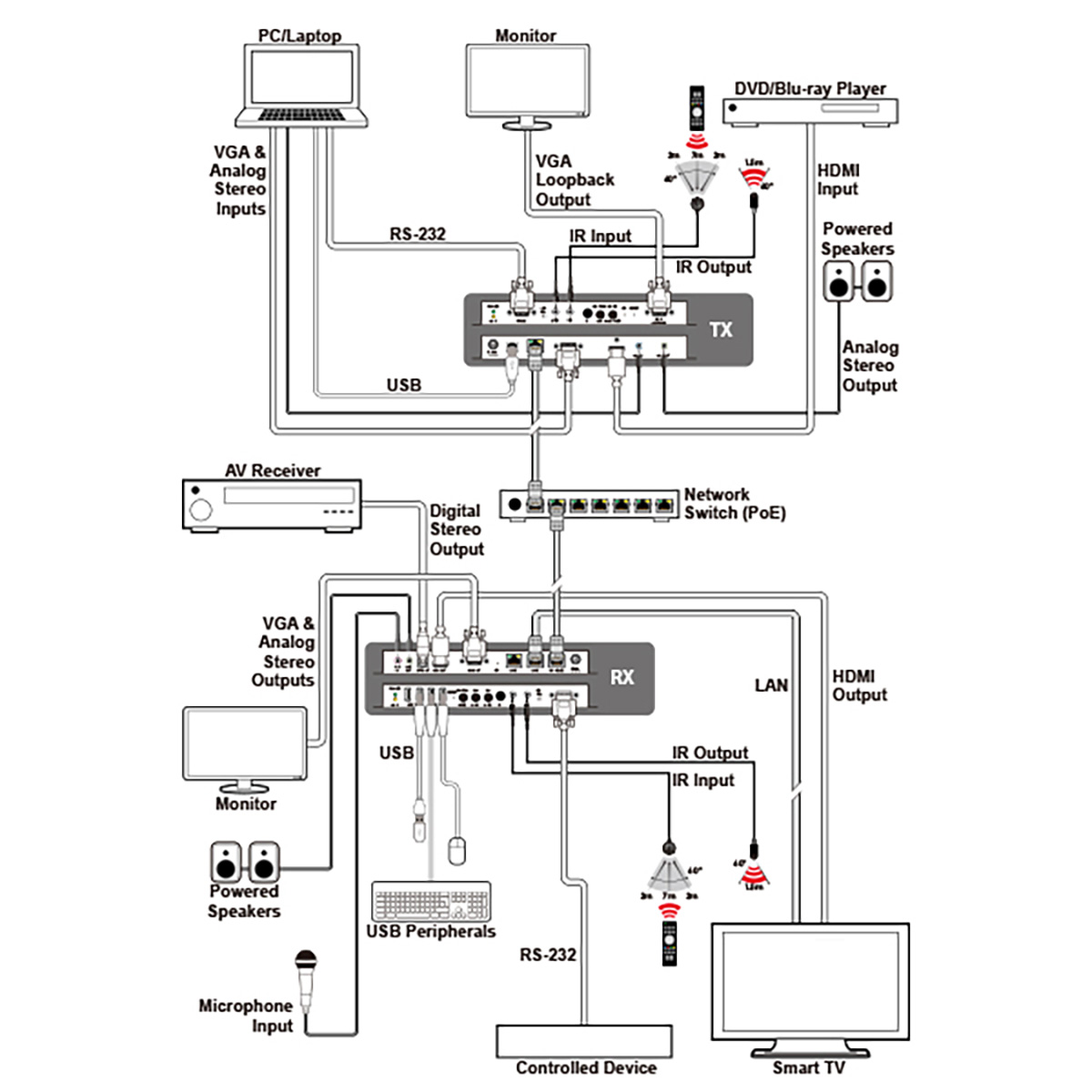

  • CH-U331TXRX_Diagram_0821064541819

CH-U331RX

UHD HDMI/VGA over IP Receiver with KVM Extension

  • Video, audio and control reception over TCP/IP in Unicast (point-to-point) or Multicast (single-to-many, many-to-many) modes
  • Support video wall with 180° and 270° rotation
  • Video output can be scaled to a selected resolution, or left unscaled
  • The analog Line In on a connected Transmitter will send audio directly to this Receiver’s analog Line Out as well as being embedded into the HDMI output signal
  • The Mic In on the Receiver sends audio directly to the analog Line Out on the Transmitter
  • May be powered directly by PoE when connected to a Gigabit Ethernet switch that provides PoE (802.3af)
  • Includes 3 LAN ports, allowing multiple Receivers to be daisy chained without the need for an external Gigabit Ethernet switch
  • Supports USB keyboard, mouse and storage extension
icon-74 拷貝 icon64x64_23_4K icon-21 拷貝
PRODUCTS FEATURED

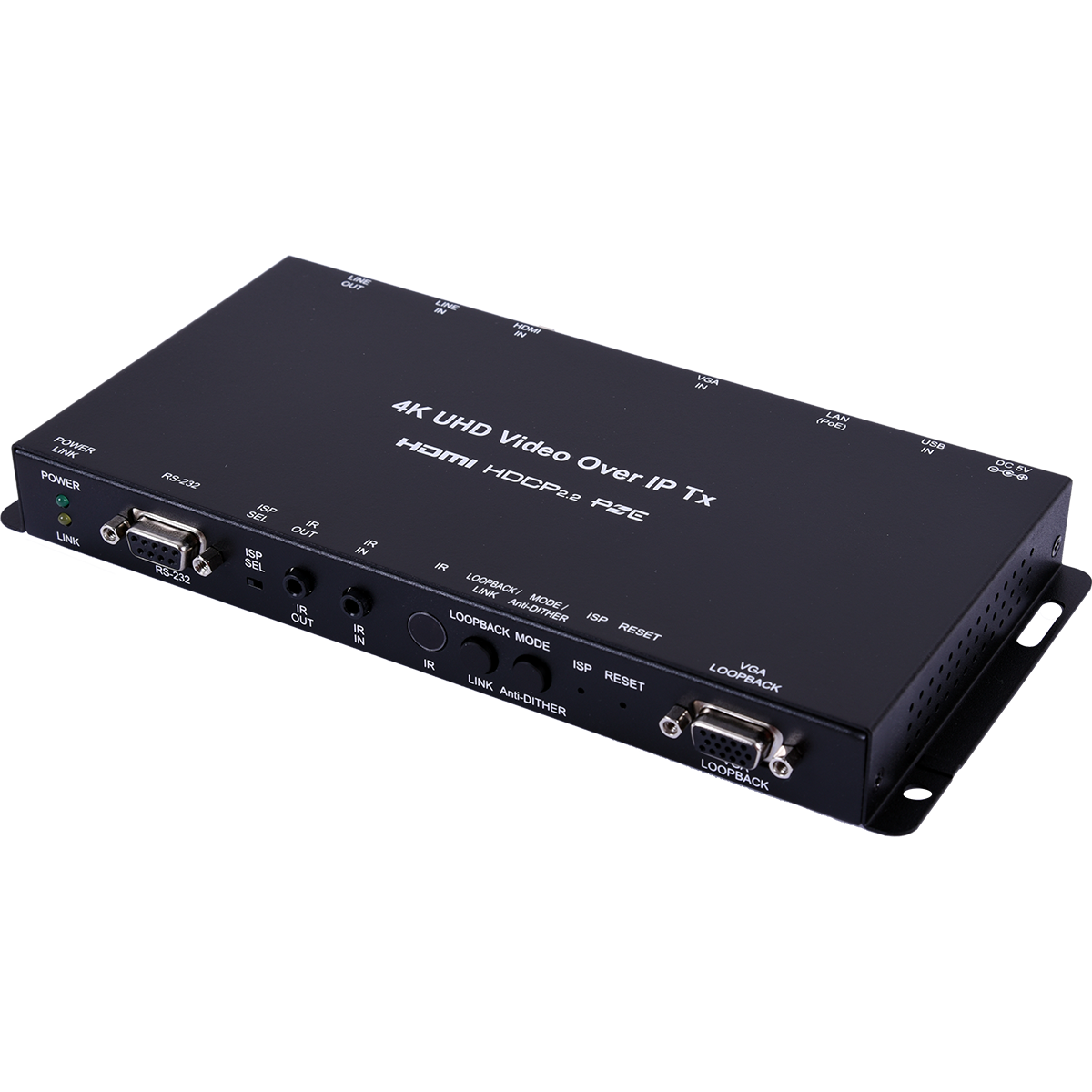

CH-U331TX
