AVIP-P3100R-F

4K60 AV over IP Fiber Receiver & HDMI to PCIe Capture Card

1 HDMI and 1 SFP+ input port
2 HDMI bypass outputs for each input
Inputs and outputs supports 18Gbps 4K@60 with HDR
Signal transmission interfaces with 10-Gigabit Ethernet switches via XFI(IEEE 802.3) compatible SFP+ fiber modules
4K@60 Extension up to 120km (maximum distance depends on the SFP+ module and type of fiber used)
Supports installation into PCs with an available PCIe Gen3 (x4), or better card slot
Video Capturing supports up to 4K@60Hz (4:4:4, 8-bit)
4K sources that exceed the maximum capture bandwidth are automatically converted to 4K@60Hz (4:2:0, 8-bit) prior to capture while being passed to the outputs unmodified
Supports capture using the following PC color formats: YUY2, UYVY, RGB565, RGB888, NV12, and YV12
Simultaneous Dual-Source Capture
Supports the Free OBS (Open Broadcaster Software) and CYP capturing software which is available for Windows 10 (or later)
Supports capture of stereo audio from both inputs (LPCM 2.0)
Note: Bitstream audio sources will be automatically muted during capture

SFP+ receiver supports the use of an external control center (IP Master Controller) or control software to provide expanded functionality (Contact your authorized dealer for more information)
SFP+ receiver supports IP routable with minimum latency (requires optional IP Master Controller or control software)
SFP+ receiver supports independent breakaway A/V matrix switching with minimum latency and multi-view compositing (requires optional IP Master Controller/control software)
HDCP 2.2 and HDCP 1.x compliant
Note: Video capture of sources using HDCP encryption is not supported

Not all video capture cards are built for what’s next. As ultra-high-definition video and AI-powered systems become standard, this next-generation PCIe card is designed to keep up and move ahead.

Installed directly into a PC, it captures 4K@60 (4:4:4) video with HDR from two types of sources: a direct HDMI input, and/or a remote source delivered over fiber via an SDVoE transmitter and 10G Ethernet switch. With dual HDMI loop-through outputs for real-time, zero-latency monitoring, it ensures every detail in color, contrast, and sound is preserved. This makes it ideal for broadcast studios, control rooms, and medical environments where clarity, stability, and distance matter.

Its PCIe Gen3 x4 interface delivers high-speed performance even when handling multiple video feeds. The card also supports simultaneous dual-source capture and standard PC video formats, enabling smooth integration into AV and AI-powered systems.

Compatible with OBS Studio and CYP’s own capture software, and powered by SDVoE technology, this PCIe card offers more than just capture. It delivers the performance, flexibility, and future-readiness that modern applications demand.

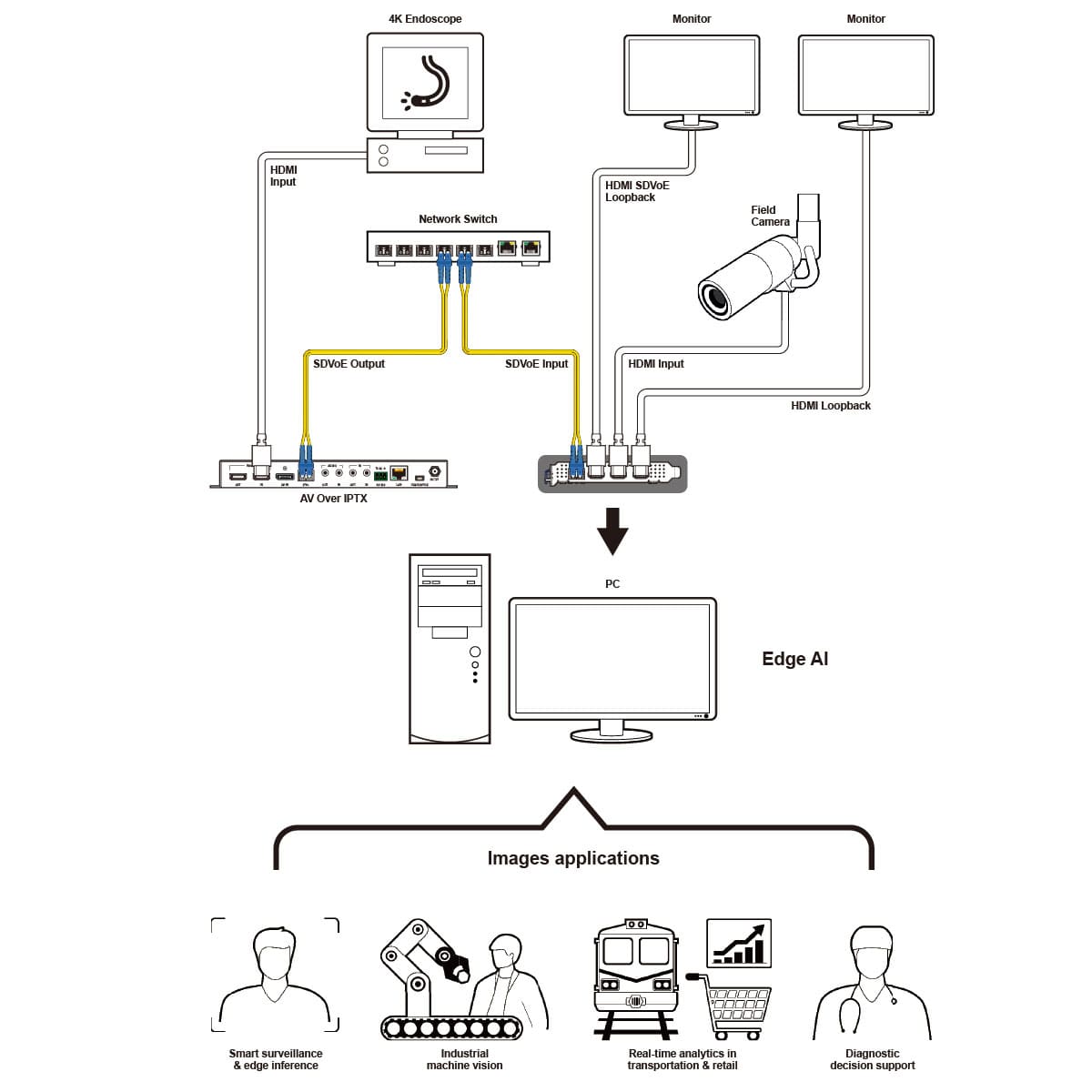

The connection will be:

Direct from HDMI
Different sources from remote locations (HDMI, SDI, etc.) and will be connected to transmitter then will be connected to network switch via fiber and then network switch to the PCIe receiver.

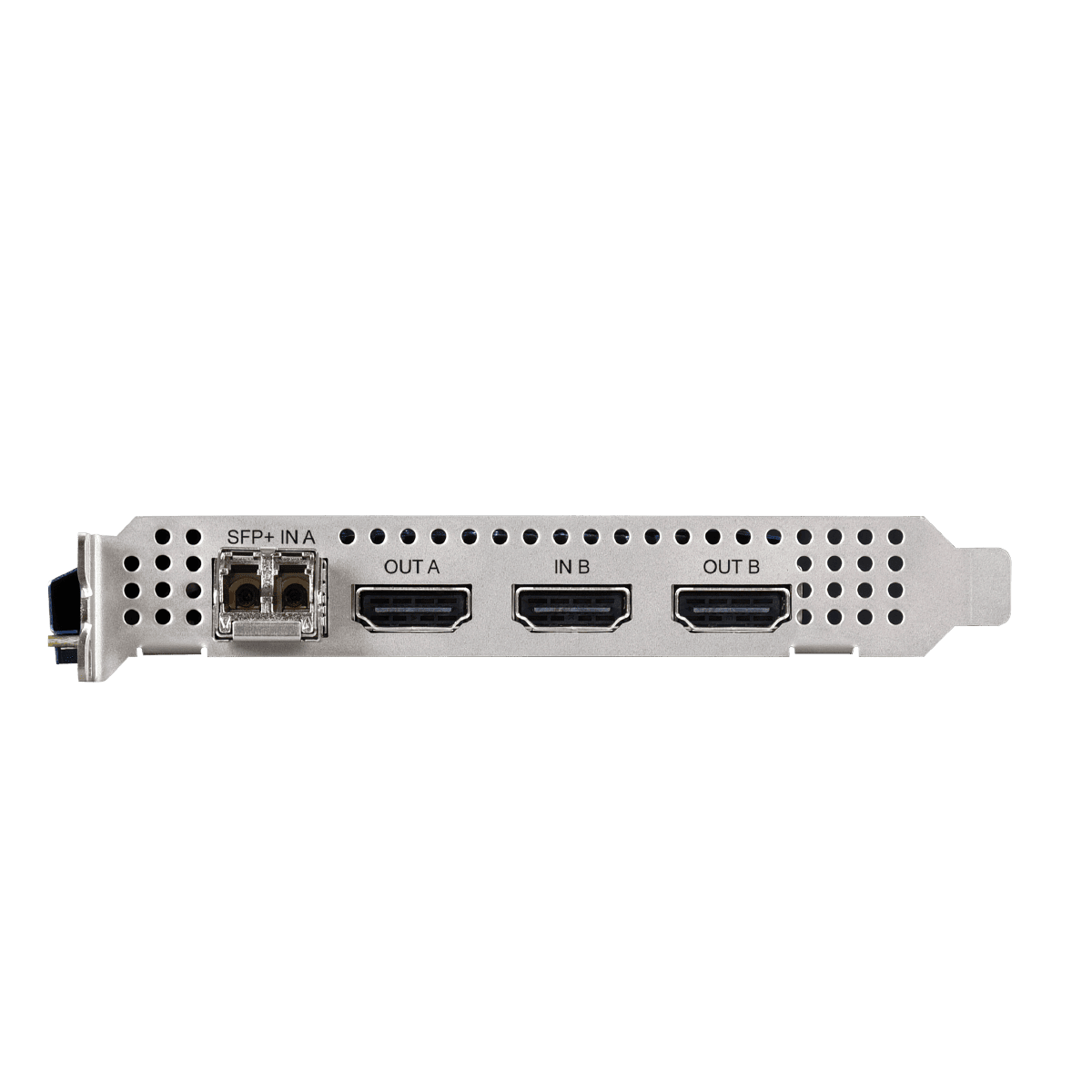

Interfaces
Input Ports	1×HDMI (Type-A) 1×10GbE LAN (SFP+)
Output Ports	2×HDMI Loopback(Type-A)
Control I/O	1 PCIe Gen3.0 X 4

Video
HDMI Compliance	HDMI 2.0 (DVI 1.0)
HDCP Compliance	2.2(LOCAL OUT)
Input Signal Type	4K@60 8bit YUV 4:4:4
Output Signal Type	4K@60 8bit YUV 4:4:4
		Resolutions
Maximum Input	HDMI	4096×2160p@60 YUV 4:4:4
	SFP+(Streaming)	4096×2160p@60 YUV 4:4:4
Maximum Output	HDMI	4096×2160p@60 YUV 4:4:4
	PCIe	4096x2160p@60 YUV 4:4:4

Audio
HDMI	LPCM (2 Channels), Bypassing bitstream, High Bit Rate Bitstream
SFP+	LPCM (2 Channels), Bypassing bitstream, High Bit Rate Bitstream
PCIe	LPCM (2 Channels)

Power
Power Supply	12V/2.7A
Power Consumption	TBD

Enclosure
Chassis Material	Metal (Aluminum)
Chassis Color	Blue and Silver
Dimensions (W×H×D)	180.98mm×126.4mm×21.59mm[All Inclusive] 170.15 mm×111.15 mm×21.59 mm [Card only]
Weight	166g

Field Firmware Update
PC
