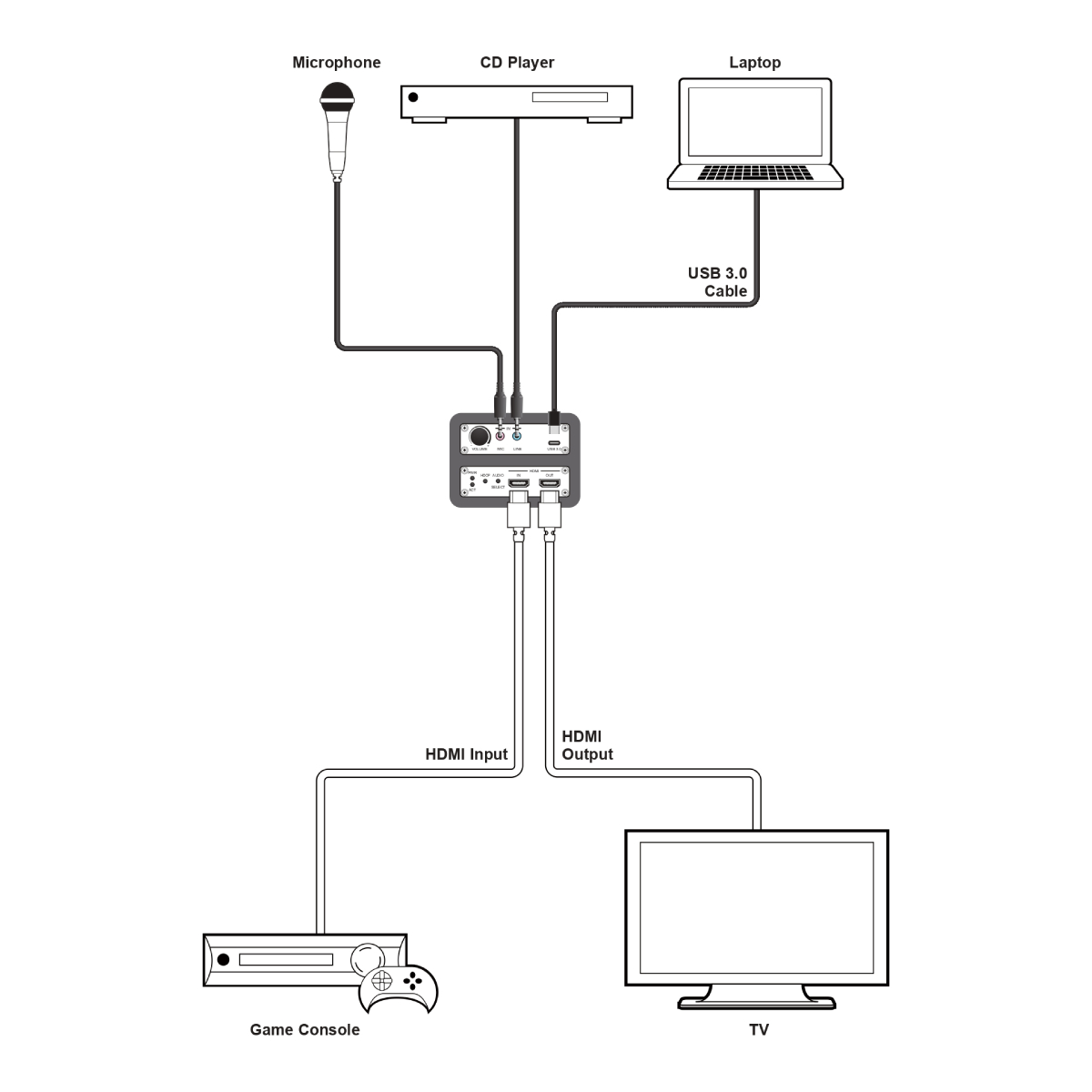

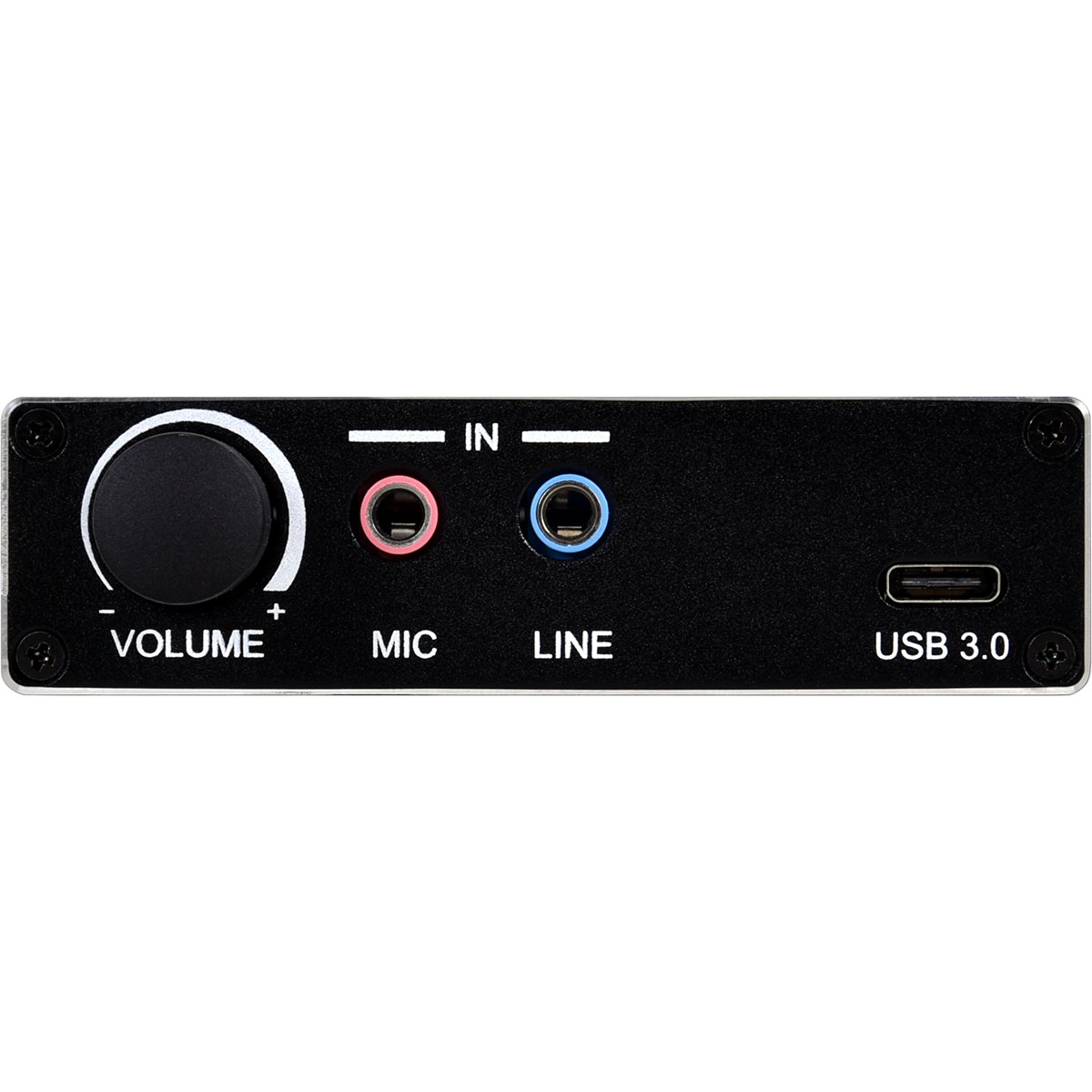

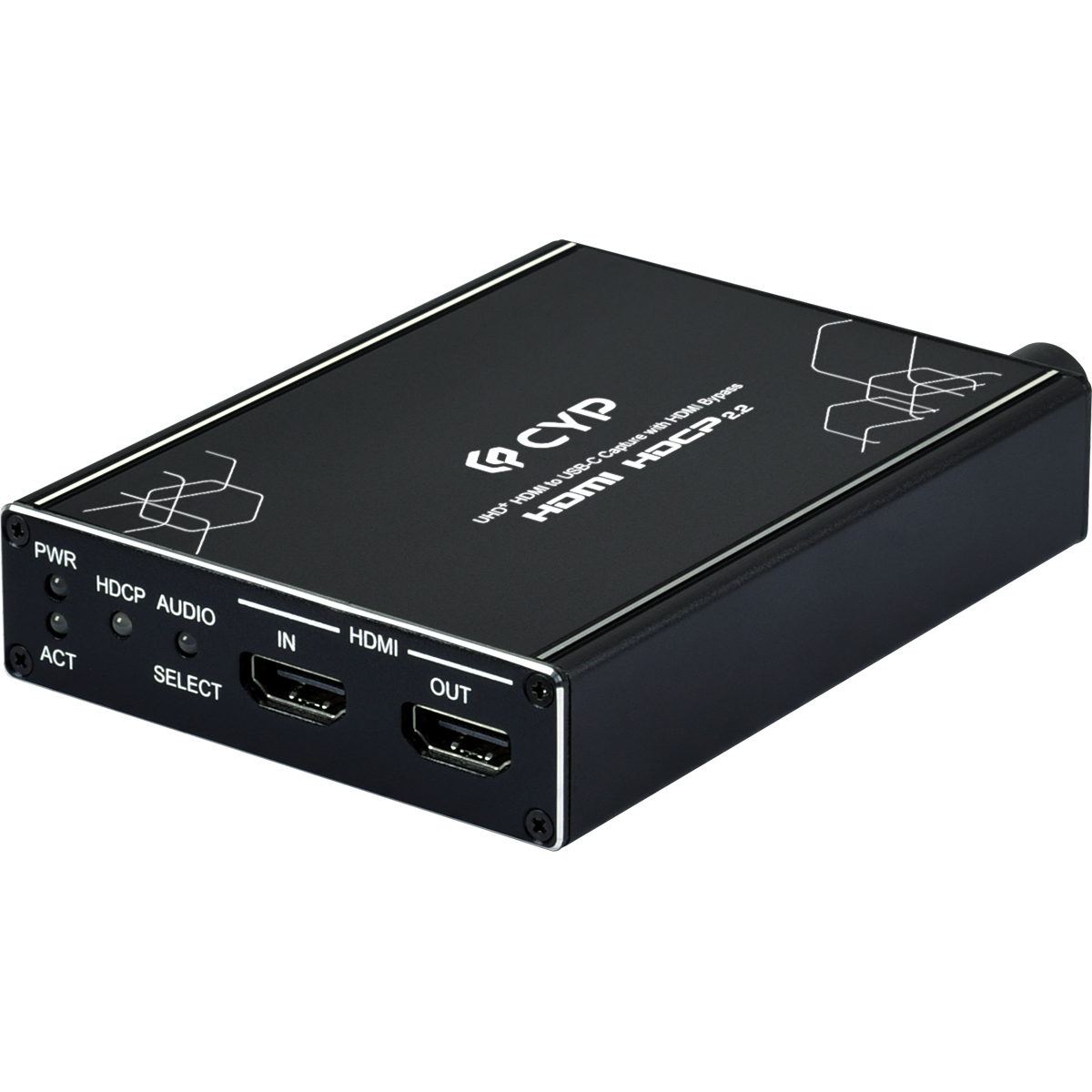

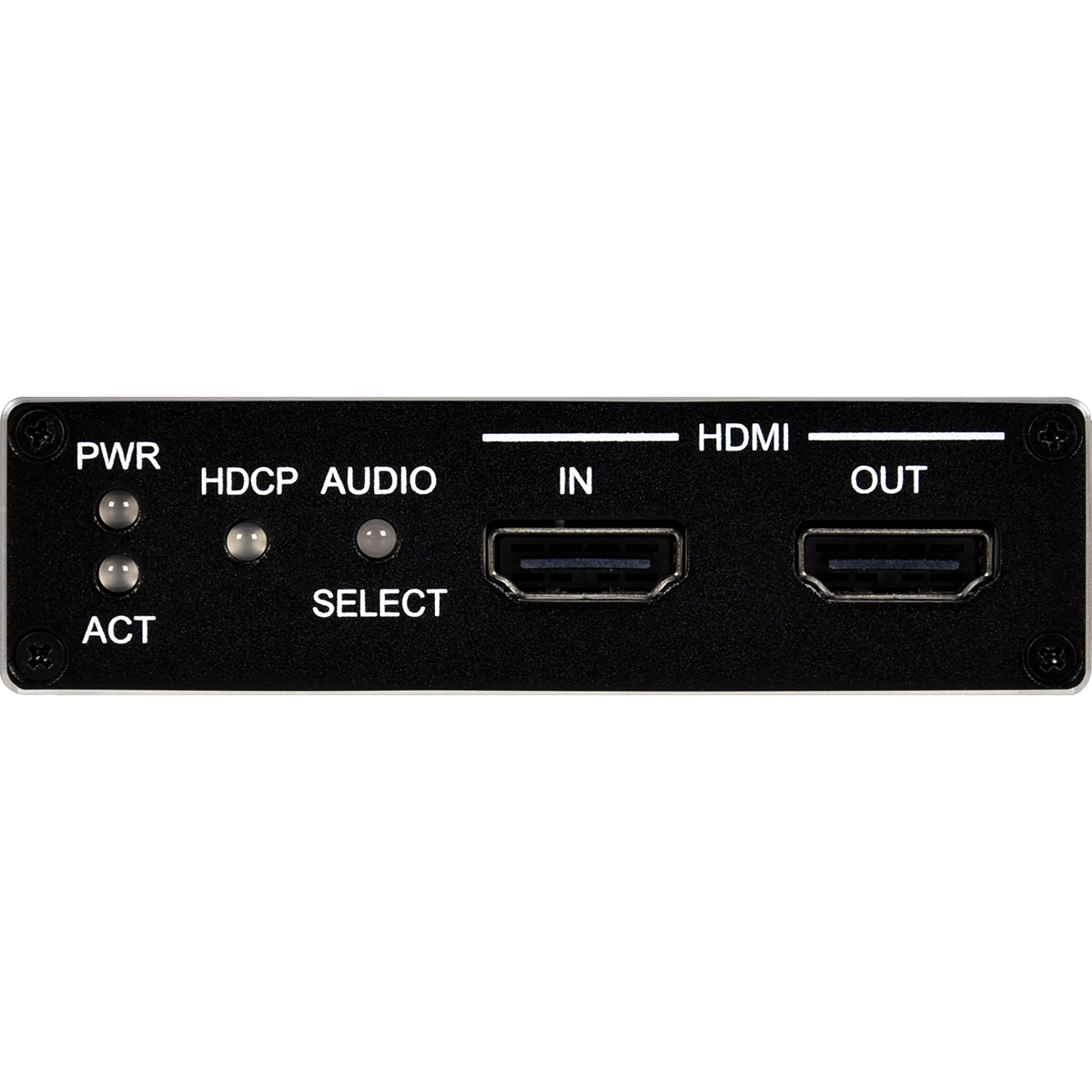

This HDMI to USB video capture recorder with HDMI bypass can support resolutions up to 18Gbps (600MHz) 4K UHD with HDR (via the bypass path) while simultaneously streaming the audio and video signal at 4K@60 to a USB connected PC for capture or re-broadcast. With audio mixer to provide HDMI and audio input mixing, with configuration software design, making the device more handy on using experience. The use of a special video timing stabilization feature helps to ensure that the USB capture stream won’t lock up or drop, even if the HDMI input source is intermittent or becomes disconnected. USB capture is accomplished using the UAC (USB Audio Class) and UVC (USB Video Class) standards, allowing the unit to support most common video capture, chat, or streaming software, including support for the Free OBS (Open Broadcaster Software) streaming software which is available for Windows PC, macOS and Linux. The unit is powered directly by the USB 3.0 port so an external power supply is not required (A Y-cable is required when connected via USB 2.0 in order to deliver the necessary power). Availability and access to the controllable features of the unit depend on the capture software used.
