CA-COMPAT

CA-COMPAT EOL

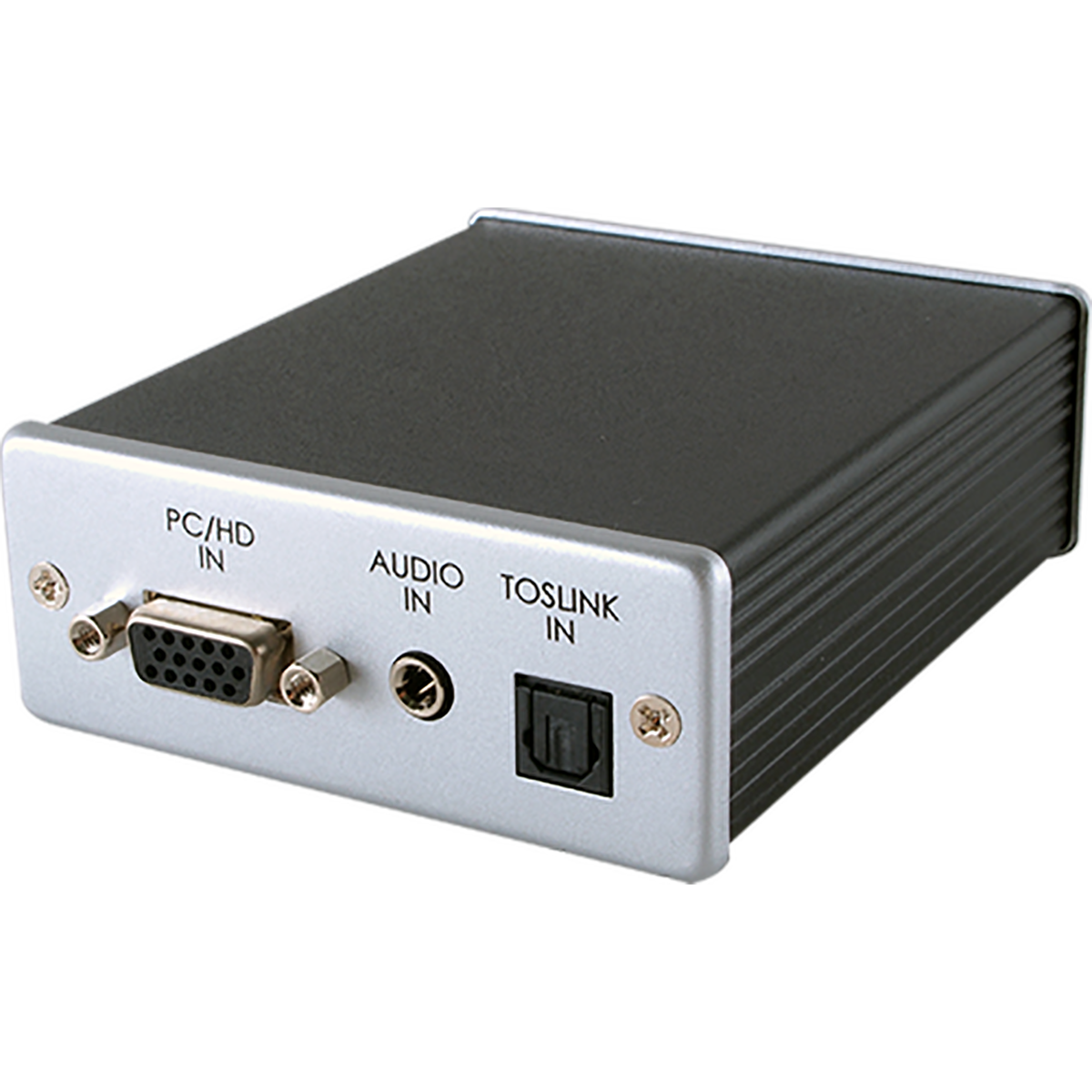

VGA/Component Vido over Single CAT5e/6/7 Transmitter

Supports PC/RGB and HD/YCbCr/YPbPr format input
Supports CAT5/CAT5e/CAT6 cable
Supports high definition (HD) input source up to 1080p
Supports PC output source up to UXGA
Supports Dolby AC3/PCM 2CH TosLink output audio
Supports Dolby AC3/PCM 2CH TosLink input audio
Easy to install and simple to operate

PC/HD Audio over CAT5 Transmitter is the transmitter (Tx) unit of PC/HD and Audio over CAT5 solution, depends on the type of receiver (Rx) unit used. The system can extend PC/HD & Audio signal through CAT-5 cables for a distance up to 50/100 meters. The installation of PC/HD Audio over CAT5 is easy and quick, simply place the system next to your display, and get all necessary cables connected to complete and enjoy.

Supported Resolutions	HD: up to 1080p

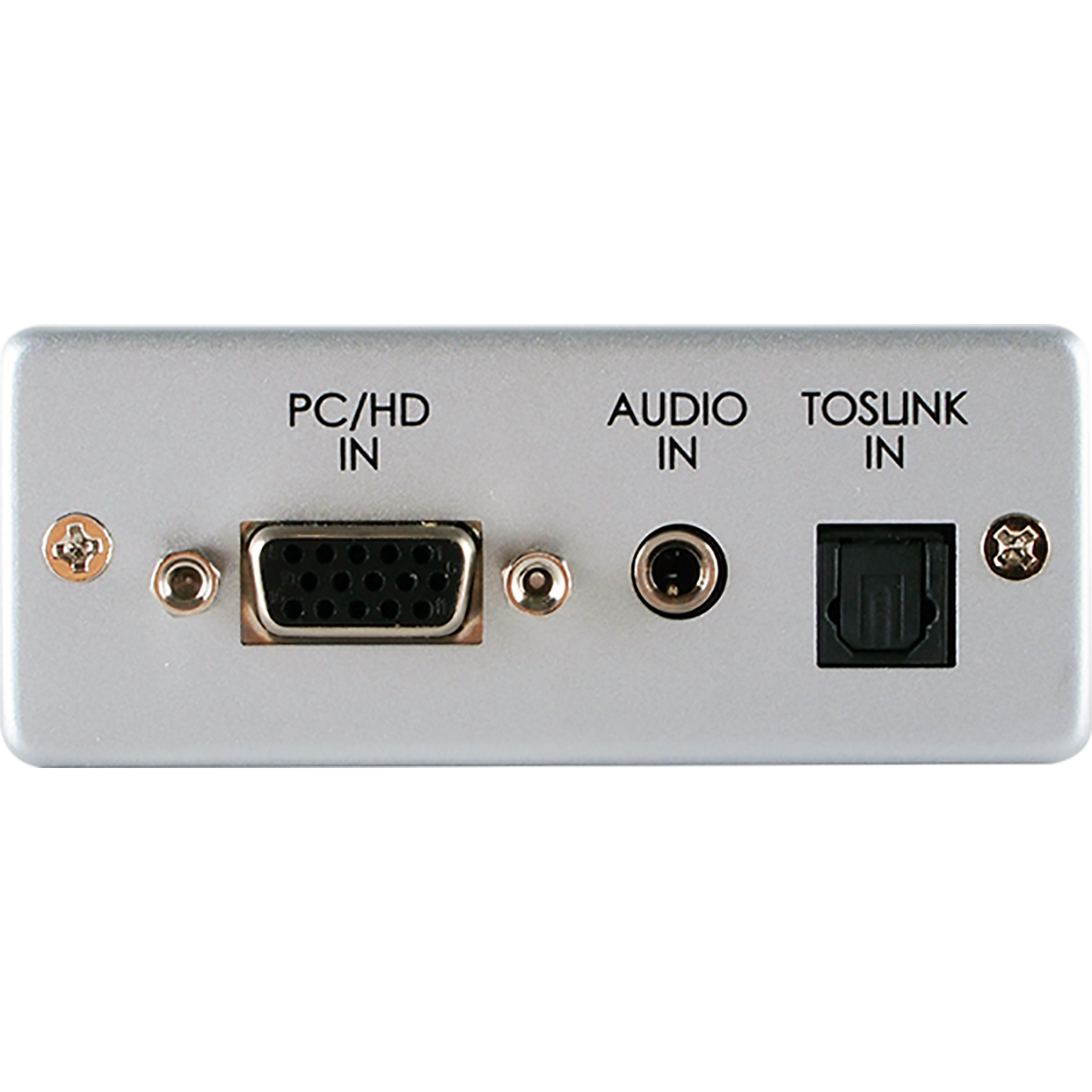

Input Ports	VGA, Audio L/R and Toslink/SPDIF

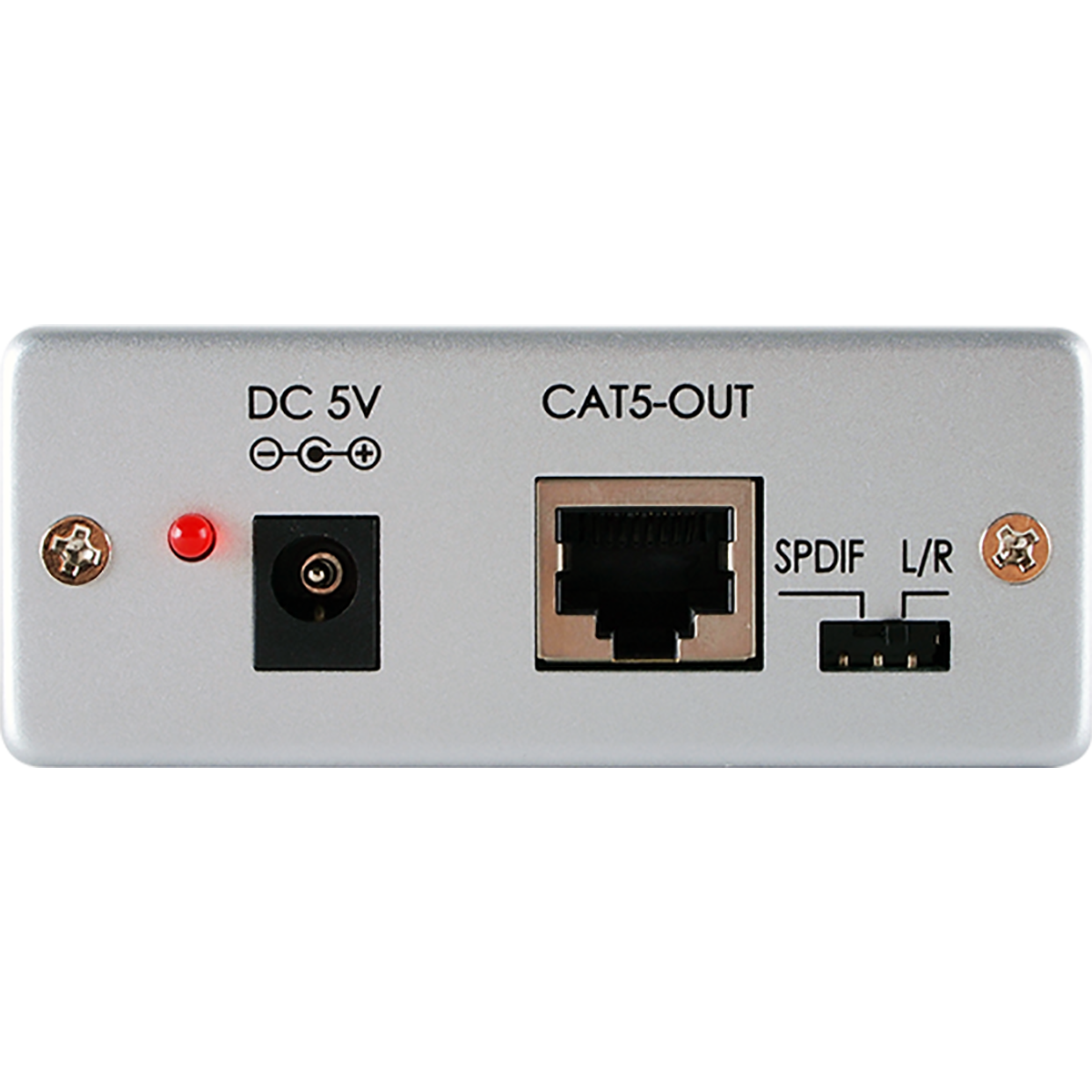

Output Port	CAT-5
Audio Input	Toslink: Dolby AC3 / PCM 2CH L/R: PCM 2CH
Power Supply	5V/1A DC (US/EU standards, CE/FCC/UL certified)
Dimensions (mm)	99.5(W) x 79.5(D) x 32.5(H)
Weight(g)	200
Chassis Material	Metal
Silkscreen Color	Black/Silver
Operating Temperature	0°C ~ 40°C

Product Support
Upload Date	File Name	Version	OS	Description	Download
2021/07/06	CA-COMPAT Manual	1	all	CA-COMPAT Manual
