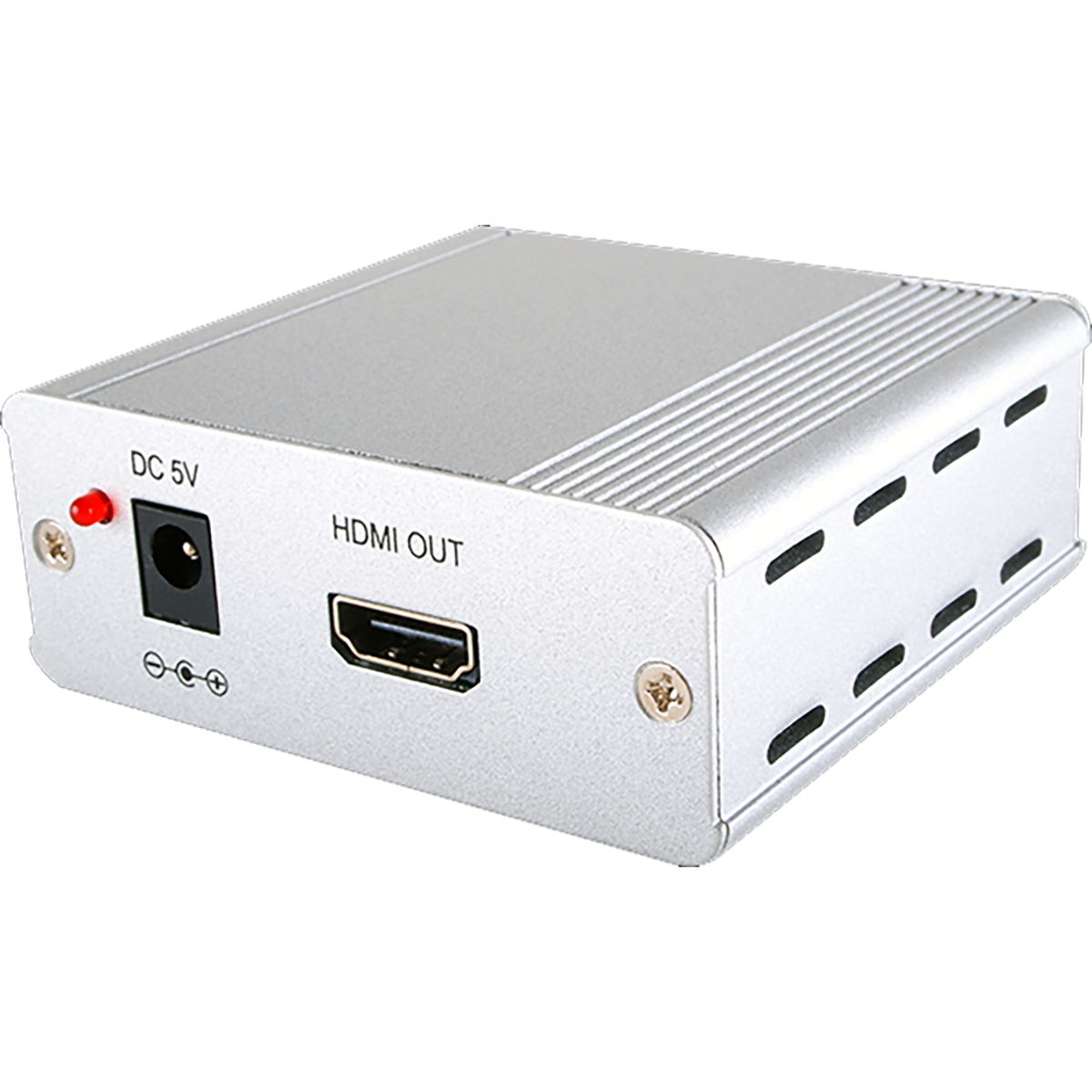

CH-107RXN

CH-107RXN EOL

Replacement Model >CH-1109RXC

HDMI over Single CAT6 Receiver (1920 × 1200 (RB) up to 15M)

Supports digital video formats in Deep Color Mode at up to 36 bits (12bits/ color) and new lossless compressed (Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio) Digital audio
Supports one CAT6 cable for data/DDC transmission
Equalizes and recovers incoming TMDS data before re-transmitting it in optimal quality regardless of the incoming signal quality
HDMI cable distance supports up to 10 meters at 1080p/8-bit and 12-bit resolutions
CAT6 cable distance supports up to 45 meters at 1080p/8-bit resolution and 15 meters at 1080p/12-bit resolution
Supports x.v.YCC
Supports 7 steps EQ adjustment for HDMI signal strengthen

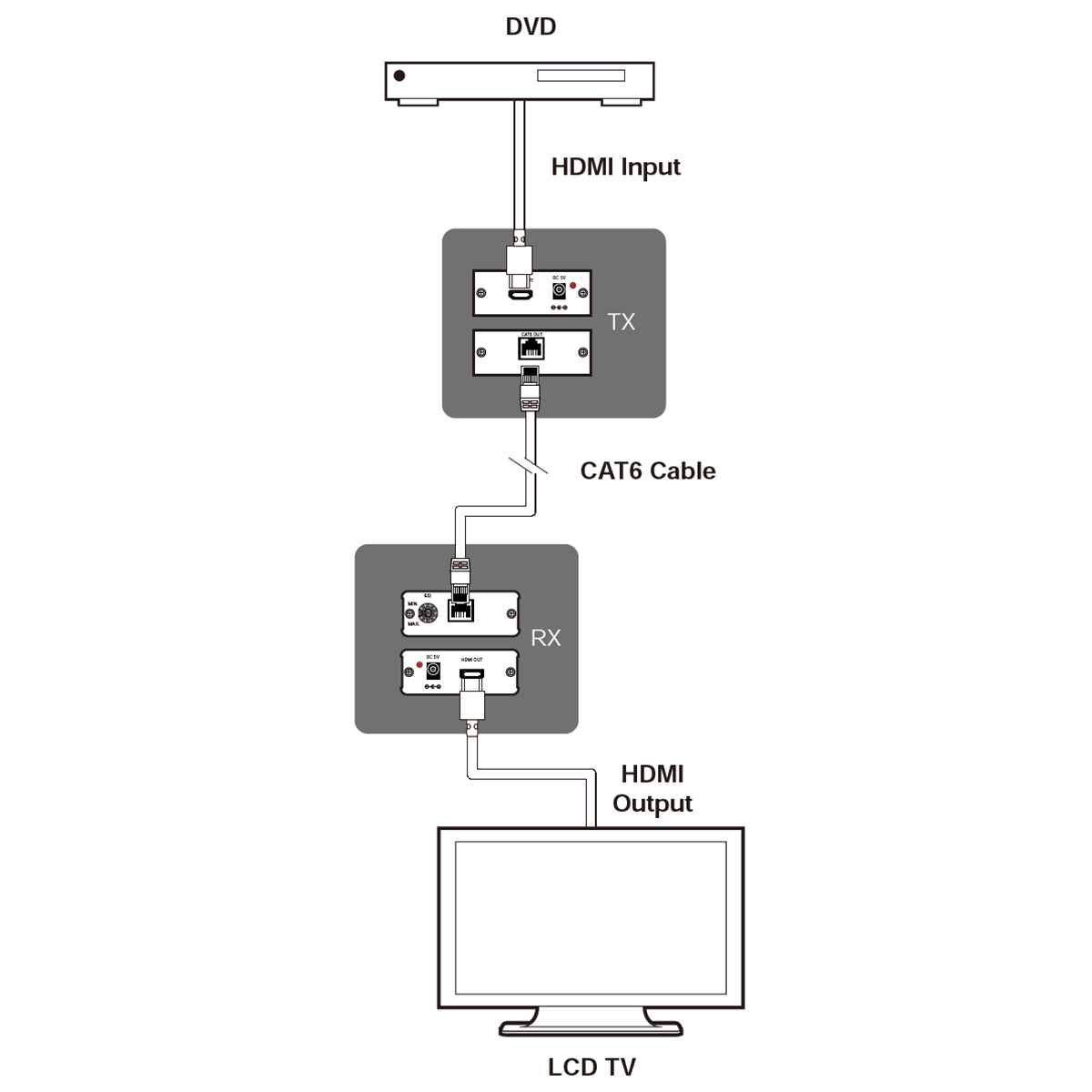

The HDMI receiver over Single CAT6 is a tool for displaying HDMI content at long distances. Instead of using expensive HDMI cables, your existing CAT6 cables/sockets can perform functions like transferring Deep Color (12 bits/ color) video and new lossless compressed (Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio) Digital audio. Further, with EQ switch added the HDMI signal is strengthen and well present. The HDMI receiver over ONE CAT6 is your preferred HDMI extension tool.

Interfaces

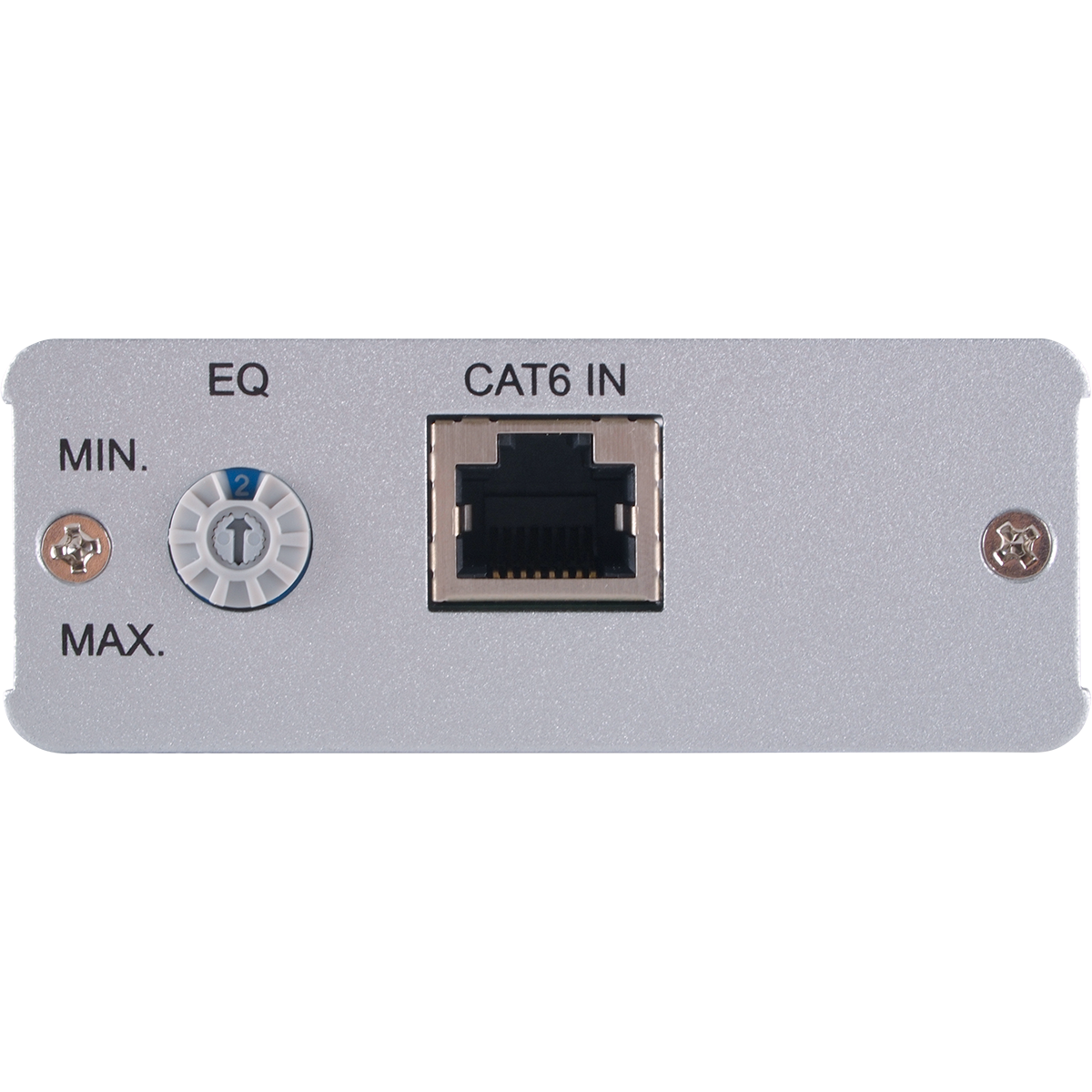

Input Port	1 x CAT6

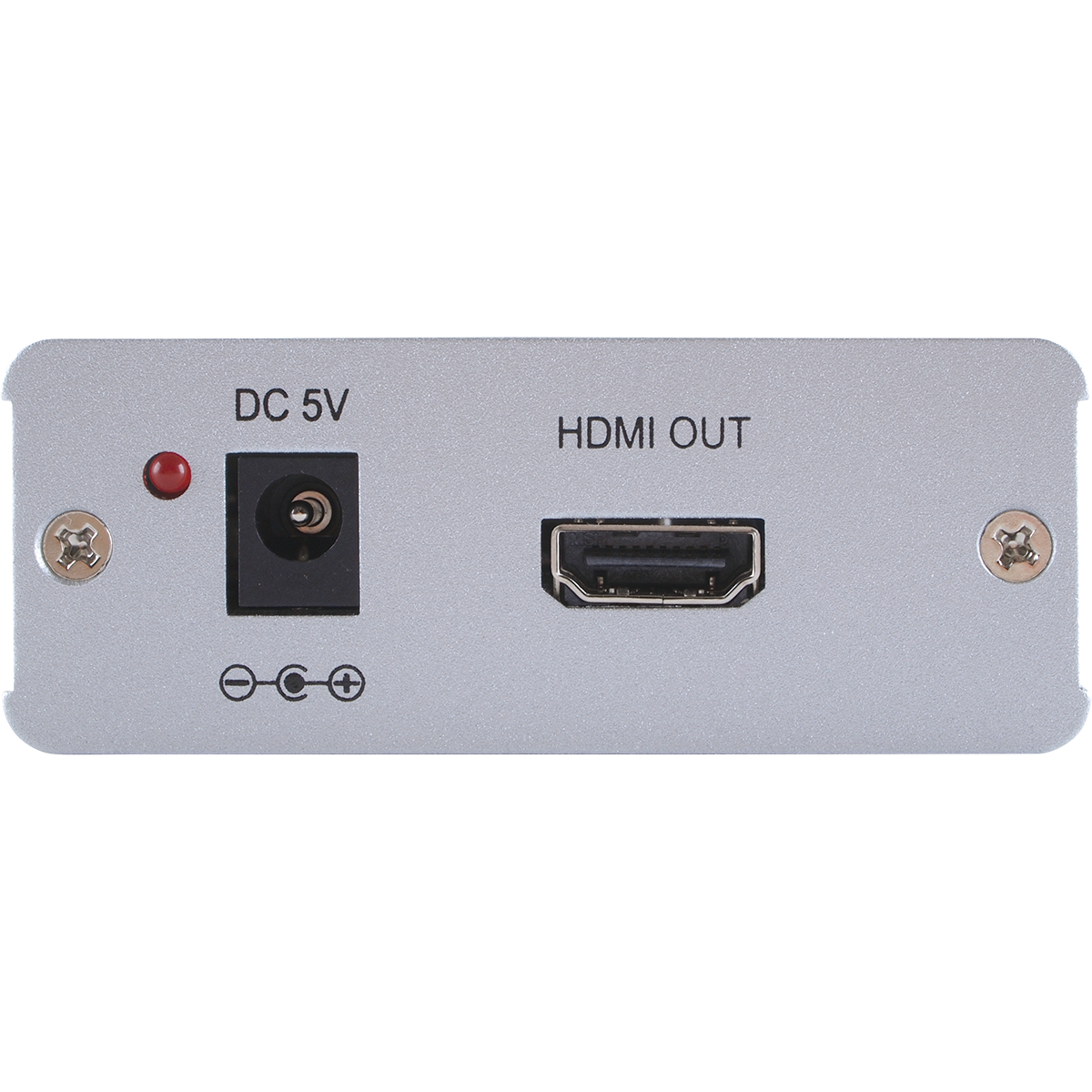

Output Port	1 x HDMI (RJ-45)

Video
HDMI Compliance	HDMI 1.3 (DVI 1.1 )
HDCP Compliance	1.4
Input Signal Types	1920x1080p60 12-bit
Output Signal Type	1920x1080p60 12-bit

Resolutions
Maximum Input	CAT6	1920×1080p@60 1920×1200p@60RB
Maximum Output	HDMI	1920×1080p@60 1920×1200p@60RB

Power
Power Supply	5V/ 1A DC
Power Consumption	2W

Enclosure
Chassis Material	Metal (Steel)
Chassis Color	White
Dimensions (W×H×D)	78.5 mm x 30 mm x 72 mm
Weight	90g

Field Firmware Update
Interface	PCB on board, uses RS232

Ordering Information
Model No.	Product Description
CH-107RXN	HDMI over Single CAT6 Receiver
CH-107TX	HDMI over Single CAT6 Transmitter
CH-107RXN	HDMI v1.3 over ONE CAT6 HDMI Transmitter

Product Support
Upload Date	File Name	Version	OS	Description	Download
2021/02/19	CH-107 RXN_Manual	1	all	CH-107 RXN_Manual

PRODUCTS FEATURED

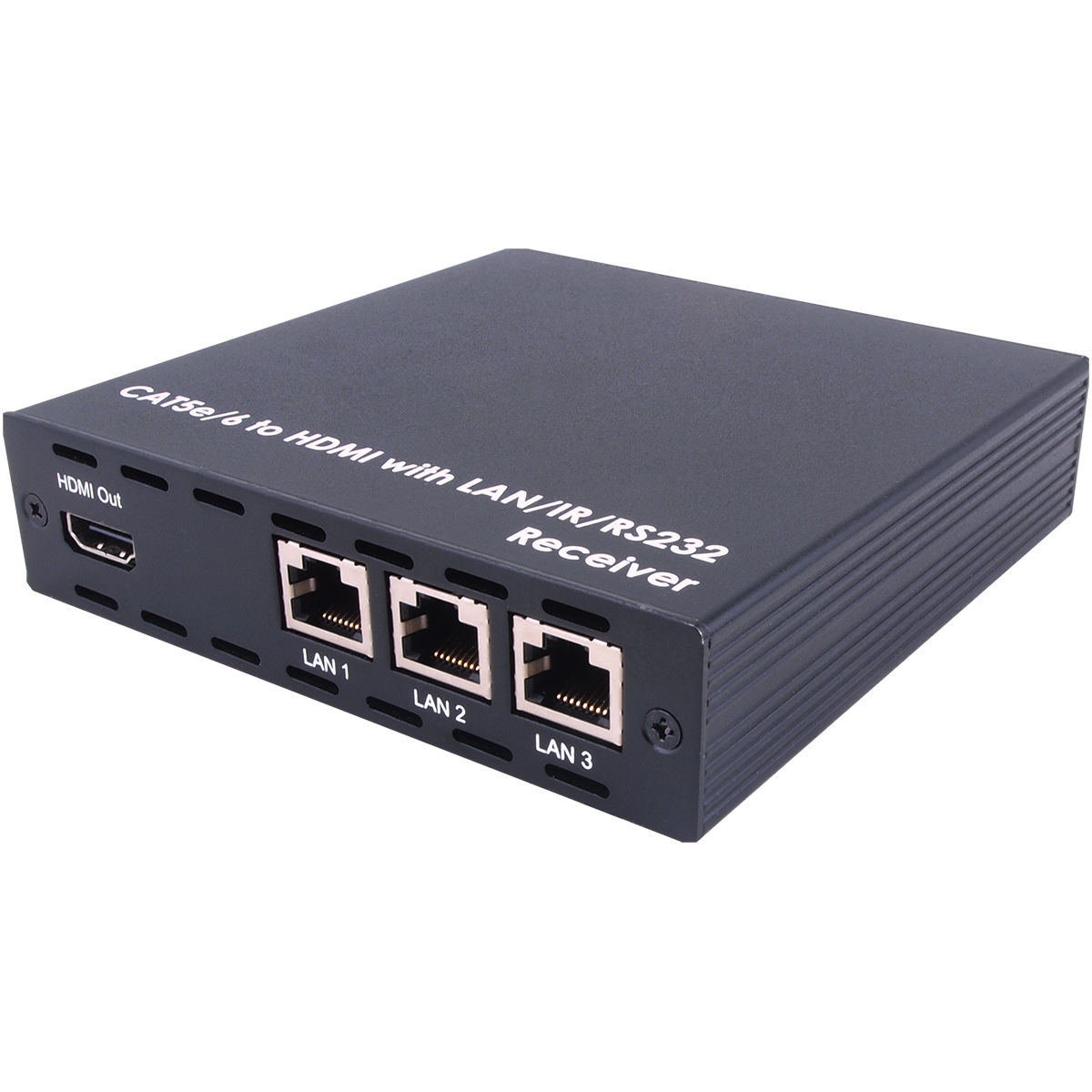

CH-1109RXC
