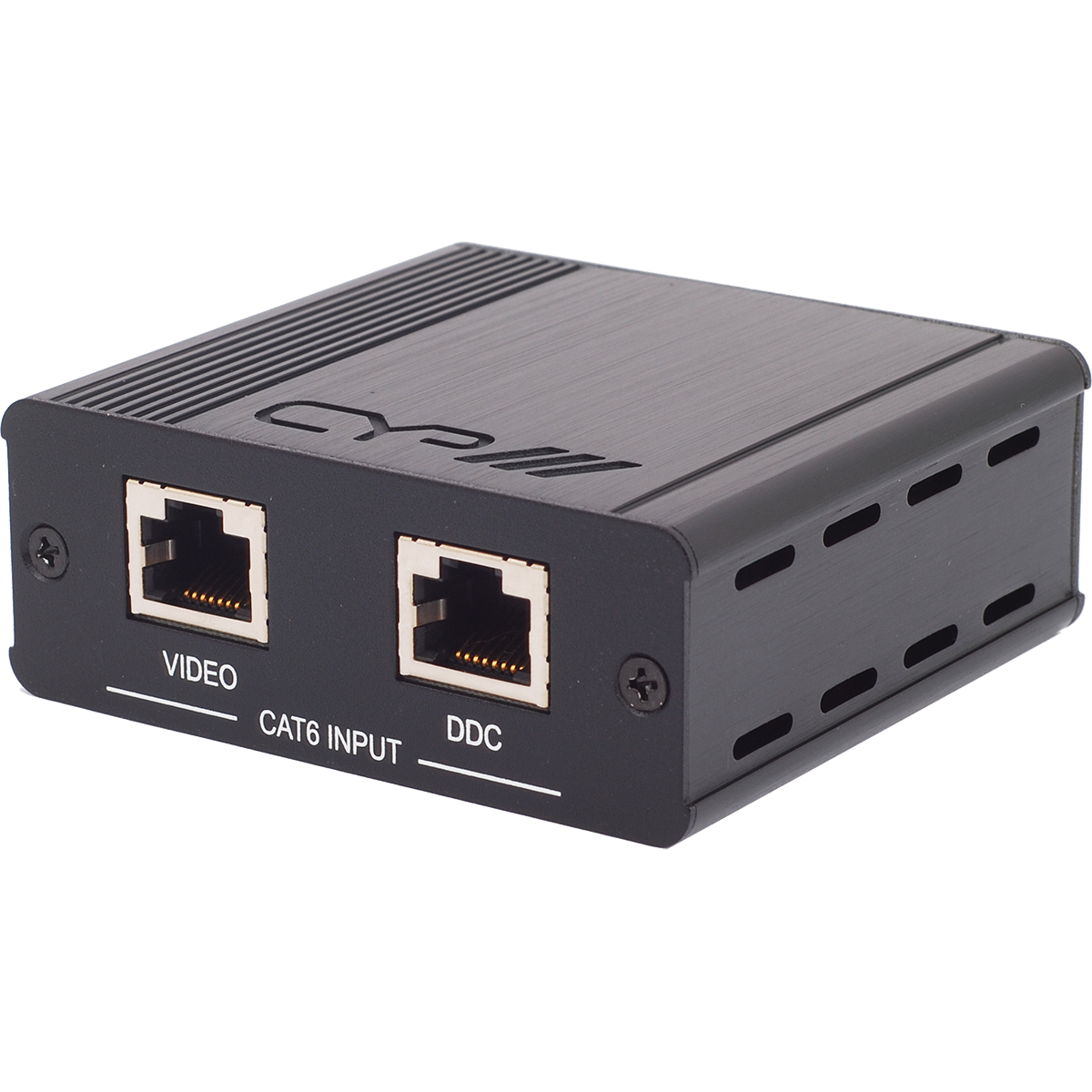

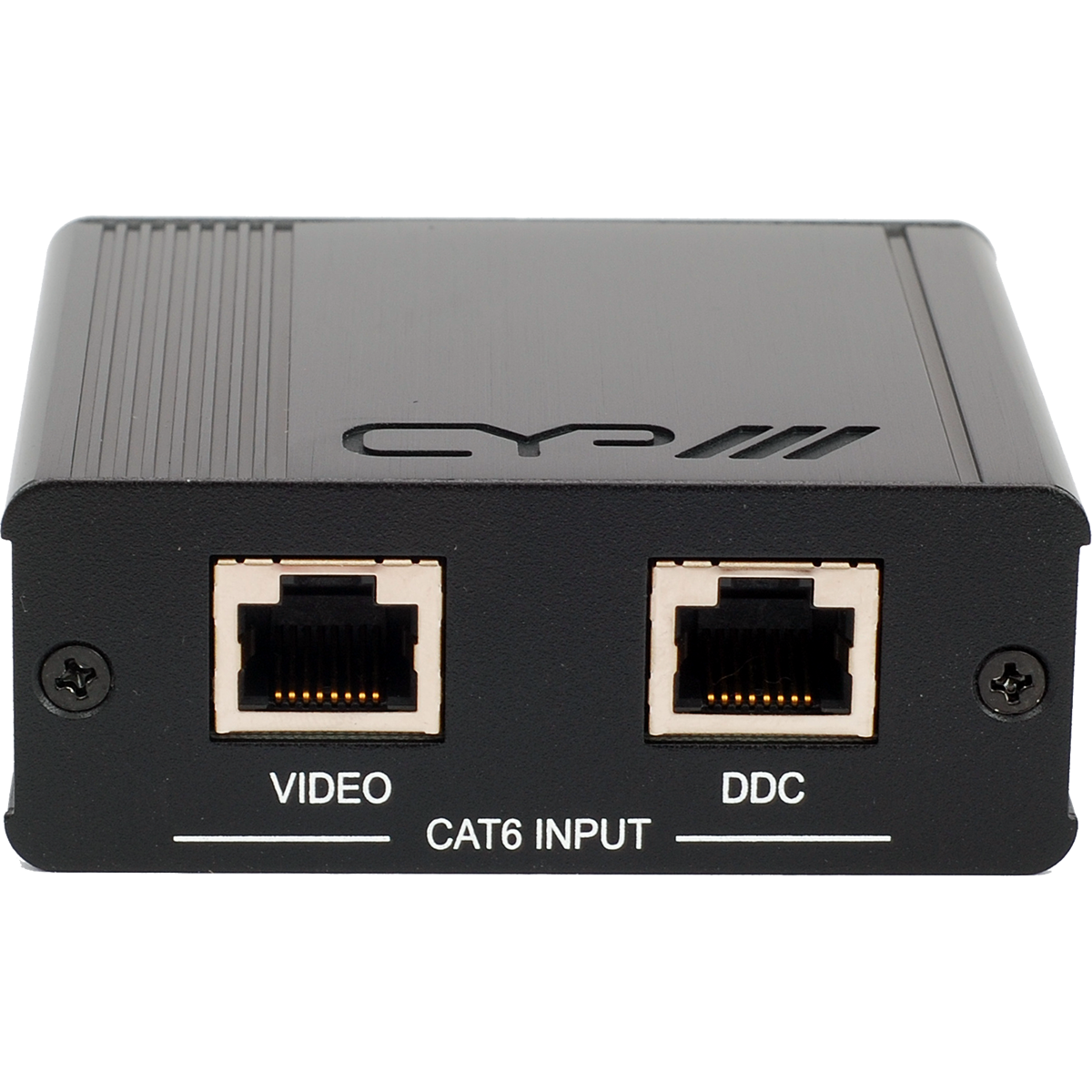

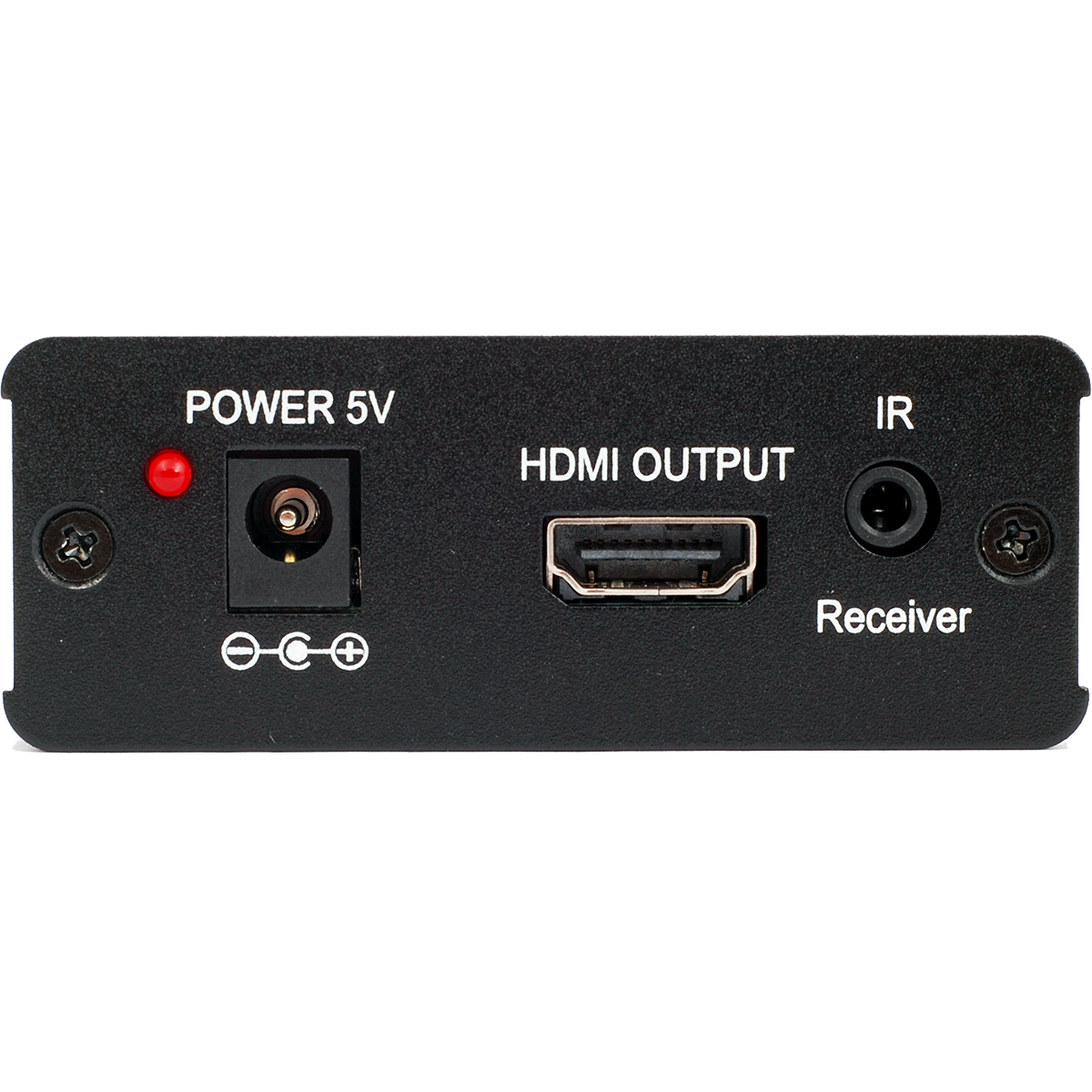

CH-1106RXN EOL
HDMI over Dual CAT6/7 Receiver
- HDMI, HDCP 1.1 and DVI 1.0 compliant
- Supports high definition digital video and lossless, compressed digital audio (Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio)
- Supports dual CAT6/7 cables for Video/Audio and data/DDC transmission
- Equalizes and recovers incoming TMDS data before re-transmitting it in optimum quality
- Supports CEC bypass and x.v.YCC
- Includes an IR Extender and Blaster
- Supports a wide range of IR frequencies, from 30kHz to 50kHz
- Supports transmission of 1080p@8-bit resolution signals up to 45 meters over dual CAT6/7 cables
- Supports HDMI input cable length of up to 6 meters and output cable length of 10 meters at 1080p@8-bit resolution

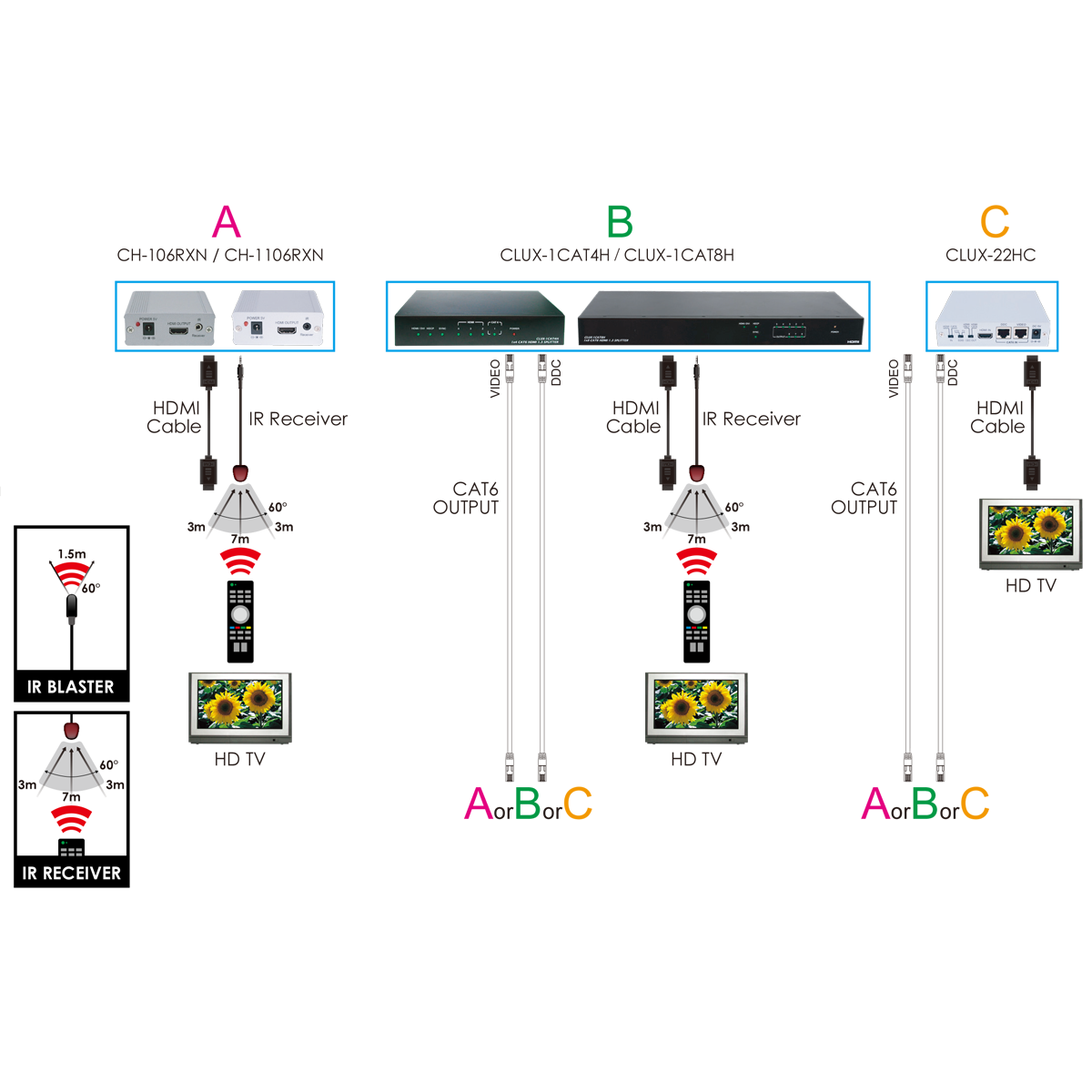

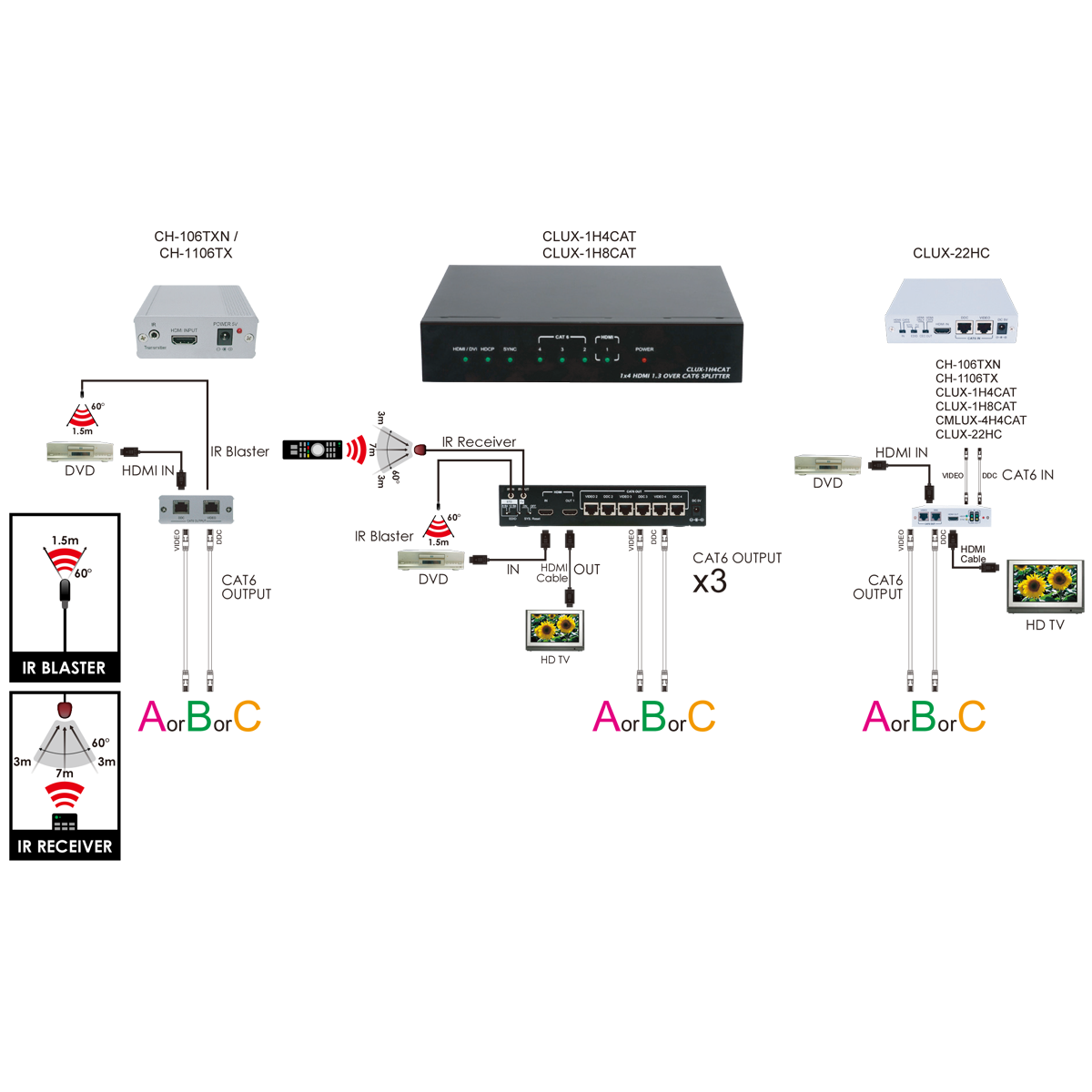

- Supports connection to a repeater or another transmitter and receiver set to extend the HDMI signal
