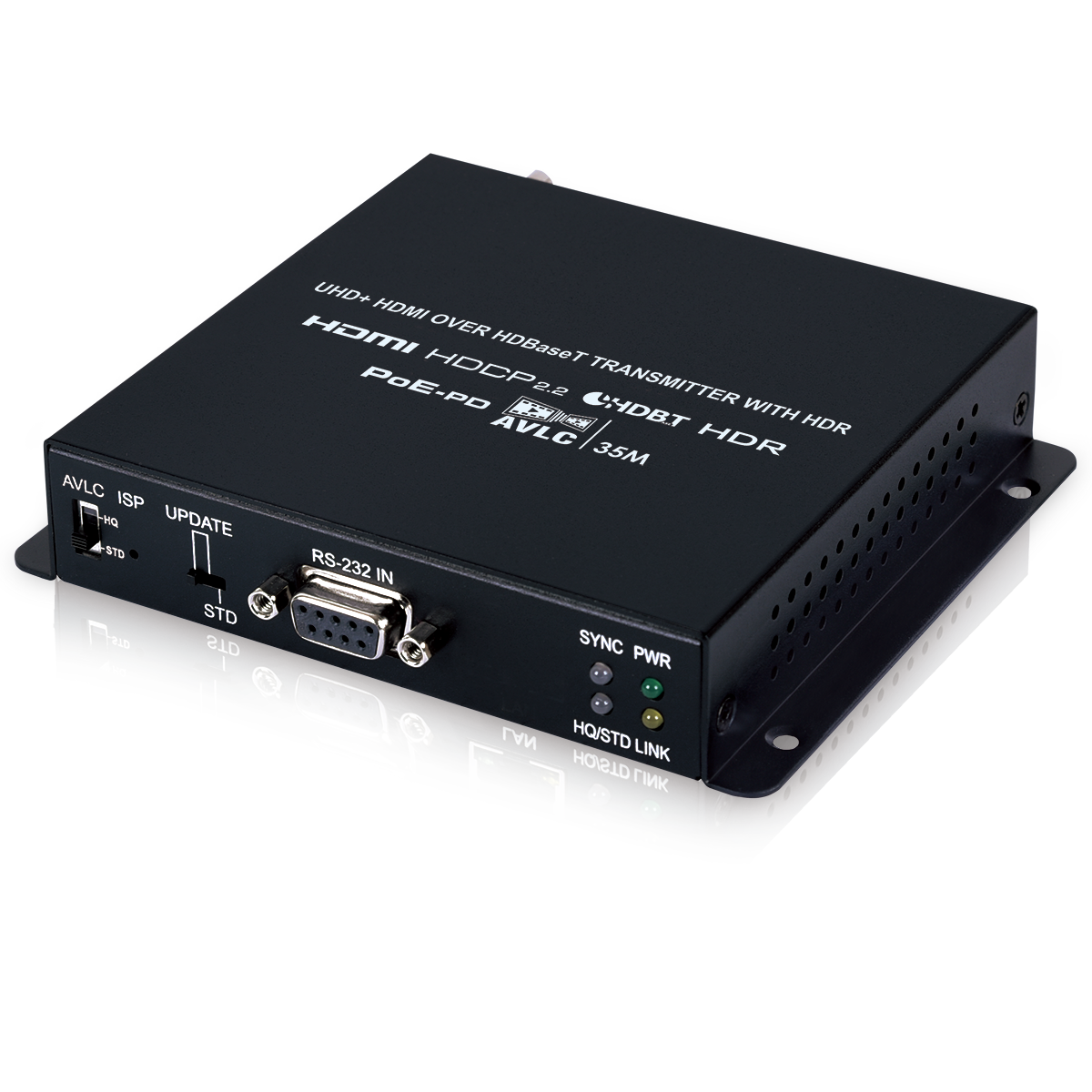

CH-2527TXPLV

UHD+ HDMI over HDBaseT Transmitter with HDR (4K@60 420 up to 35M)

HDMI with HDR, 3D & 4K@60Hz support, Supports Deep Color input and output up to 12-bit
Supports CEC bypass
HDBaseT output transmits video, audio and data over a single Cat.5e/6/7 cable and can reach distances up to 35m/230ft at 4K when using Cat.6a/7
Supported HDBaseT feature set: HD Video & Audio, 100BaseT Ethernet, PoH, and Control (Bi-directional IR/RS-232 pass-through)
Integrated AVLC (Adaptive Visually Lossless Compression) activates when the bandwidth requirements of the source are beyond 10.2Gbps (340MHz) allowing for support of sources up to 18Gbps (600MHz) with no loss of visual quality
The AVLC function allows manual selection between High Quality (Full bandwidth) mode and Standard mode (Lower bandwidth, activates at a lower bandwidth threshold)
Supports pass-through of many audio formats including 8 channel LPCM, Bitstream, and HD Bitstream
Receiver (PSE) provides power to the Transmitter (PD) using PoH (Power over HDBaseT)

Note:

The PoH function is designed for powering compatible Transmitter units only. Non-PoH Transmitters will need their own power supply. Transmitters from other brands may not be compatible.

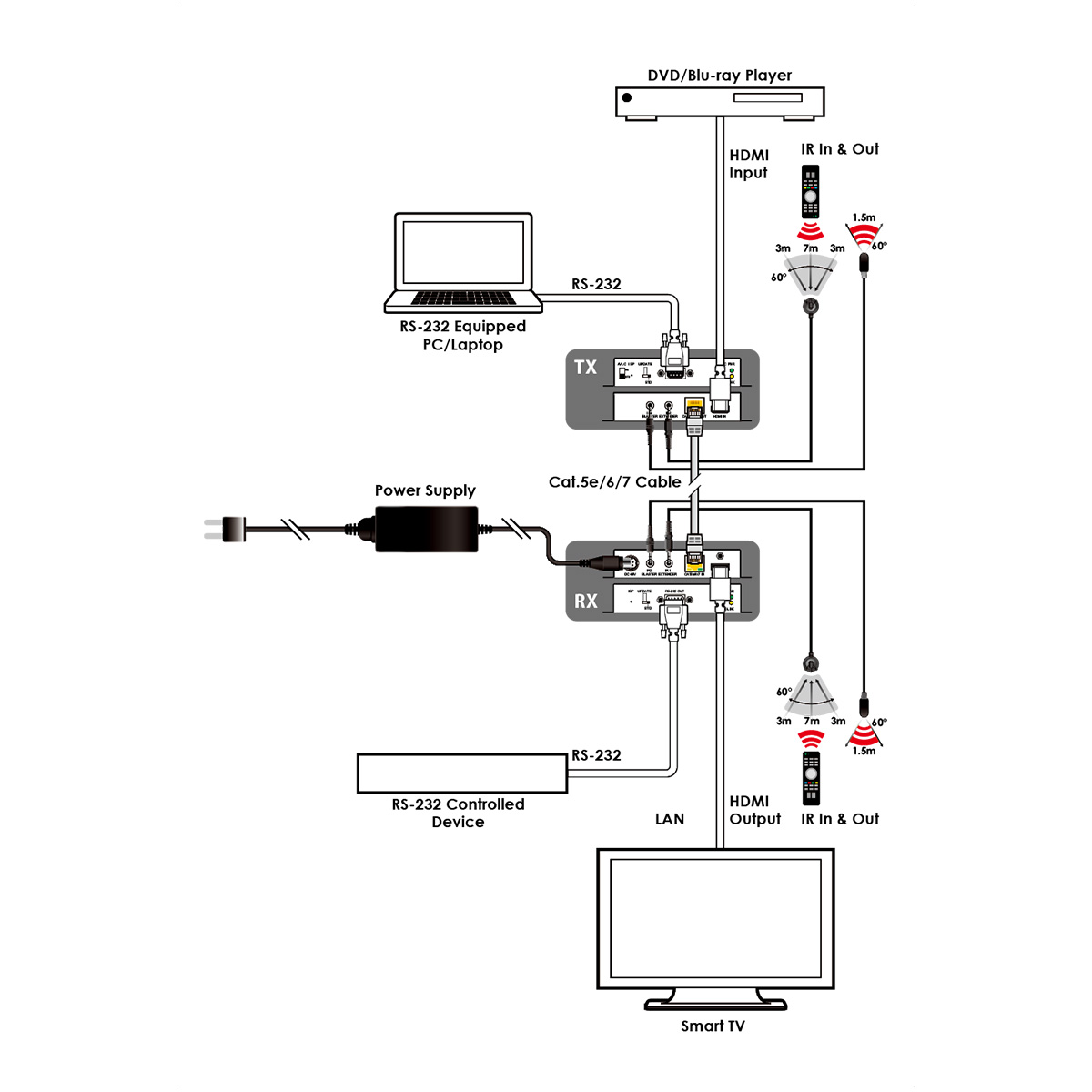

This Transmitter is a great solution for extending UHD video and audio as well as control via a single run of Cat.5e/6/7 cable over distances up to 35 meters. This Transmitter complies with the advanced HDCP 2.2 and HDMI 2.0 standards, as well as supporting the legacy HDCP 1.x and HDMI 1.x standards. Despite HDBaseT’s 10.2Gbps bandwidth limitation, 4K UHD HDMI video sources, up to and including 4K@60Hz (4:4:4, 8-bit) as well as 10/12-bit sources with HDR, are able to be processed and extended by the use of AVLC (Adaptive Visually Lossless Compression) when needed. Multiple data and control interfaces are also provided, including IR, and RS-232 connections. This Transmitter (PD) is powered by 48V PoH (Power over HDBaseT) from a compatible Receiver (PSE), allowing for greater flexibility within different installation scenarios.

Interfaces

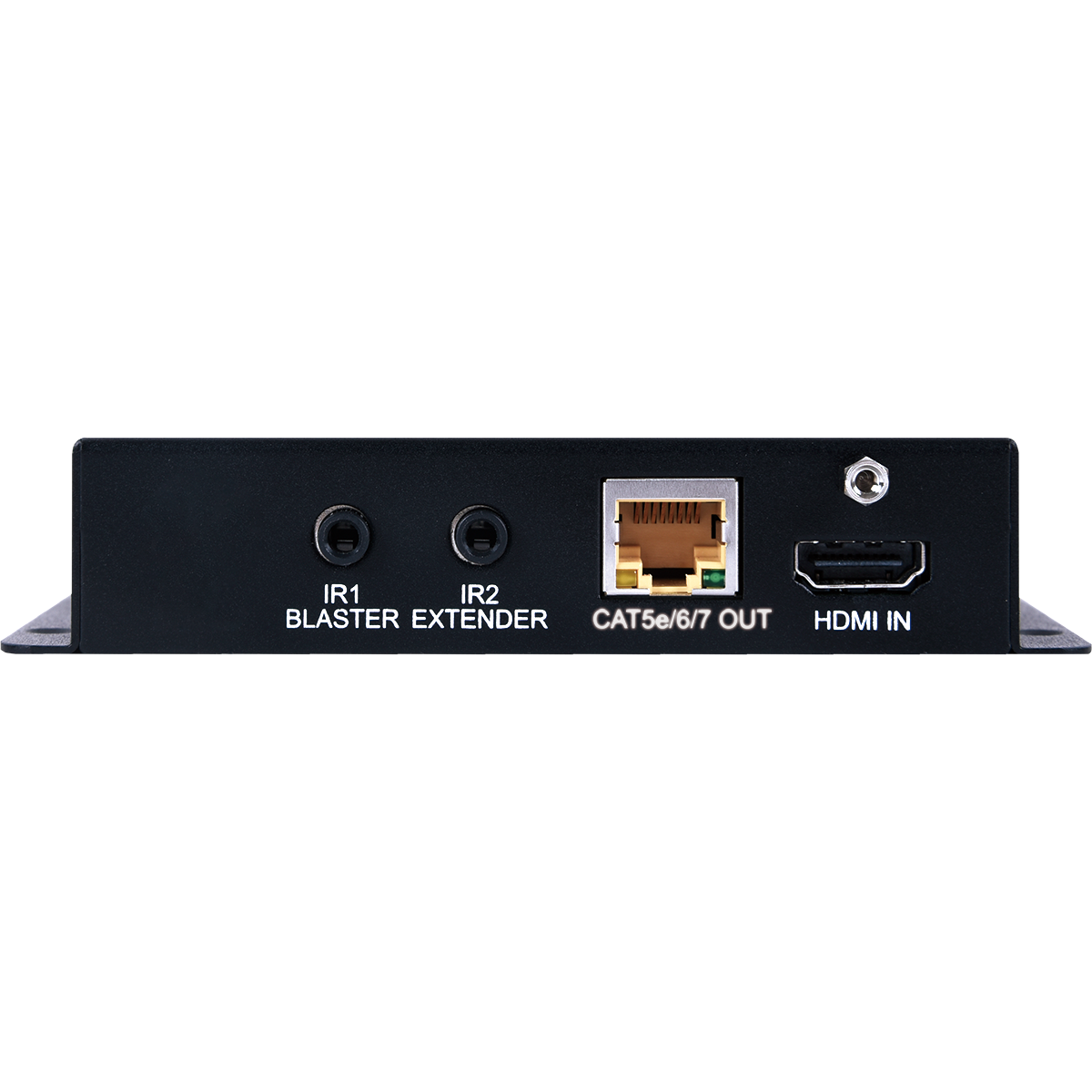

Input Port	1×HDMI (Type-A)
Output Port	1×HDBaseT (RJ-45)

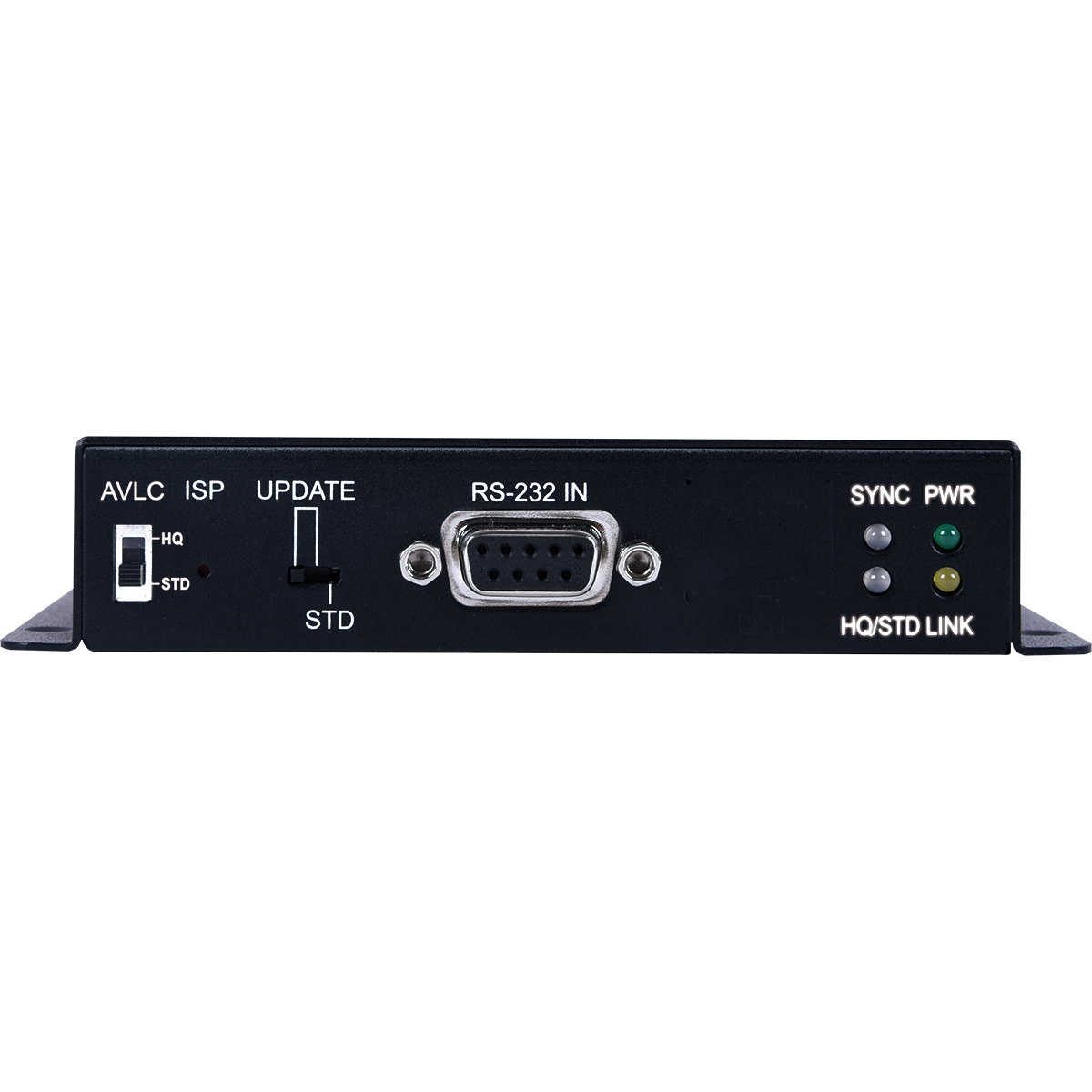

Pass-through Port	1×IR Extender (3.5mm) 1×IR Blaster (3.5mm) 1×RS-232 (DE-9) 1×LAN (RJ-45)

Video
HDMI Compliance	HDMI 2.0 (DVI 1.0)
HDCP Compliance	2.X
Input Signal Types	4K@60 8bit YUV 4:4:4, HDR
Output Signal Type	4K@60 8bit YUV 4:4:4, HDR

Resolutions
Maximum Input	HDMI	4096×2160p@60
Maximum Output	HDBaseT	4096×2160p@60

Power
Power Supply	PoH
Power Consumption	8.3W

Enclosure
Chassis Material	Metal (Steel)
Chassis Color	Black
Dimensions (W×H×D)	128mm×25mm×108mm [Case Only] 128mm×25mm×117mm [All Inclusive]
Weight	386g

Ordering Information
Model No.	Product Description
CH-2527TXPLV	UHD+ HDMI over HDBaseT Transmitter with HDR
CH-2527RXPLV	UHD+ HDMI over HDBaseT Receiver with HDR
