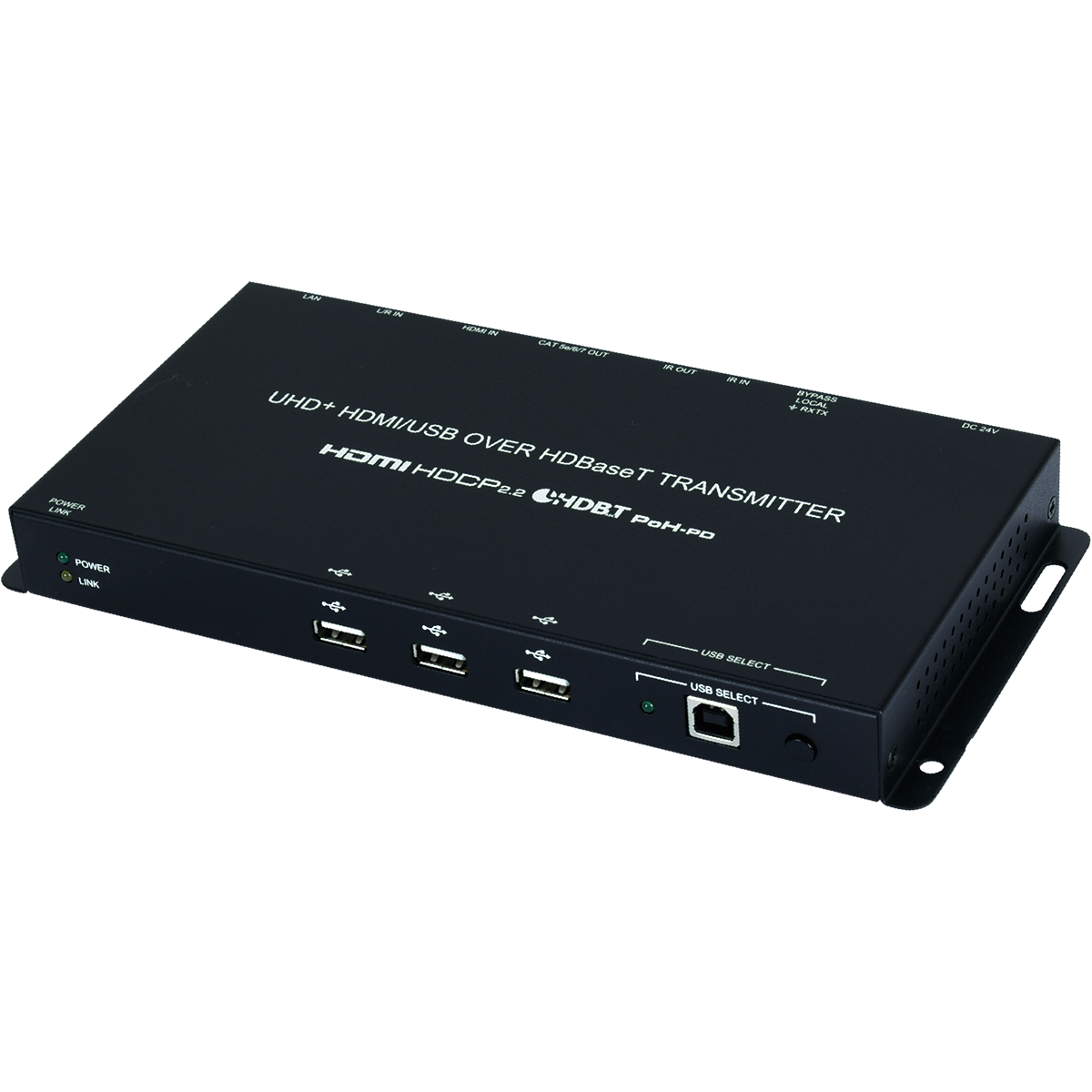

  • CH-2606TX_angled_0814093326440

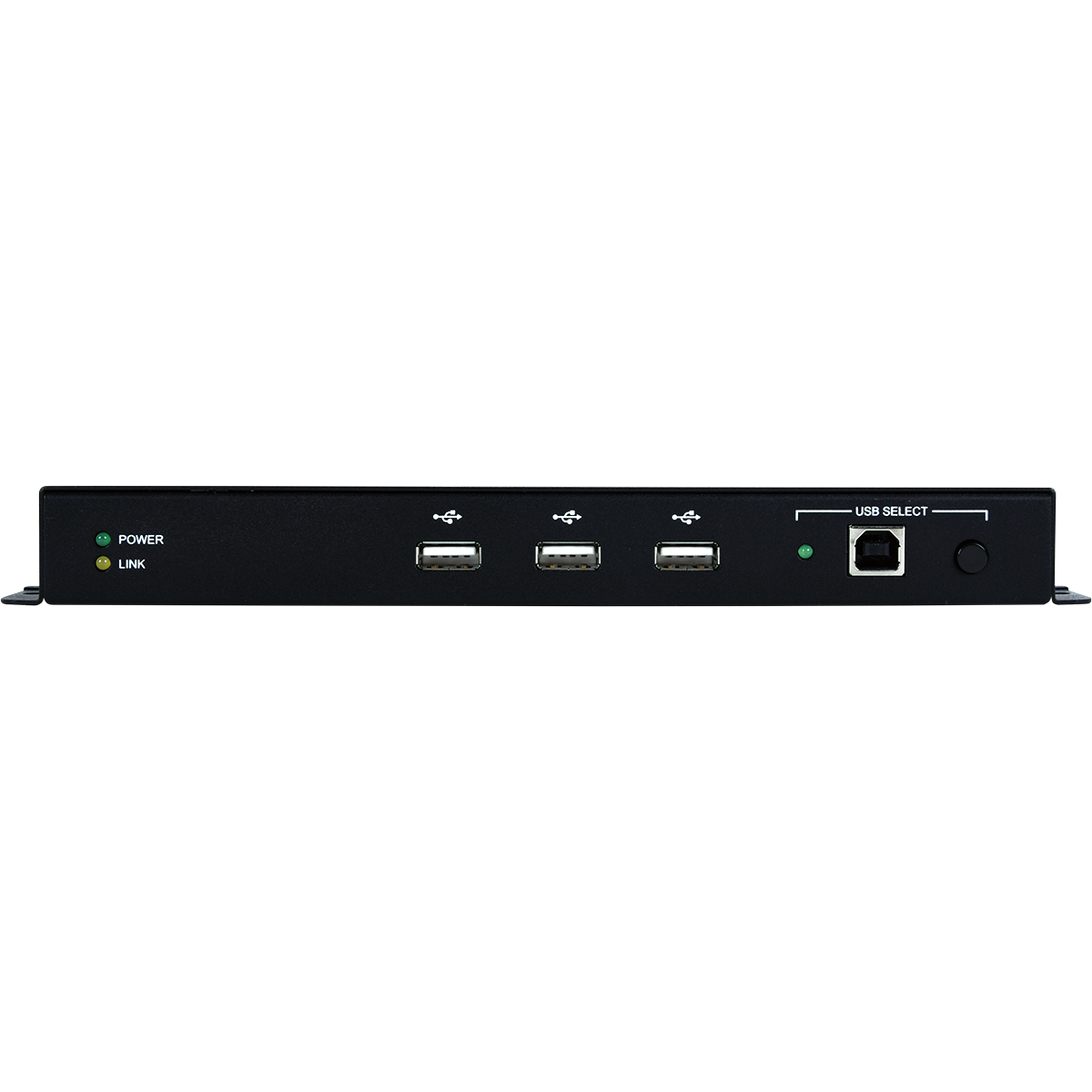

  • CH-2606TX & CH-2606RX_front_0814093323158

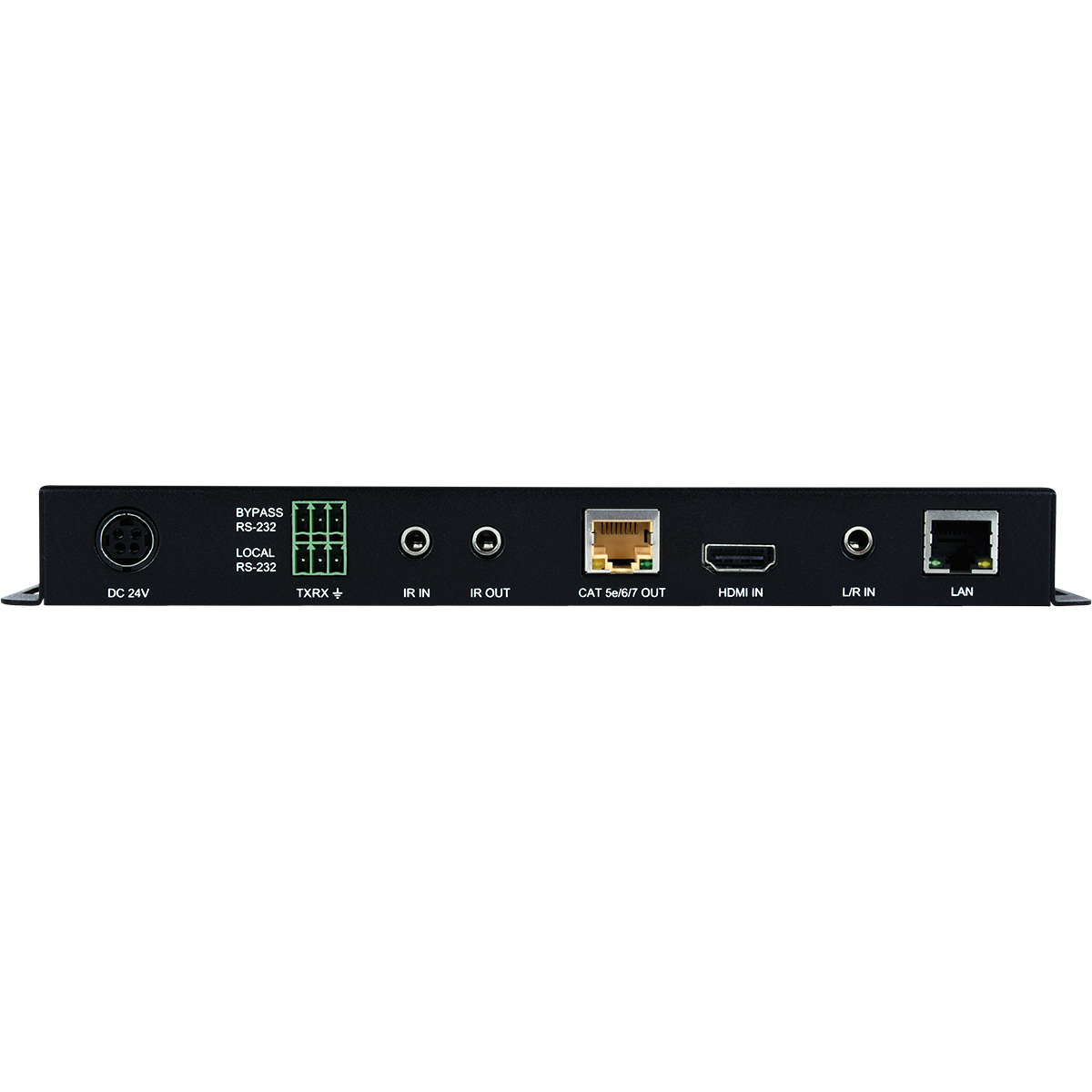

  • CH-2606TX_rear_0814093320138

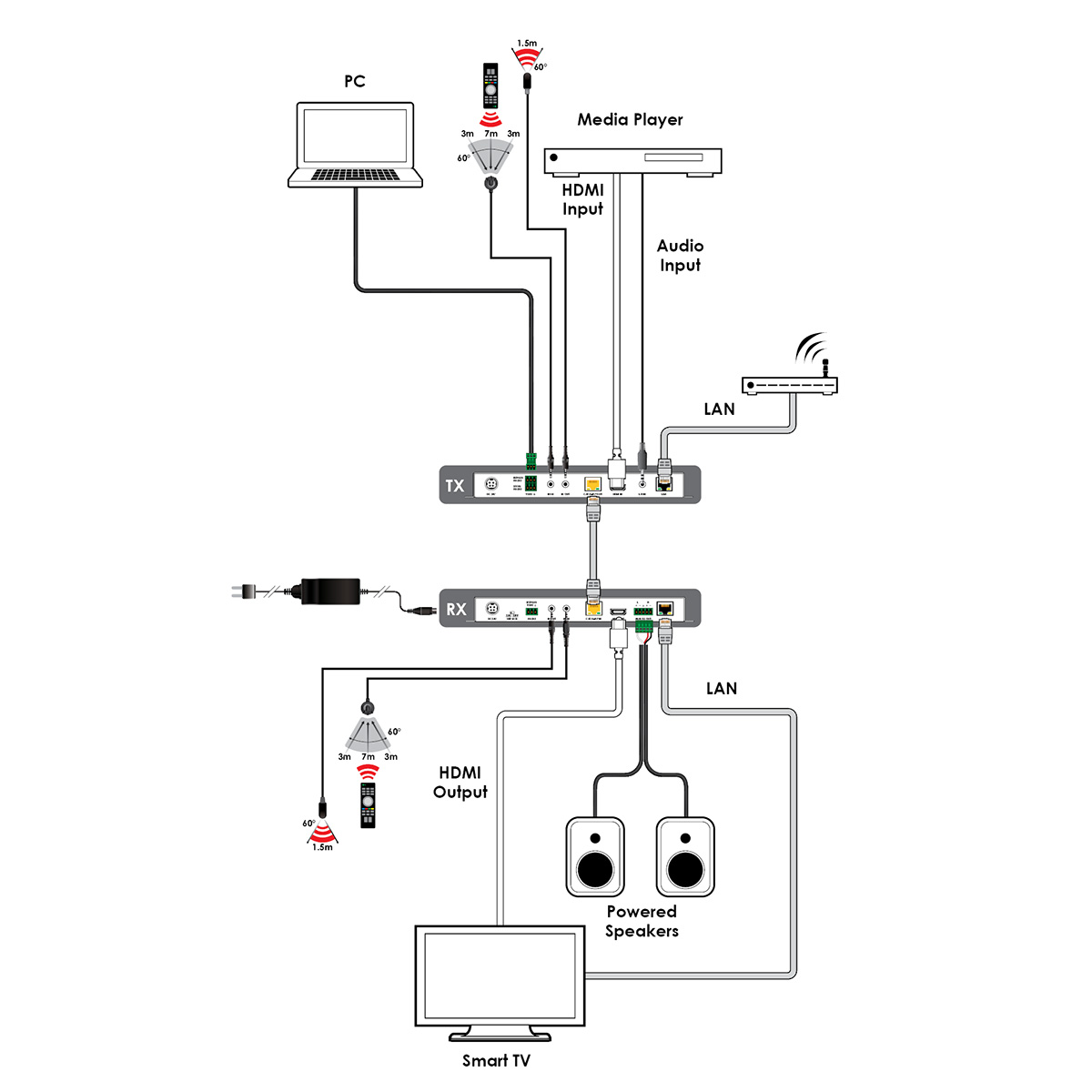

  • CH-2606TXRX_Connection_Diagram_0814093317113

CH-2606TX

UHD+ HDMI to HDBaseT Transmitter with USB (4K@60 444 up to 100M)

  • 3 USB 2.0 Type A ports and 1 USB 2.0 Type B port
  • HDBaseT output transmits video, audio, and data over a single Cat.5e/6/7 cable and can reach distances up to 100m/230ft at 4K when using Cat.6a/7
  • HDBaseT feature support: HD Video and Audio, 100BaseT Ethernet, PoH (PD), and control (bi-directional IR/RS-232/USB 2.0)
  • Supports CEC bypass
  • Flexible USB host selection using the front panel button

Note:

Multiple USB hosts may be connected at once (up to 2 total, between the Tx and a compatible Rx unit) with a single selected host active at a time

  • Supports PoH from Receiver (PSE) to Transmitter (PD) (compatible Transmitters only)
icon-79 拷貝 icon-74 拷貝 icon64x64_23_4K 工作區域 5 複本 39 icon_209_KVM
PRODUCTS FEATURED

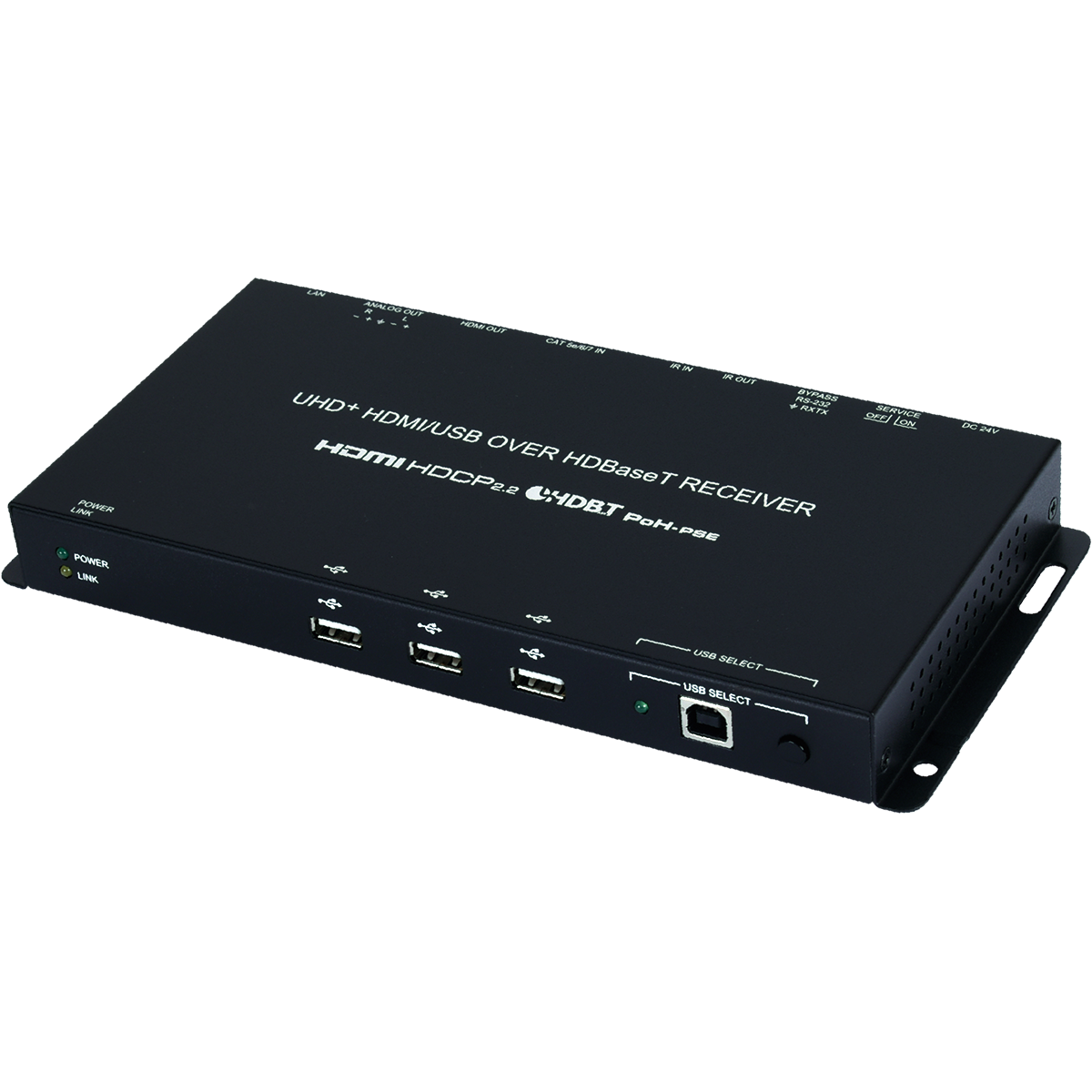

CH-2606RX

UHD+ HDBaseT to HDMI Receiver with USB (4K@60 444 up to 100M)

CH-2606RX adopts HDBaseT 2.0 technology for extending uncompressed 4k and HD video, audio, Ethernet, control and power along a single Cate 5e/6/7 cable up to 100 meters. When paired with this unit’s standard Transmitter, 2 switchable USB 2.0 host (Type B) connections are available (1 on the Transmitter, 1 on the Receiver) which can connect to devices on up to 6 USB 2.0 (Type A) ports (3 on the Transmitter, 3 on the Receiver) forming a highly flexible KVM extension configuration (Note: Only 1 USB host may be active at a time). This Receiver (PSE) can provide PoH (Power over HDBaseT) power to the connected HDBaseT Transmitter (PD) (compatible Transmitters only), This unit is controllable via front panel button.

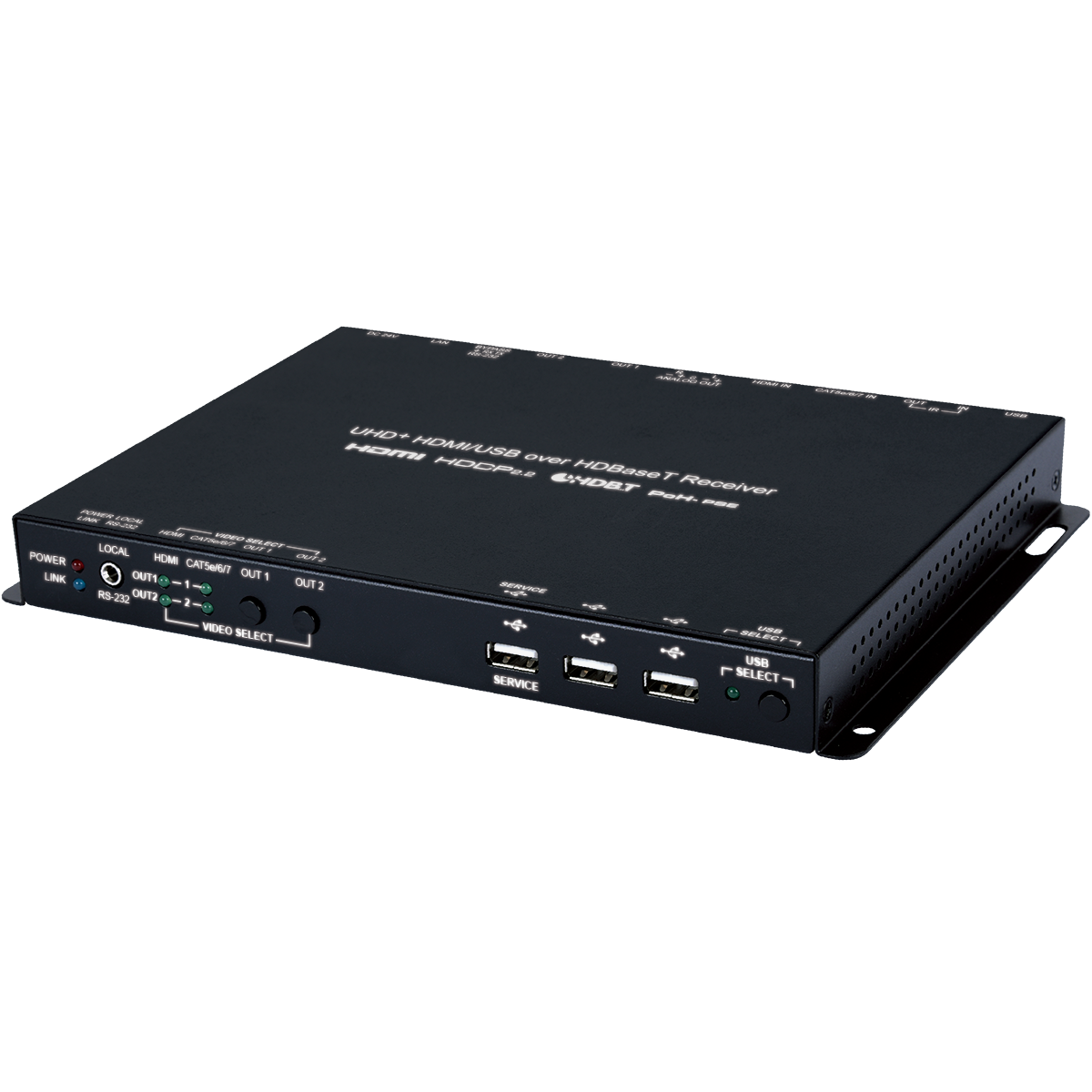

CH-2603RX
