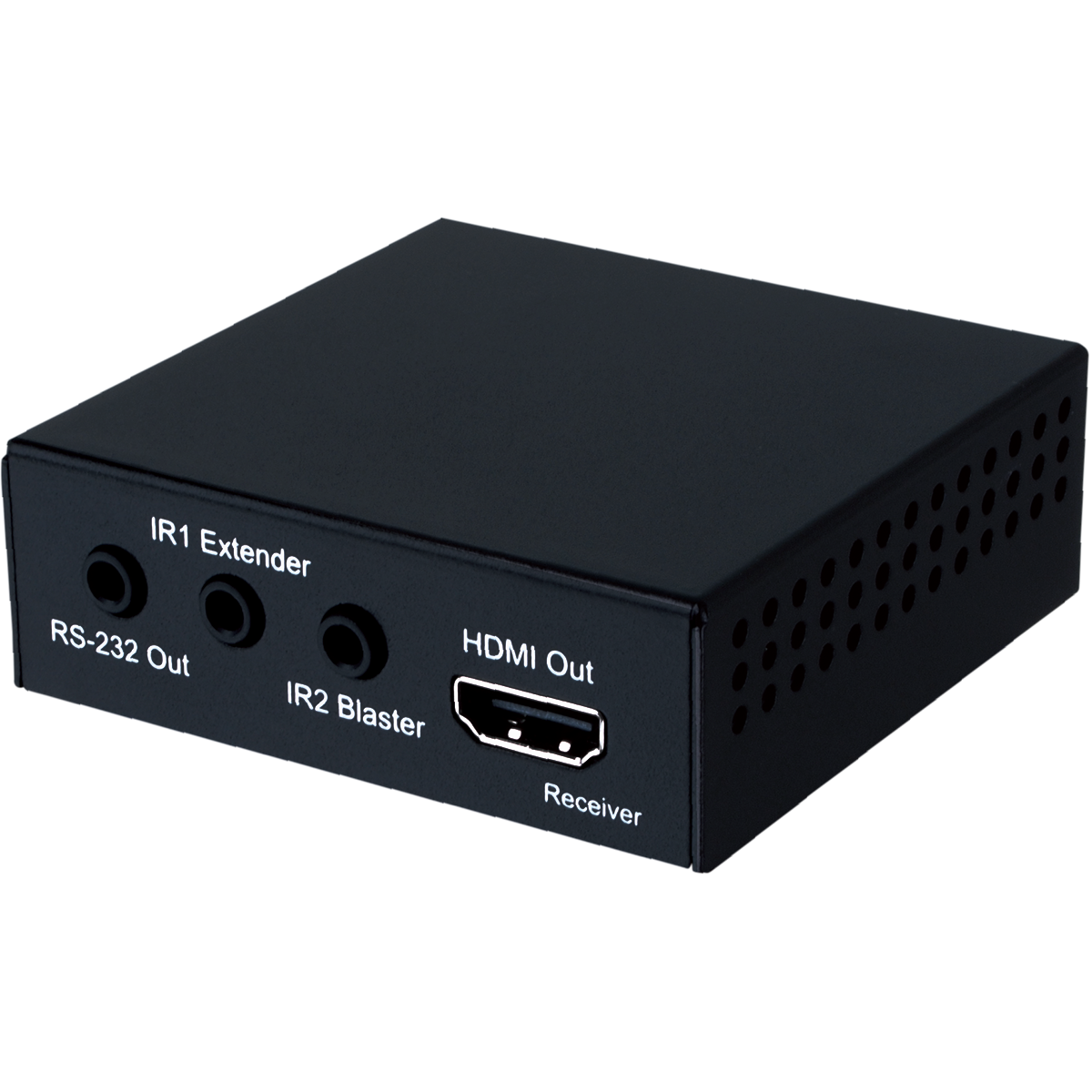

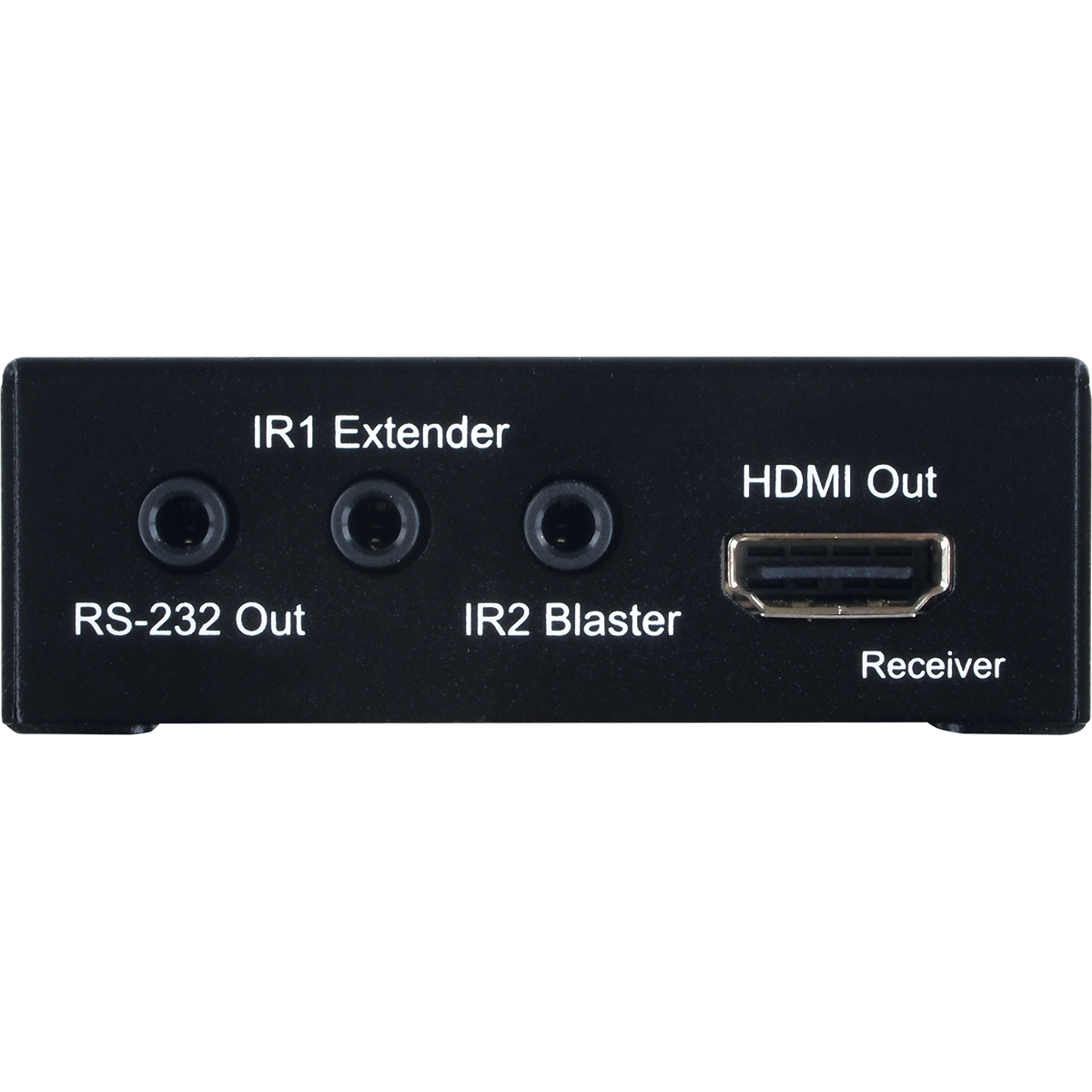

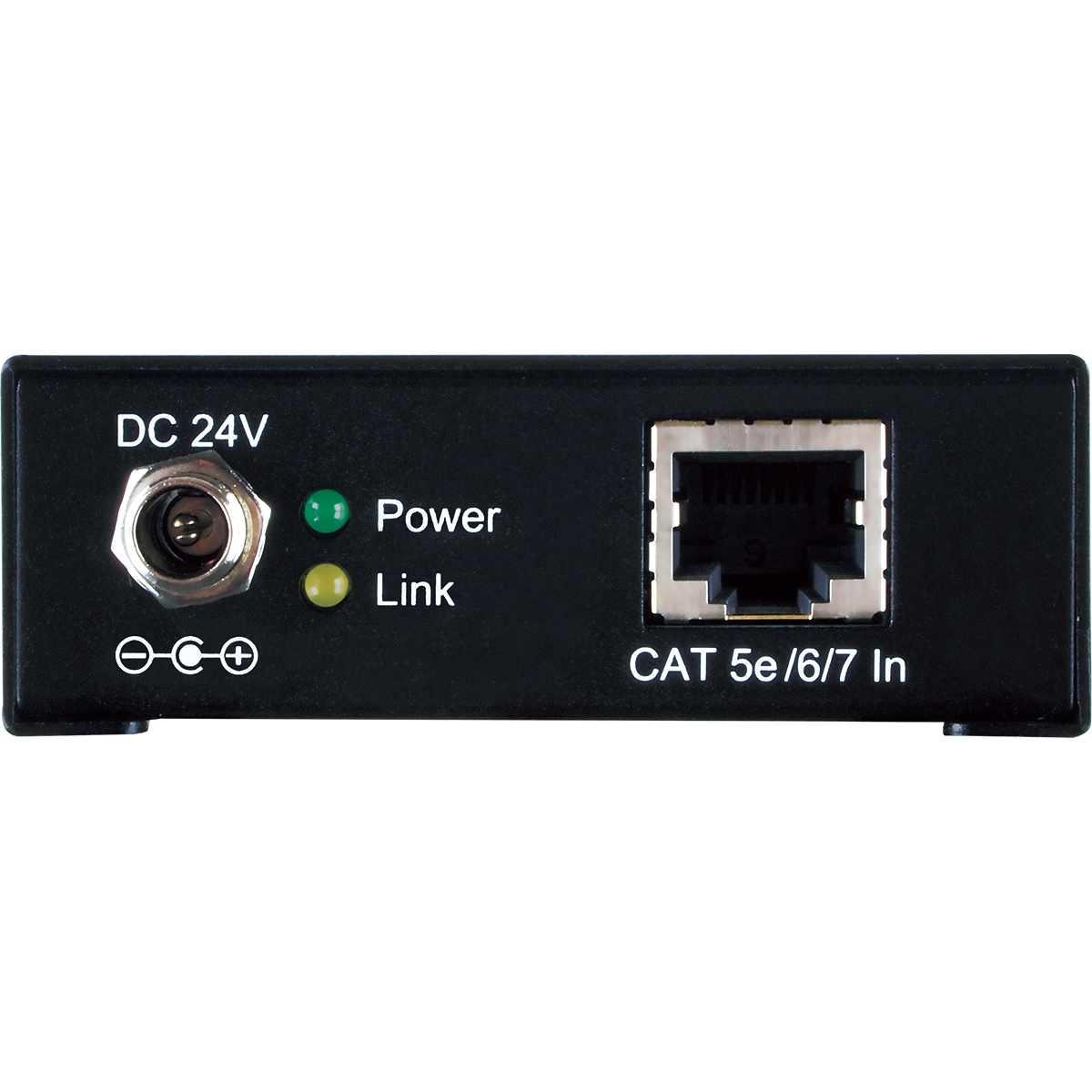

CH-506RXPLBD
HDMI to CAT5e/6/7 Receiver (4K@60 420 up to 35M)
- Supports HDMI 3D and 4K x 2K features
- Supports HDCP repeater and CEC bypass
- Supports distance up to 70m/229ft at 1080p and 40m/131ft at 4K through CAT5e/6/7 cable
- Supports pass-through of audio formats including LPCM 2.0/5.1/7.1, Bitstream and HD Bitstream over HDMI
- Supports bidirectional IR and PoC
- Supports HDBaseT Lite Technology
PRODUCTS FEATURED

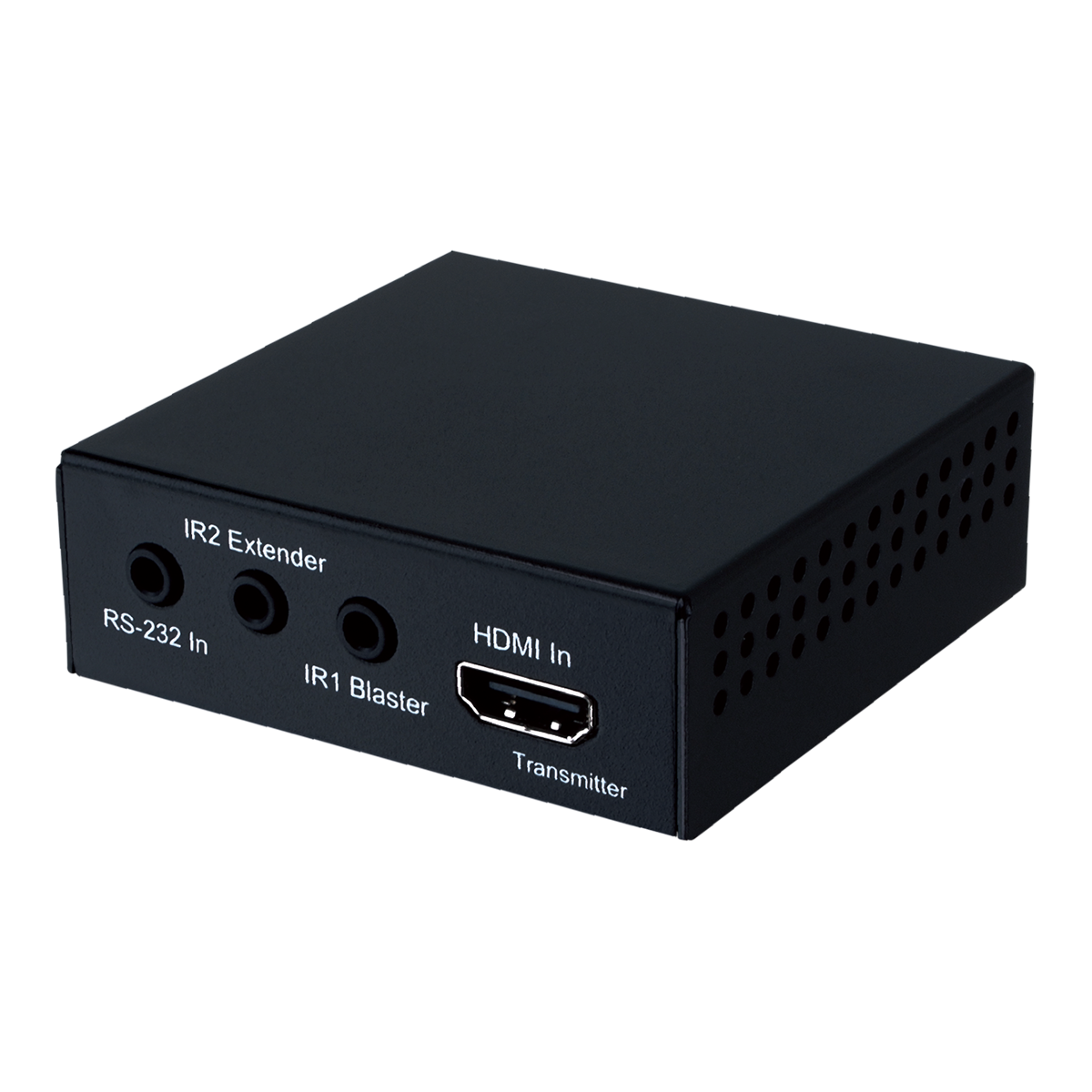

CH-506TXPLBD
HDMI to CAT5e/6/7 Transmitter (4K@60 420 up to 35M)

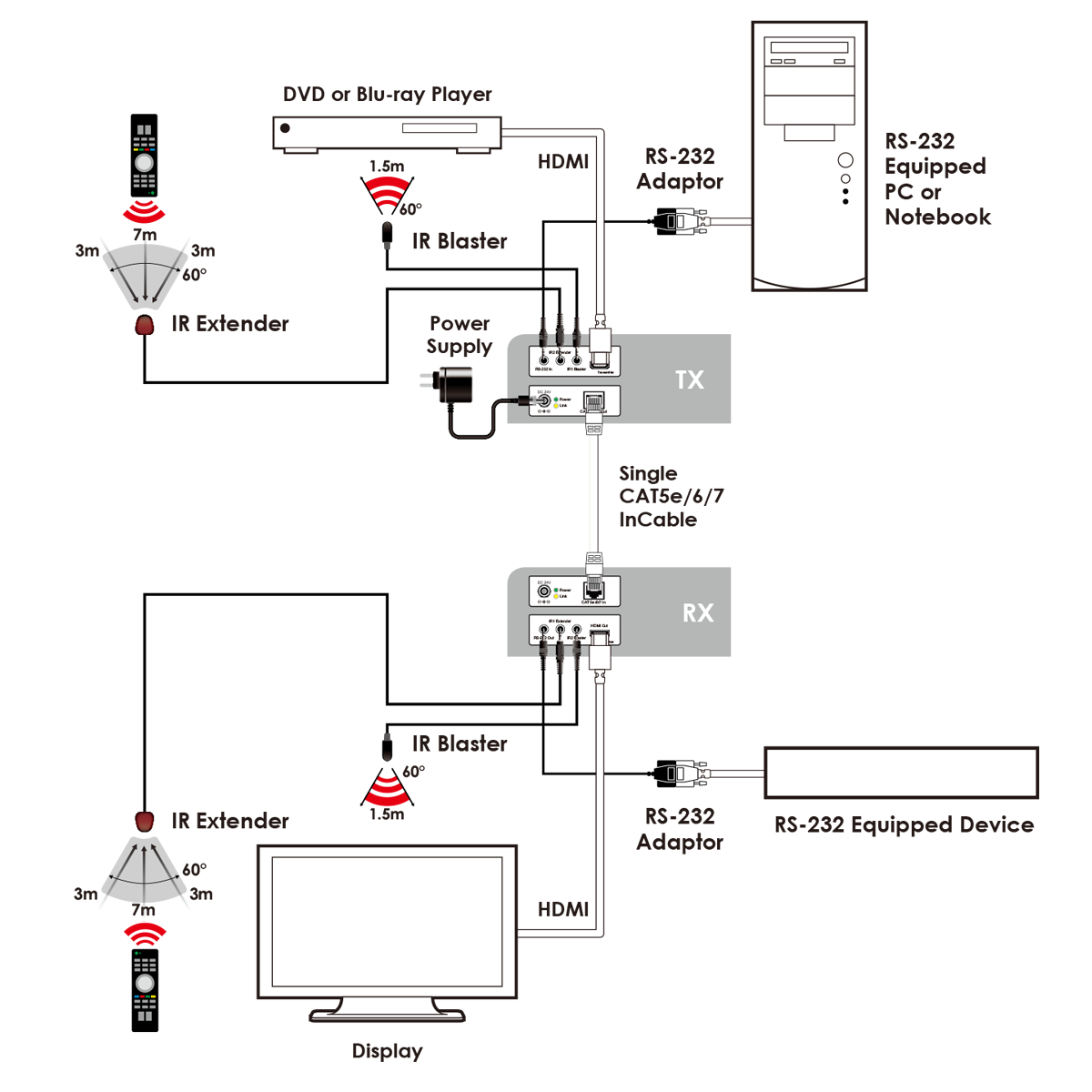

The HDBaseT-LiteTM HDMI over single CAT5e/6/7 with bidirectional IR, RS-232 & bidirectional PoC Transmitter and Receiver set can make your home or offi ce set-up more effi cient and easy to use. Uncompressed video and audio can be transmitted up to 70 meters at 1080p or 40 meters at 4K. with the PoC function and added benefi t of controls through the builtin RS-232 and IR ports. This family design of HDBaseT™ technology allows a full usage of HDMI and controls over CAT5e/6/7 cable.
