Extenders

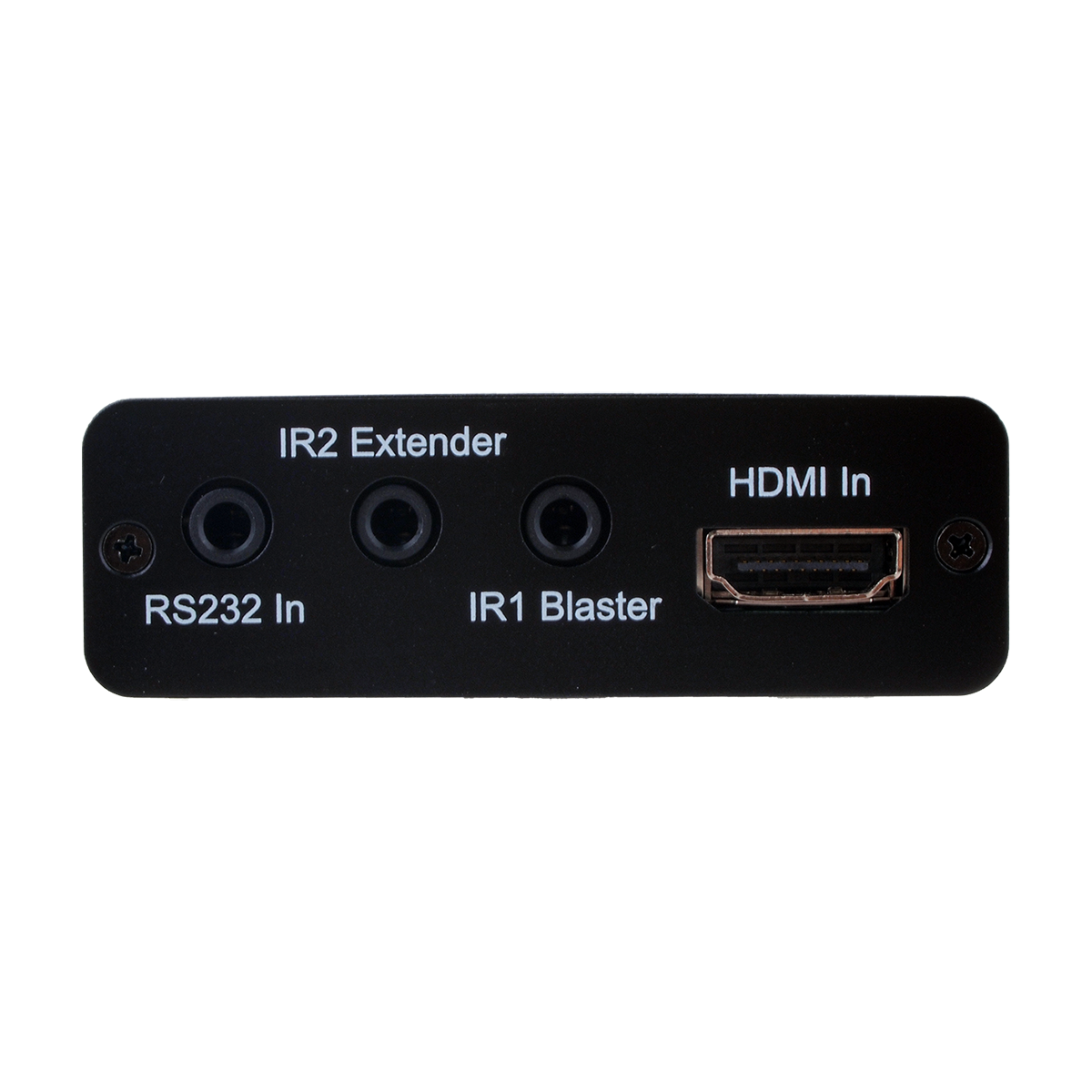

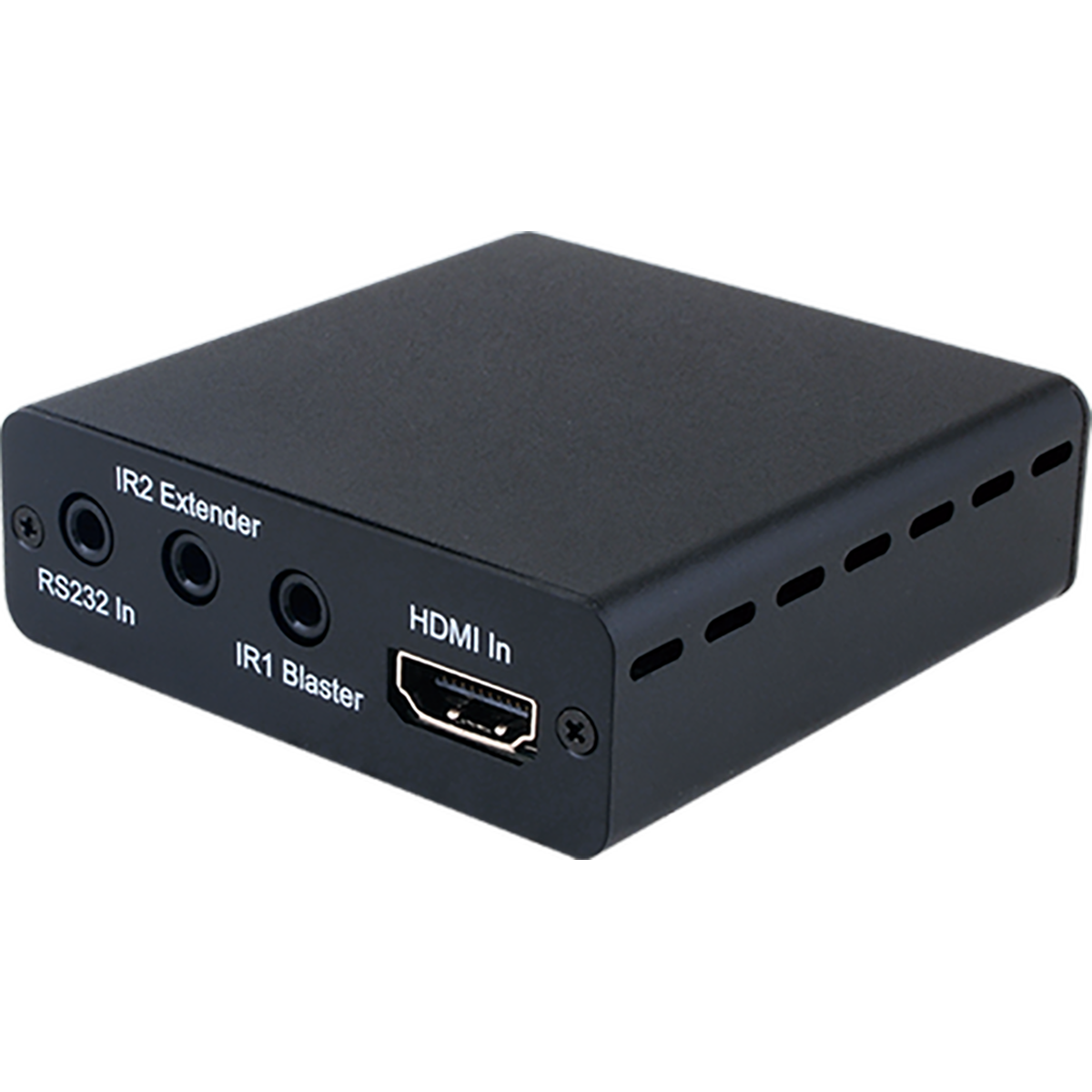

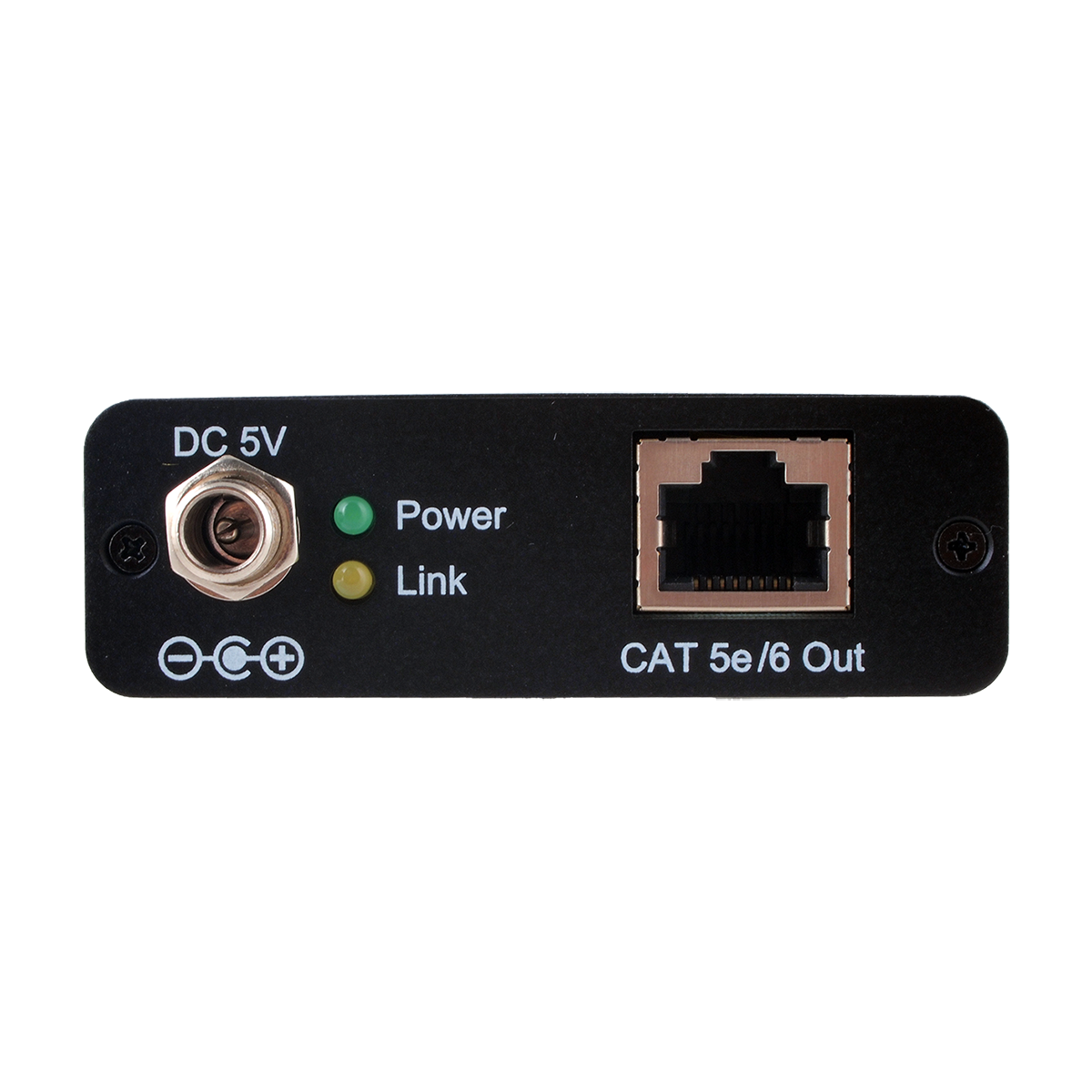

CH-506TX

HDMI over CAT5e/6/7 Transmitter

  • HDMI including 3D and 4K2K (Ultra HD) support, HDCP and DVI compliant
  • Supports HDCP repeater and CEC functions
  • Simultaneous transmission of uncompressed video, audio and data over a single Cat.5e/6 / 7 cable up to 100m/328ft at 1080p and 70m/230ft at 4K
  • Supports HD resolutions up to 1080p@60Hz/36-bit and Ultra HD (4K2K)
  • Audio support up to LPCM 7.1CH, Dolby TrueHD and DTS-HD Master Audio
  • Supports HDBaseT Technology including 2-Way IR and RS-232
  • Installation friendly
