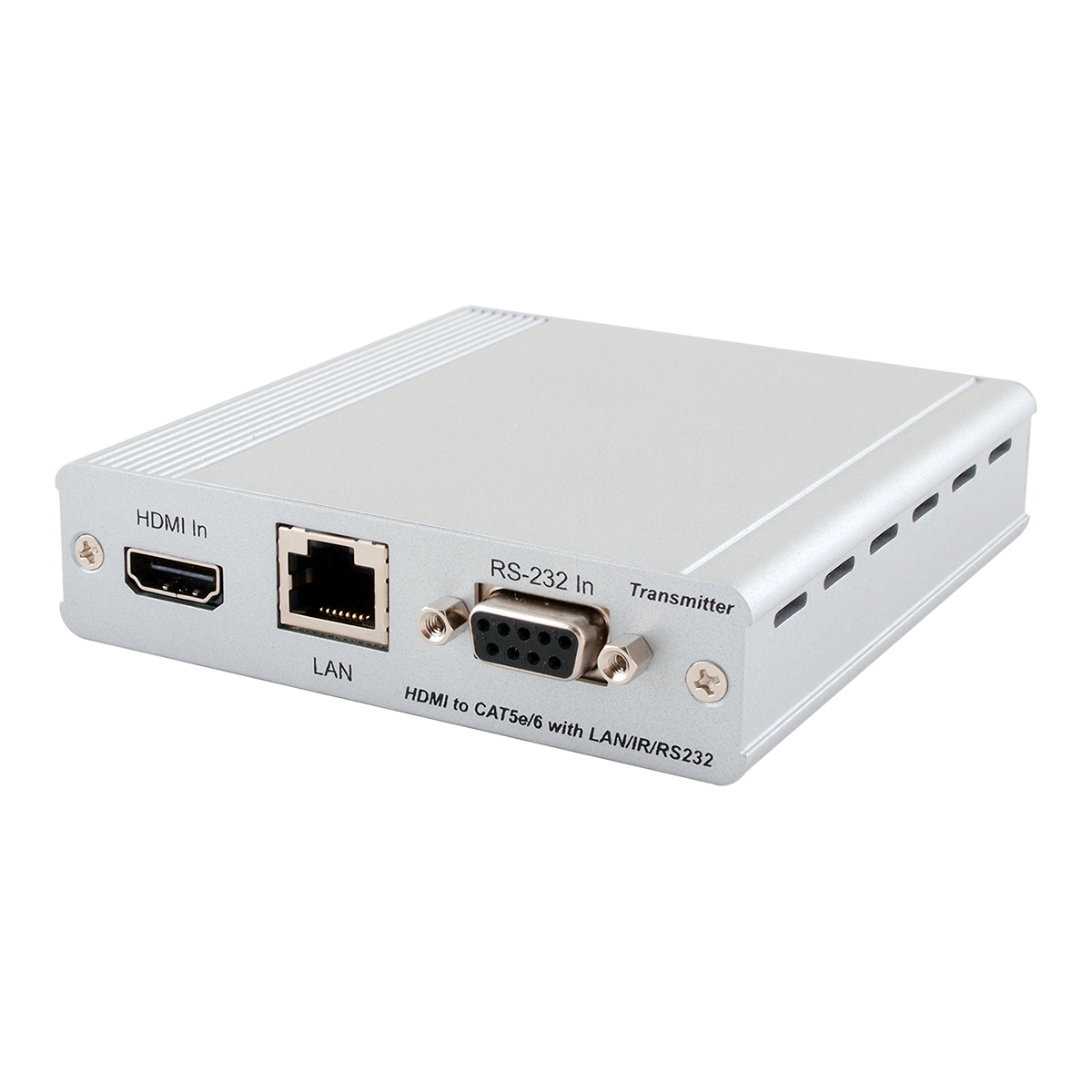

CH-507TX

HDMI over CAT5e/6/7 Transmitter with 24V PoC and LAN Serving

HDMI 1.4 with 3D, 4k2k support, HDCP & DVI Compliant
Supports CEC bypass
Simultaneous transmission of uncompressed data over a single 100m/328ft CAT5e/6 cable
Uncompressed video 1080p, 60Hz, 36-bit
Audio support up to 7.1CH & Dolby TrueHD, DTS-HD Master Audio
HDBaseT 5Play™ convergence: HDMI, LAN, PoE & Control (IR & RS-232)

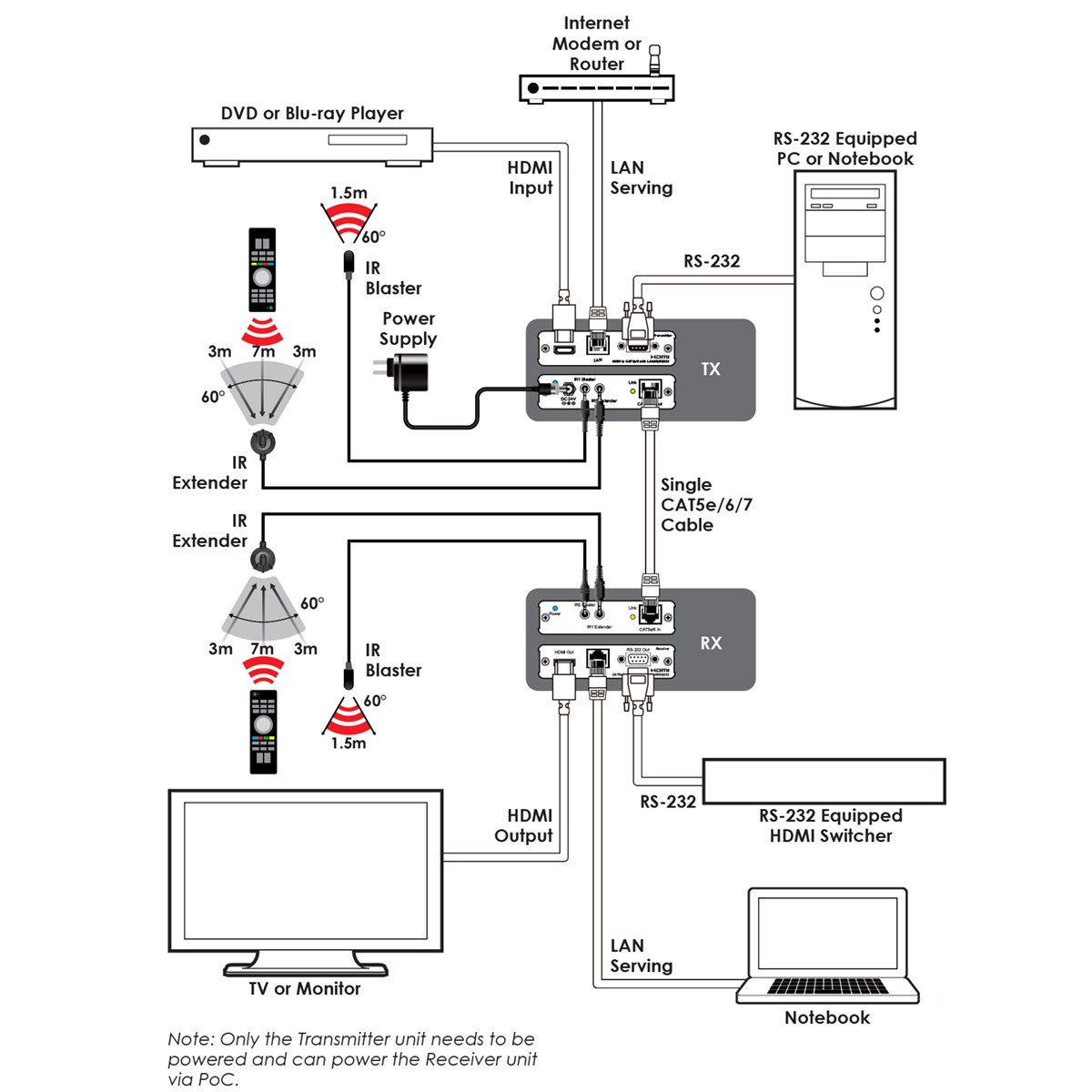

The CH-507TX & RX set allows uncompressed HDMI™ signals and IP data to be transmitted over a single CAT5e/6/7 cable. This solution has the added features of built-in RS-232, 2-way IR control and Power over Ethernet all over the single CAT5e/6/7 cable. These combined HDMI and control signals can be transmitted up to lengths of 100 meters.

Interfaces

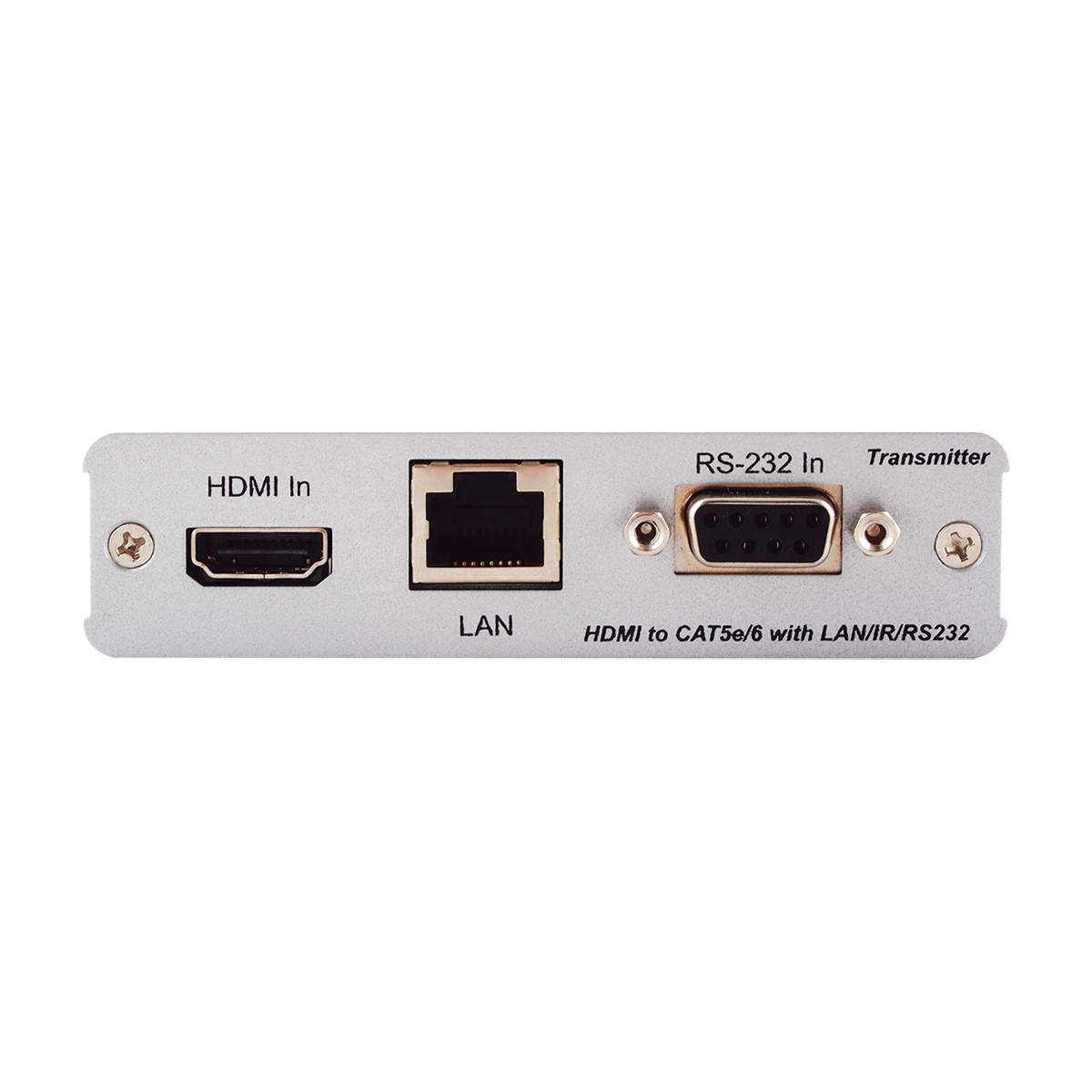

Input Port	1 HDMI (Type-A) (TX), 1 RJ45 (RX)
Output Port	1 HDBT(RJ45) (TX), 1 HDMI (RX)

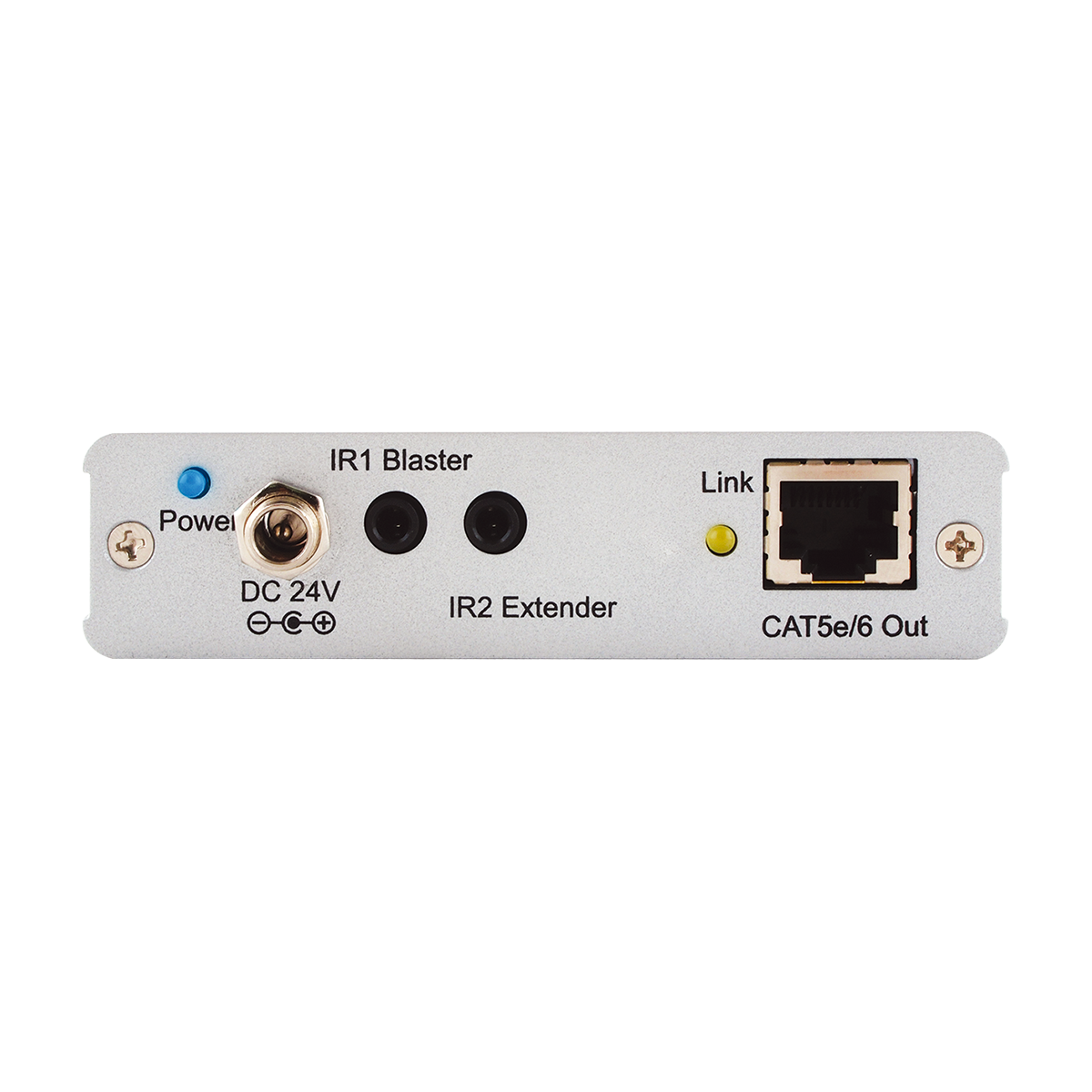

Control I/O	1 IR Extender [3.5mm] (both TX and RX) 1 IR Blaster [3.5mm] (both TX and RX) 1 RS232 DE-9 (female on TX, male on RX) 1 LAN (RJ-45) (both TX and RX)

Video
HDMI Compliance	1.x
HDCP Compliance	1.x
Input Signal Types	HDMI 4K@60 8bit YUV 4:2:0
Output Signal Types	HDBT 4K@60 8bit YUV 4:2:0
		Resolutions
Maximum Input	HDMI	4096×2160p@60 YUV 4:2:0
Maximum Output	HDBT	4096×2160p@60 YUV 4:2:0

Audio
HDMI	LPCM (8 Channels), Bitstream, High Bit Rate Bitstream
HDBT	LPCM (8 Channels), Bitstream, High Bit Rate Bitstream

Audio

HDMI

LPCM (8 Channels), Bitstream,

High Bit Rate Bitstream

HDBT

LPCM (8 Channels), Bitstream,

High Bit Rate Bitstream

Power
Power Supply	24V/1.25A
Power Consumption	13W (Full load)

Enclosure
Chassis Material	Metal (Steel)
Chassis Color	Silver
Dimensions (W×H×D)	102 mm (W)×113 mm (D)×25 mm (H)/TX 102 mm (W)×107 mm (D)×25 mm (H)/RX
Weight	252 g/TX, 256 g/RX

ORDERING INFORMATION
Model No.	Product Description
CH-507TX/RX	HDMI over CAT5e/6/7 Transmitter and Receiver
