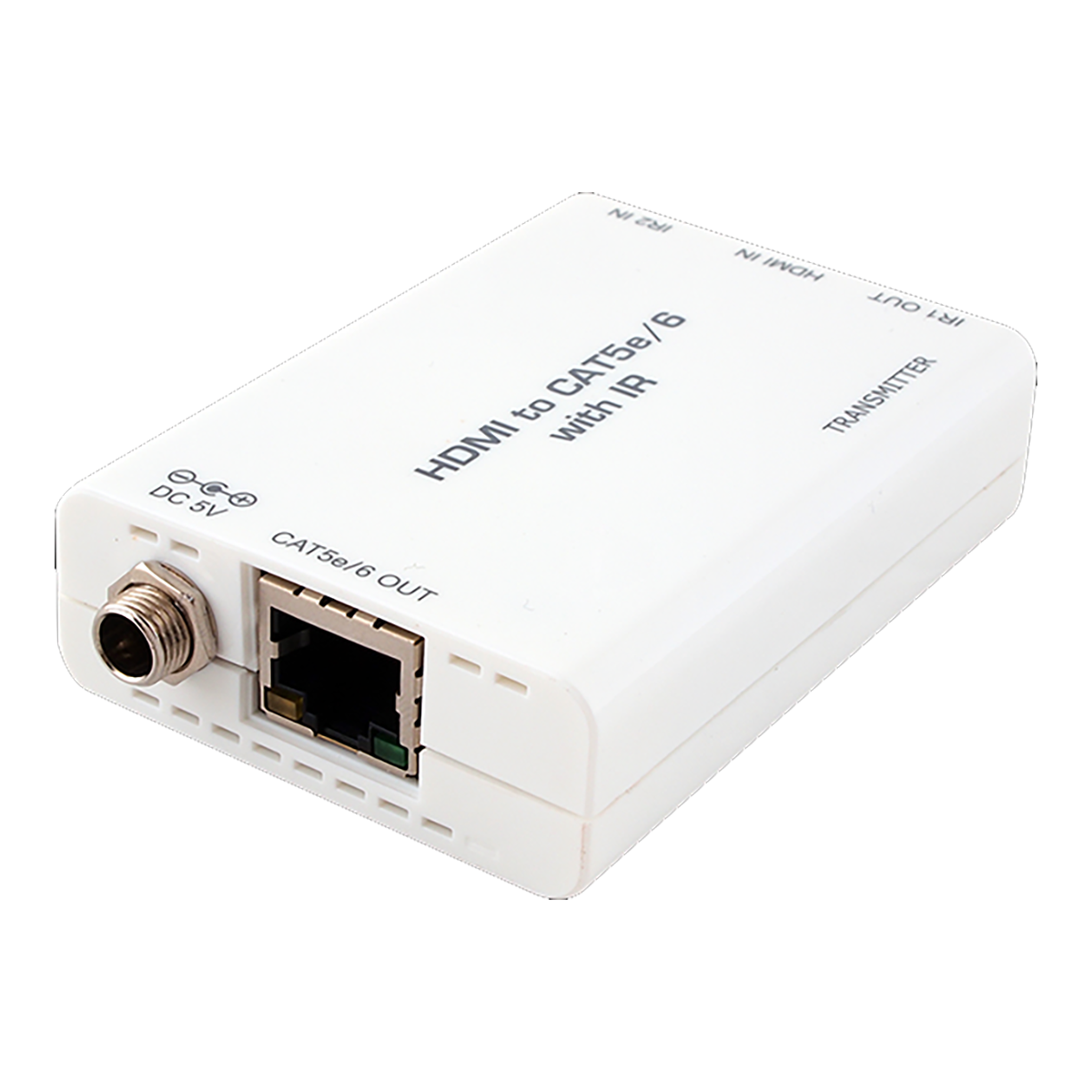

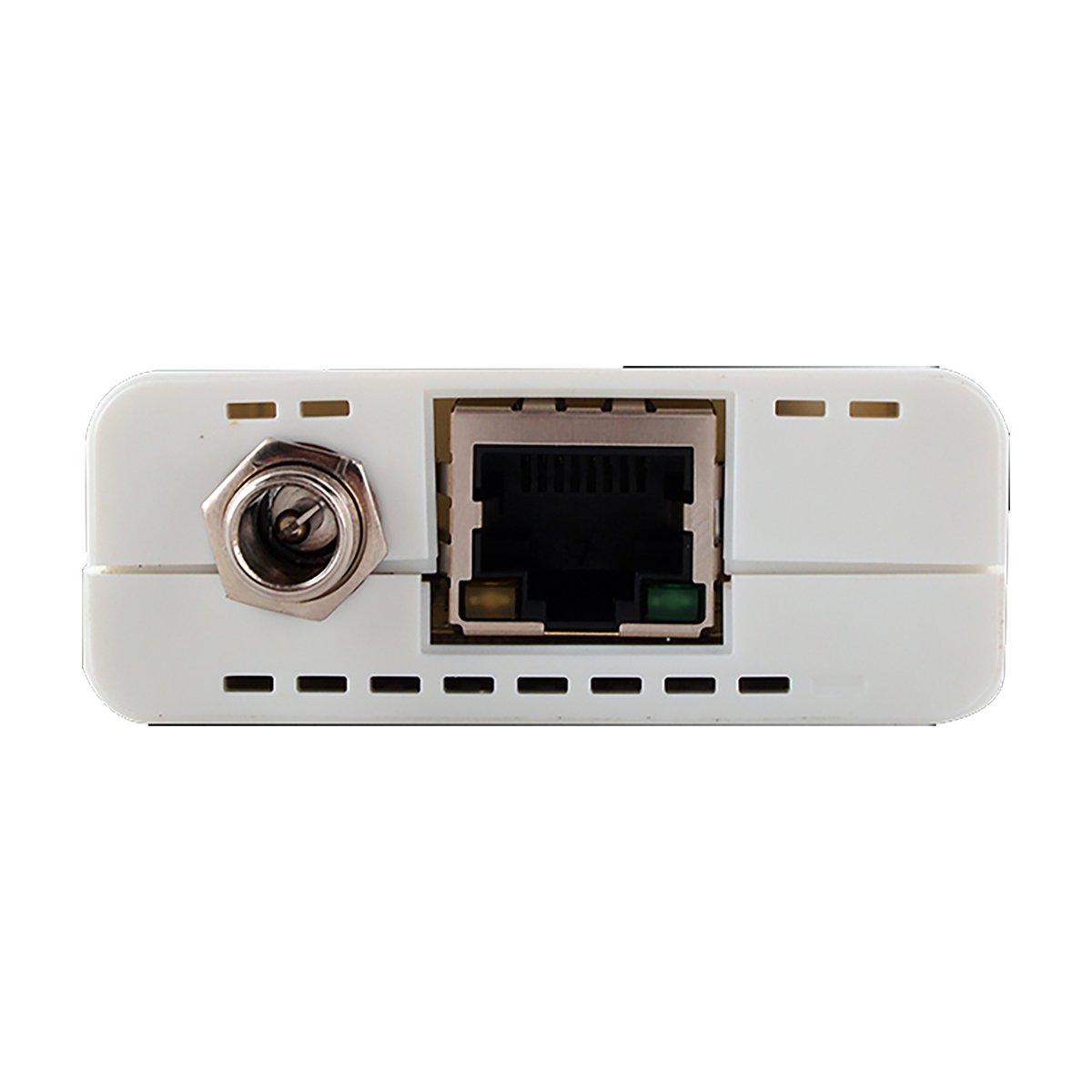

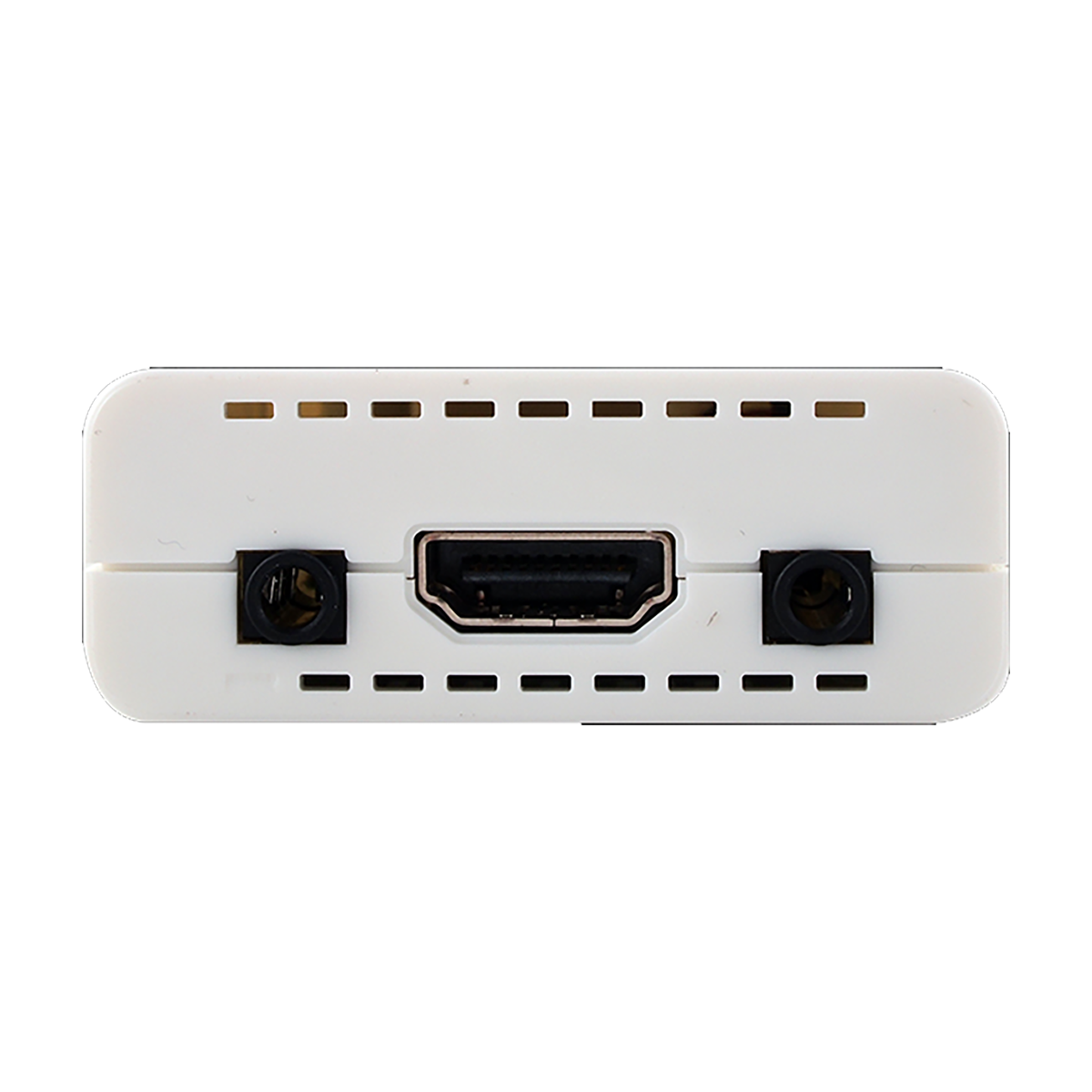

CH-514TXL
HDMI to CAT5e/6 with IR (4K@60 420 up to 40M)
- Supports distance up to 70m/229ft at 1080p and 40m/131ft at 4K
- HDBaseT feature support: HD Video, Audio, and IR/RS-232 Control pass-through
- Supports HDCP repeater and CEC bypass
- Input/output resolutions up to 4K@60Hz (YUV 4:2:0, 8-bit) or 4K@30Hz(YUV 4:4:4, 8-bit)
- HDMI with 3D, 4K2K support, HDCP and DVI compliant
- Supports pass-through of audio formats including LPCM 2.0/5.1/7.1, Bitstream and HD Bitstream over HDMI
PRODUCTS FEATURED
CH-514RXL
CAT5e/6 to HDMI with IR (4K@60 420 up to 40M)
The HDMI Extender over single CAT5e/6/7 incorporating IR signal transferallows for a more efficient system setup and is easy to install. Uncompressed video and audio can be transmitted to distances of up to 70 meters (1080p) and supports High Definition Audio and 3D signals. Designed with HDBaseT technology for greater flexibility in custom installations with full HDMI and control signal transfer over a single CAT5e/6/7 cable.
