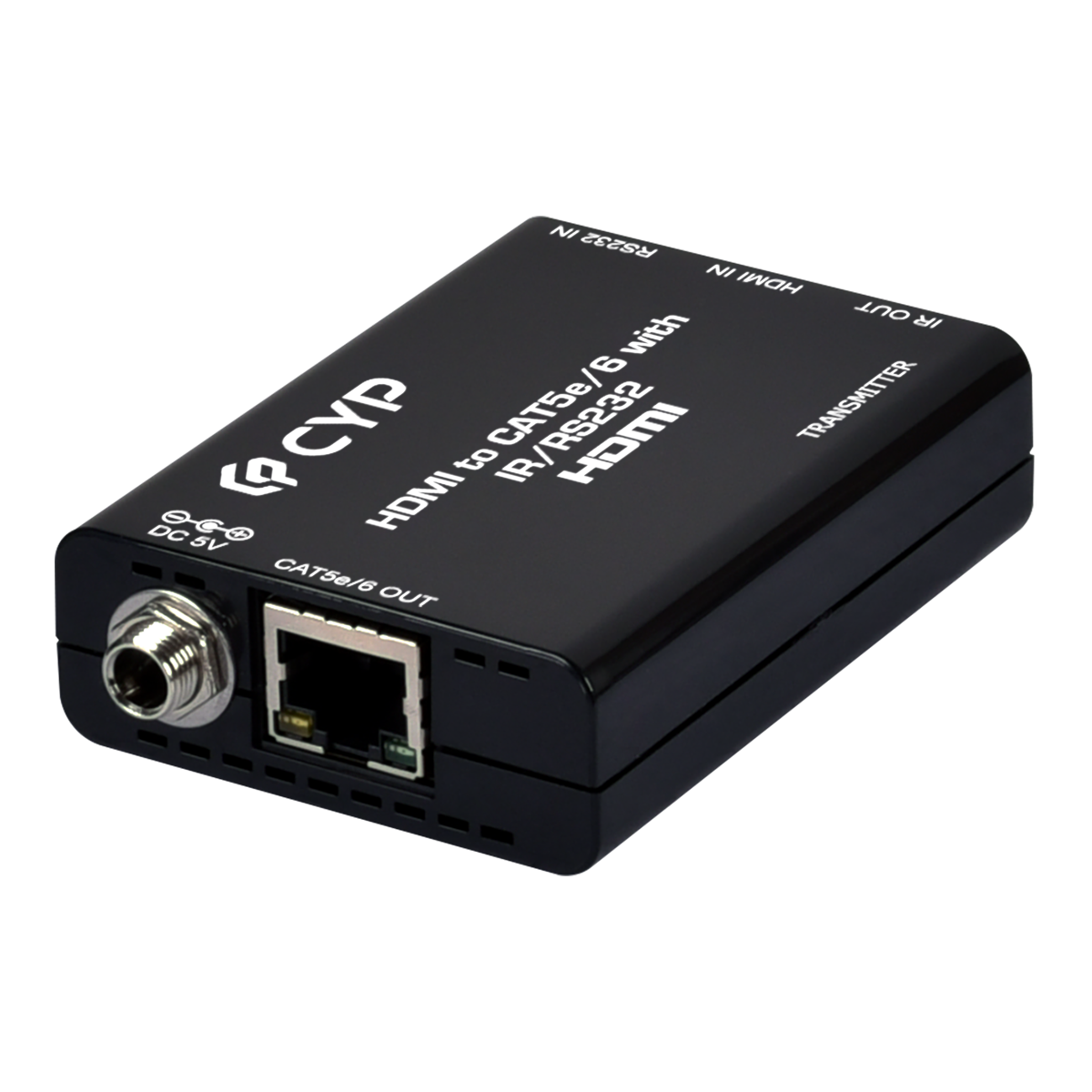

CH-519TXL
HDMI to CAT5e/6 with IR/RS232 (4K@60 420 up to 40M)
- Supports distance up to 70m/229ft at 1080p and 40m/131ft at 4K
- HDBaseT feature support: HD Video, Audio, and IR/RS-232 Control pass-through
- Supports HDCP repeater and CEC bypass
- Input/output resolutions up to 4K@60Hz (YUV 4:2:0, 8-bit) or 4K@30Hz(YUV 4:4:4, 8-bit)
- Supports Deep Color input and output up to 12-bit
- Supports pass-through of many audio formats including LPCM (up to 8channels), Bitstream, and HD Bitstream
PRODUCTS FEATURED

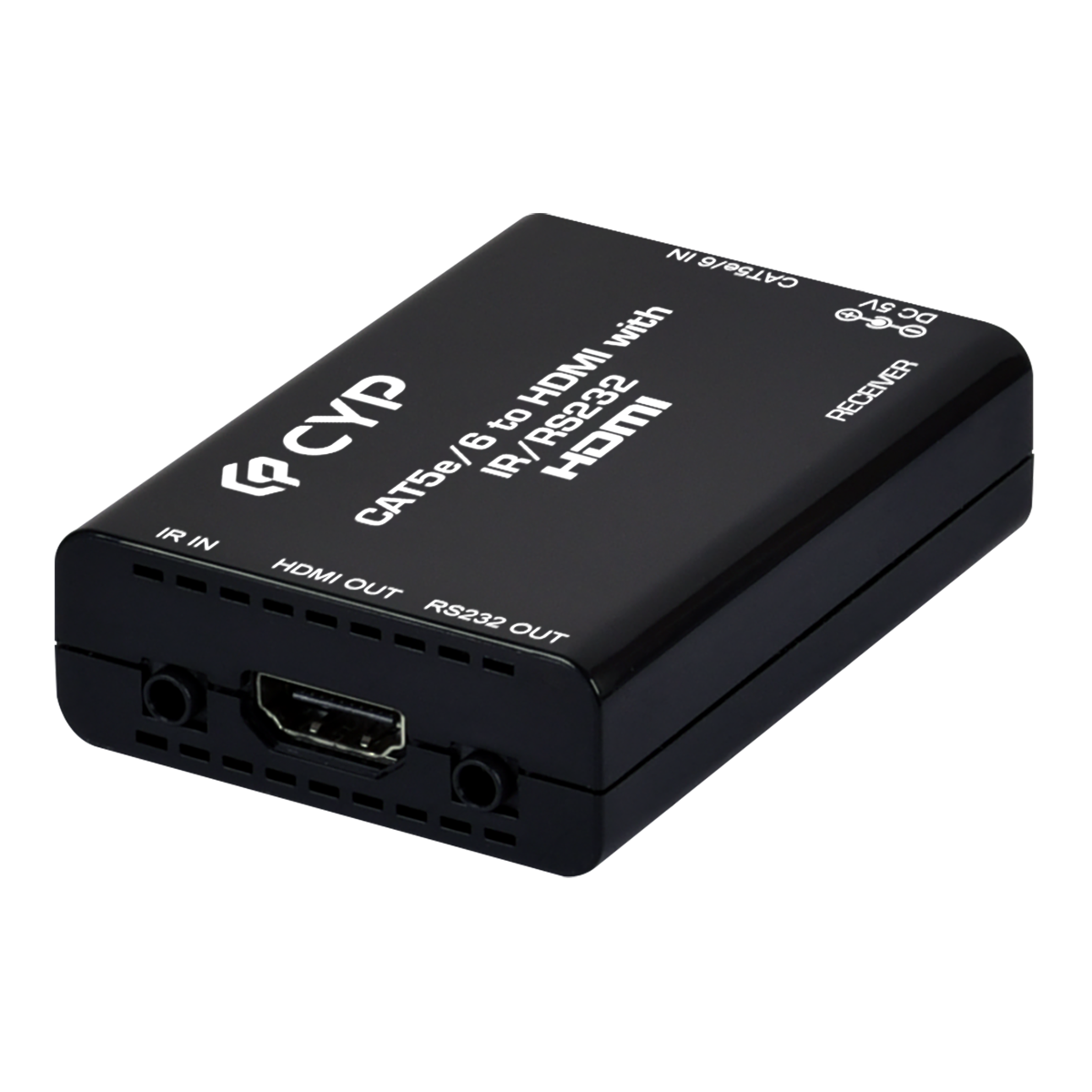

CH-519RXL
CAT5e/6 to HDMI with IR/RS232 (4K@60 420 up to 40M)
This HDMI over single Cat.5e/6/7 receiver is a great solution for extending uncompressed HD audio and video and control via a single run of Cat.5e/6/7 cable over distances of up to 70 meters. Multiple data and control interfaces are provided, including IR and RS-232 connections. This extender complies with the advanced HDCP 2.2 and HDMI 2.0 standards, as well as supporting the legacy HDCP 1.x and HDMI 1.x standards. The receiver is powered locally and require no manual controls for setup or operation.
