CHDBR-2HE EOL
Replacement Model >CH-526RXPL

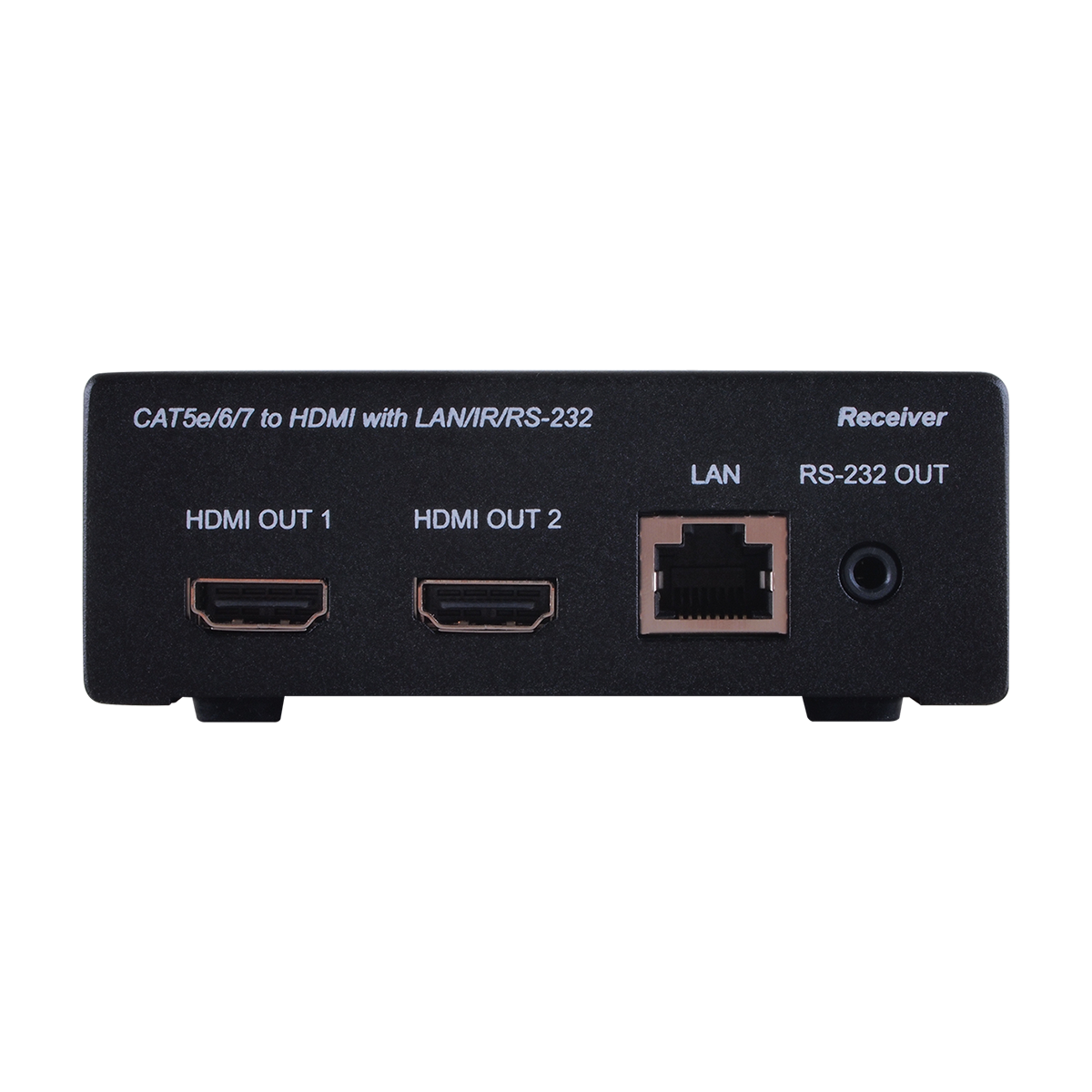

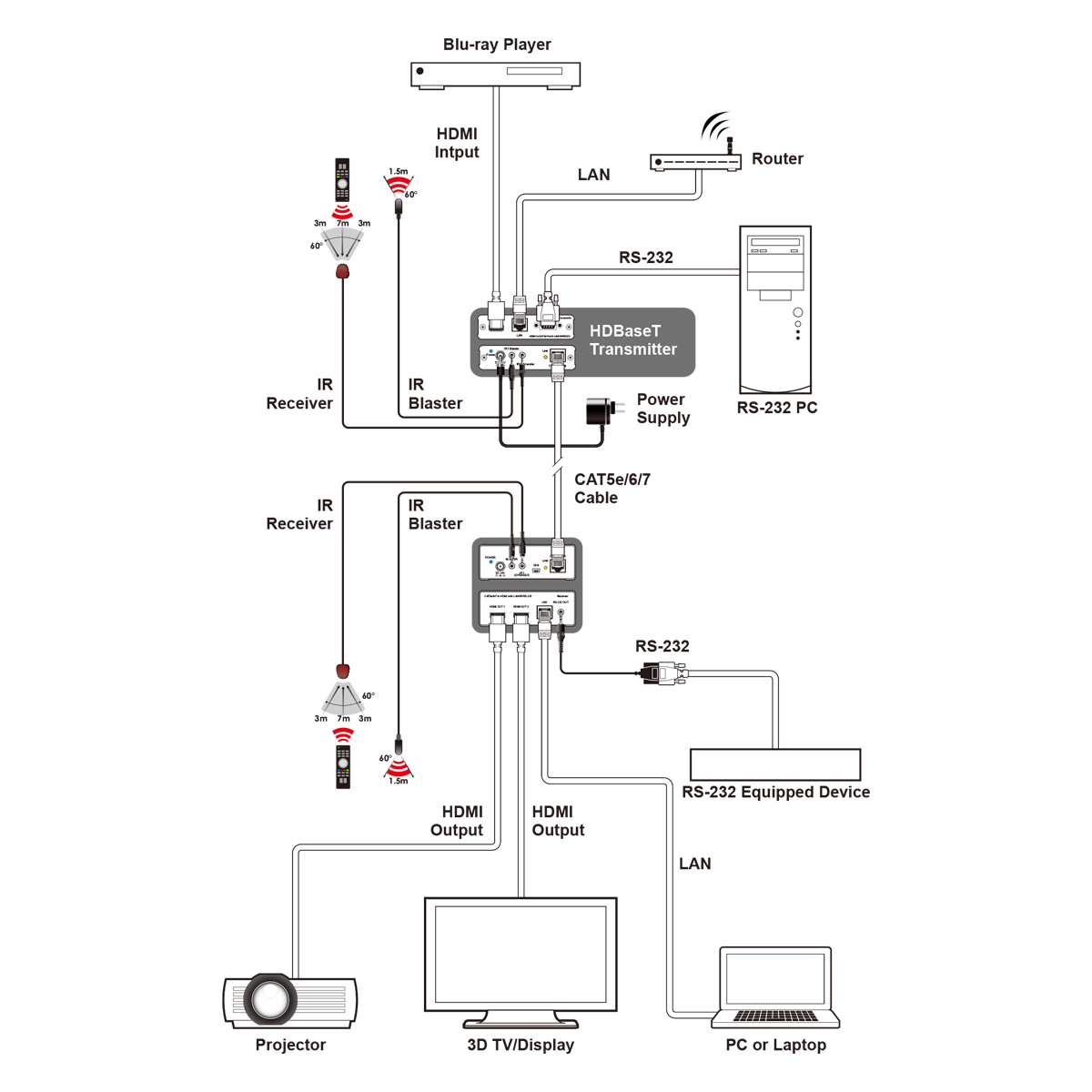

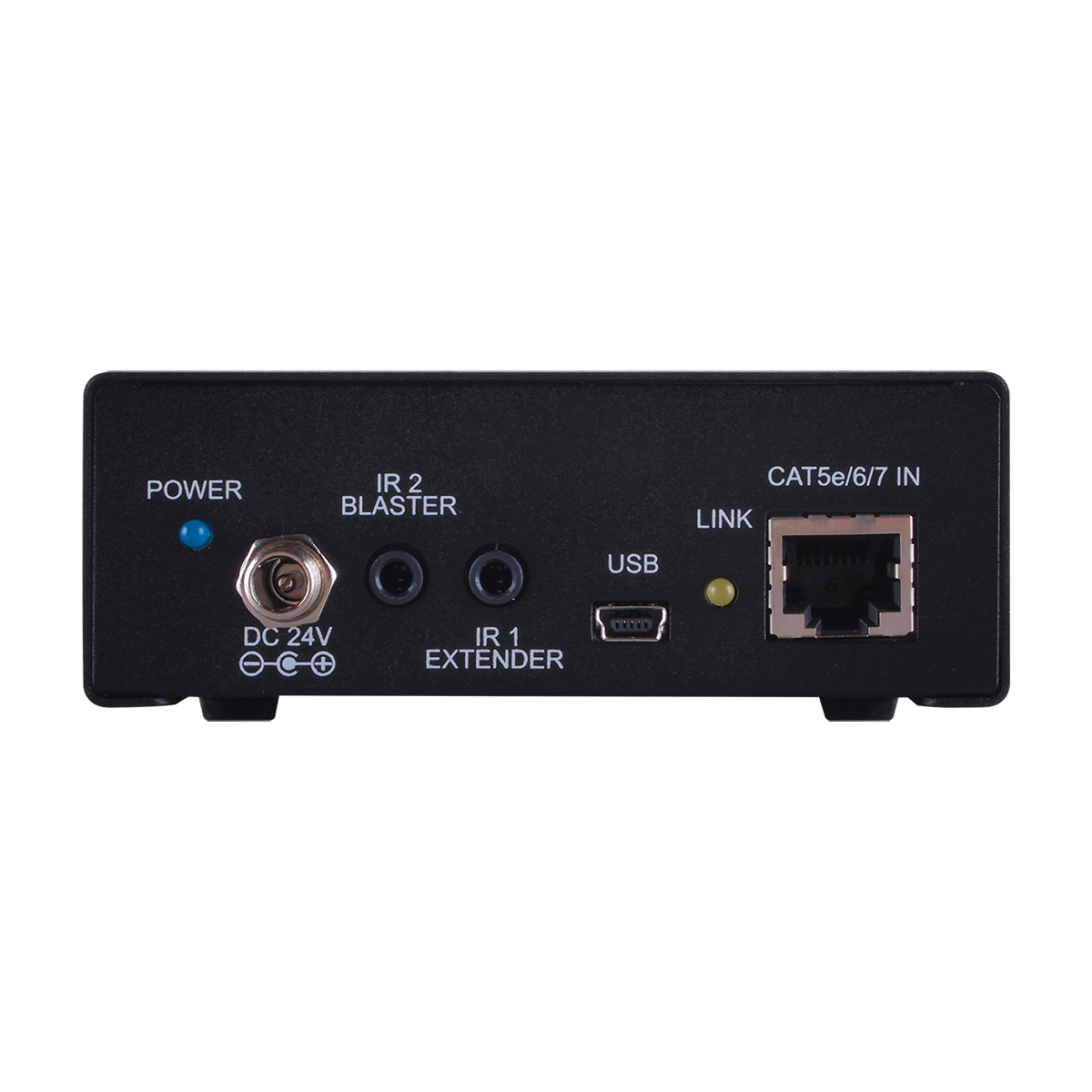

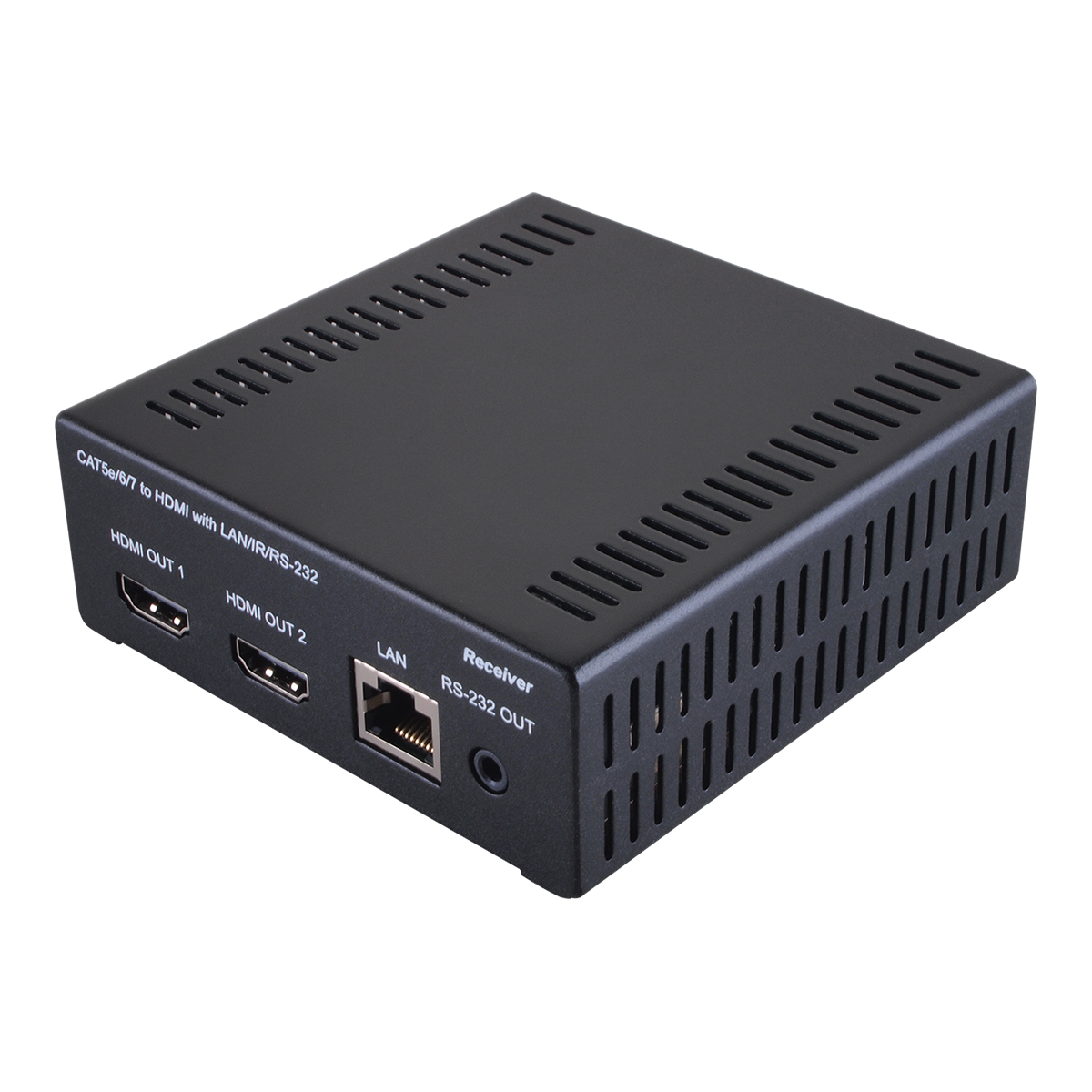

1×2 HDBaseT to HDMI Splitter with Bi-directional 24V PoC and LAN Serving
- HDMI (with 3D format and 4K2K resolution support), HDCP and DVI compliant
- Dual simultaneous HDMI outputs
- Supports data rates from 250 Mbps up to 3 Gbps
- Supports a wide range of resolutions - PC from VGA to WUXGA and HDTV up to 4K2K (3840×2160@30 Hz and 4096×2160@24 Hz)
- Supports pass-through of high-definition audio formats - LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio
- Supports audio sampling rates from 32 kHz to 192 kHz
- Supports distances up to 100 meters through CAT5e/6/7 cables
- Supports Ethernet transmission rate up to 100 Mbps
- Supports bi-directional IR pass-through
- Supports RS-232 control pass-through
- Supports bi-directional 24V PoC (Power over Cable) with compatible transmitter
