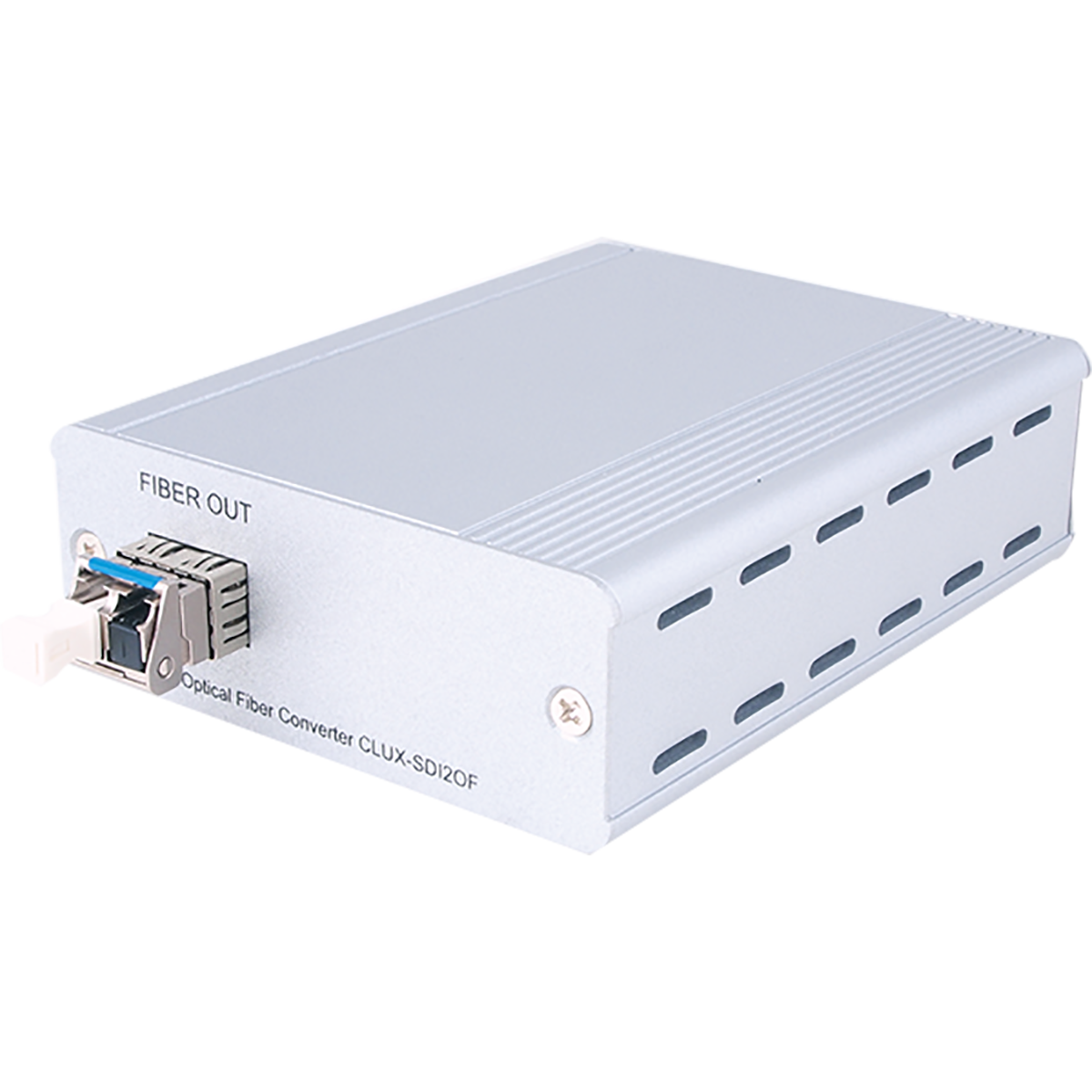

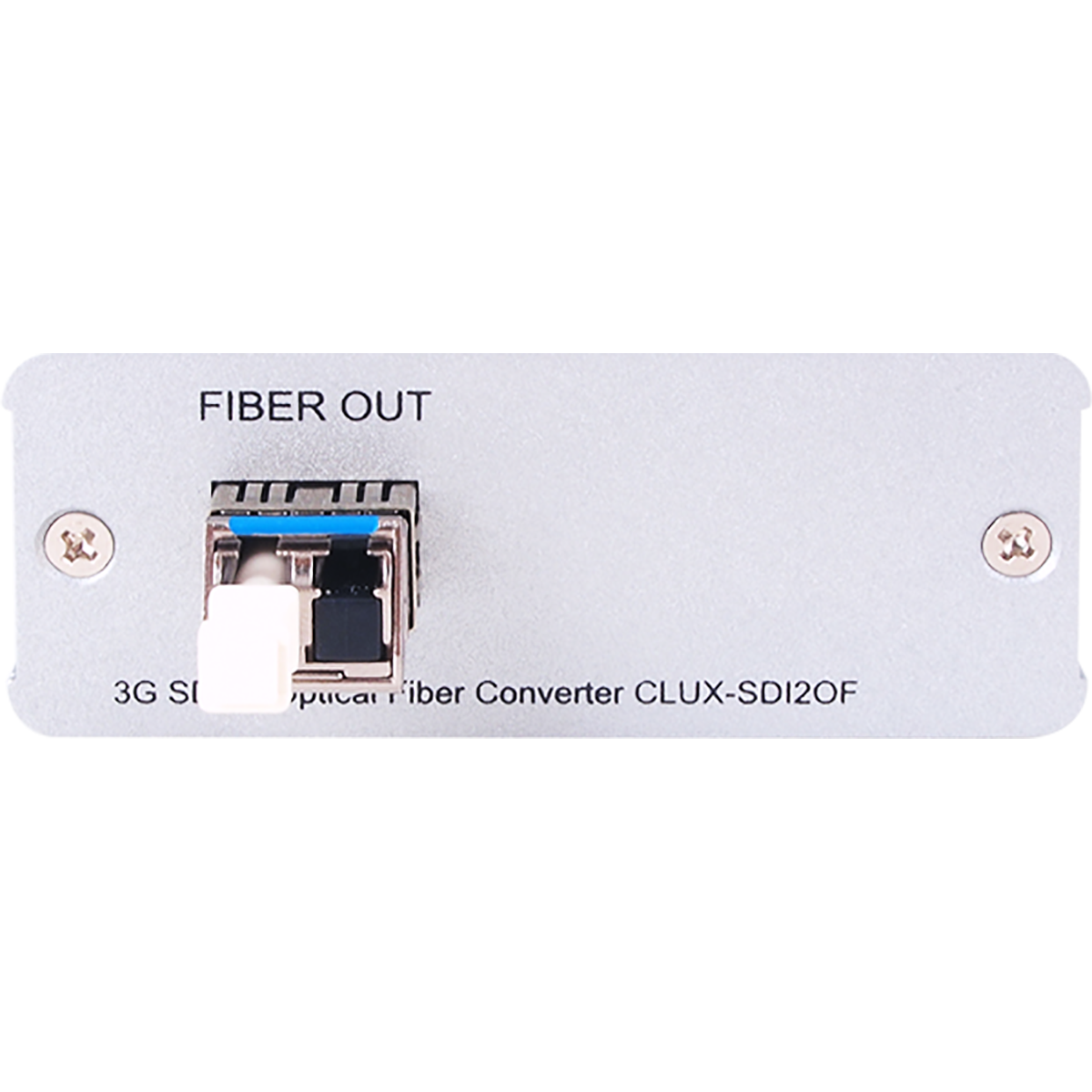

CLUX-SDI2OF
SDI over Optical Fiber Extender
- SMPTE 287-2006 compliant

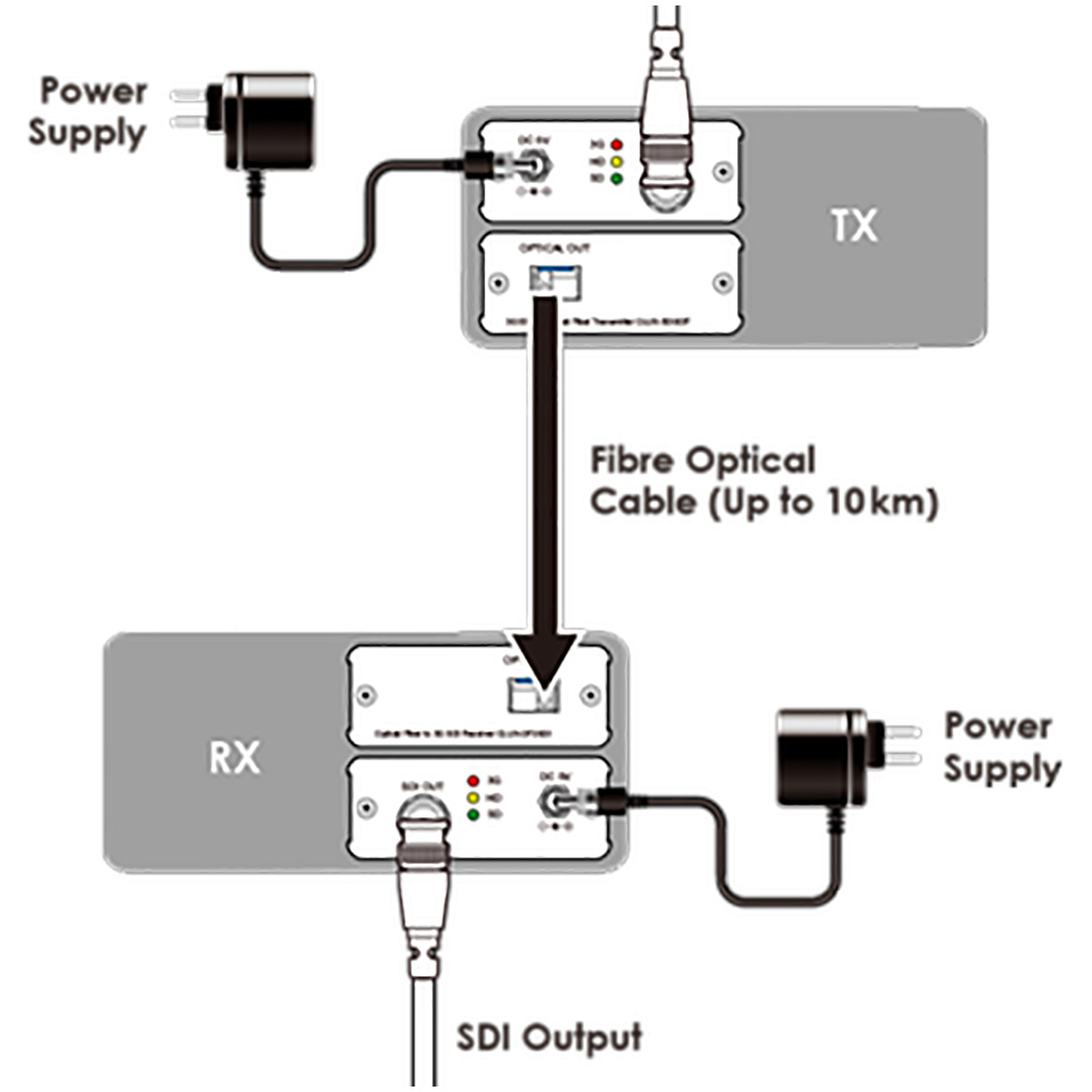

- Robust error-free transmission of signals from 50Mb/s to 3Gb/s up to 10 km over single-mode fiber (distance is dependent on the fiber module used).
- Supports video pathological patterns for SD-SDI, HD-SDI and 3G-SDI

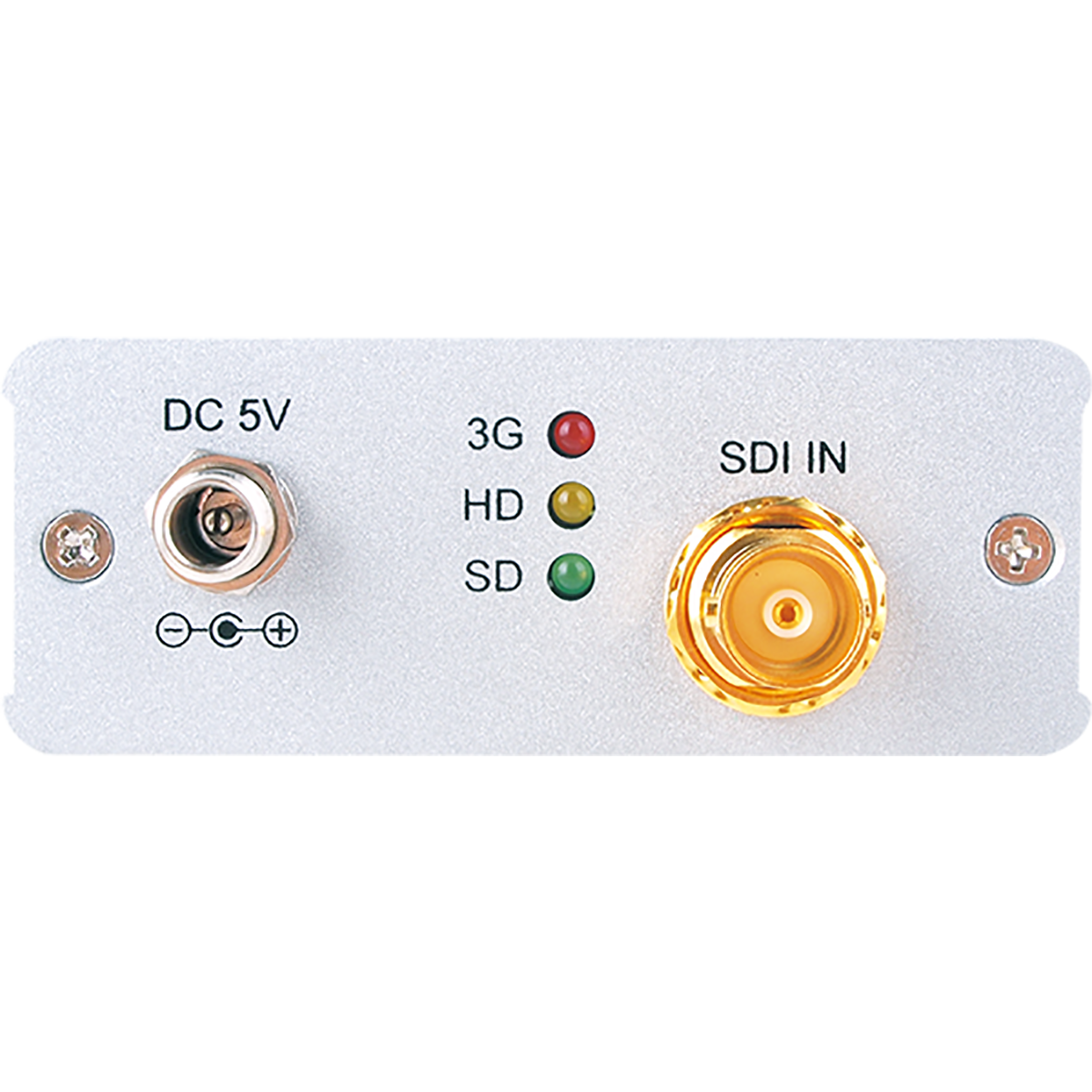

- Supports SDI input modes:
1.SD-SDI: SMPTE 259M-C, at bitrates of 270 Mbit/s
2.HD-SDI: SMPTE 292M, at bitrates of 1.485 Gbit/s and 1.485/1.001 Gbit/s
3.3G-SDI: SMPTE 424M/425M-AB, at bitrates of 2.970 Gbit/s and 2.970/1.001 Gbit/s
- Supports integrated SDI audio up to maximum 16 channels of 48 kHz audio
- Automatic video mode detection (3G/HD/SD)
- Faster data transmission
- Lower power consumption
