CMF-101
Multi-functions AV Solution(4K@60 444 up to 35M)
- Simultaneous transmission of uncompressed video, audio and data over a single 60m Cat.5e/6/7cable at 1080p and 35m at 4K
- The Transmitter is powered via 48V PoH (PD) from the HDBaseT Receiver (PSE) HDBaseT feature support: HD Video and Audio, 48V PoH, one direction USB pass-through and control (bi-direction IR pass-through)
- Controllable via front panel, WebGUI, Telnet, Key Pad, and RS-232
[Keypad: CDPS-TG2]
- Supports firmware update via USB
- Support 8 keypad triggered command
[Transmitter: CH-2609TXPL]
- USB supports firmware update via USB device
- Wall plate is designed for EU two-gang sized enclosures
- Support bidirectional IR pass-through
- Analog stereo audio may be embedded with VGA or HDMI source
- Automatic scaling of sources to match the native resolution of the HDMI display based on EDID (up to 4K@30Hz)
[Receiver: CH-2607RXPL]
- USB pass-through to Receiver
- Supports IR Input & Output bypass feature
- Supports 4 Relay outputs control
- Basic signal event automation via RS-232, CEC, IR
- Supports firmware update via USB
- Analog audio de-embedding 2x20 watt 4 Ohm stereo amplifier

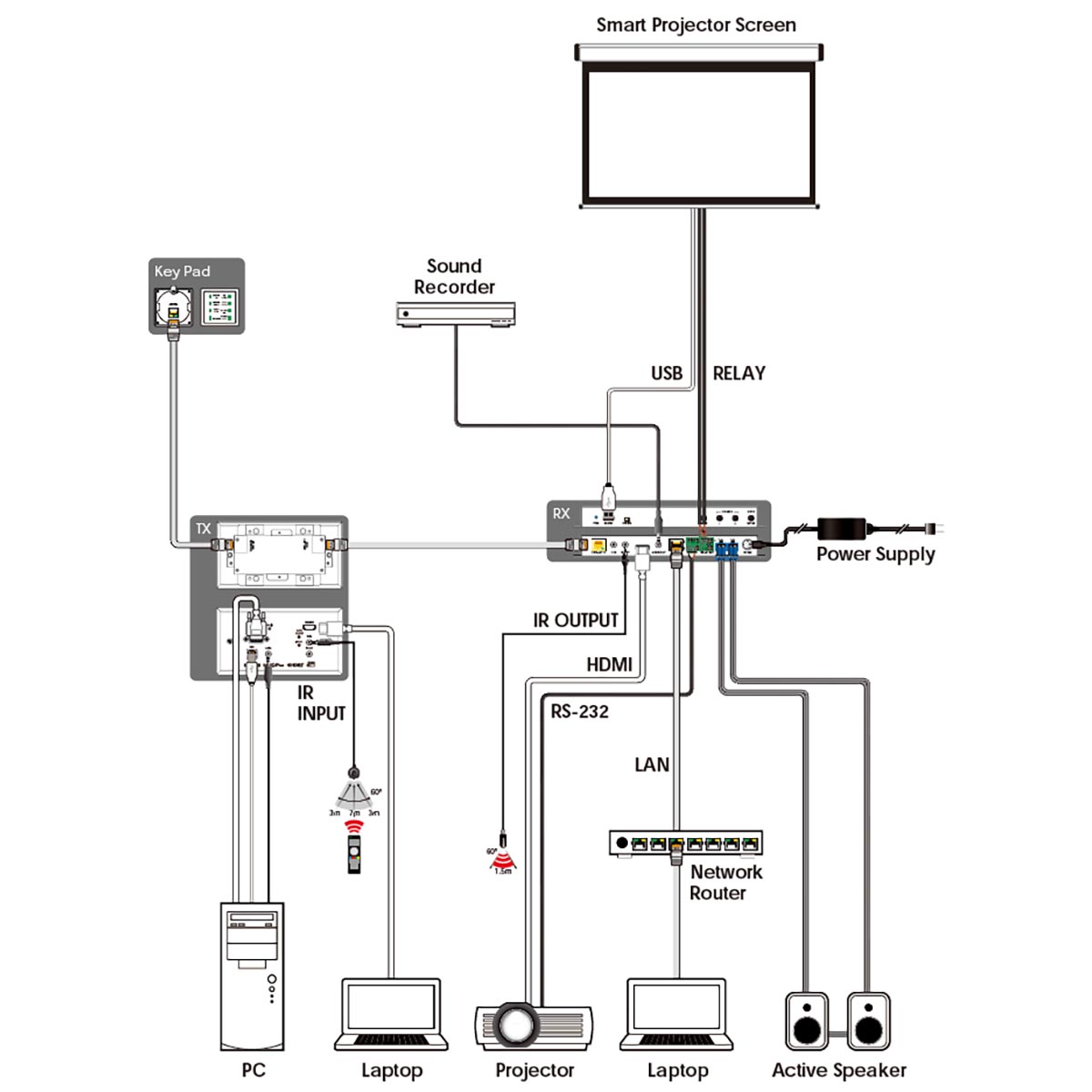

For aesthetic considerations, we specially designed wall plate extender. CMF- 101 includes this kind of extender which contains scaler and control functions. It is a multi-functions AV solution designed to provide HDMI video switching, system control, video extension and analog audio amplification in a convenient kit. The system consists of CH-2609TXPL Scaler Wall Plate HDBaseT Transmitter, CH-2607RXPL HDBaseT Receiver and CDPS-TG2 keypad control. The Transmitter can send high-definition uncompressed audio/video over a single cable up to a distance of 60 meters at 1080p. The HDMI input supports resolutions up to 4K@60Hz (4:4:4, 8-bit). The VGA input supports resolutions up to WUXGA (RB) and with the use of the associated 3.5mm audio input. To provide maximum compatibility with a wide range of display types, all sources will be automatically scaled to match the preferred resolution and timing of the connected display (as reported by the display’s EDID). 4K UHD HDMI video sources, up to and including 4K@50/60Hz (4:4:4, 8-bit), are supported by converting the signal to 4K@30Hz when necessary. The transmitter is powered by 48V PoH from the Receiver, which allows for greater flexibility in installations. Signal management features such as automatic switching based on input signal and hot plug detection enable convenient hands-free operation. An input button on the face of the unit provides quick, single button press, manual input selection.
PANELS
CDPS-TG2

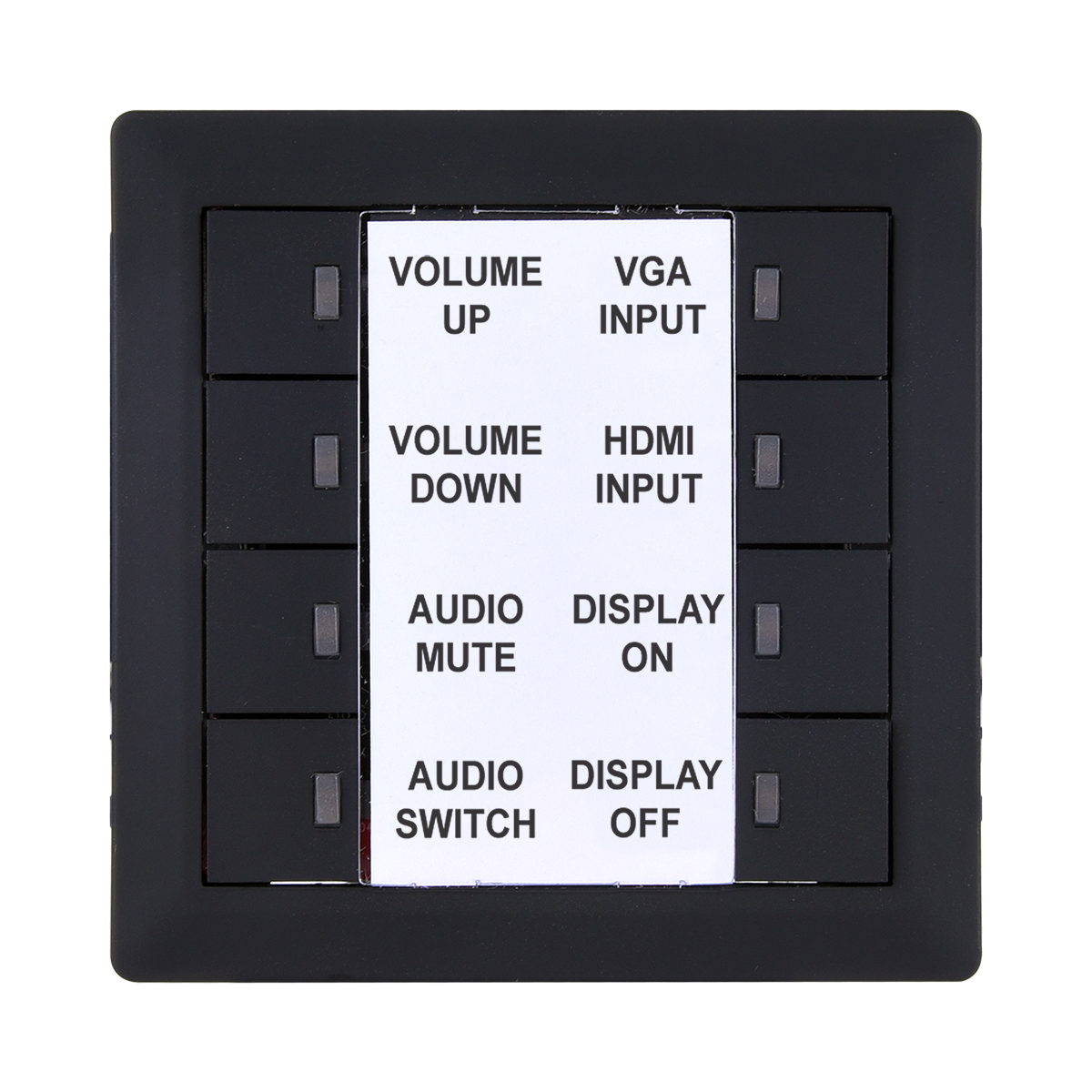

Front View

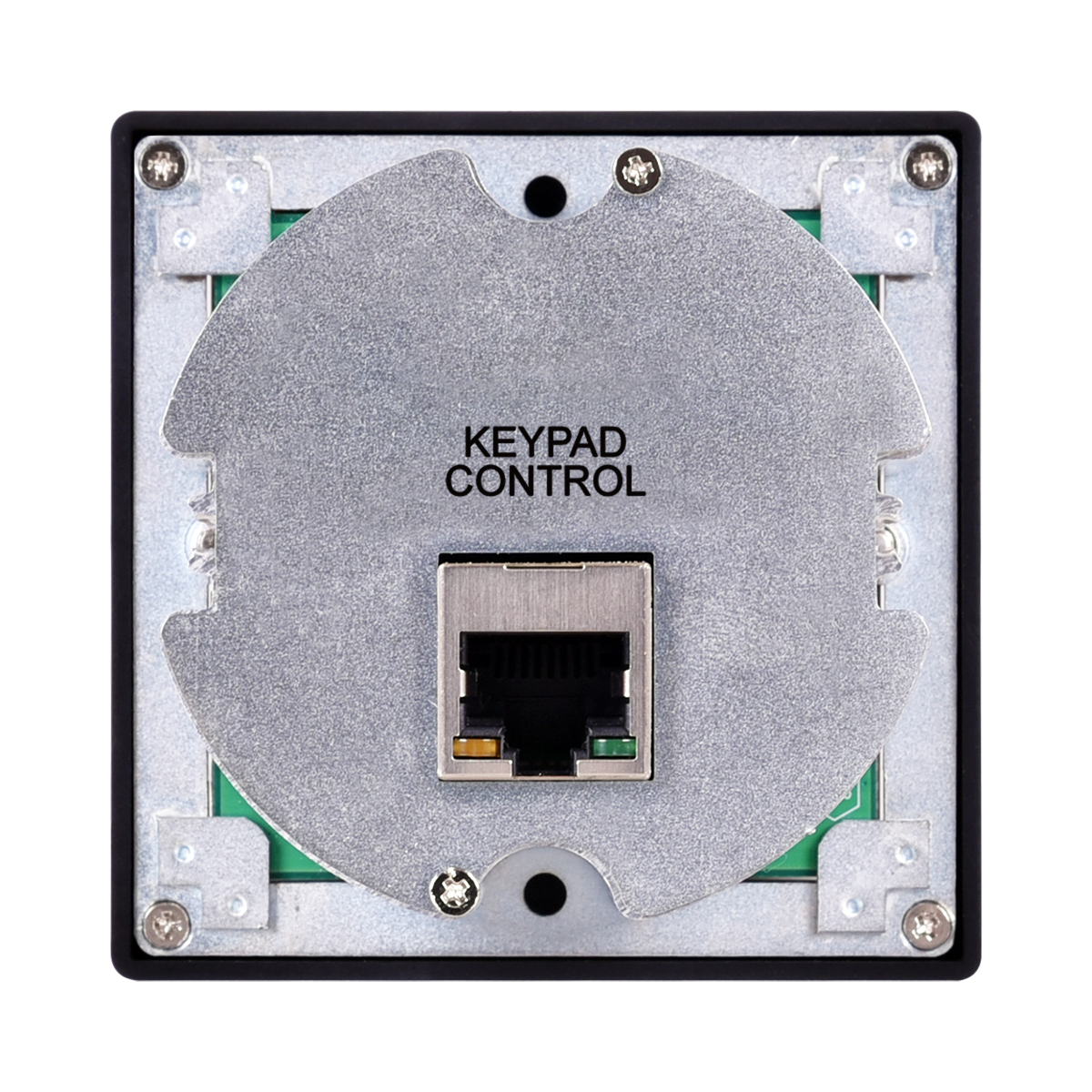

Rear View
PANELS
CH-2609TXPL

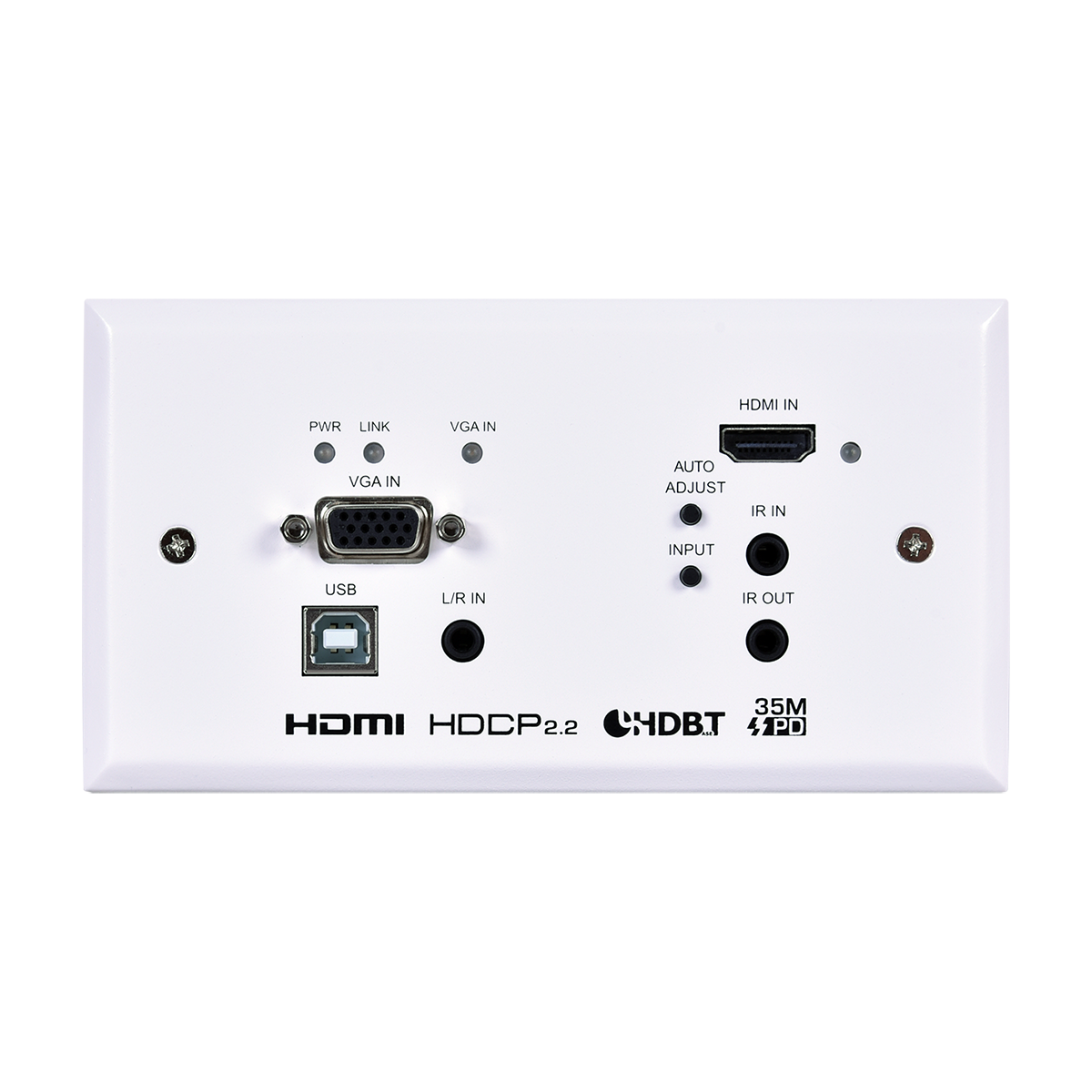

Front View

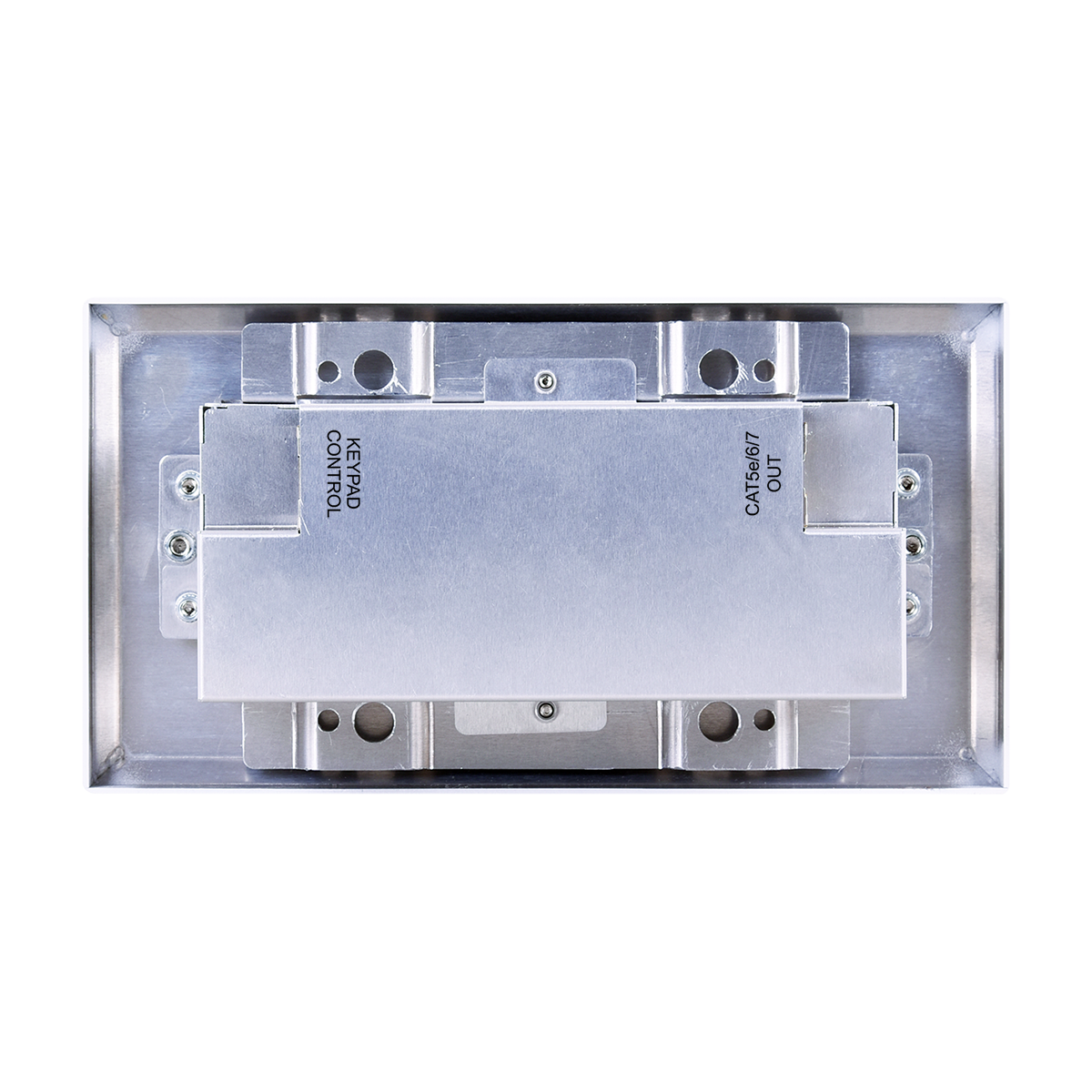

Rear View
PANELS
CH-2607RXPL

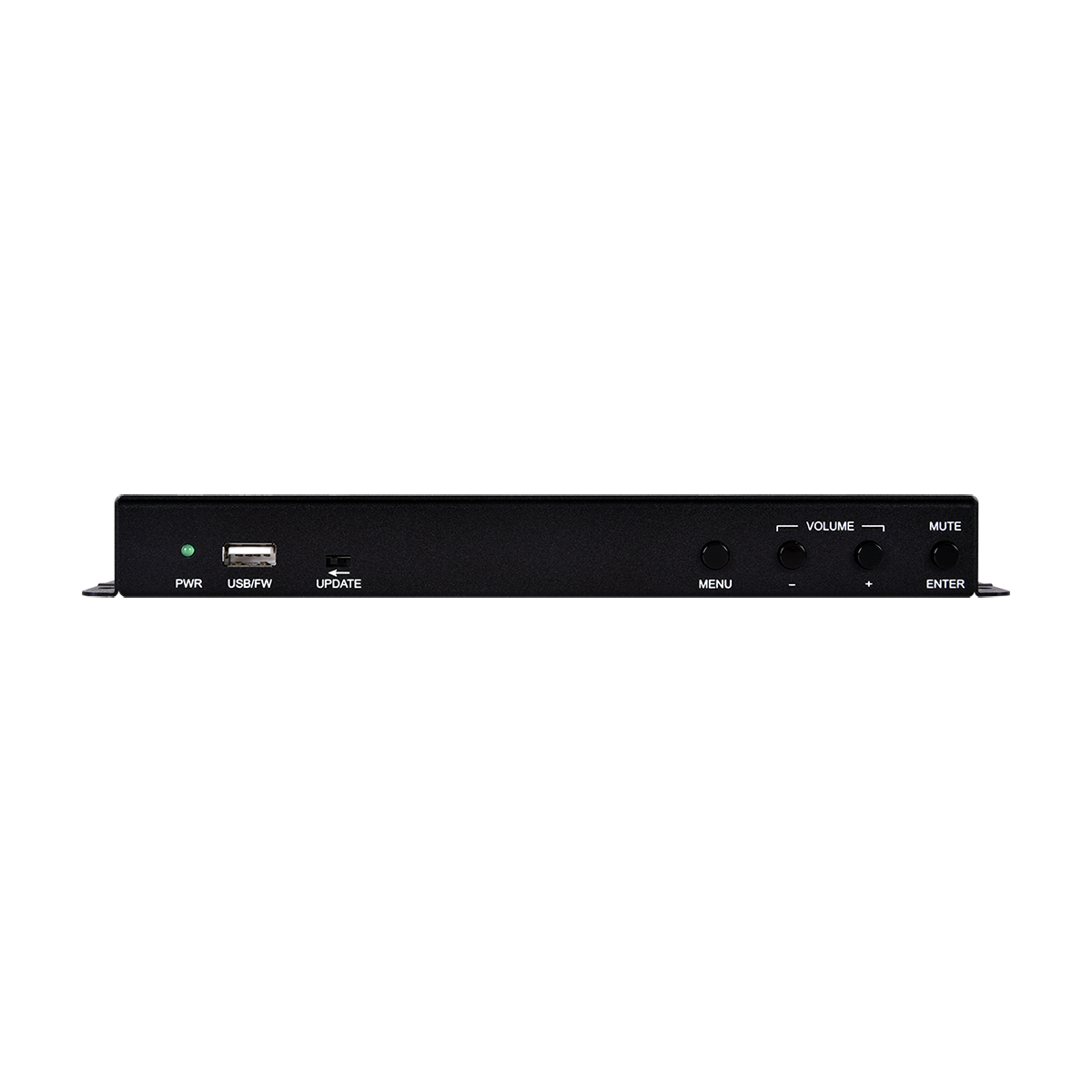

Front View

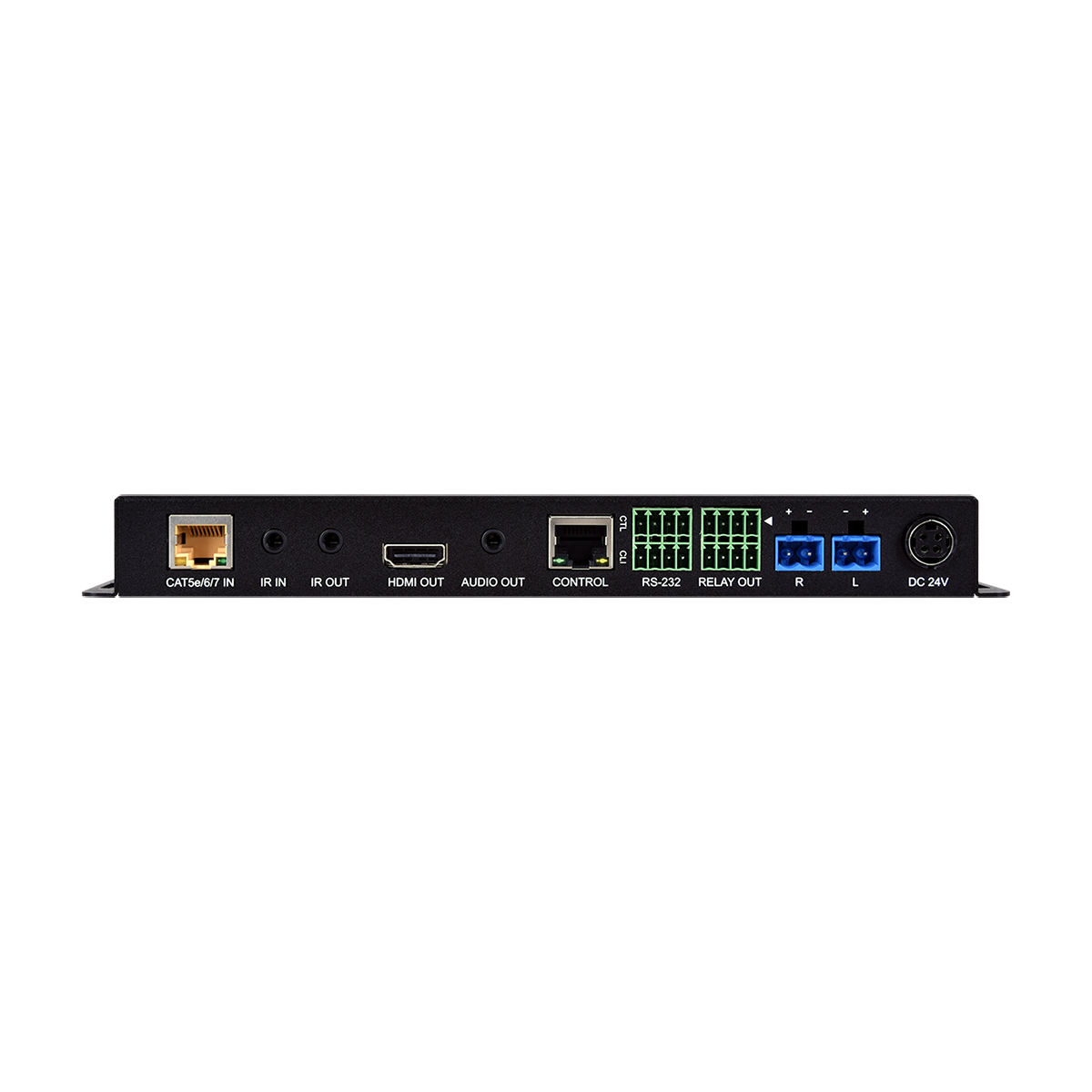

Rear View
