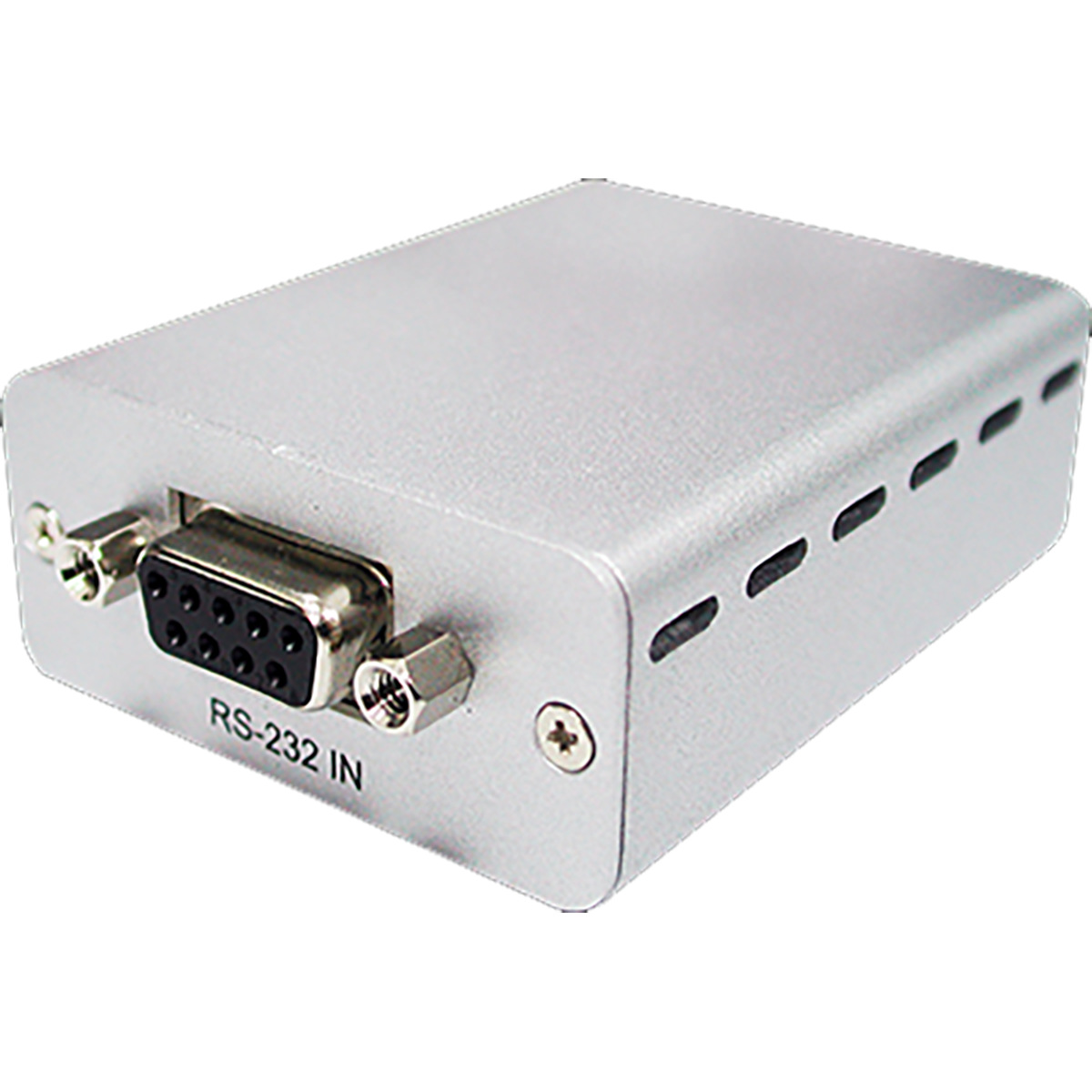

CRS-232TX & CRS-232RX

RS-232 over Single CAT5e/6/7 Extender

Supports Baud Rates 110~921600 and 8-bit Data Bit
Requires only a CAT5e cable
Perfect for RS-232 control of digital signage

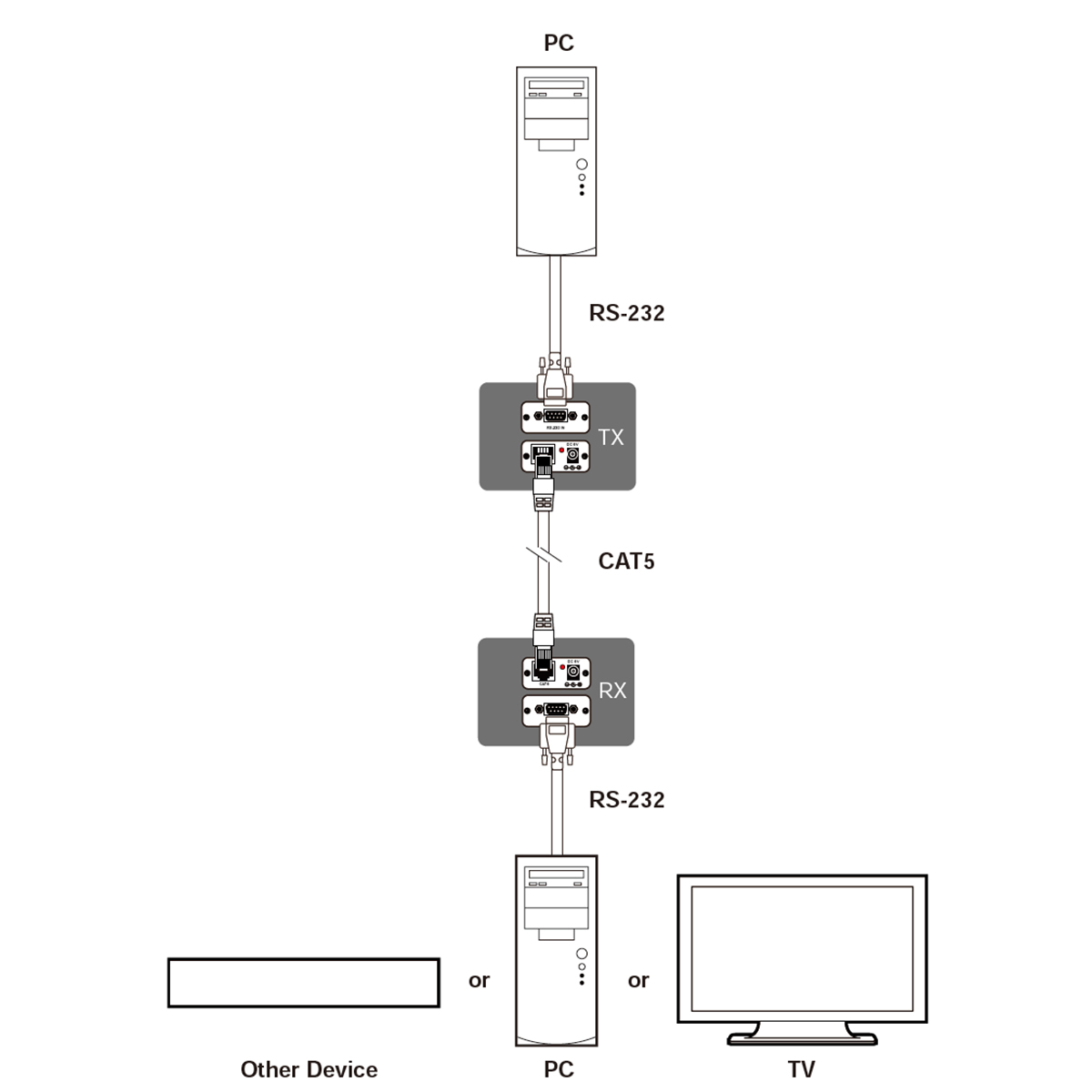

Extends the connection of any compatible RS-232 devices up to 250 meters from the input location to the output location

The CAT 5 RS-232 extender is an affordable, hardware-based solution for giving you control of any RS-232 protocol device. With regular RS-232 devices you are limited to an immediate area of control. The CAT5 RS-232 extender extends control to over 250 meters and gives you a tremendous amount of flexibility in how and where you control your devices. The RS-232 extender also provides full duplex transmission and hardware handshake signals, with the need for any complicated set-up procedures.

Interfaces

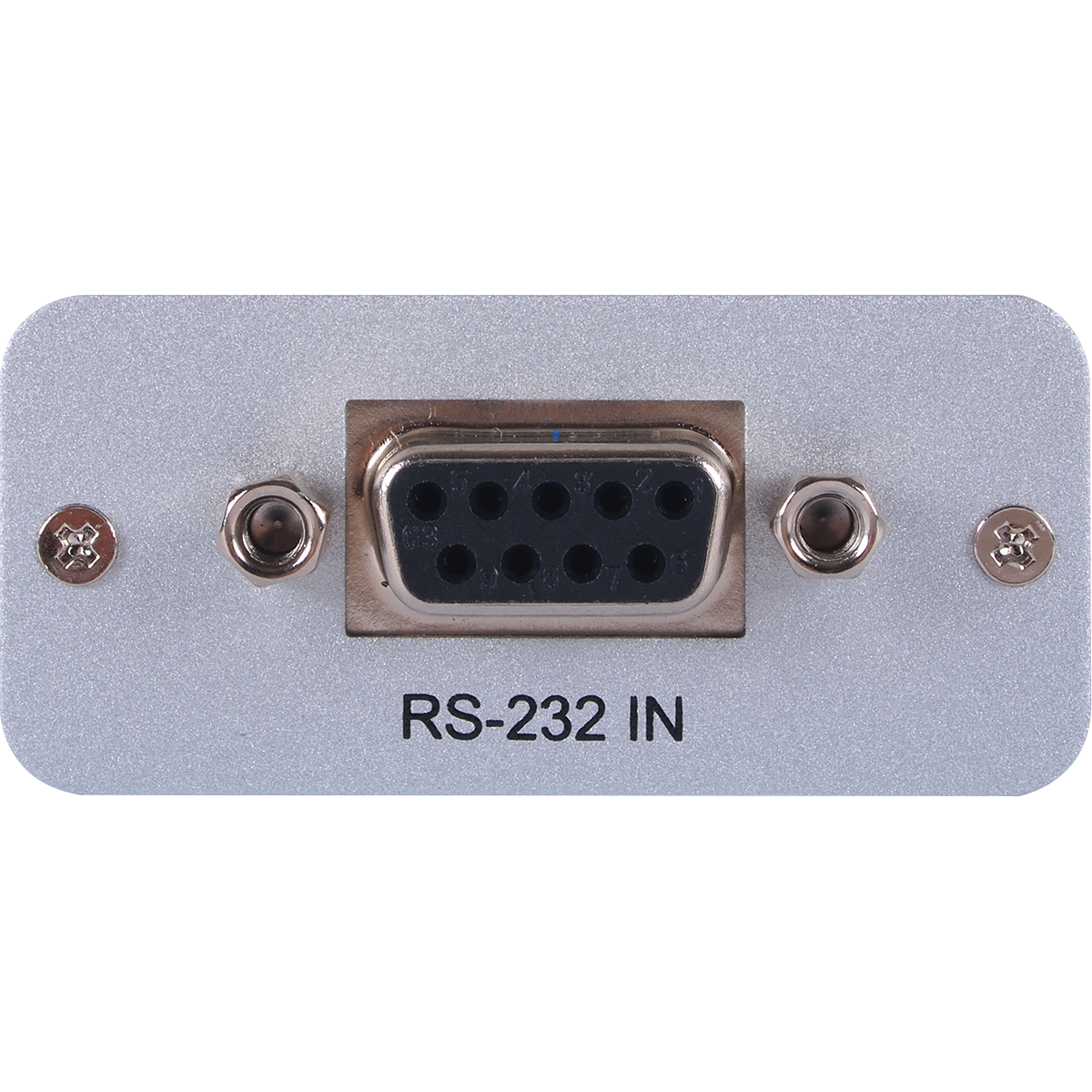

Input Port	TX	1 x RS-232 (D- sub 9-pin Female)

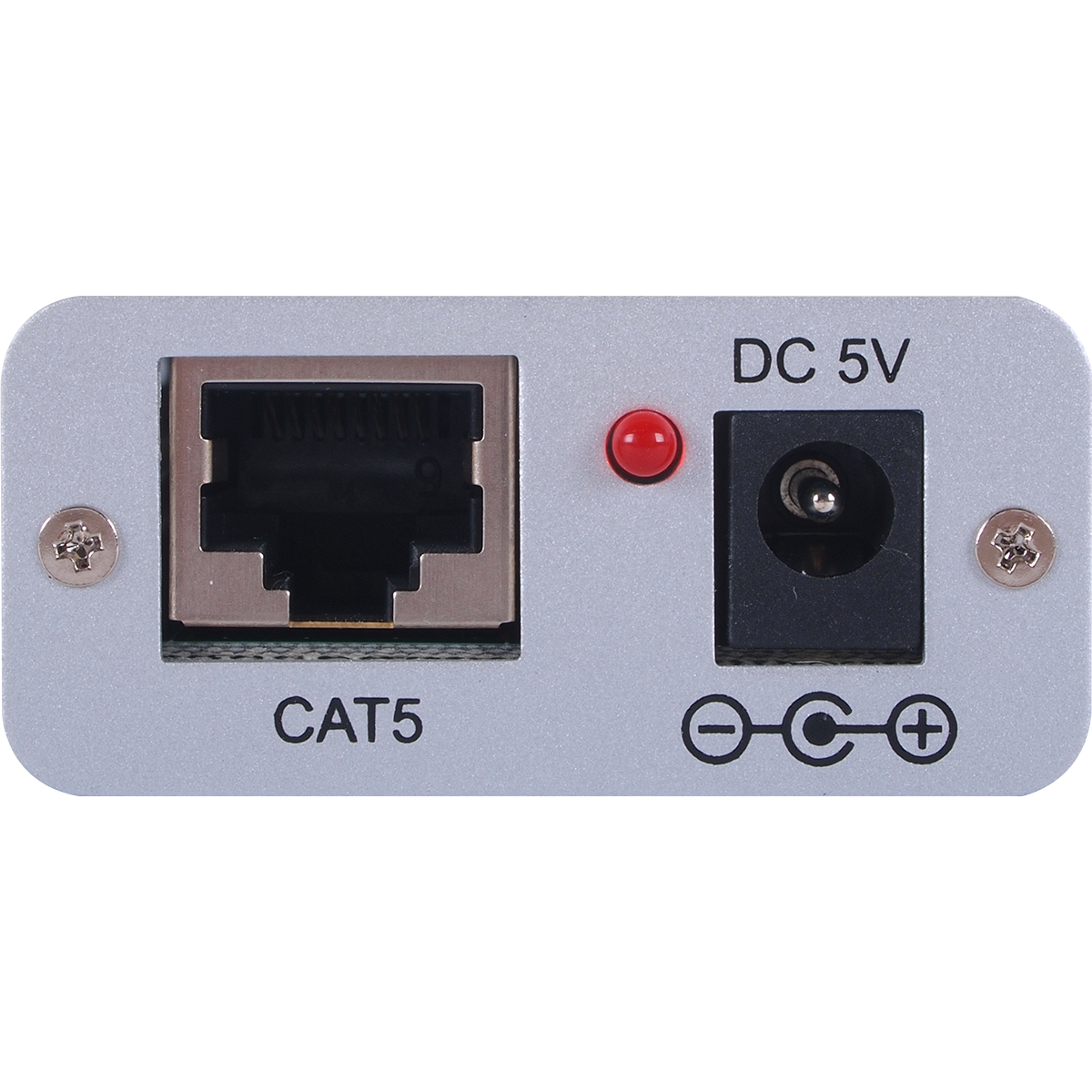

	RX	1 x CAT.5e (RJ-45)
Output Port	TX	1 x CAT.5e (RJ-45) Output Port
	RX	1 x RS-232 (D- sub 9-pin Female)
Output Port		1 HDMI (Type A)
Control I/O		1×USB (Micro-B)

Power
Power Supply	5V/1A DC
Power Consumption	0.5W(Max)

Enclosure
Chassis Material	Metal (Steel)
Chassis Color	Silver
Dimensions (W×H×D)	50mm x 67mm x 23mm
Weight	80g

Ordering Information
Model No.	Product Description
CRS-232TX	RS-232 over Single CAT5e/6/7 Transmitter
CRS-232RX	RS-232 over Single CAT5e/6/7 Receiver

Product Support
Upload Date	File Name	Version	OS	Description	Download
2023/08/21	CRS-232TXRX_Manual	1	all	CRS-232TXRX_Manual
