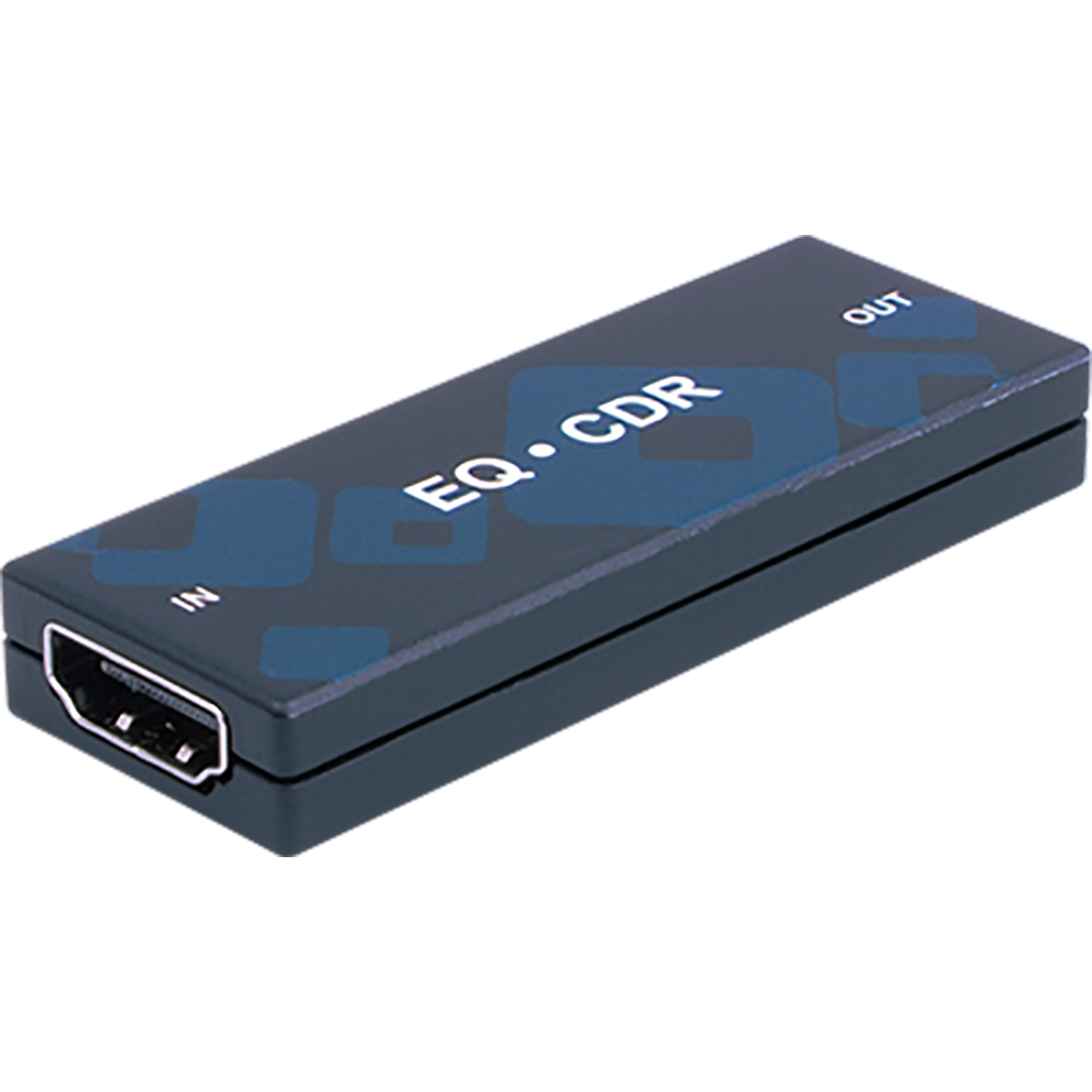

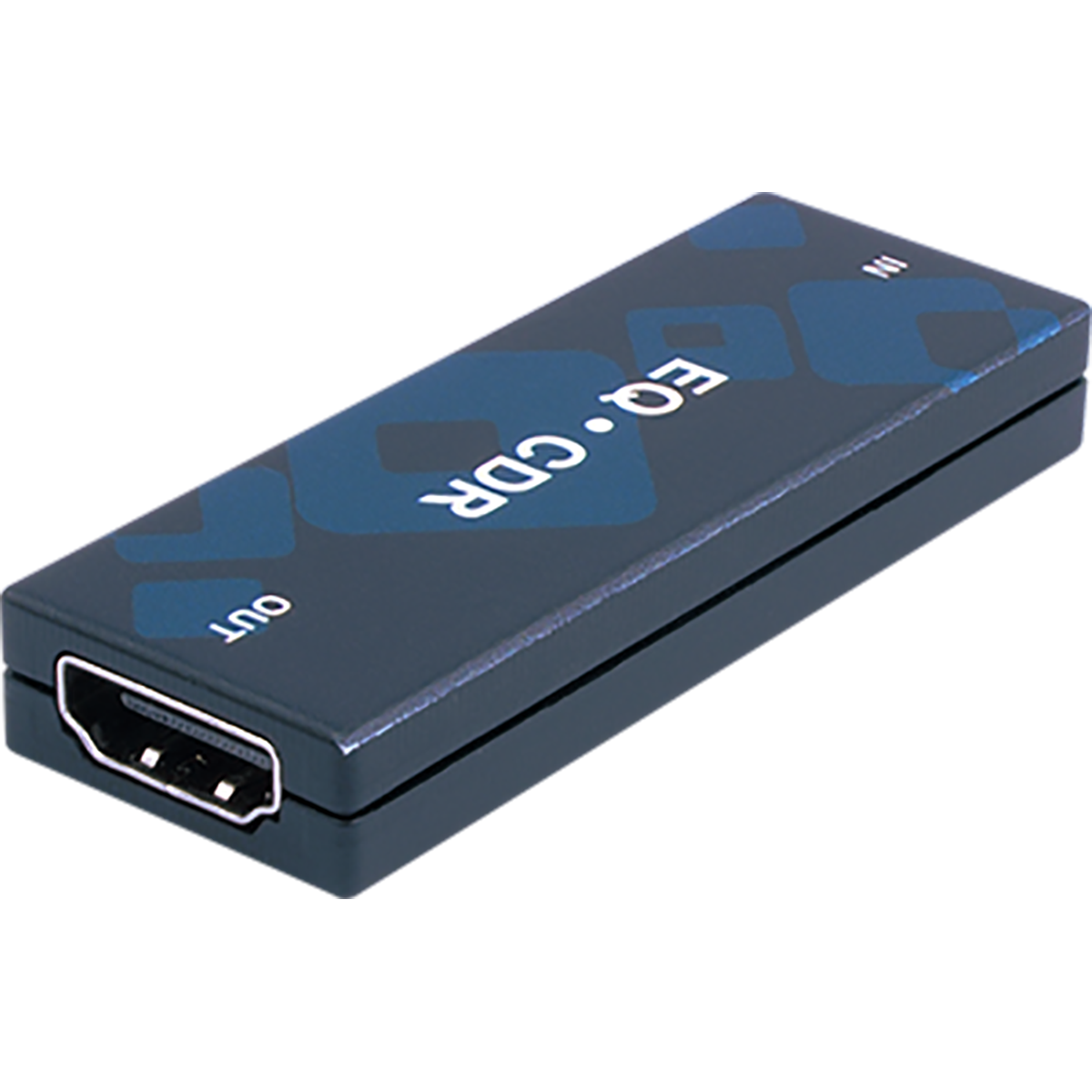

CS-HH
HDMI 1080p Enhancer
- Built-in TMDS equalization and CDR (Clock Rate Recovery) for extended HDMI cable distance
- Resolutions support:
-- HDTV: 480i to 1080p@24/50/60 Hz
-- PC: VGA to WUXGA (RB)
- Capable of receiving and transmitting HDMI signals at 2.25 Gbps bandwidth
- Requires HDMI source devices to output power to the unit over HDMI cable
- Supported HDMI cable distance: 15 meters (input and output)
- Compact design

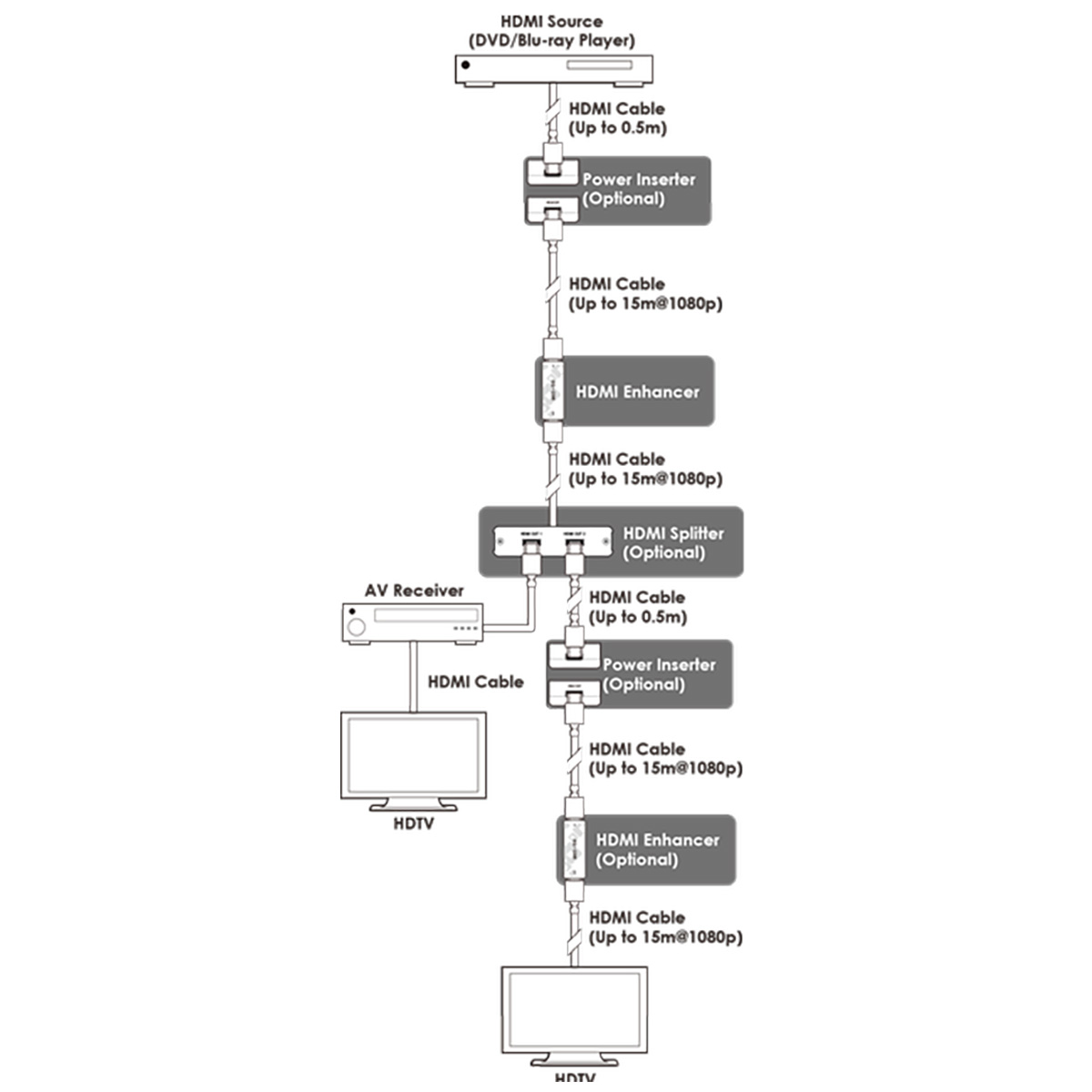

Note: For devices that do not support this, an HDMI Power Inserter can be used in-line between the source device and the unit to provide power.
