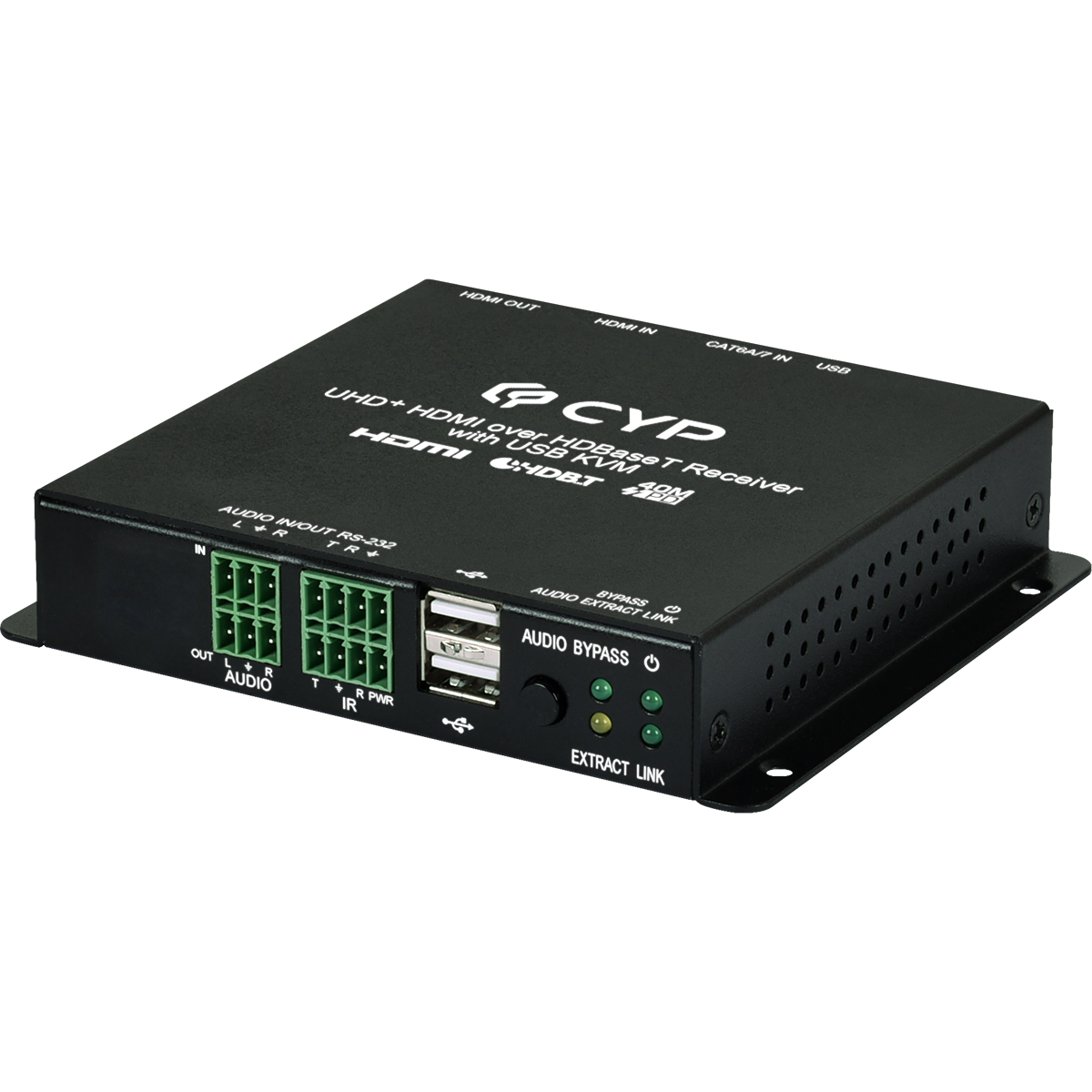

VEX-E2501R

UHD+ HDMI over HDBaseT Receiver with USB KVM

HDMI 2.0 and DVI 1.0 compatible, HDCP 2.2 and HDCP 1.x compliant
HDBaseT 3.0 compliant (Backwards compatible with HDBaseT 2.0/1.0)
Supports 10-bit and 12-bit HDR (High Dynamic Range) input/output
HDBaseT feature support: HD Video and Audio, Bi-directional analog audio, and Control (bidirectional USB/IR/RS-232 pass-through)
2 USB 2.0 Type-A device ports and 1 Micro USB 2.0 host port
Supports providing PoH power from Transmitter to Receiver in same HDBaseT port.

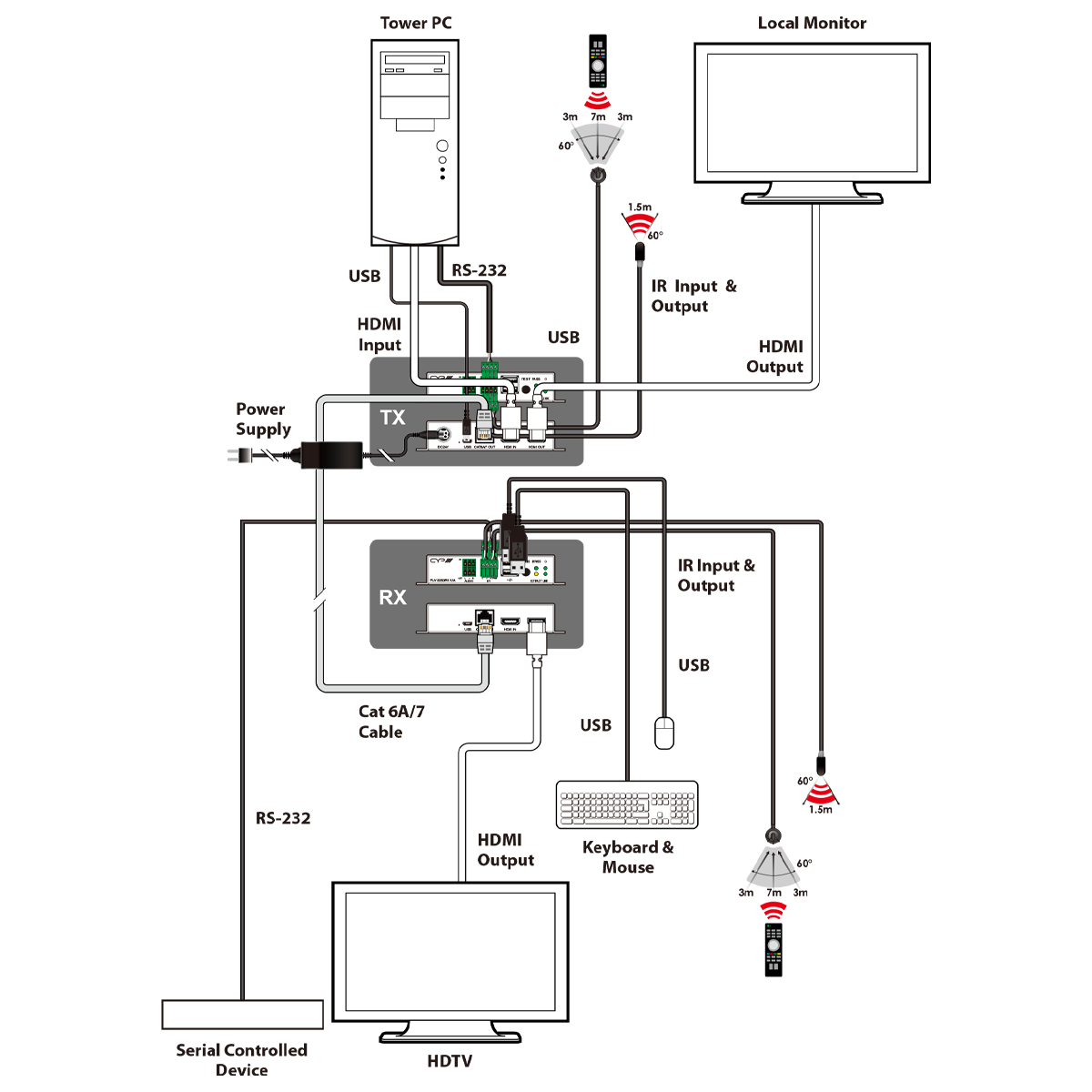

This Receiver is new generation of HDBaseT 3.0 technology, it is a great solution for extending uncompressed HDMI 2.0 4K@60 (4:4:4, 8-bit) video and HD audio as well as control via a single run of Cat.6a/7 cable over distances of up to 40 meters. Multiple control and data signals may also be transmitted along with the audio and video, including IR, RS-232, and USB 2.0. This Receiver is ideal for any scenario which needs uncompressed video like medical equipment, conference room, education and anything you want to extend.

Interfaces

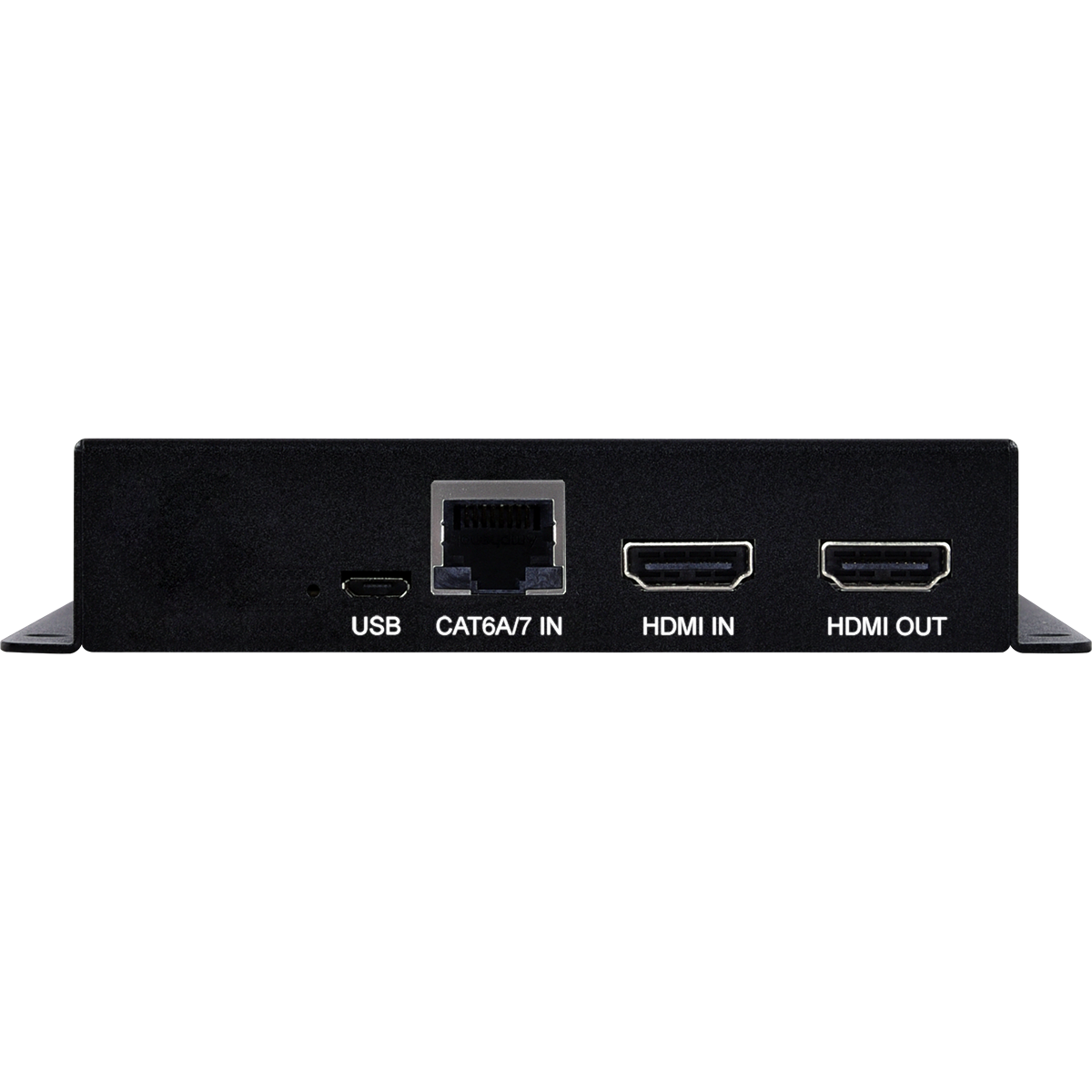

Input Port	1×HDMI (Type-A)
Output Port	1×HDMI (Type-A) 1xHDBaseT(RJ-45)

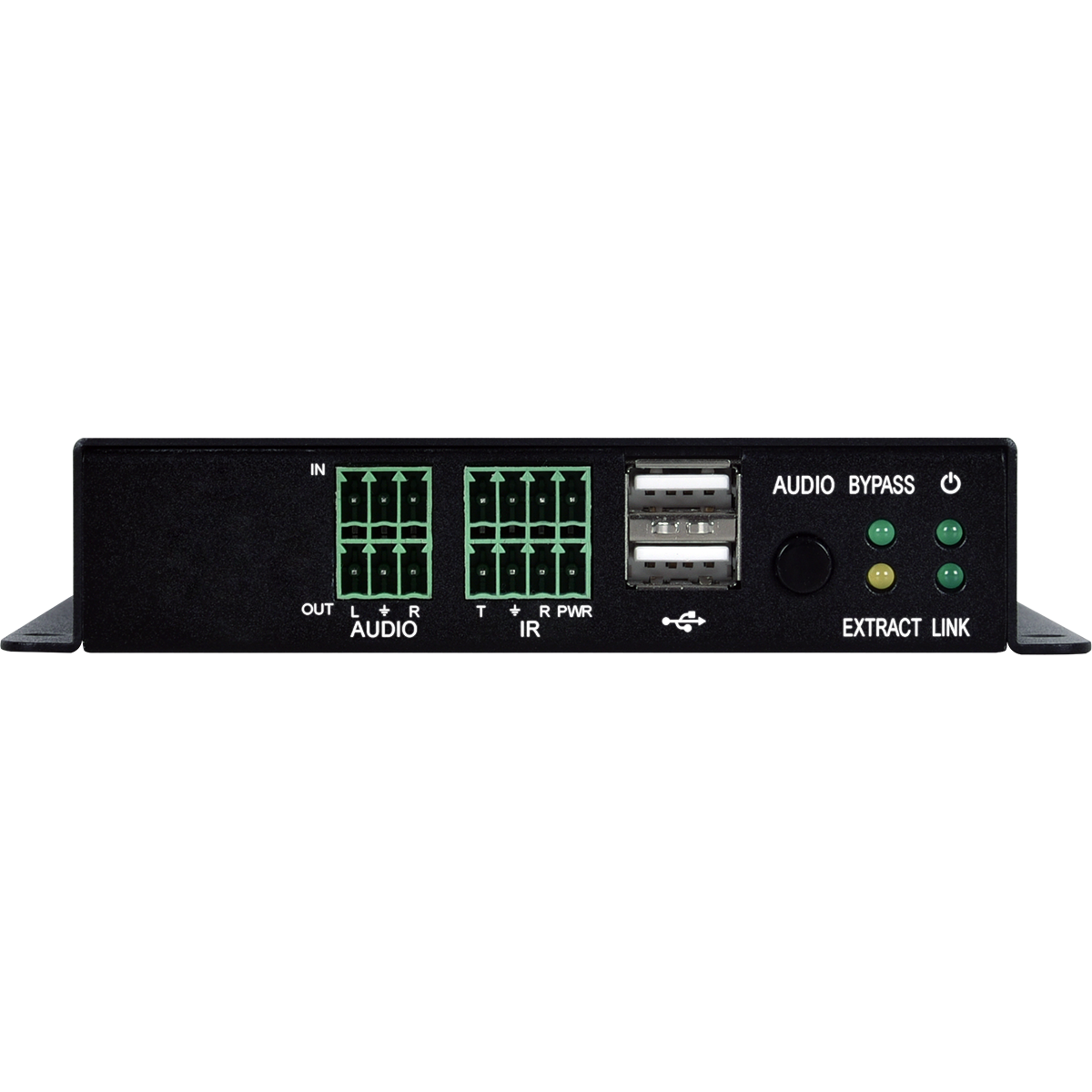

Pass-through port	1x Stereo Audio input and output (3-pin2 Term. Block) 1×IR In/Out and RS-232 (4-pin2 Term. Block) 2×USB 2.0 (Type A)
Pass-through/Control Port	1×USB 2.0 (Micro USB)

Video

HDMI Compliance	HDMI 2.0
HDCP Compliance	HDCP 2.2
Input Signal Type	HDMI 4K@60 8bit RGB 4:4:4 HDBT 4K@60 8bit RGB 4:4:4
Output Signal Type	HDMI 4K@60 8bit RGB 4:4:4 HDBT 4K@60 8bit RGB 4:4:4
		Resolutions
Maximum Input	HDMI	4096×2160p@60
	HDBT	4096×2160p@60
Maximum Output	HDMI	4096×2160p@60
	HDBT	4096×2160p@60

Audio

HDMI	LPCM (8 Channels), Bitstream, HD Bitstream
HDBT	LPCM (8 Channels), Bitstream, HD Bitstream
Analog Out	2 Vrms S/N Ratio: > 80dB (1kHz with 0dBFS)

Power

Power Consumption

14W

Enclosure

Chassis Material	Metal (Steel)
Chassis Color	Black
Dimensions (WxHxD)	128mm×25mm×108mm [Case Only] 128mm×25mm×112.5mm [All Inclusive]
Weight	390g

Field Firmware Update

USB stick Update

Ordering Information

Model No.	Product Description
VEX-E1501T	UHD+ HDMI over HDBaseT Transmitter
VEX-E1501R	UHD+ HDMI over HDBaseT Receiver
VEX-E2501T	UHD+ HDMI over HDBaseT Transmitter with USB KVM
VEX-E2501R	UHD+ HDMI over HDBaseT Receiver with USB KVM
VEX-E2502T	UHD+ USB-C over HDBaseT Transmitter with USB KVM
VEX-E4501T	UHD+ HDMI over HDBaseT Transmitter with USB KVM
VEX-E4501R	UHD+ HDMI over HDBaseT Receiver with USB KVM
VEX-E4701TR	UHD+ HDMI over HDBaseT Transceiver with USB KVM

Product Support
Upload Date	File Name	Version	OS	Description	Download
2023/08/24	VEX-E2501R_Manual	-	-	VEX-E2501R_Manual
