VEX-X1103T-B0F
UHD+ USB-C AV over IP Extender (4K@60 444 up to 30KM)

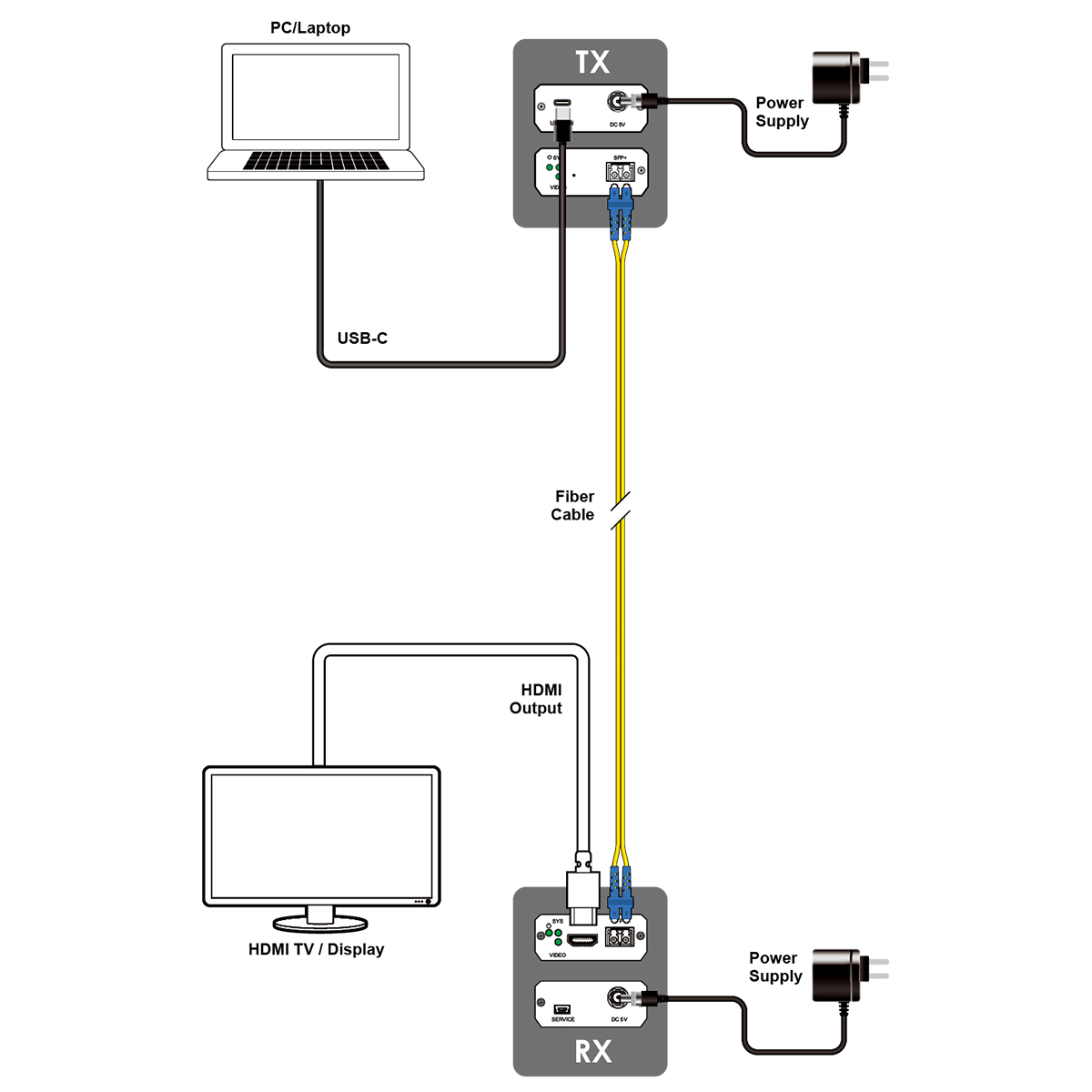

- Point to point extension of audio, video and control signals
- Full range of formats including 4K60 RGB/4:4:4, HDR10, 3D and broadcast-friendly 4K60 10-bit 4:2:2
- Broadcast quality scaler, programmable to scale up or down any resolutions up to 4K
- Extension up to 30km (maximum distance depends on the SFP+ module and type of fiber used)
- Supports pass-through of 10/12-bit HDR sources
- Signal transmission interfaces with 10-Gigabit Ethernet switches via XFI (IEEE 802.3ae) compatible 10-Gigabit Ethernet connector
PRODUCTS FEATURED

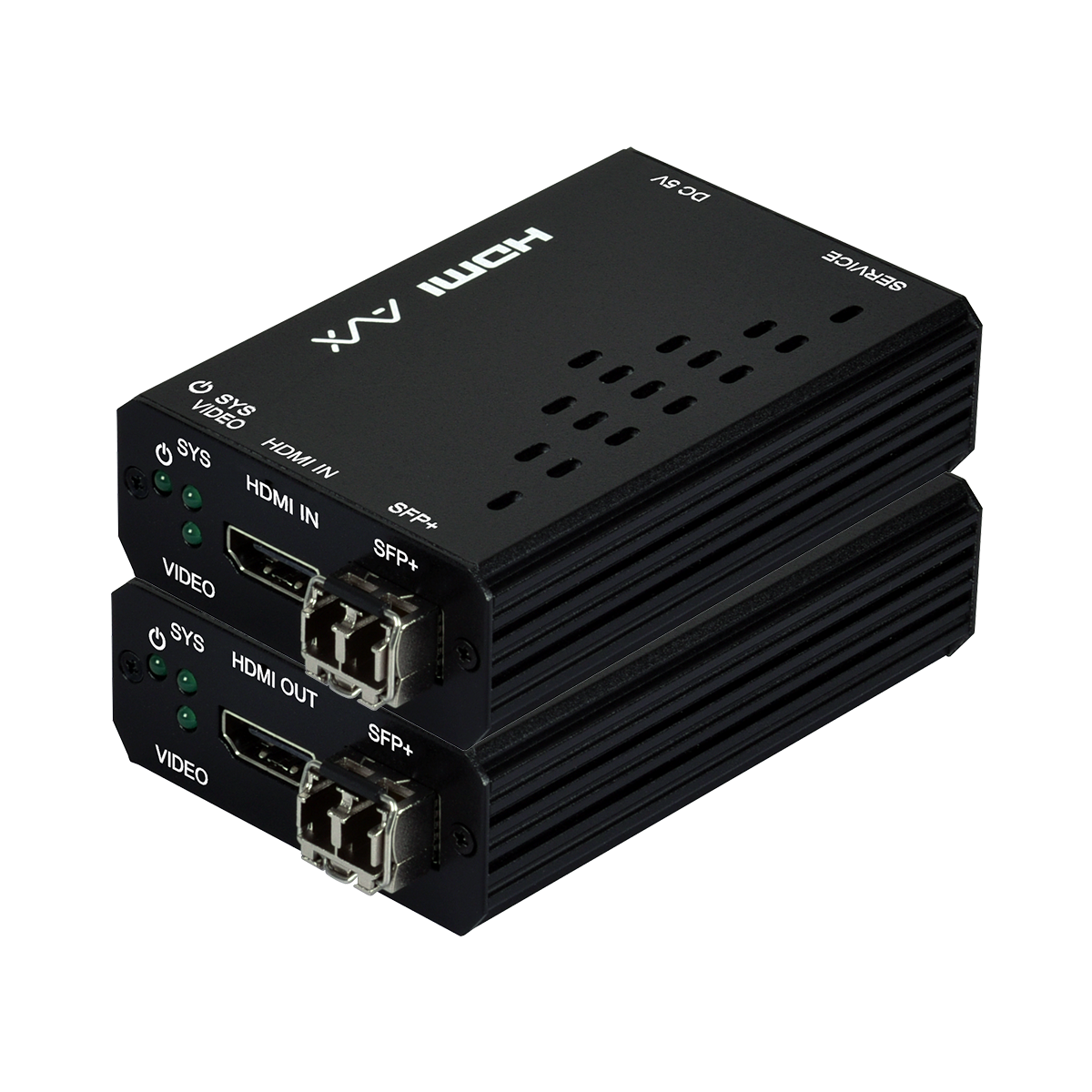

VEX-X1102T-B0F & VEX-X1102R-B0F
UHD+ HDMI AV over Fiber Extender (4K@60 444 up to 30KM)
The end to end Extenders are designed for high-quality, AV extension with minimum latency through 10 Gigabit IP transmit over SFP+ Fiber cable. Small and compact size of Transmitter and Receiver design, enhancing the flexibility of any installation. With ultra-light compression scheme (lossless for most content) to extending 4K audio/video streams and data under 0.1 milliseconds of matrix switch-like end to end transit. Supports all HDMI 2.0 formats pass-through including multichannel PCM, Dolby True HD and DTS HD master audio.
