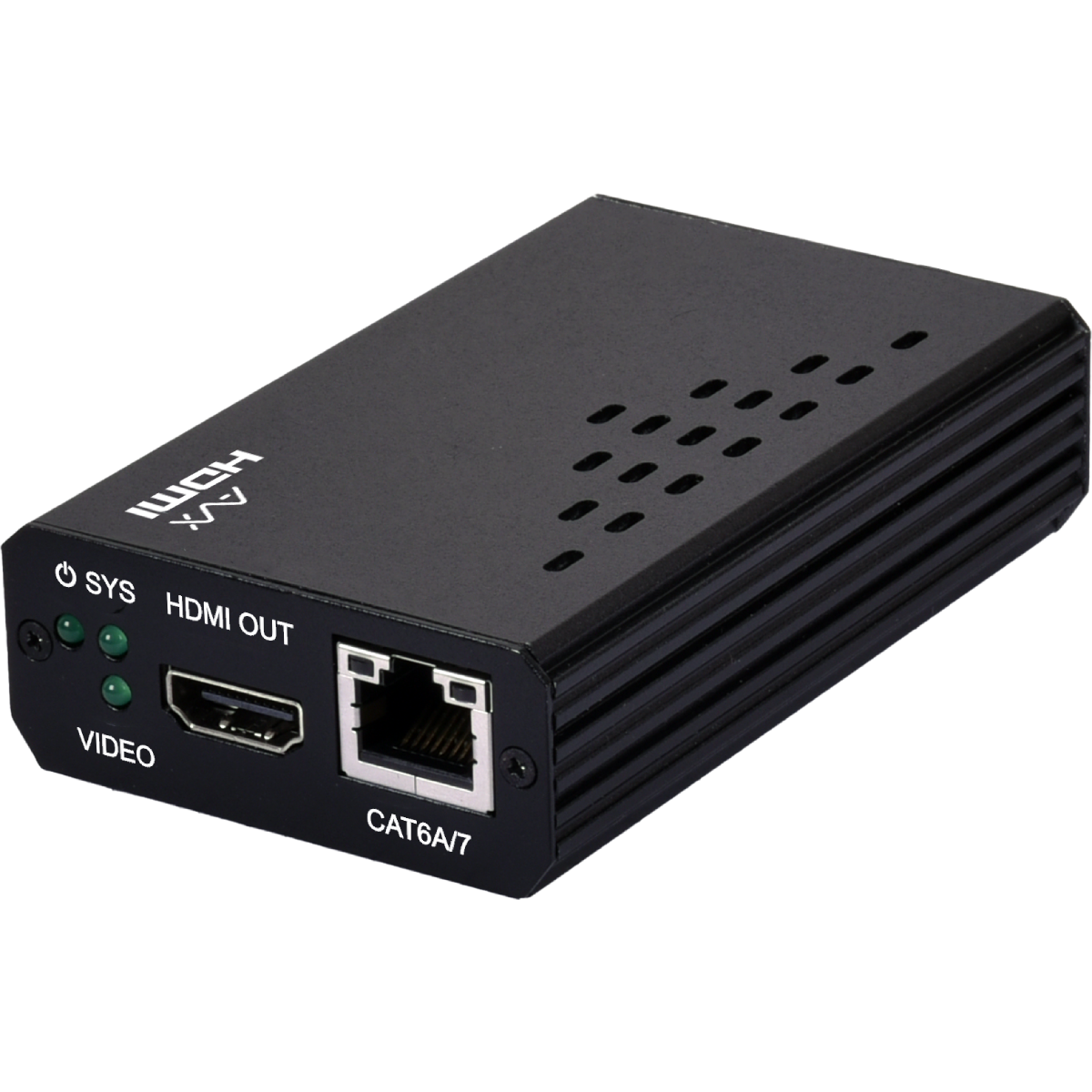

VEX-X1501R-B0C

UHD+ HDMI over Copper Extender with PoE

Point to point extension of audio, video and control signals
Full range of formats including 4K60 RGB/4:4:4, HDR10, 3D and broadcast-friendly 4K60 10-bit 4:2:2
Transmitter and Receiver design
Extension up to 100m from Cat6A/7 cable
Supports pass-through of 10/12-bit HDR sources
Signal transmission interfaces with 10-Gigabit Ethernet switches via XFI (IEEE 802.3ae) compatible 10-Gigabit Ethernet connector

The end to end Extenders are designed for high-quality, AV extension with minimum latency through 10 Gigabit IP transmit over category cable. Small and compact size of Transmitter and Receiver design, enhancing the flexibility of any installation. With ultra-light compression scheme (lossless for most content) to extending 4K audio/video streams and data under 0.1 milliseconds of matrix switch-like end to end transit. Supports all HDMI 2.0 formats passthrough including multichannel PCM, Dolby True HD and DTS HD Master Audio.

RX
Interfaces
Input Port	1 10GbE LAN (RJ45)

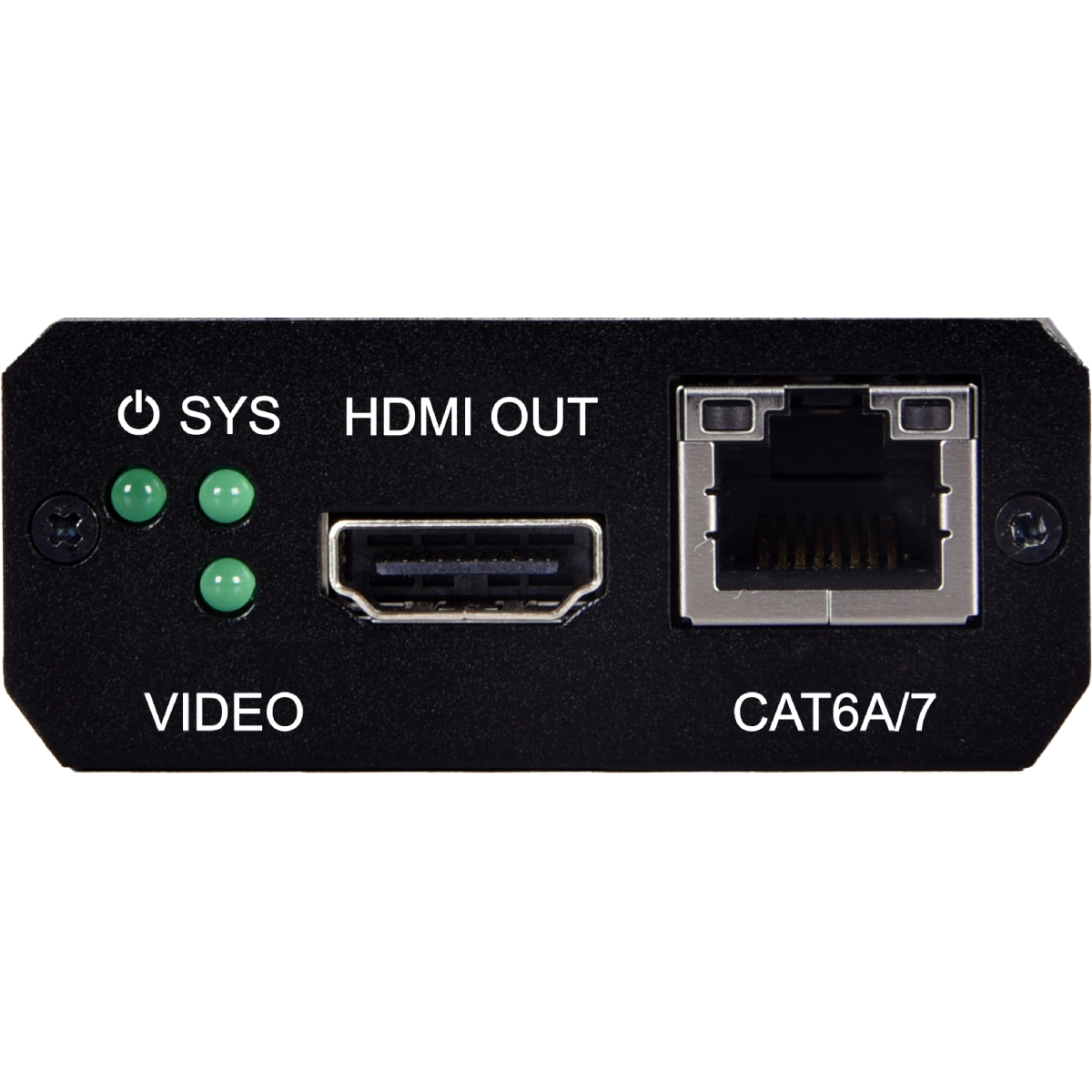

Output Port	1 HDMI (Type A)
Bi-directional Port

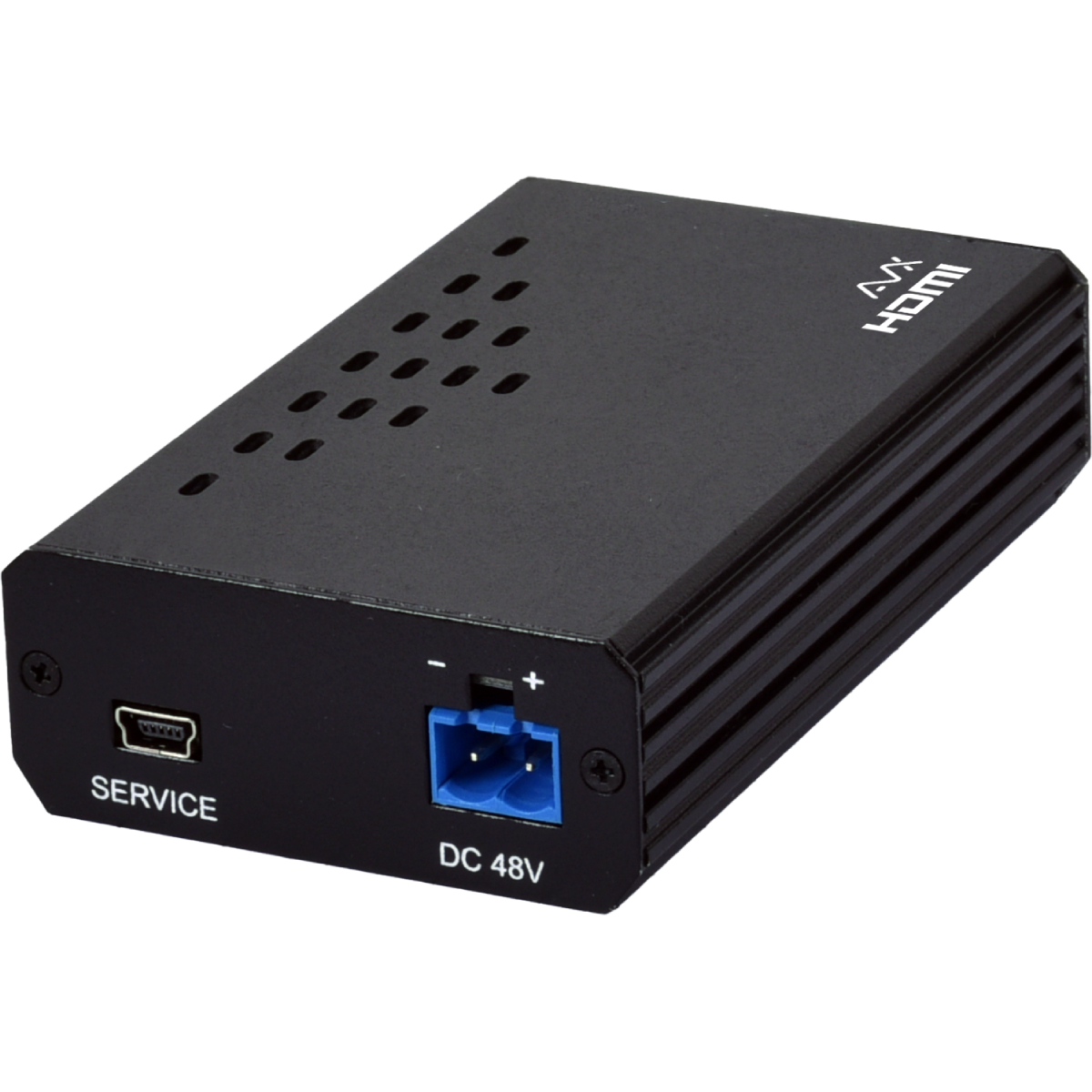

Service Port	1 USB (Mini-B)

Video
HDMI Compliance	HDMI 2.0 (DVI 1.0)
HDCP Compliance	2.x
Input Signal Types	4096x2160p@60 8bit YUV 4:4:4
Output Signal Types	4096x2160p@60 8bit YUV 4:4:4
		Resolutions
Maximum Input	LAN (Streaming)	4096×2160p@60 YUV 4:4:4
Maximum Output	HDMI	4096×2160p@60 YUV 4:4:4

Audio
HDMI	LPCM (8 Channels), Bitstream, High Bit Rate Bitstream

Power
Power Supply	48V/0.83A DC (Locking)
Power Consumption	15.62W

Enclosure
Chassis Material	Metal (Steel)
Chassis Color	Black
Dimensions (W×H×D)	57mm×20.6mm×87mm [Case Only] 60mm×20.6mm×87mm [All Inclusive]
Weight	139g

Field Firmware Update
PC
