VEX-X5102TR-B1C Limited Quantity
UHD+ 2x1 HDMI/DP to HDMI Bi-directional AV over IP Transceiver W/USB 2.0 HUB (4K@60 444 up to 100M)

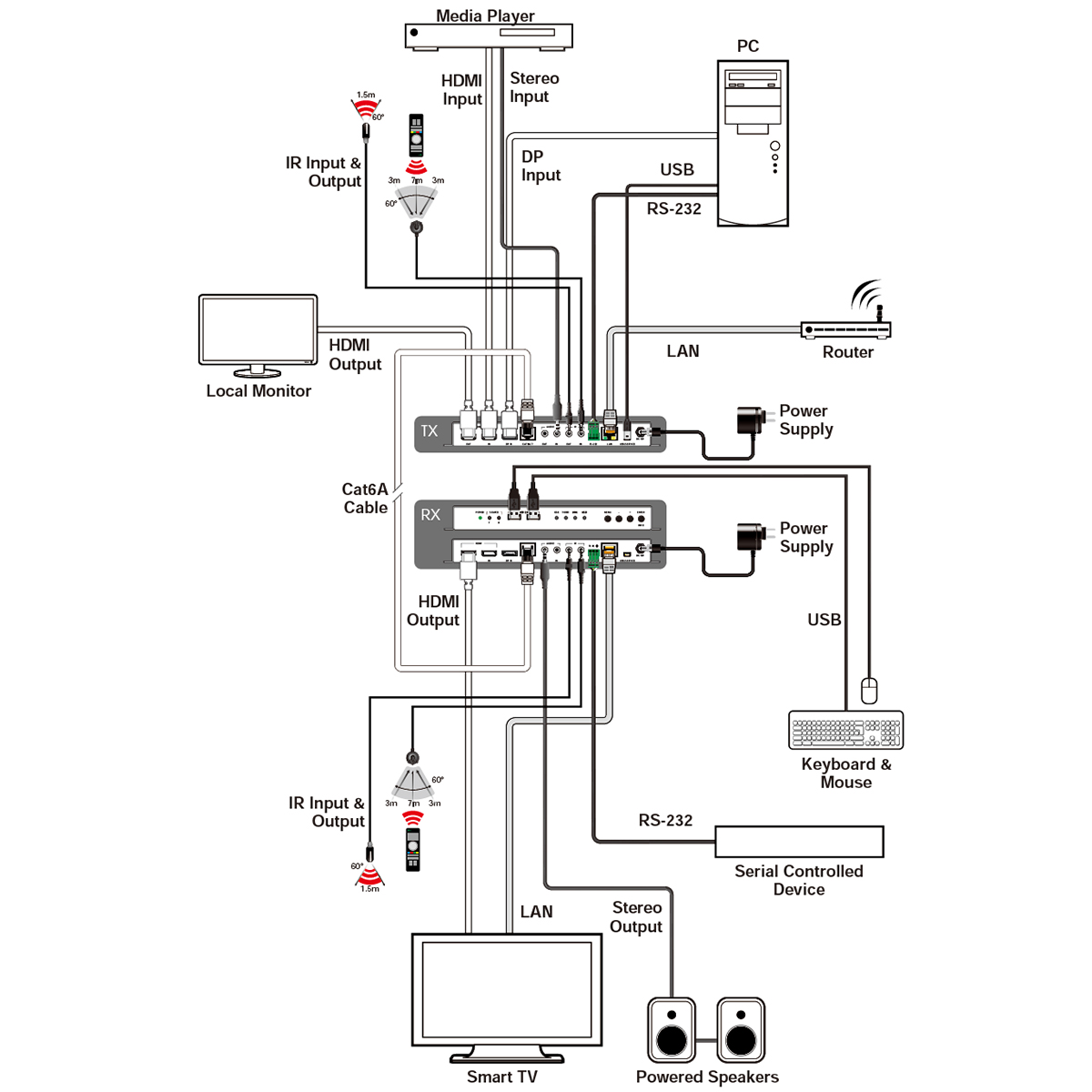

- Point to point extension of audio, video, Gigabit Ethernet, USB and control signals
- Full range of formats including 4K60 RGB/4:4:4, HDR10, 3D and broadcast-friendly 4K60 10-bit 4:2:2
- Zero latency transmission for all signal types
- Broadcast quality scaler, programmable to scale up or down any resolutions up to 4K
- Audio down-mixing engine from multi-channel PCM audio to stereo
- Colour space conversion and frame rate conversion
- Ultra-light compression, lossless for most content
- Extension up to 100m
- Simultaneous video transmit and receive functionality
- Supports pass-through of 10/12-bit HDR sources
- Analog stereo audio extension, insertion and extraction (insertion and extraction requires optional control center or control software)
- Simultaneously transmission and receive
- Signal transmission interfaces with 10-Gigabit Ethernet switches via XFI (IEEE 802.3ae) compatible 10-Gigabit Ethernet connector

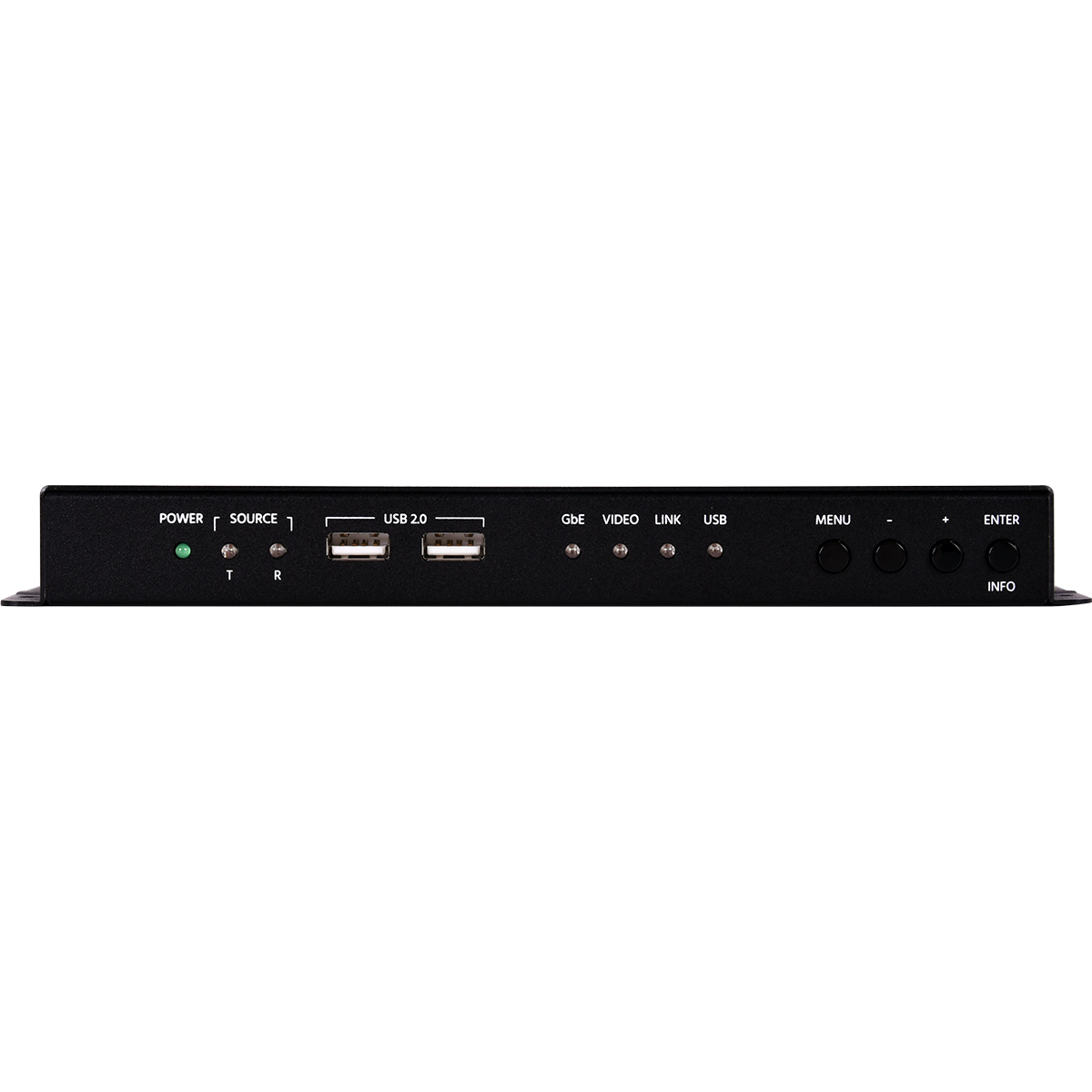

- Basic confi guration via front panel buttons with an On-Screen Display (OSD)
- Supports the use of an external control center or control software to provide expanded functionality
