CDM-600

TV System Converter

Digital conversion from NTSC, PAL or SECAM input signal to NTSC or PAL output signal
Automatic detection of input signal
525 or 625 scan lines and 50 or 60 field conversion
2M bit field memory

This unit automatically detects incoming NTSC, PAL, or SECAM input signal and converts to NTSC or PAL output signal.

Input TV Systems	NTSC 3.58, NTSC 4.43, PAL, SECAM
Output TV Systems	NTSC 3.58, PAL (B, D, G, I)

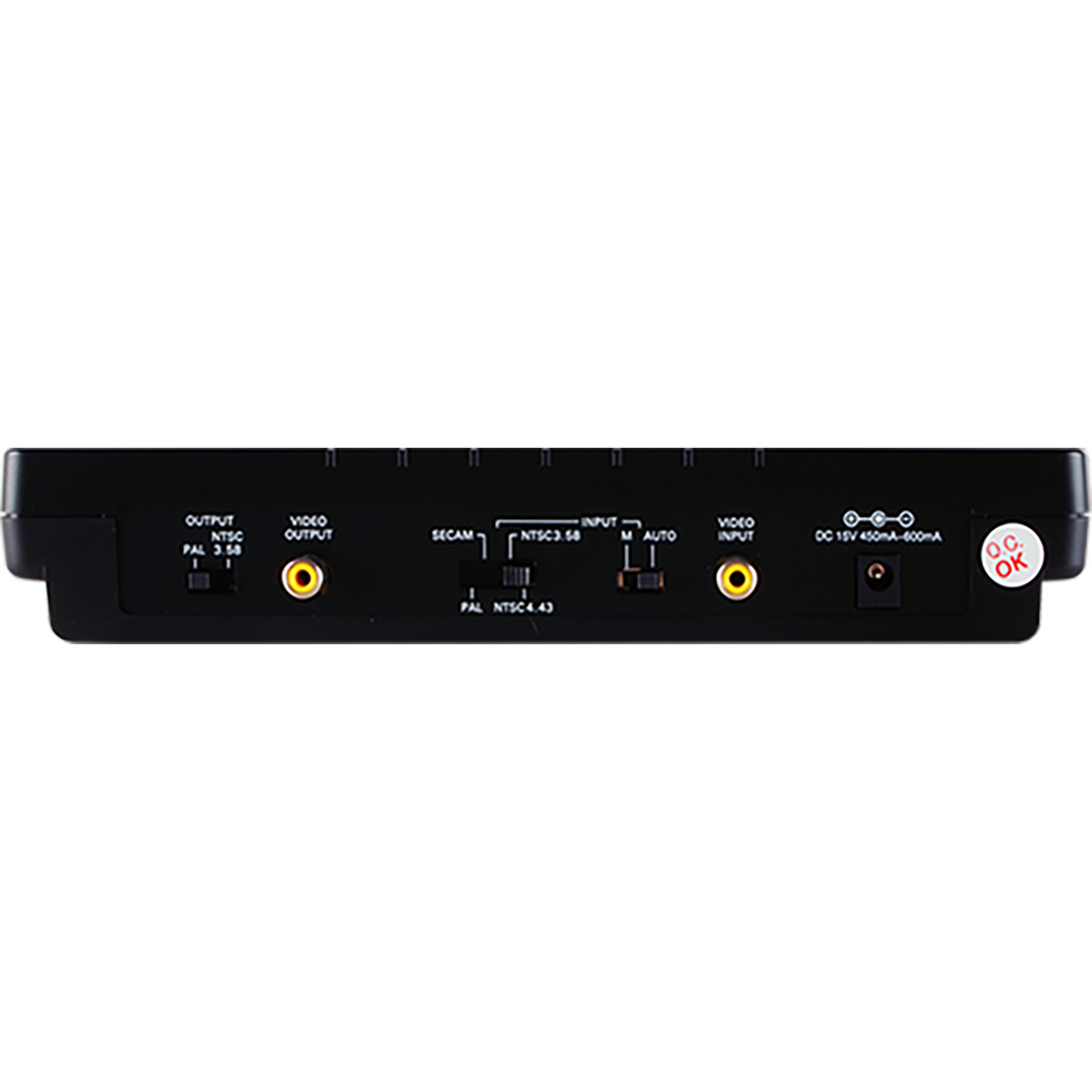

Connection Terminals	Video Input: 1 Video Output: 1
Sampling Frequency	Y: 14.318MHz R-Y: 7.159MHz B-R: 7.159MHz
Digital Cord Bit	Y: 8 BITS R-Y: 8 BITS B-Y: 8 BITS
Line Conversion	525-625 Lines
Field Conversion	60-50 Fields
Power Supply	DC 15V 450mA
Dimensions	(W)236mm X (D)123mm x (H)45mm
Weight	600g
Accessories	One set of video/cables, AC adaptor
