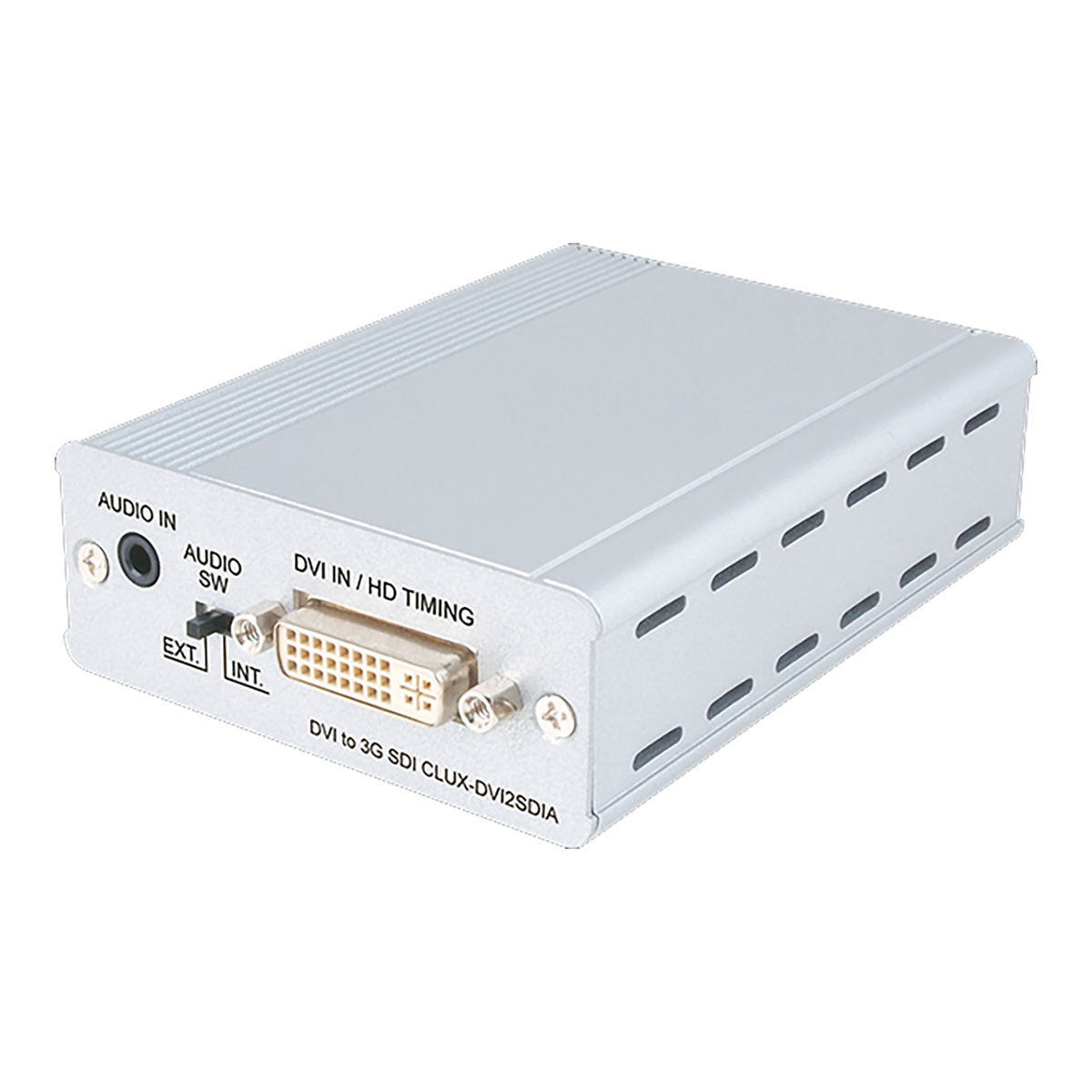

  • CLUX-DVI2SDIA_45_0824093741588

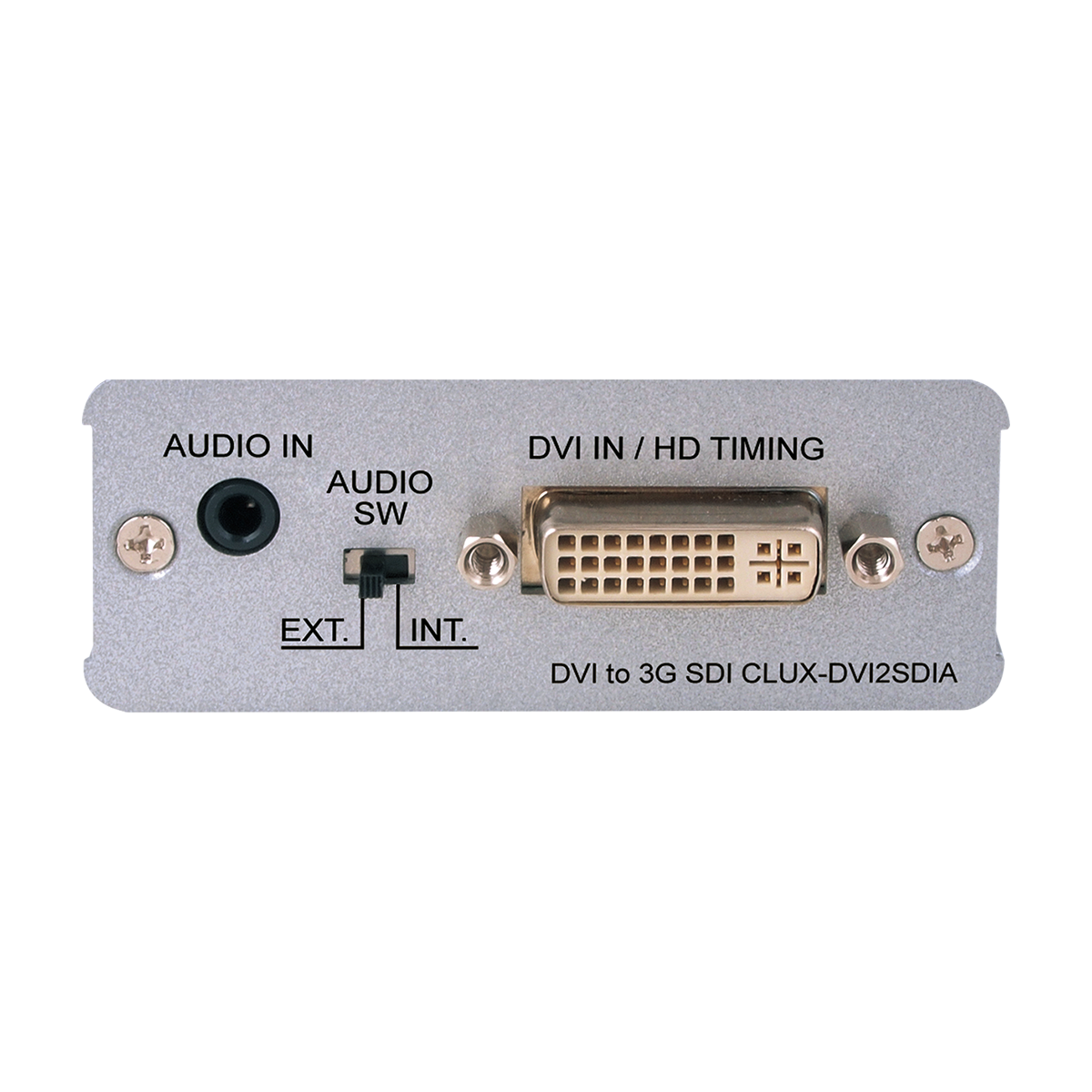

  • CLUX-DVI2SDIA_front_0824093738538

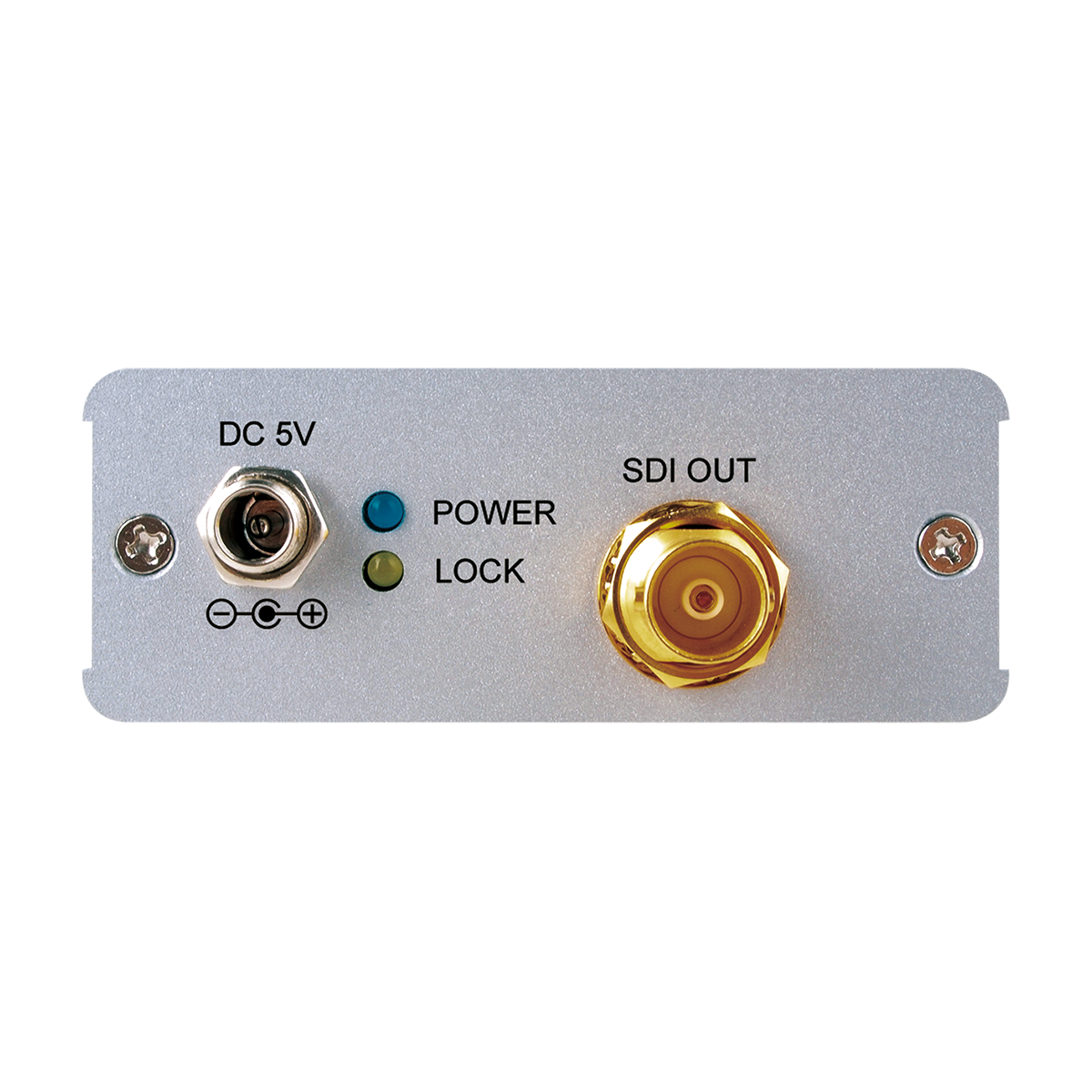

  • CLUX-DVI2SDIA_rear_0824093736065

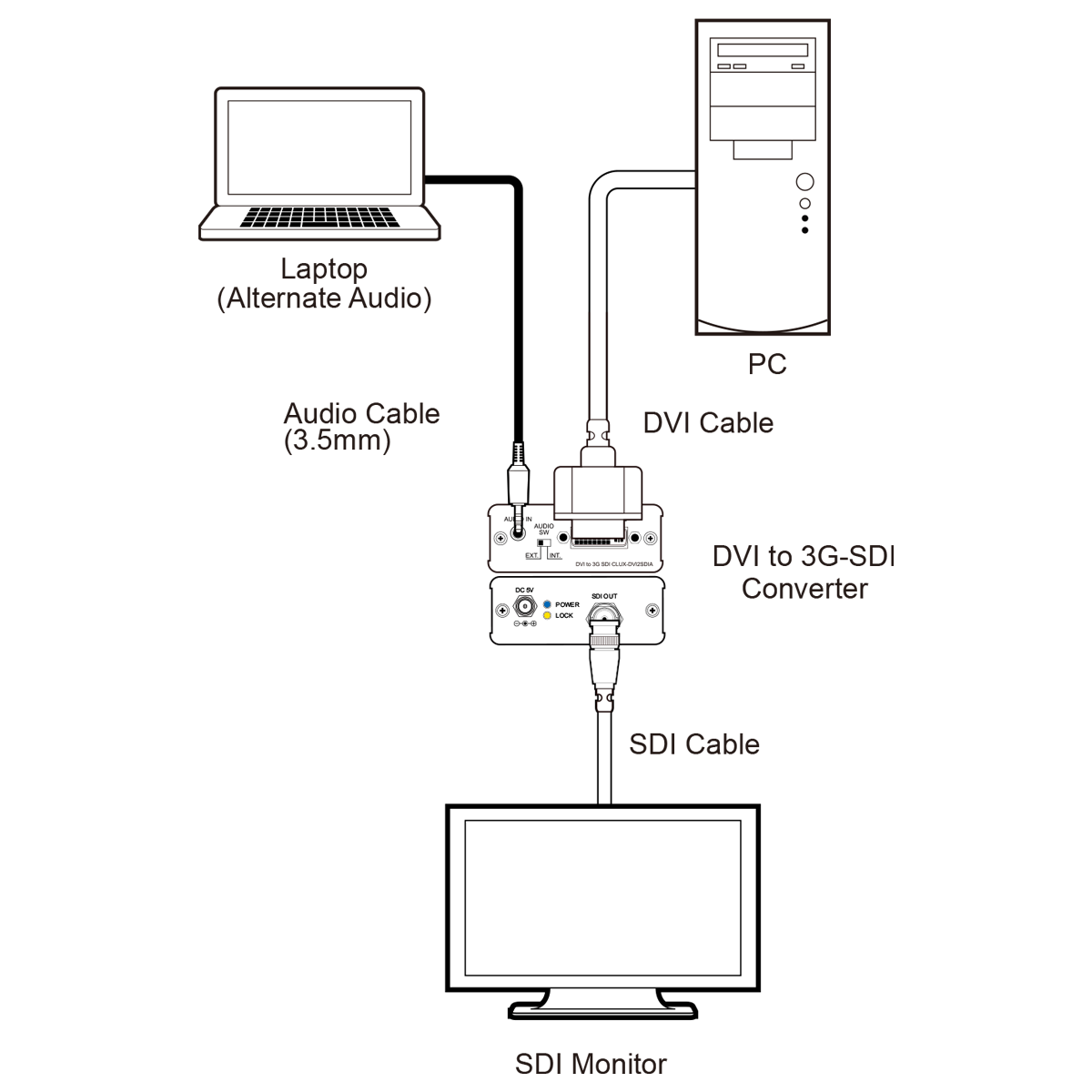

  • CLUX-DVI2SDIA-Manual_0215090819592

CLUX-DVI2SDIA

DVI to 3G SDI Converter

  • Shows DVI source on SDI display
  • SDI interface operates at bitrates of 2.970 Gbit/s, 2.970/1.001 Gbit/s, 1.485 Gbit/s, 1.485/1.001 Gbit/s and 270 Mb/s
  • Converts DVI signals to SDI:
    (1) 480i/576i to SD-SDI (SMPTE 259M-C, at bitrates of 270 Mbit/s)
    (2) 720p/1080i to HD-SDI (SMPTE 292M, at bitrates of 1.485 Gbit/s or 1.485/1.001 Gbit/s)
    (3) 1080p to 3G-SDI (SMPTE 424M/425M-AB, at bitrates of 2.970 Gbit/s and 2.970/1.001 Gbit/s)
  • Supports DVI input timings: 480i@59.94, 576i, 720p@50/59.94/60, 1080i@50/59.94/60, 1080p@23.98/24/25/29.97/30/50/59.94/60
  • Supports SDI output distance up to 100 meters (3G-SDI), 200 meters (HD-SDI), or 300 meters (SD-SDI)
    Note: Tested with Belden 1694A Cable. Operating distances may vary if used with cables of different specifications.
