CM-397M

CM-397M EOL

Replacement Model >CSC-201

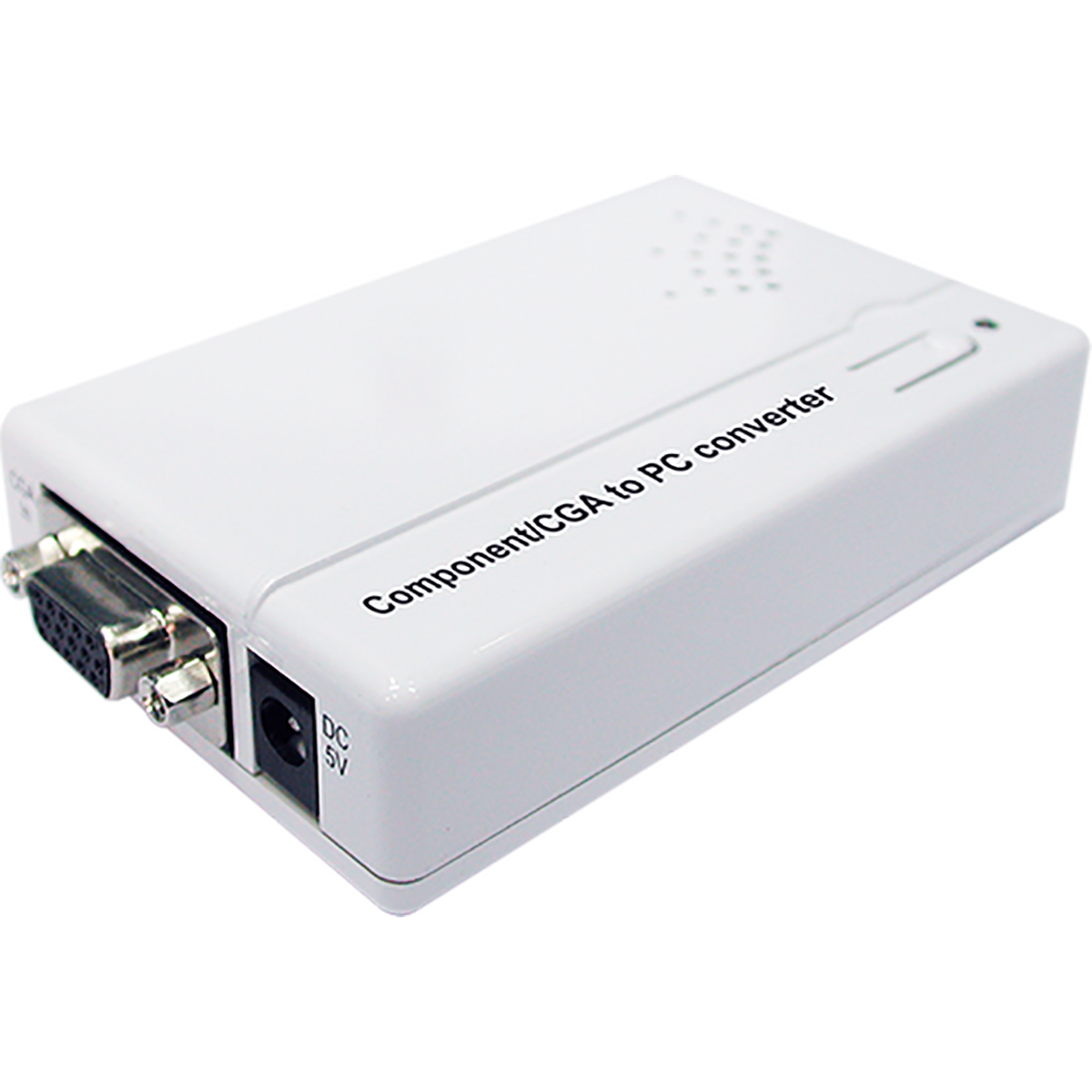

Component/CGA to PC Converter

Accepts CGA (RGB) or Component (YCbCr) format and converts to PC format
Scales CGA or Component (YCbCr 480i/576i) signals up to VGA/XGA/ WXGA PC resolutions
50/60Hz frame rate conversion ensures error-free display (576i only)
The CGA (RGB) input is auto-detected and can be RGBHV, RGB H+V
The Component (YCbCr) input is auto-detected and can be YPbPr (Syncon- Y)
Play video games on your PC monitors
Supports CGA at 480i and 576i
Supports phase and horizontal/vertical position adjustment
Supports field-invert setting
Supports several types of signal synchronizations, including Seperate Sync, Composite Sync, Sync-on-Green and Sync-on-Y
High-resolution output picture
Plug and Play design, easy to setup and there is no driver software required
Palm- size design for easy transportation

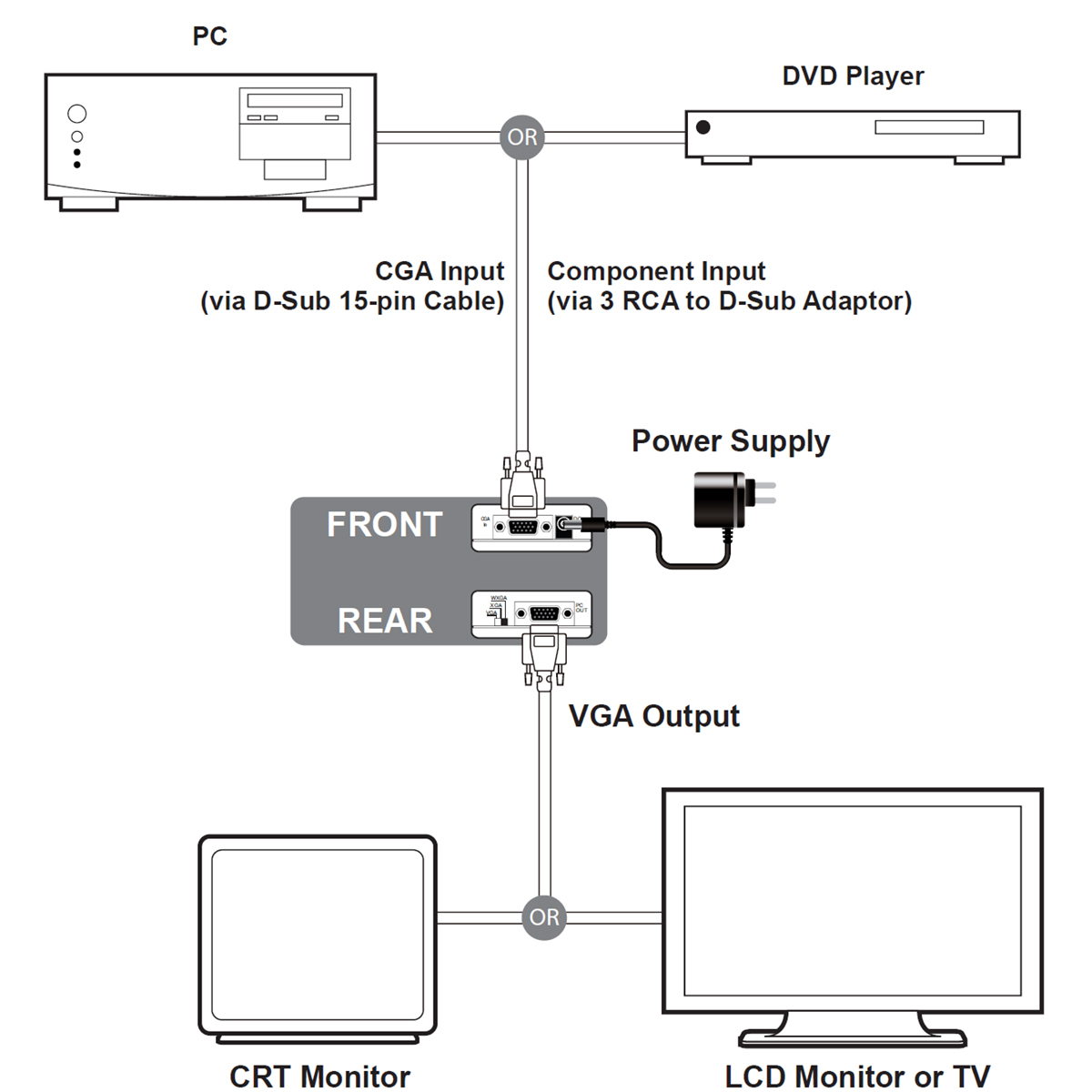

This is an analog CGA (RGB) or Component (YCbCr) to PC Converter box that can scale the signal to 3 different PC modes; VGA, XGA or WXGA. It enables you to connect your RGB or YCbCr signal source such as game consoles or video players to a PC display. It provides further features such as phase & H/V position adjustment, field-invert setting and OSD display.

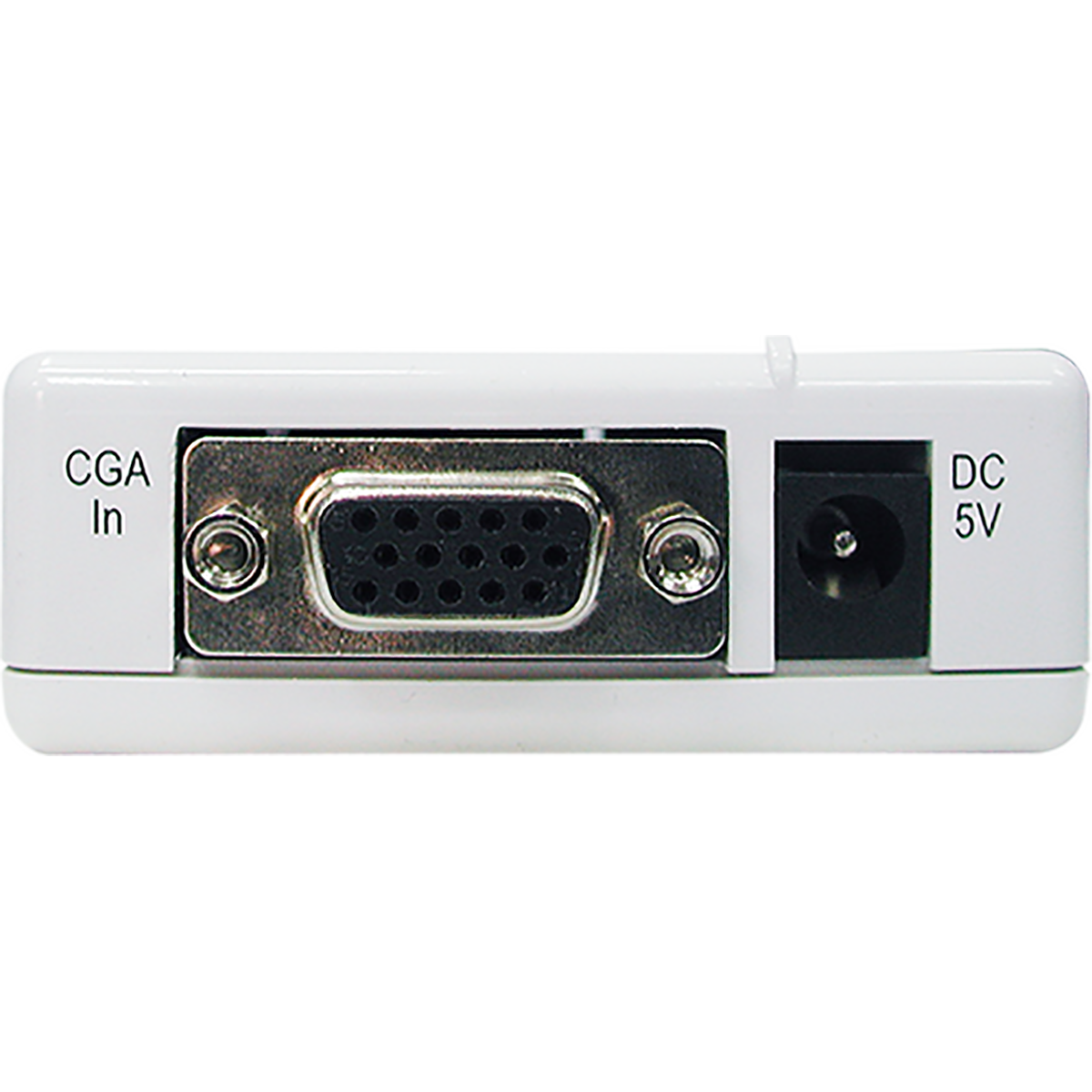

Input Port	1×D-Sub 15-pin Female
Input Signal	Supports Analog-Level Signal RGB 0.7Vp-p 75Ω Hsync/Vsync 2 Vp-p ~ 5 Vp-p 75Ω YCbCr: Y 1 Vp-p 75Ω, CbCr 0.7 Vp-p 75Ω
Input Timing	CGA: Hf=15700 Hz, Vf=59.924 Hz/Non-interlaced 480i: Hf=15734 Hz, Vf=59.94 Hz/Interlaced 576i: Hf=15625 Hz, Vf=50 Hz/Interlaced
Input Format Selection	RGB or YCbCr

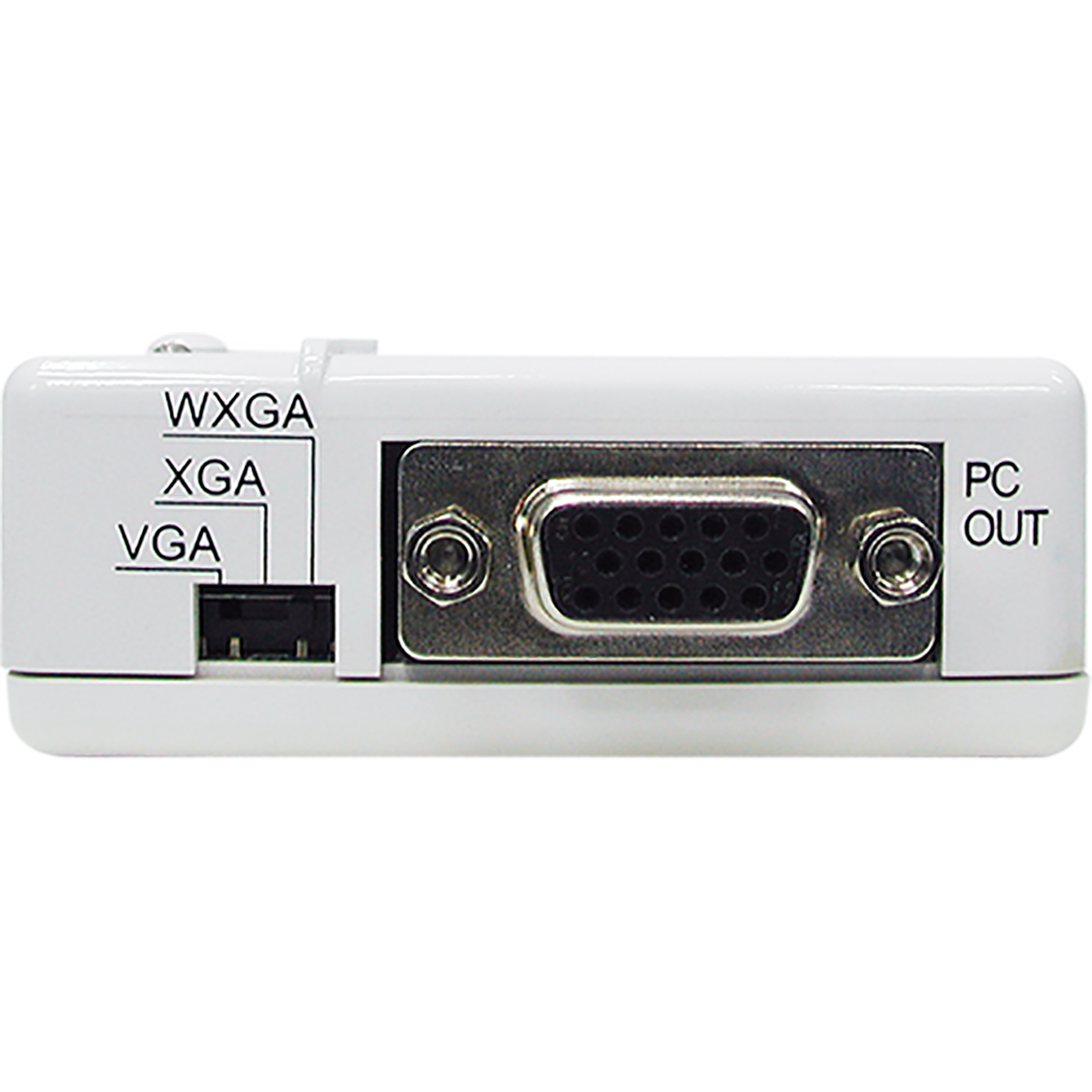

Output Timing	VGA: 640×480 @60 Hz XGA: 1024×768@60 Hz WXGA: 1366×768@60 Hz
Power Supply	5 V/1.2 A switching power adaptor (with Universal plug. CE/FCC/UL certified)
Dimensions	64 mm (W)×112 mm (D)×26 mm (H)
Weight	90 g
Chassis Material	Plastic
Operating Temperature	0 ˚C~40 ˚C/320 ˚F~1040 ˚F
Storage Temperature	−20 ˚C~60 ˚C/−4 ˚F~140 ˚F
Relative Humidity	20~90 % RH (non-condensing)
Power Consumption	3.5 W

Product Support
Upload Date	File Name	Version	OS	Description	Download
2021/07/08	CM-397M Manual	1	all	CM-397M Manual
