CM-398M

CM-398M Limited Quantity

Video to PC/HD Converter

Operates in NTSC 3.58MHz and PAL system
Can scale CV/SV to PC or Component format
Output resolution:
-- PC resolutions: XGA, SXGA, UXGA
-- Component resolutions: 480p/576p, 720p,1080p
3D (frame based) motion adaptive YNR/CNR noise reduction
On-Screen Display
Advance 3D motion adaptive de-interlace
Automatic 2:2 & 3:2 film mode detection
50 to 60 Hz frame rate conversion ensures glitch-free display

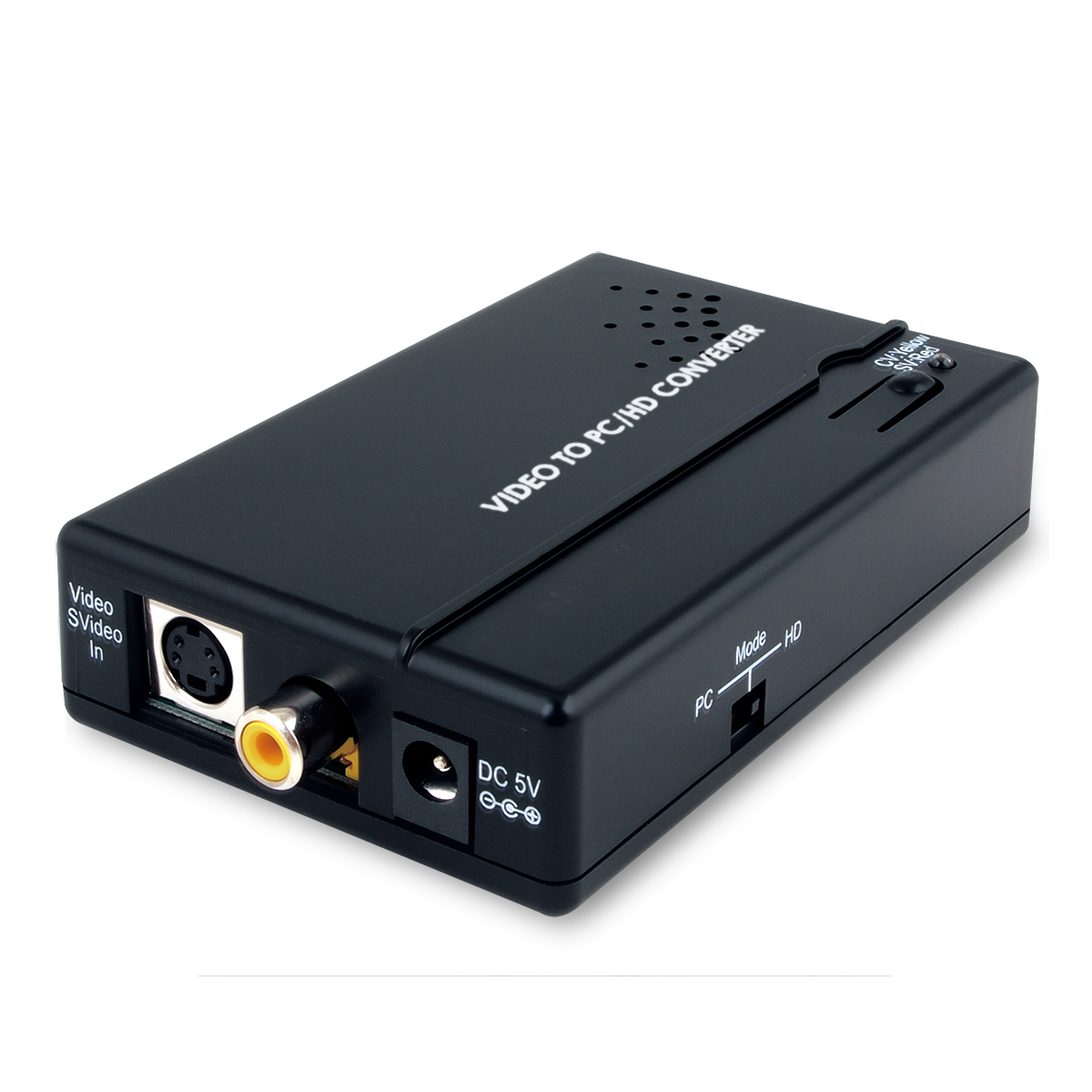

This economical Video to PC converter box that can convert CV/SV (NTSC or PAL system) to supported PC resolution like XGA to UXGA or HD resolutions of 480p to 1080p. With frame rate conversion feature that allows users to view DVD, VCR or Game sources on the PC monitor, this device also has an On- Screen Display that allows users to easily select their desired output resolution.

Interfaces
Input Port	1 CV 1 SV
Output Port	1 VGA (Component out needs D-Sub 15 to 3RCA adaptor)

Video
Input Signal Types	CV, SV
Output Signal Type	VGA

Resolutions
Maximum Input	CV, SV	480i@60 / 576i@50
Maximum Output	VGA, UXGA	1080P

Power
Power Supply	5VDC/1A
Power Consumption	2.5W(Max)

Enclosure
Chassis Material	Plastic
Chassis Color	Black
Dimensions (W×H×D)	162.6mm x 33.5mm x 64.5mm
Weight	88g

Ordering Information
Model No.	Product Description
CM-398M	Video to PC/HD Converter

Product Support
Upload Date	File Name	Version	OS	Description	Download
2023/08/28	CM-398M_Manual	1	all	CM-398M_Manual
