CP-281H

YPbPr/YCbCr + Audio to HDMI Converter

Supports a wide range of resolutions: 480i/480p/576i/576p/720p/1080i/1080p@60Hz.
Supports digital audio input through Co-axial cable, or analog audio input through L/R audio cable.

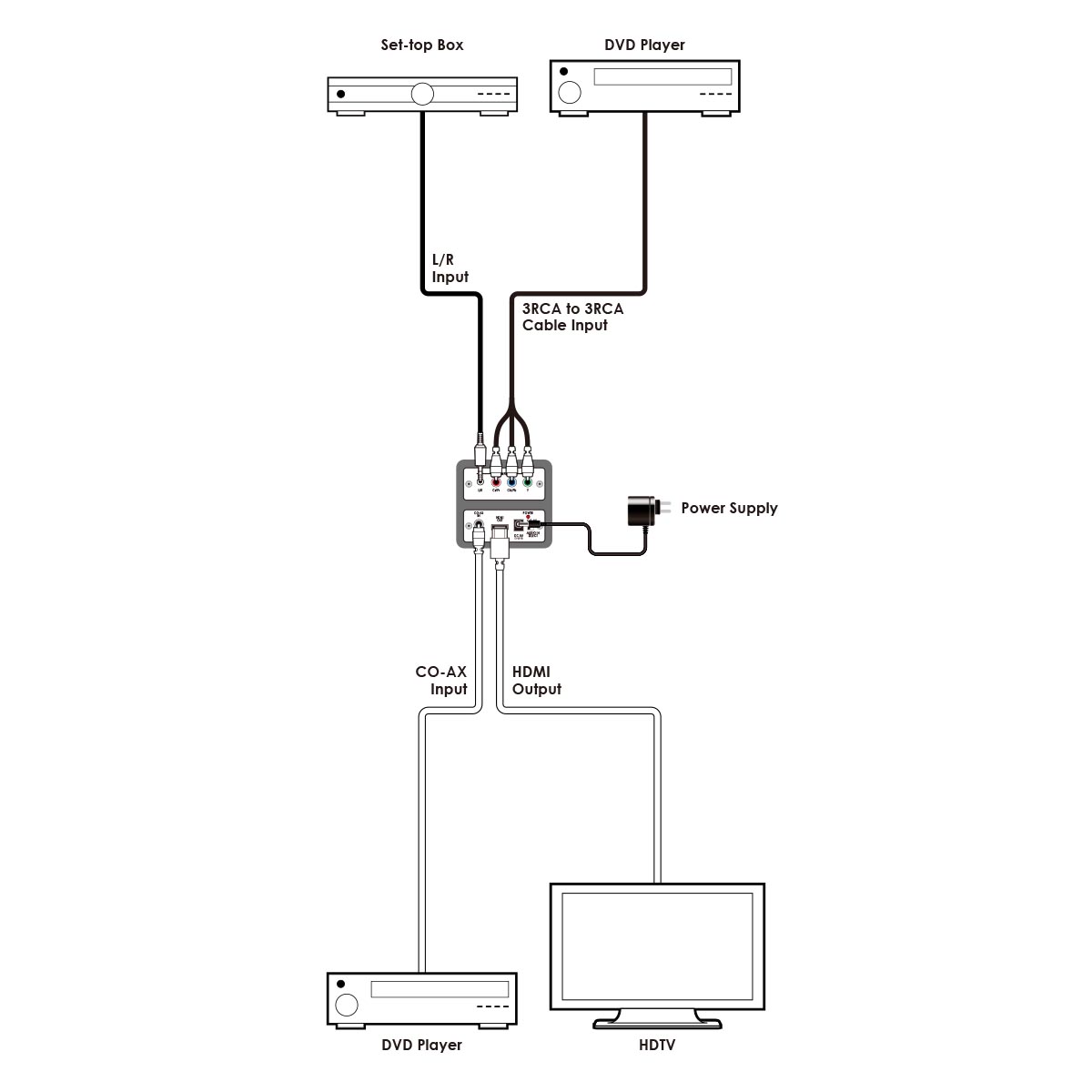

The Unit is a YPbPr/YCbCr with Audio to HDMI Converter, which allows to convert the YPbPr/YCbCr video input signal and audio input signal from a DVD Player or Set-top-box equipment to the HDMI or DVI input. It supports high definition input/output up to 1080p.

Interfaces

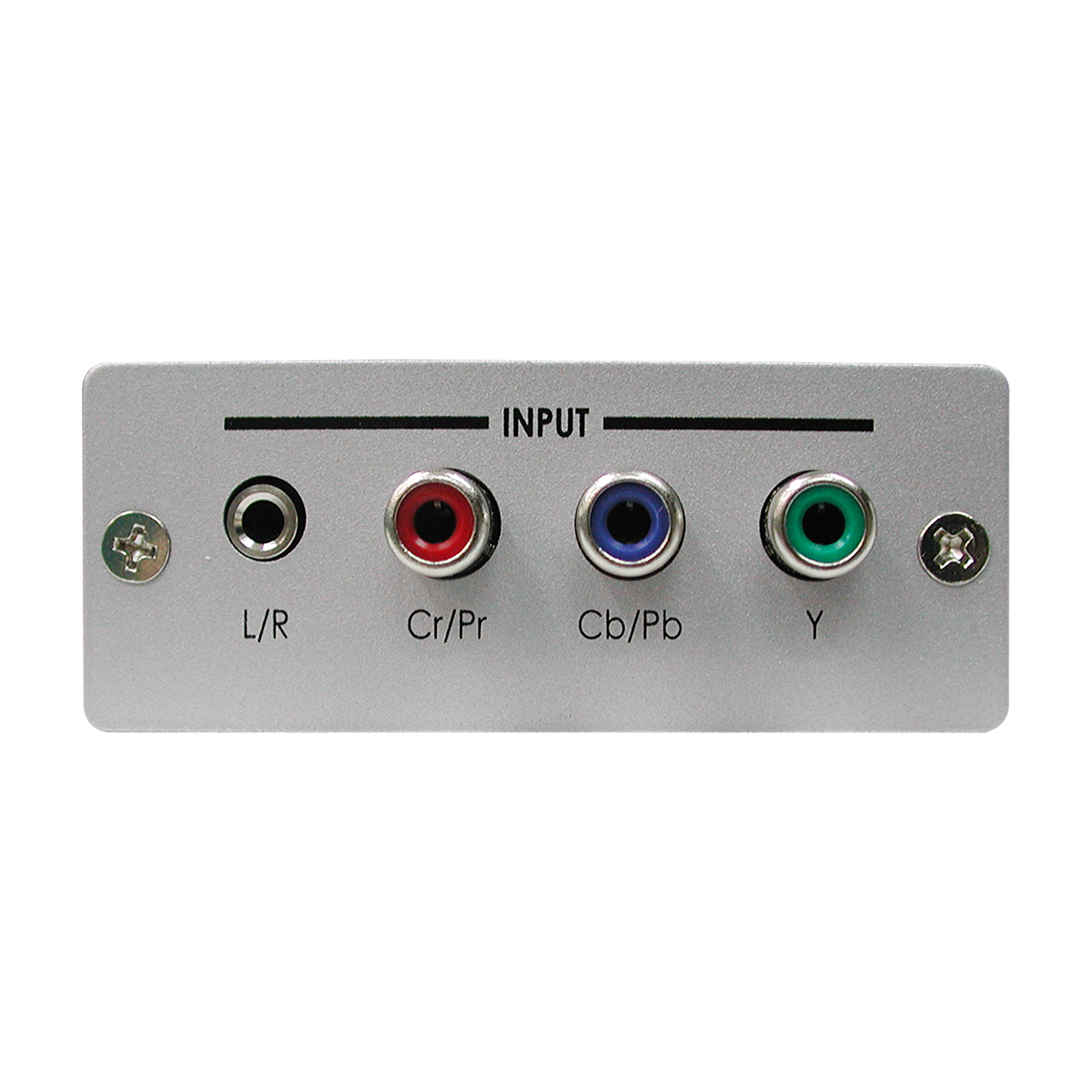

Input Port	1 YPbPr/YCbCr (3 RCA) 1 L/R(3.5mm) 1 Coaxial(female)

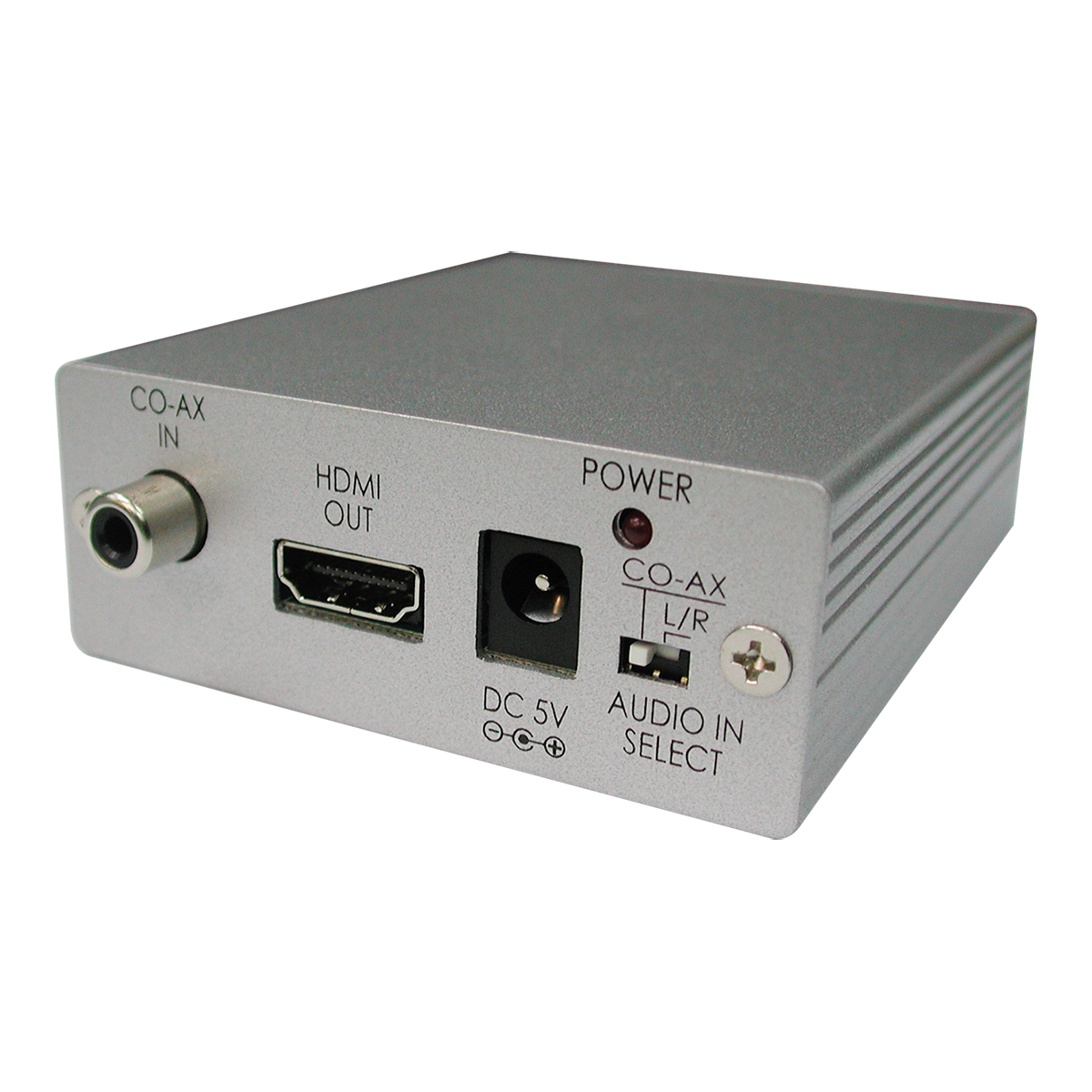

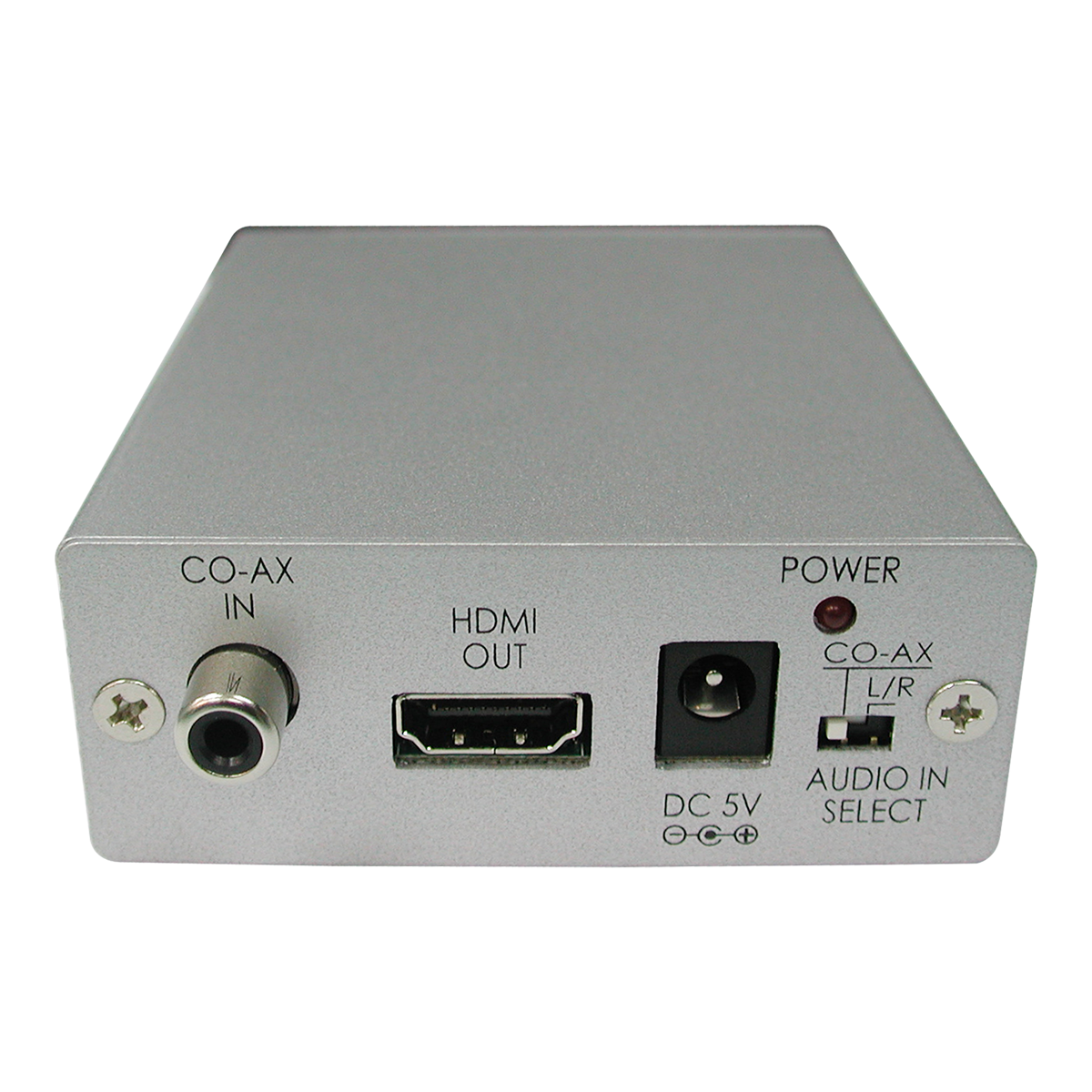

Output Port	1 HDMI (Type-A)

Video
HDMI Compliance	HDMI 1.2 (DVI 1.0)
HDCP Compliance	1.1
Input Signal Types	1920x1080p@60
Output Signal Type	1920x1080p@60

Resolutions
Maximum Input	YPbPr/YCbCr	1920x1080p@60
Maximum Output	HDMI	1920x1080p@60

Power
Power Supply	5V 2.6A
Power Consumption	3W

Enclosure
Chassis Material	Aluminum
Chassis Color	Sliver
Dimensions (W×H×D)	76.7mm x 30mm x 105mm
Weight	500g

Ordering Information
Model No.	Product Description
CP-281H	YPbPr/YCbCr + Audio to HDMI Converter

Product Support
Upload Date	File Name	Version	OS	Description	Download
2021/02/17	CP-281H_Manual	1	all	CP-281H_Manual
