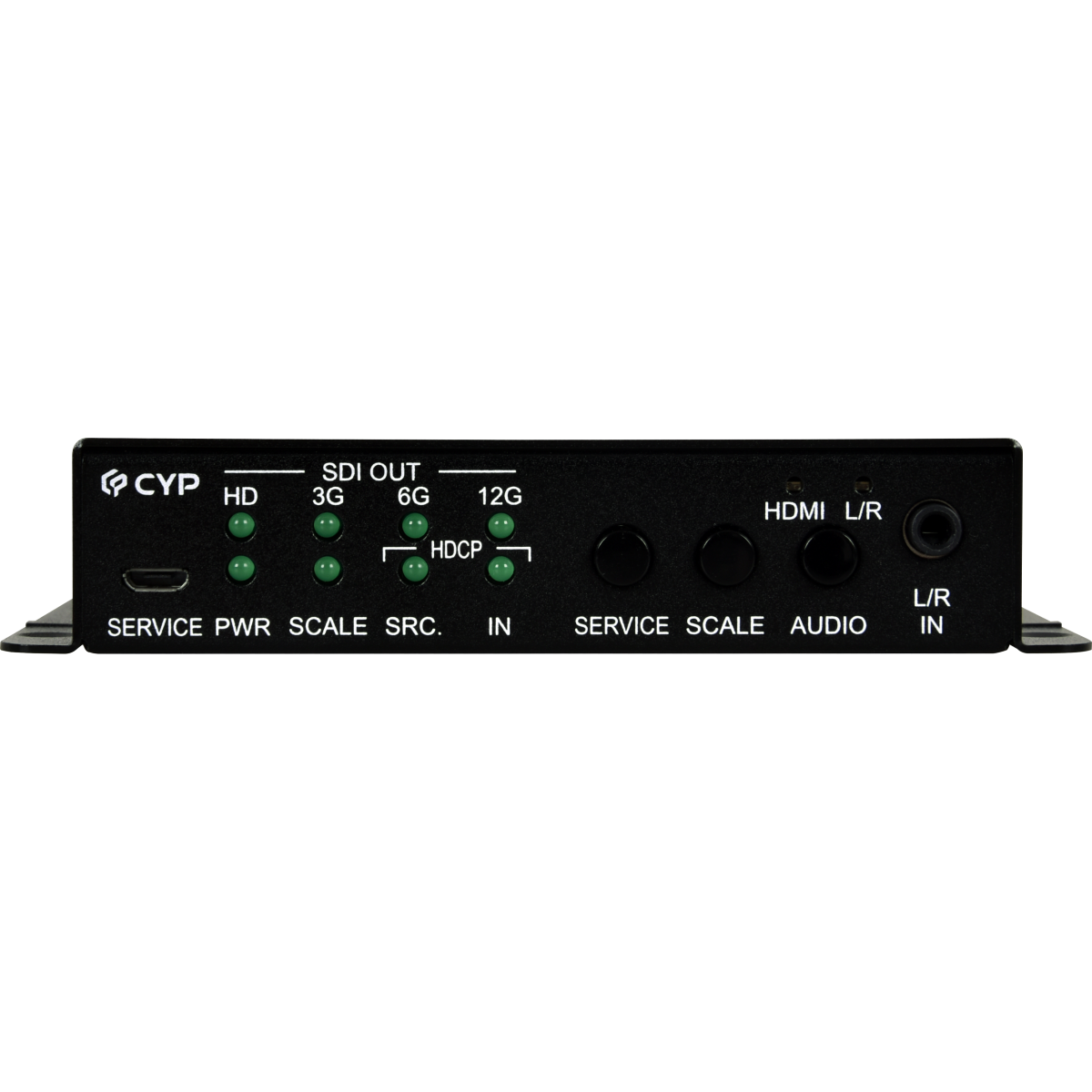

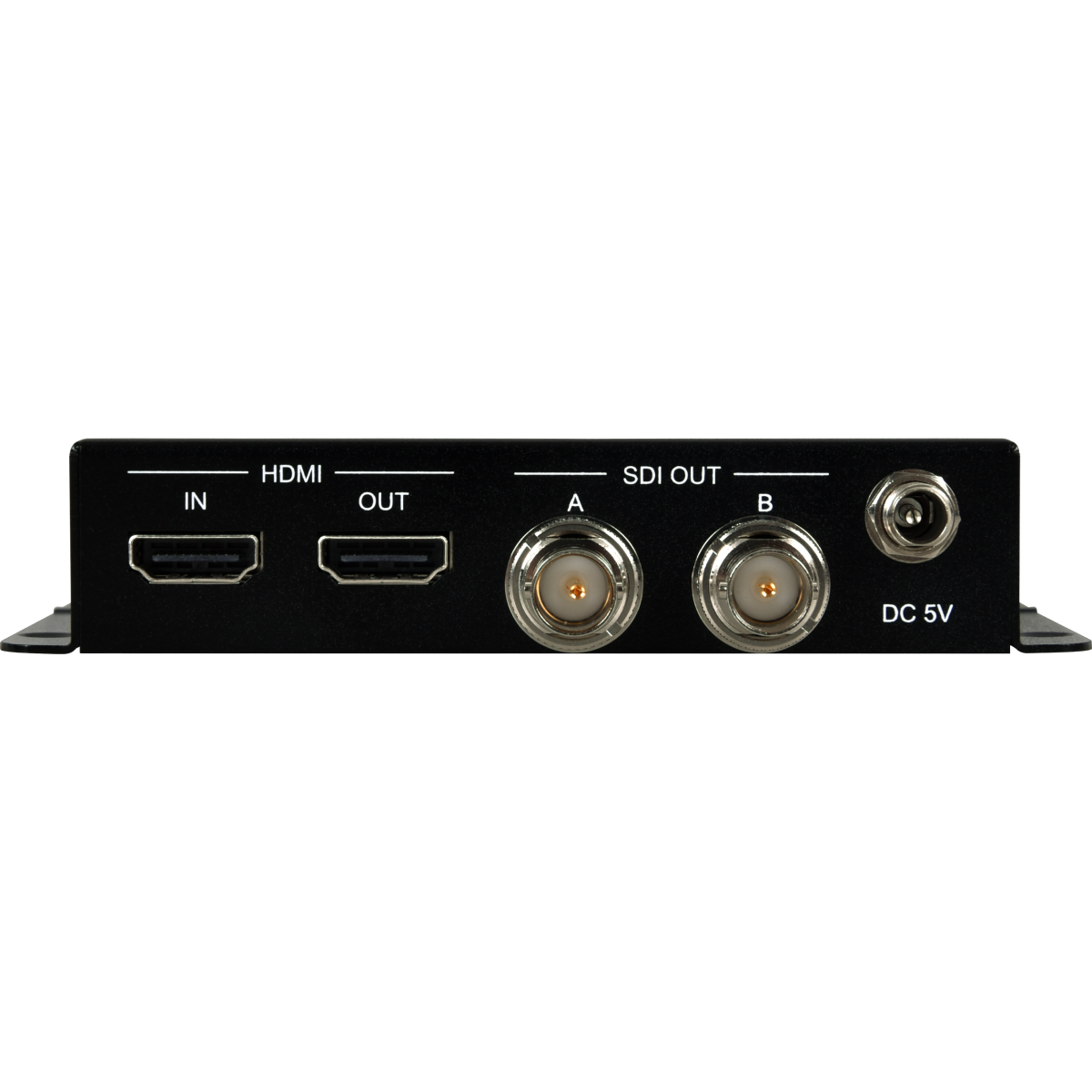

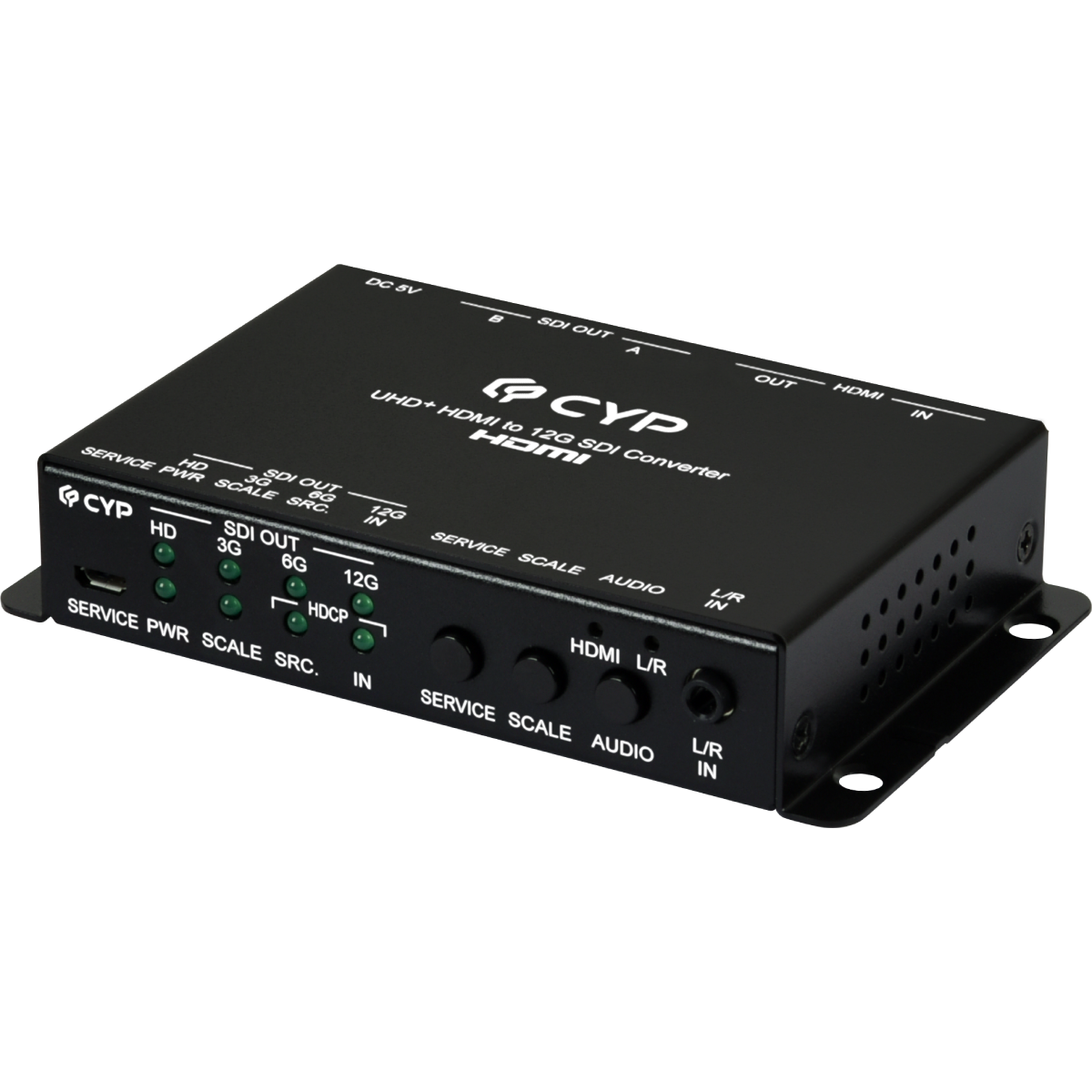

CPLUS-H2SDI
HDMI to 12G-SDI Converter
- Supports SDI output distance up to 60 meters (12G-SDI), 80 meters (6G-SDI) 100 meters (3G-SDI), 200 meters (HD-SDI), or 300 meters (SDSDI)
Note:
- Tested with Belden 1694A Cable. Operating distances may vary if used with cables of different specifications.
- This product does not process HDCP encrypted input signals. There will be no video output when the input signal contains content that is HDCP encrypted.
- Integrated audio embedded up to 8 CH PCM 48 kHz for HDMI or 2 CH (external L/R) for DVI audio
- Support SDI signal re-timing Cable Driver
