CPT-387HD

CPT-387HD EOL

HD to Video Converter

Supports high resolution HD input from 480p up to 1080p
Supports component (YPbPr) input and downscaling to Composite video/S-video output or HD bypass for simultaneous display output
Switch easily between NTSC/PAL systems
Auto-phase adjustment to ensure better image display
Image Overscan/Underscan selection
Easy to install and operate

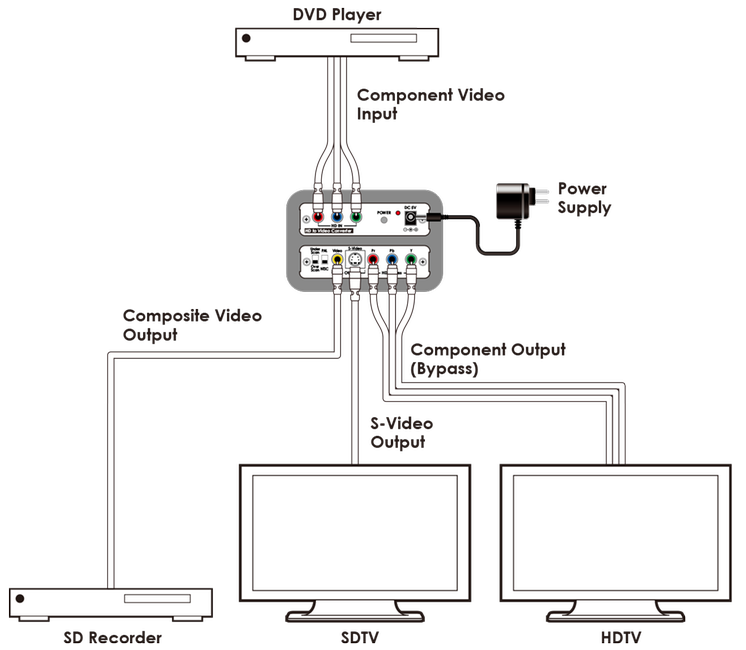

The HD Component to Video Converter with HD bypass is designed to convert a variety of analog component images, from 480p up to 1080p and can convert them to NTSC or PAL standards video with an additional HD bypass output. Users can also adjust the Overscan/ Underscan of the output image. It is ideal for applications like video conferencing, home theater, business presentation, lecturing room etc. where both the original HD and the converted SD signals are required.

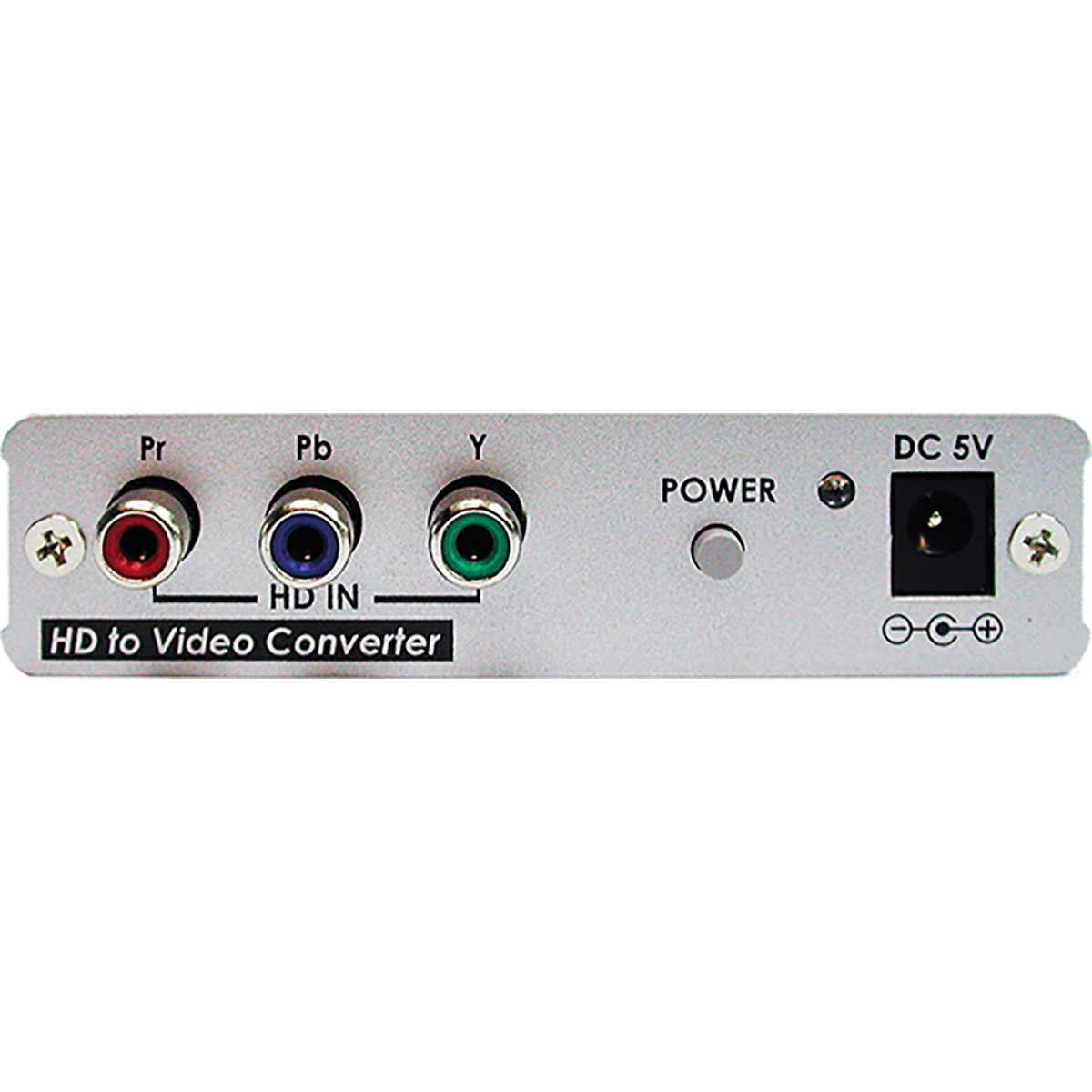

Input Port	1×Component (Y/Pb/Pr)

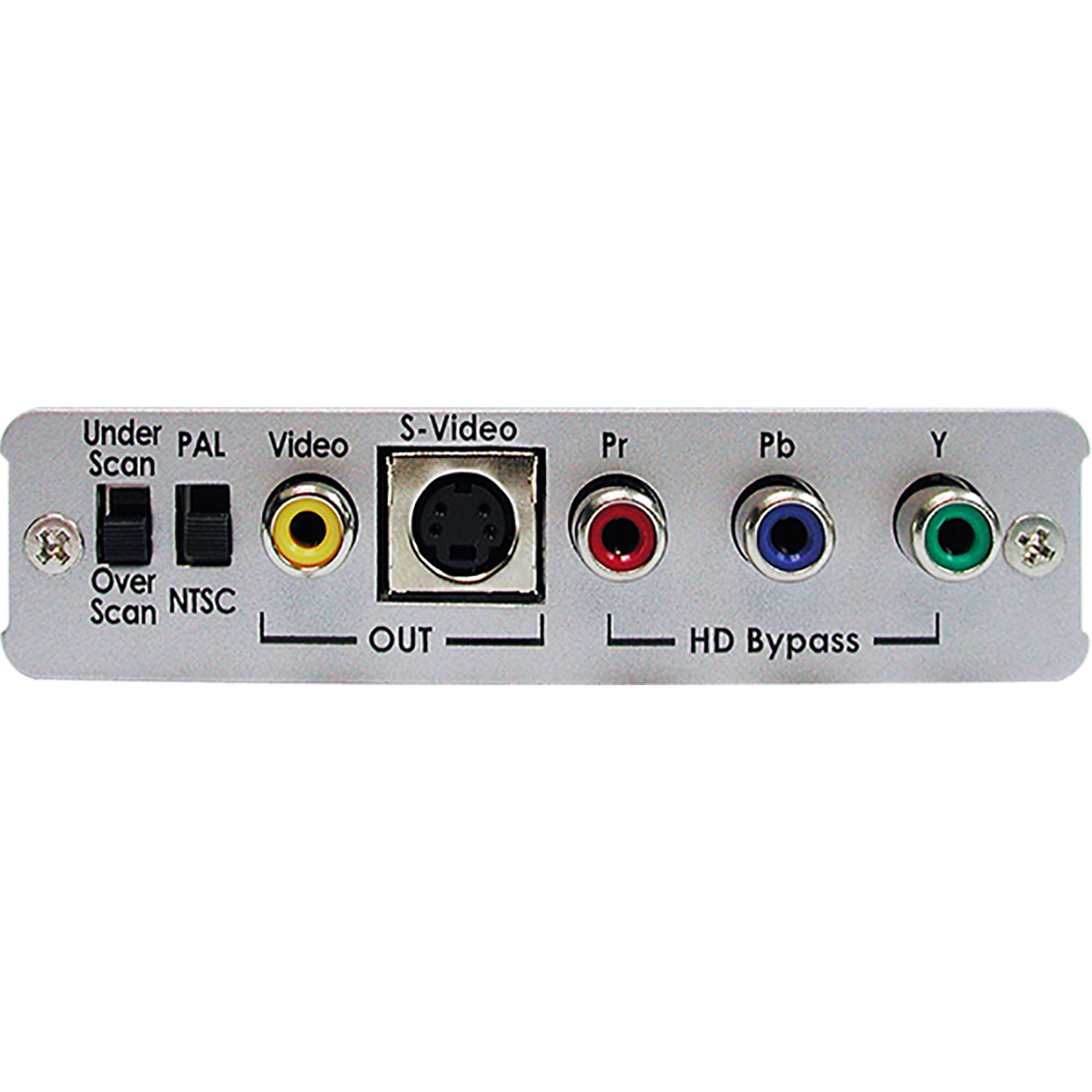

Output Ports	1×Component Bypass (Y/Pb/Pr), 1×Composite Video, 1×S-Video
Supports Input Resolution	480p@60, 576p@50, 720p@50/60, 1080i@50/60, 1080p@24/25/30/50/60
Switcher	1×Overscan/Underscan, 1×PAL/NTSC
ESD Protection	Human body model: ±8 kV (air-gap discharge) ±4 kV (contact discharge)
Power Supply	5V DC/2.6A (US/EU standards, CE/FCC/ UL certified)
Dimensions	102 mm (W)×105 mm (D)×25 mm (H)
Weight	215 g
Chassis Material	Aluminum
Silkscreen Color	Silver
Operating Temperature	0 ˚C ~ 40 ˚C/32 ˚F ~ 104 ˚F
Storage Temperature	−20 ˚C ~ 60 ˚C / −4 ˚F ~ 140 ˚F
Relative Humidity	20 ~ 90% RH (non-condensing)
Power Consumption	5.5 W

Product Support
Upload Date	File Name	Version	OS	Description	Download
2021/07/12	CPT-387HD Manual	1	all	CPT-387HD Manual
