HyLinX - AV Over IP

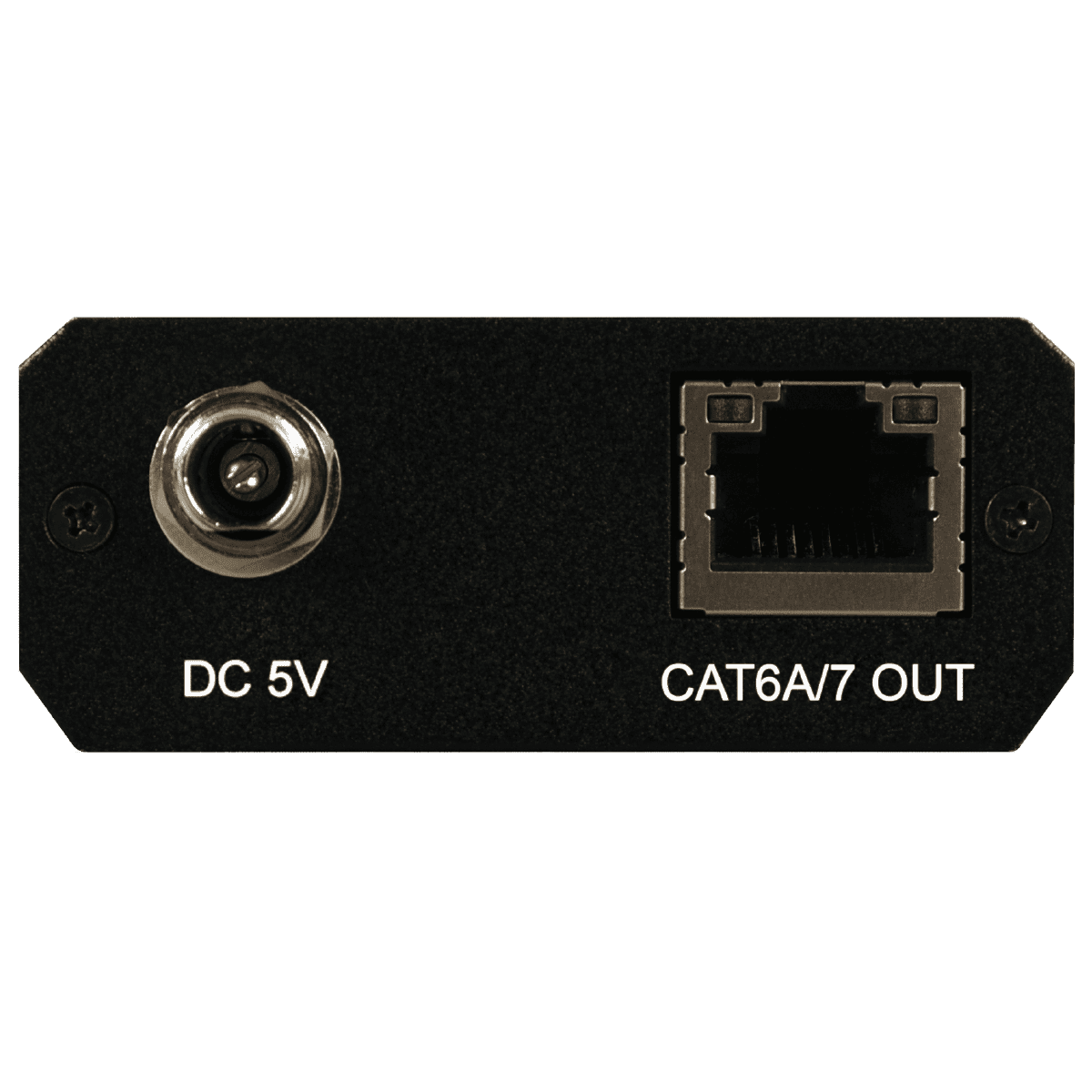

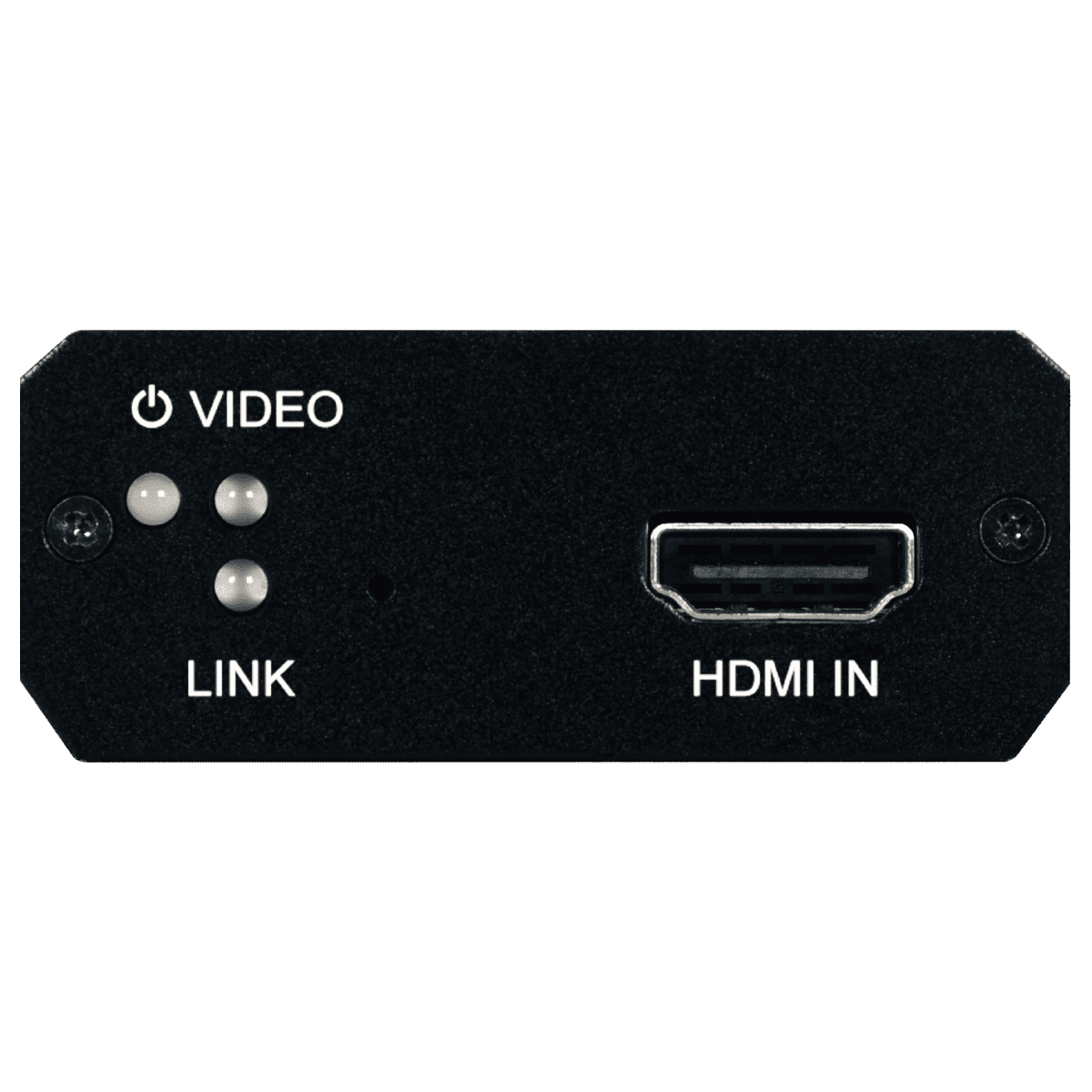

This transmitter is designed for high-quality, IP routable, AV extension up to 4K@60 4:4:4 with minimum latency. The use of 10-Gigabit Ethernet ports and Cat.6A or better cable allows for point-to-point transmission of the video signal up to 100m. Advanced HDMI content such as HDR (High Dynamic Range), 10-bit color and multi-channel HD Bitstream audio can be transmitted in pass-through mode. The small and compact size design enhances the flexibility of installation.

When combined with the optional IP Master Controller or control software, the functionality of the transmitter expands exponentially. Multiple transmitters and receivers may be combined with one or more 10-Gigabit Ethernet switches and the units can be used together to form a distributed video matrix, a multiviewer system, or a video wall system adding to their flexibility in large event installations. The unit can be powered directly via PoE when connected through Cat.6A to a 10-Gigabit Ethernet switch that supports PoE (802.3af), allowing for great installation flexibility. Advanced control such as firmware update can also be performed conveniently through the optional IP Master Controller or control software.
