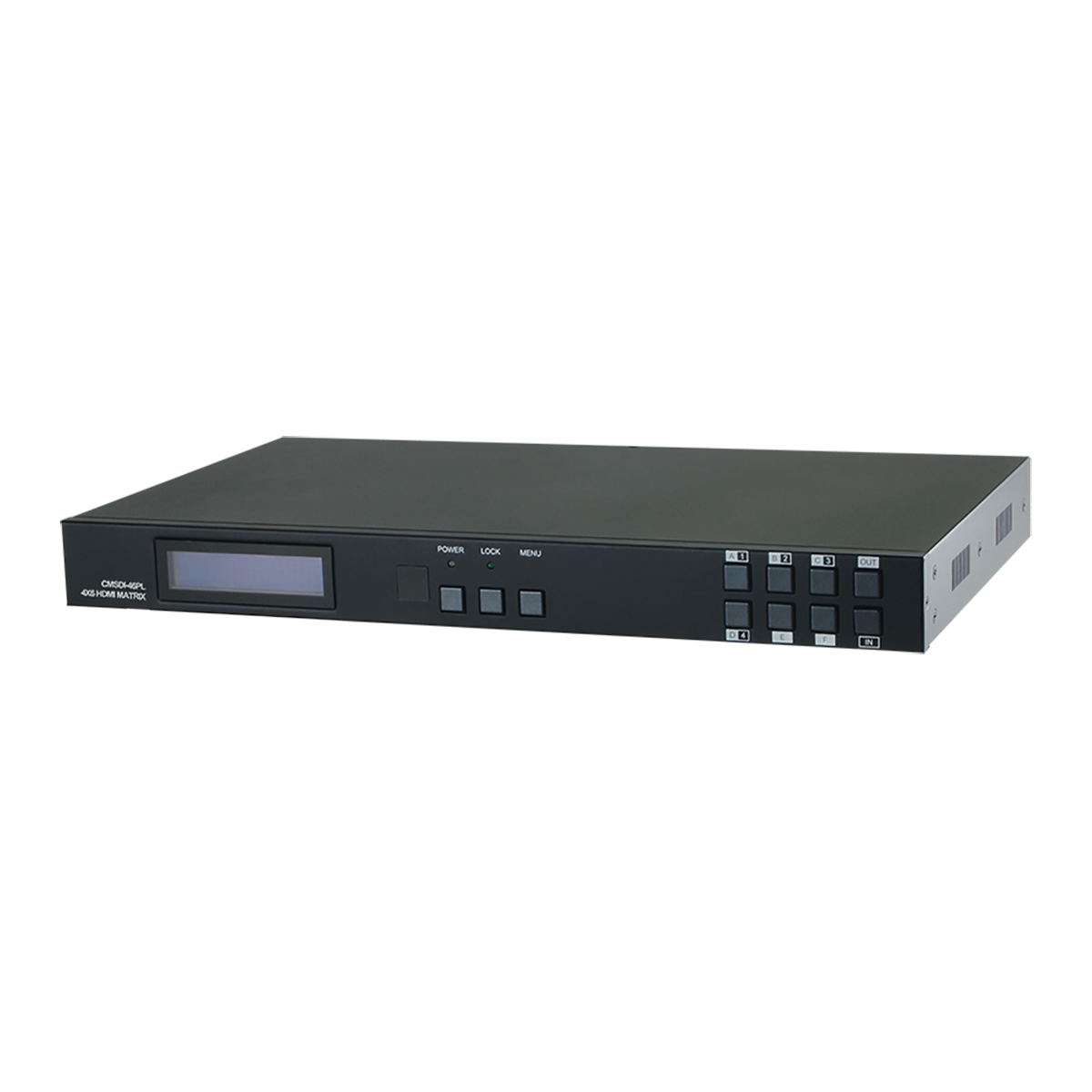

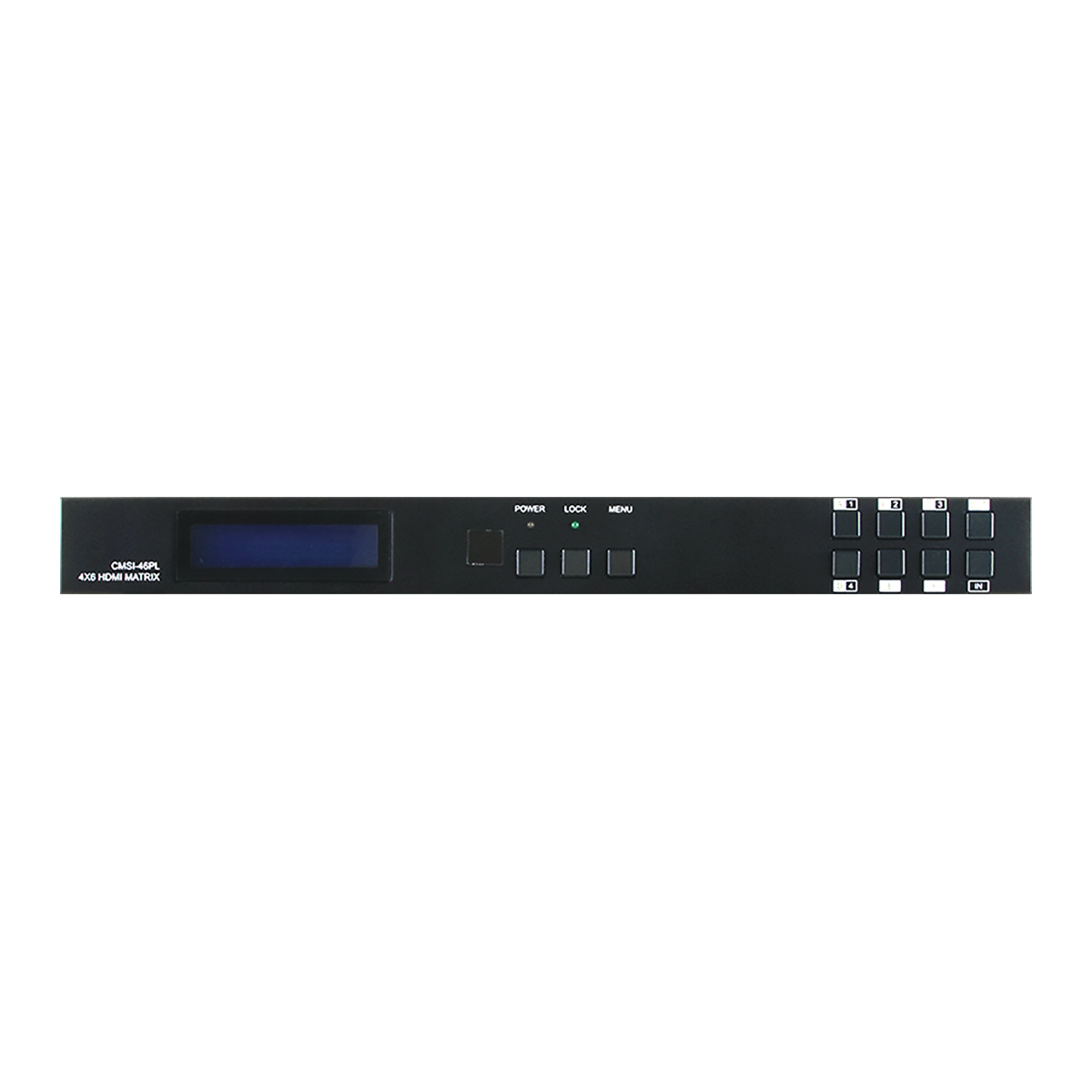

CMSI-46PL

4 by 6 Matrix

Supports resolutions VGA to WUXGA and 480i to 1080p dependent upon the output display’s EDID settings
Supports distances up to 70 meters through CAT6/7 cables and 60m for CAT5e
Supports 3D signal display dependent upon the output display’s EDID settings
Supports bidirectional IR from input and output locations
Supports external and internal EDID settings
Supports LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio Transmission
Supports PoC (Power over Cable) on compatible receiver only

The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document. Cypress also makes no commitment to update or to keep current the information contained in this document. Cypress Technology reserves the right to make improvements to this document and/or product at any time and without notice.

Video Bandwidth	225MHz/6.75Gbps

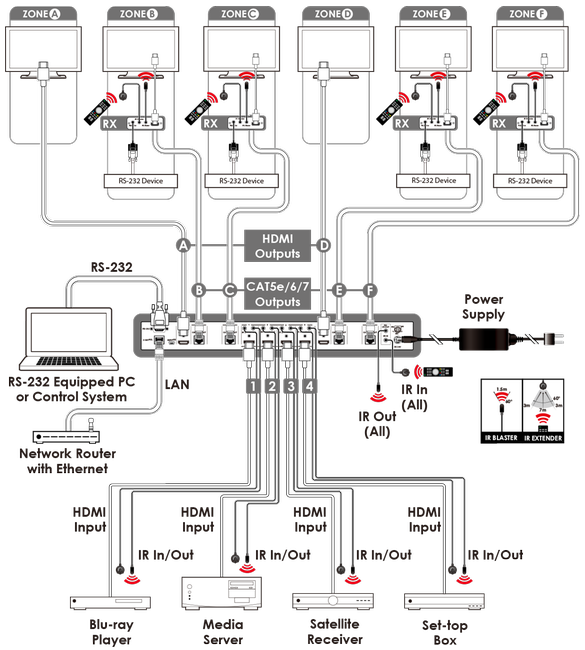

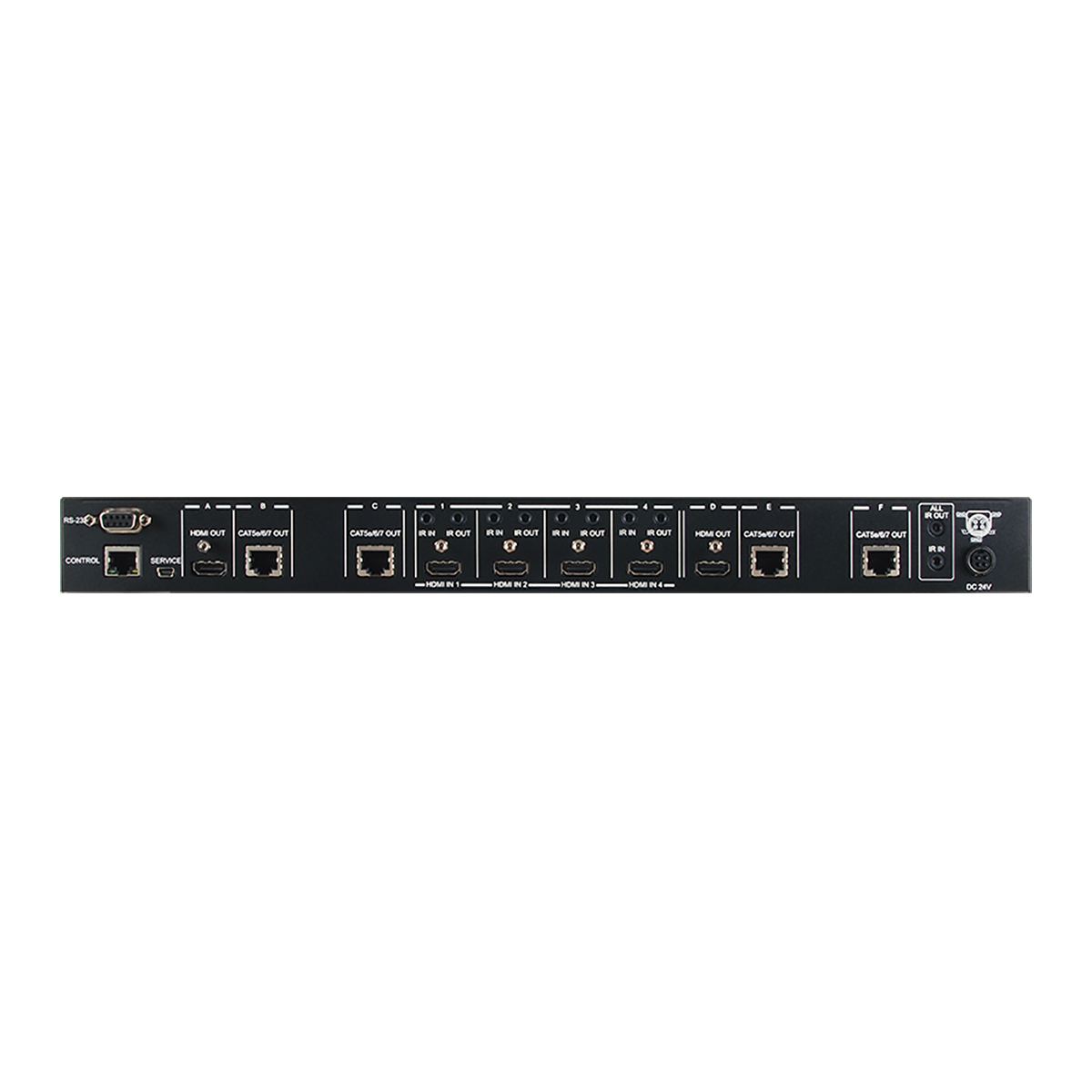

Input Ports	4 x HDMI, 5 x IR Extender, 1 x RS-232, 1 x LAN (Control only), 1 x RJ45 (Control Only), 1 x USB Mini-B (Service Only)
Output Ports	2 x HDMI, 4 x CAT5e/6/7, 5 x IR Blaster
Power Supply	24V / 3.75A DC (US/EU standards, CE/ FCC/UL certified)
ESD Protection	Human Body model:
	± 8kV (air-gap discharge)
	± 4kV (contact discharge)
Dimensions (mm)	436(W) x 249(D) x 44(H)/Jacks Excluded 436(W) x 255(D) x 48(H)/Jacks Included
Weight(g)	3334
Chassis Material	Metal
Silkscreen Color	Black
Operating Temperature	0˚C~40˚C / 32˚F ~ 104˚F
Storage temperature	-20˚C~60˚C / -4˚F ~ 140˚F
Relative Humidity	20~90% RH (no condensation)
Power Consumption (W)	40W

Product Support
Upload Date	File Name	Version	OS	Description	Download
2021/07/09	CMSI-46PL_DL-Manual_v1.10	1	all	CMSI-46PL_DL-Manual_v1.10
