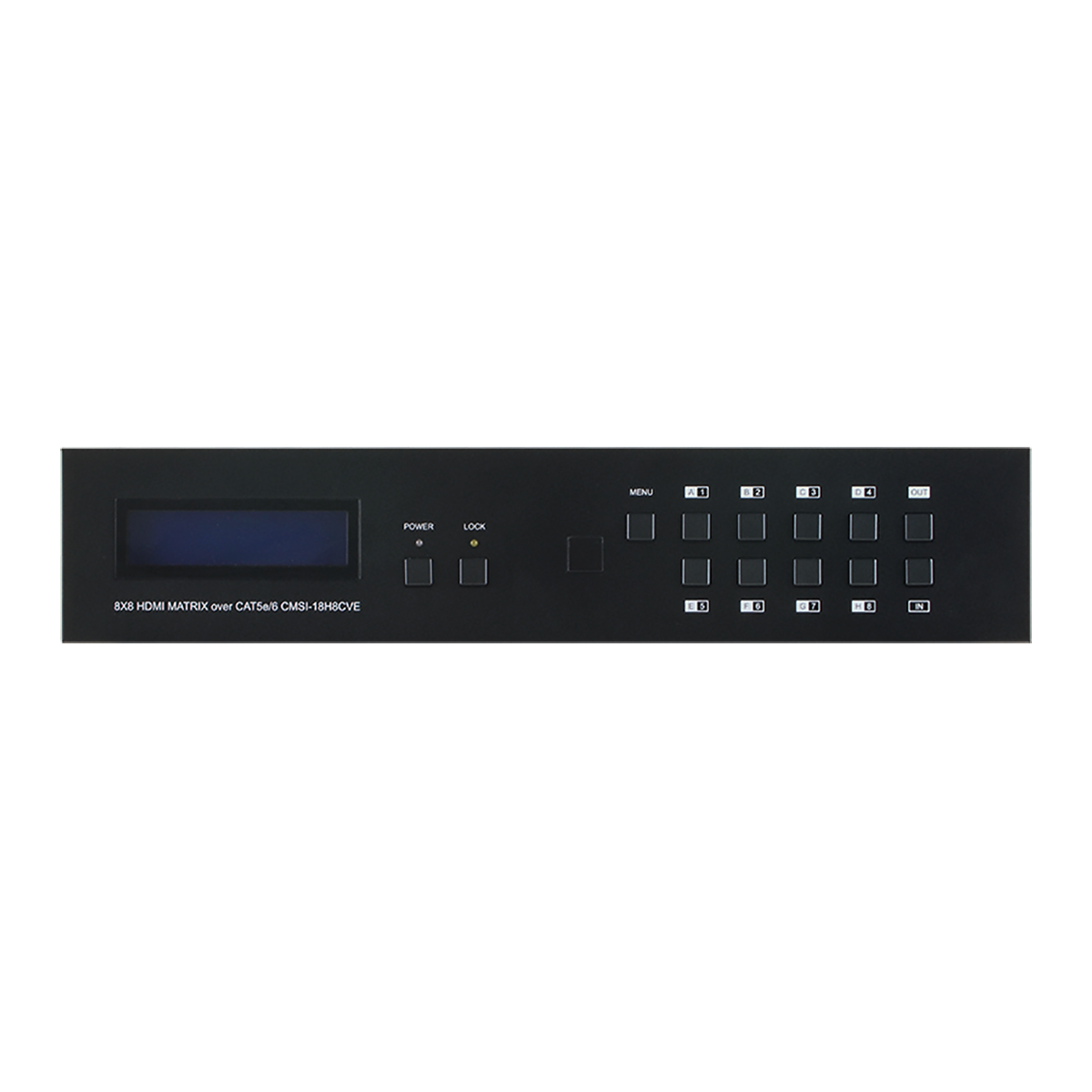

CMSI-8H8CVE
HDBaseT™ 8×8 HDMI over CAT5e/6/7 Matrix with 48V PoH and LAN Serving
- HDMI, HDCP 1.1 and DVI compliant
- Supports HDMI 3D features for compatible sources and displays
- Supports PC resolutions of VGA to WUXGA and HDTV resolutions of 480i to 1080p dependent upon the output display’s resolution capabilities
- Supports distances of up to 100m for industry standard CAT5e/6/7 cables
- Supports PoE (Power over Ethernet) on compatible receivers only
- Supports HDMI input up to 15 meters at 8-bit resolution or 10 meters at 12-bit resolution
- Supports bi-directional IR passthrough from the source and display locations
- Supports control of the matrix via RS-232, IR remote control, onpanel buttons and IP Control (Telnet & WebGUI)
- Supports LAN serving to all compatible HDBaseT Receiverst
- 2U size design
- Supports selection of Standard (Fixed) or TV (Downstream) EDID settings
- Supports pass-through of high-definition Audio: LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio transmission
Note:
1. The PoE function is designed for powering compatible receiver units only—non-PoE receivers will need their own power supply. Receivers of another brand may not be compatible.
2. Do not connect the LAN port to CAT outputs of this device or to CAT inputs or receiver. Doing so may damage the unit.
