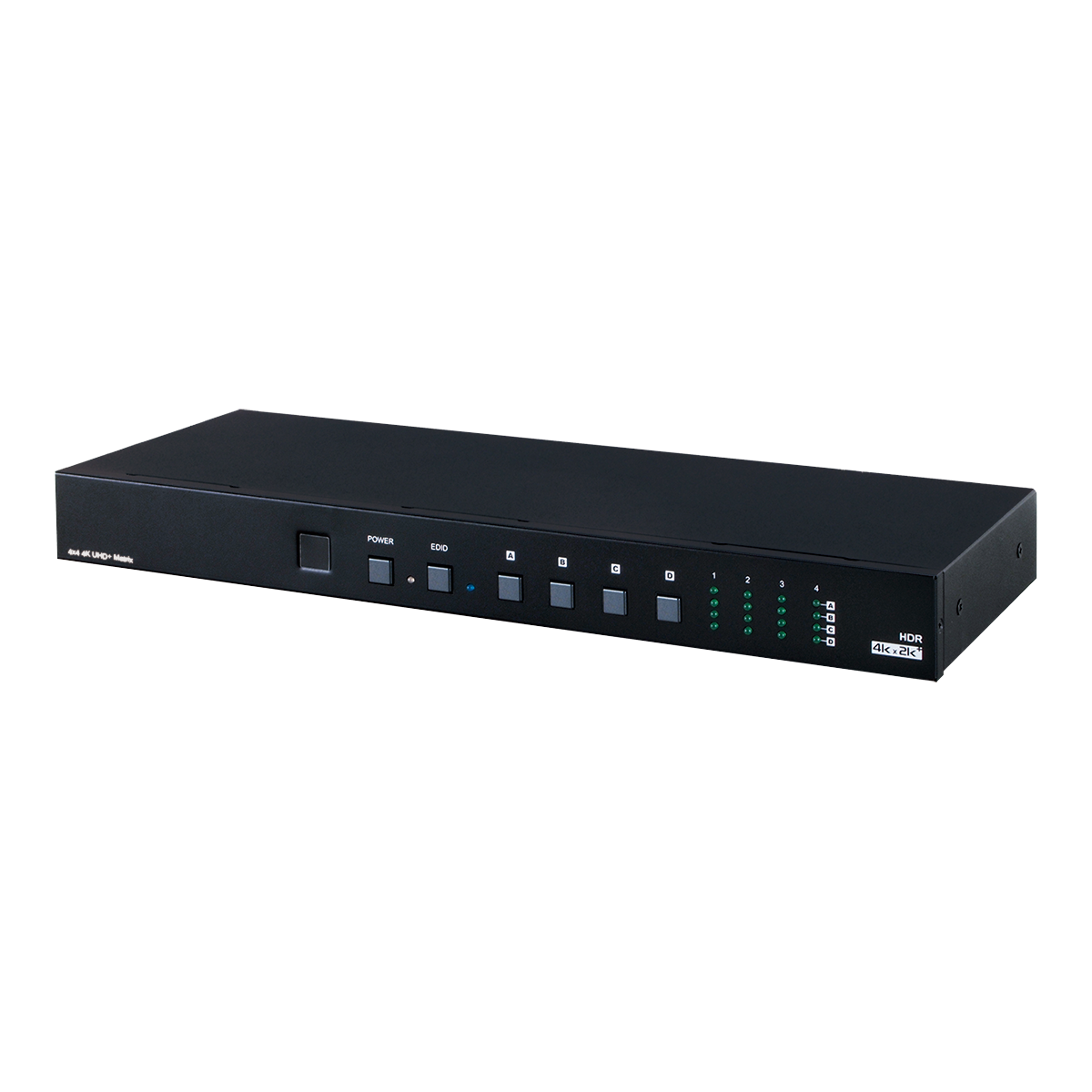

This 4x4 4K UHD Matrix provides a high level of audio and video
performance with support for resolutions up to 4K@60Hz (YUV 4:4:4, 8-bit),
HDR (High Dynamic Range), and pass-through support of digital audio
formats including LPCM 7.1 (with sampling rates up to 192kHz), bitstream,
and HD bitstream. The 4 HDMI inputs and 4 HDMI outputs support fully
matrixed switching. A sophisticated WebGUI interface supports storing and
recalling up to four routing presets, making remote control and configuration
of the unit a breeze. Built in EDID management support allows the user
select from multiple built in EDIDs as well as to upload custom EDID files

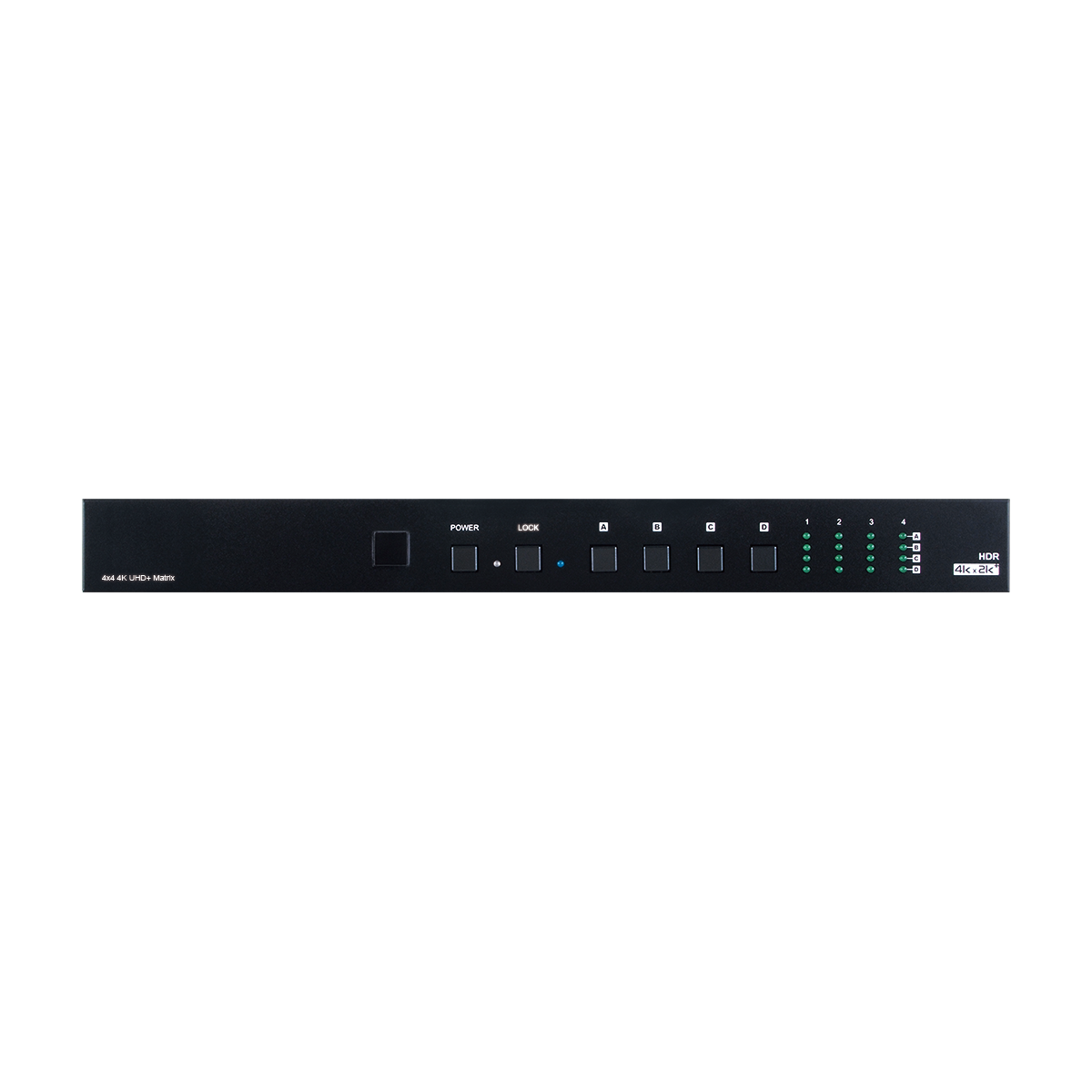

and download the EDID from connected displays. Control is provided via
front panel buttons, IR remote, WebGUI, RS-232, and telnet.
|
Video Bandwidth
|
600MHz/18Gbps |

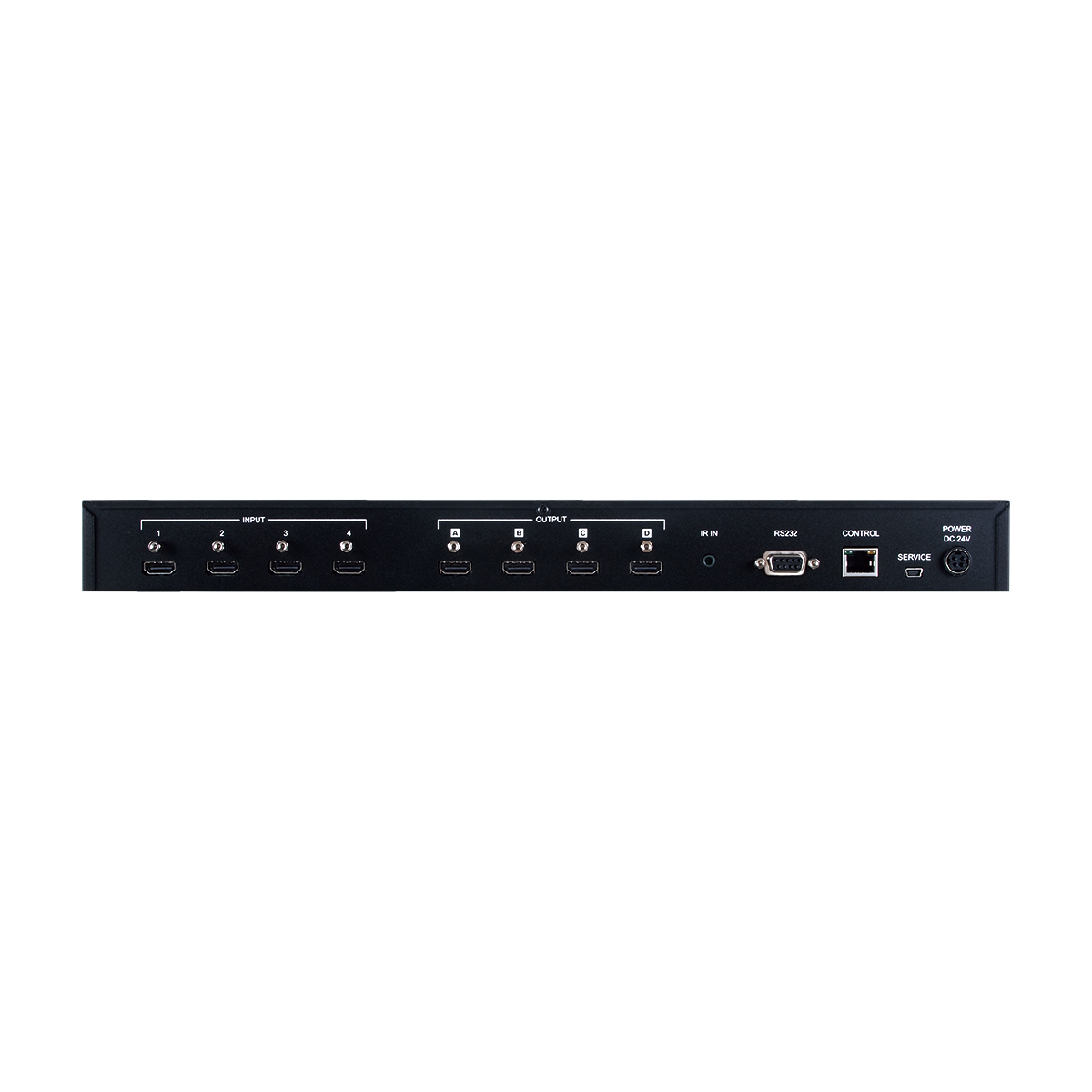

| Input Ports |
4x HDMI [4x Uncompressed AV and Data]
1x 3.5mm [1x Infrared Receiver]
1x DE-9 [1x RS-232 Data]
1x RJ-45 [1x IP Control]
1x USB Mini-B [1x SERVICE Propriety Data]
|
| Output Ports |
4x HDMI [4x Uncompressed AV and Data]
|
| Supported Resolutions |
480i~1080p@24/50/60Hz
4K up to 4096x2160@60Hz (YUV 4:4:4, 8-bit)
VGA~WUXGA
|
| IR Frequency |
30-50kHz
|
| Baud Rate |
115200 bps
|
| Power Supply |
24VDC/2.7A (US/EU standards, CE/FCC/ UL
certified)
|
| ESD Protection |
Human body model:
±8 kV (air-gap discharge)
±4 kV (contact discharge)
|
| Dimensions |
436 mm x 44 mm x 160mm (W×H×D) [Case Only]
436 mm x 48 mm x 167.5mm(W×H×D) [All Inclusive]
|
| Weight |
2068g
|
| Chassis Material |
Metal
|
| Color |
Black
|
| Operating Temperature |
0˚C~40˚C/32˚F~104˚F
|
|
Storage Temperature
|
−20˚C~60˚C/−4˚F~140˚F |
|
Relative Humidity
|
20~90% RH (non-condensing) |
|
Power Consumption
|
21W |
